Crown (Middleby) SCX-2-6 Steam Kettles
Description

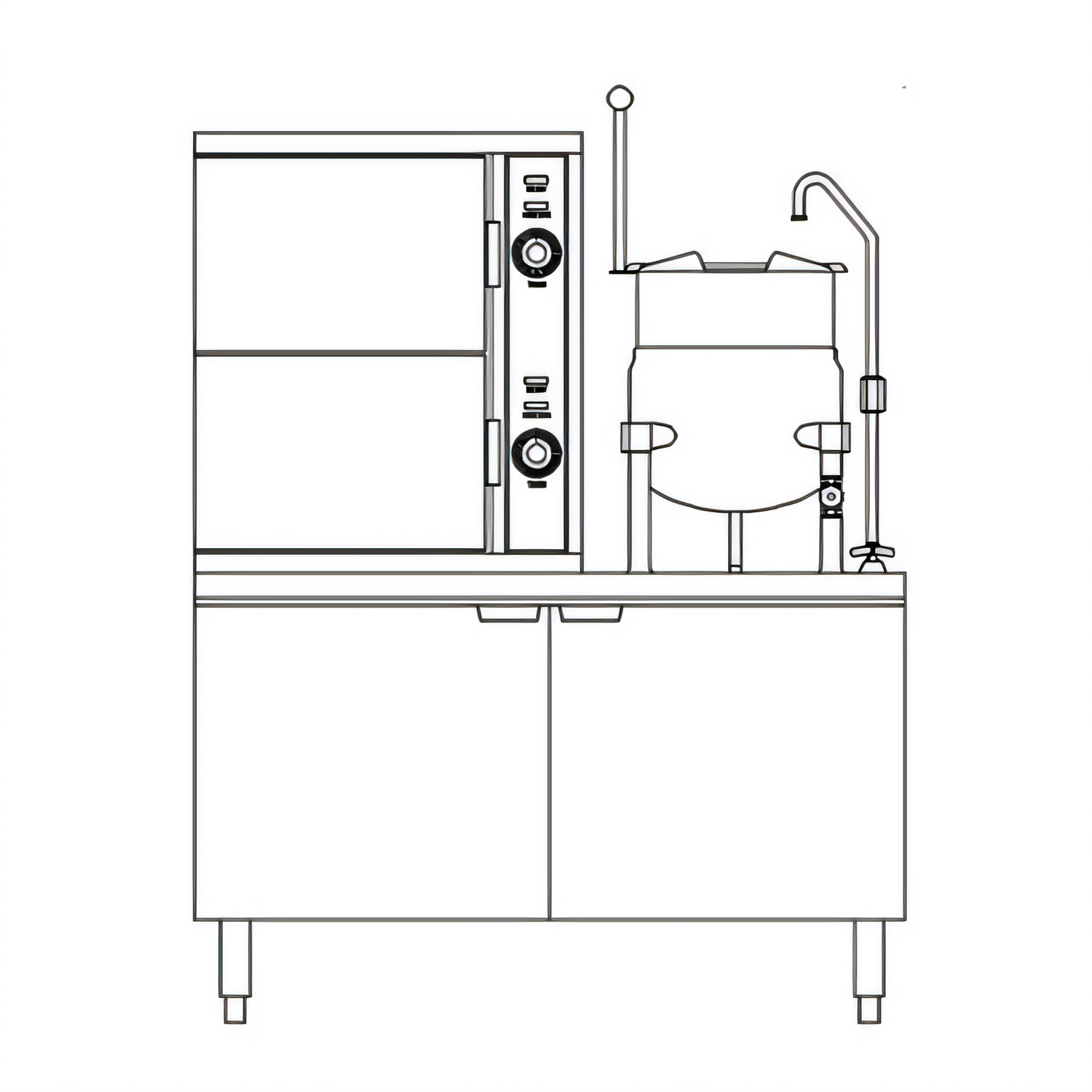

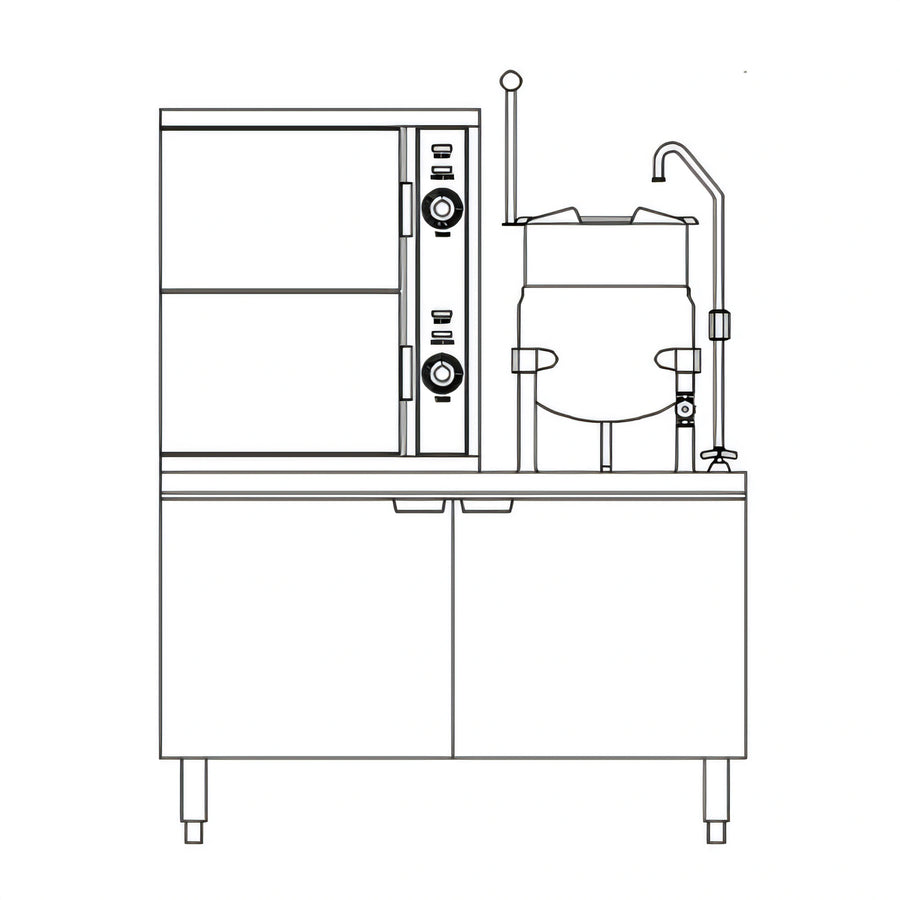

Crown SCX-2-6 Two-Compartment Convection Steamer + 6 Gal Kettle

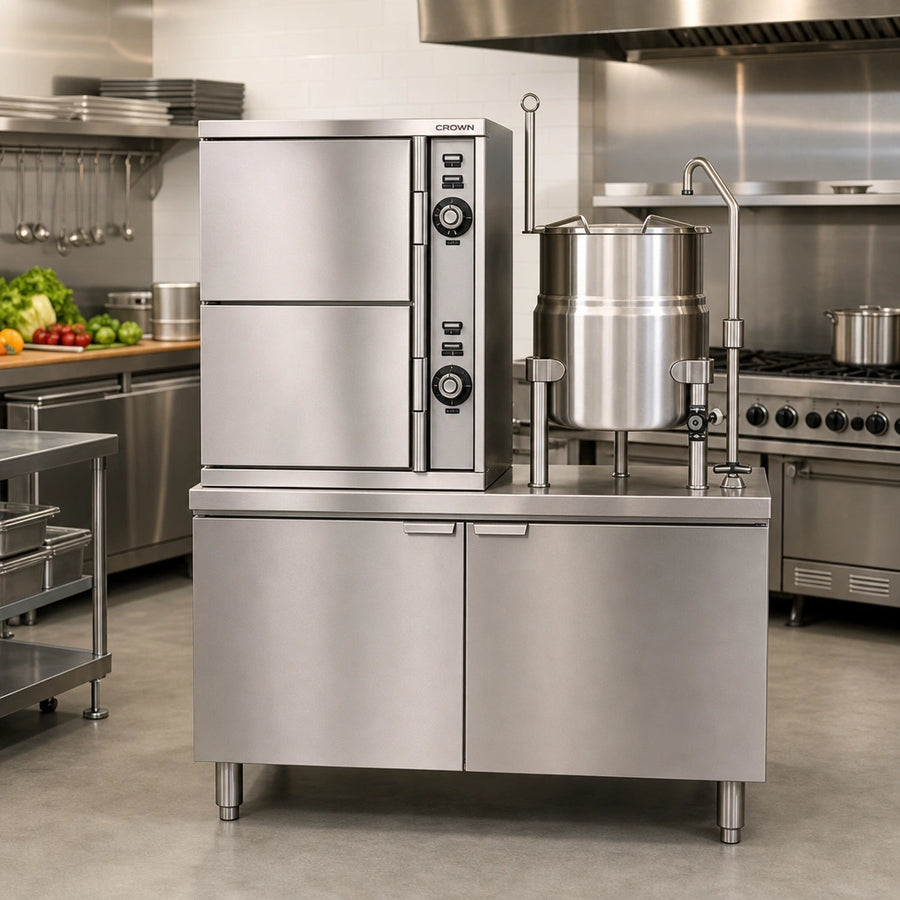

Steam-coil boiler base • 3 × 12" × 20" pans per compartment • 44" cabinetCombine high-capacity steaming with a space-saving kettle — all in one rugged, 44-inch floor model. The Crown SCX-2-6 delivers rapid, even convection steam in two independent compartments while a 6-gallon steam-coil kettle handles soups, sauces and signature reductions below.
Key performance advantages
- Steam-coil heated boiler recovers fast at 9 – 11 psi using 25 – 45 psi house steam (200 lb / hr).

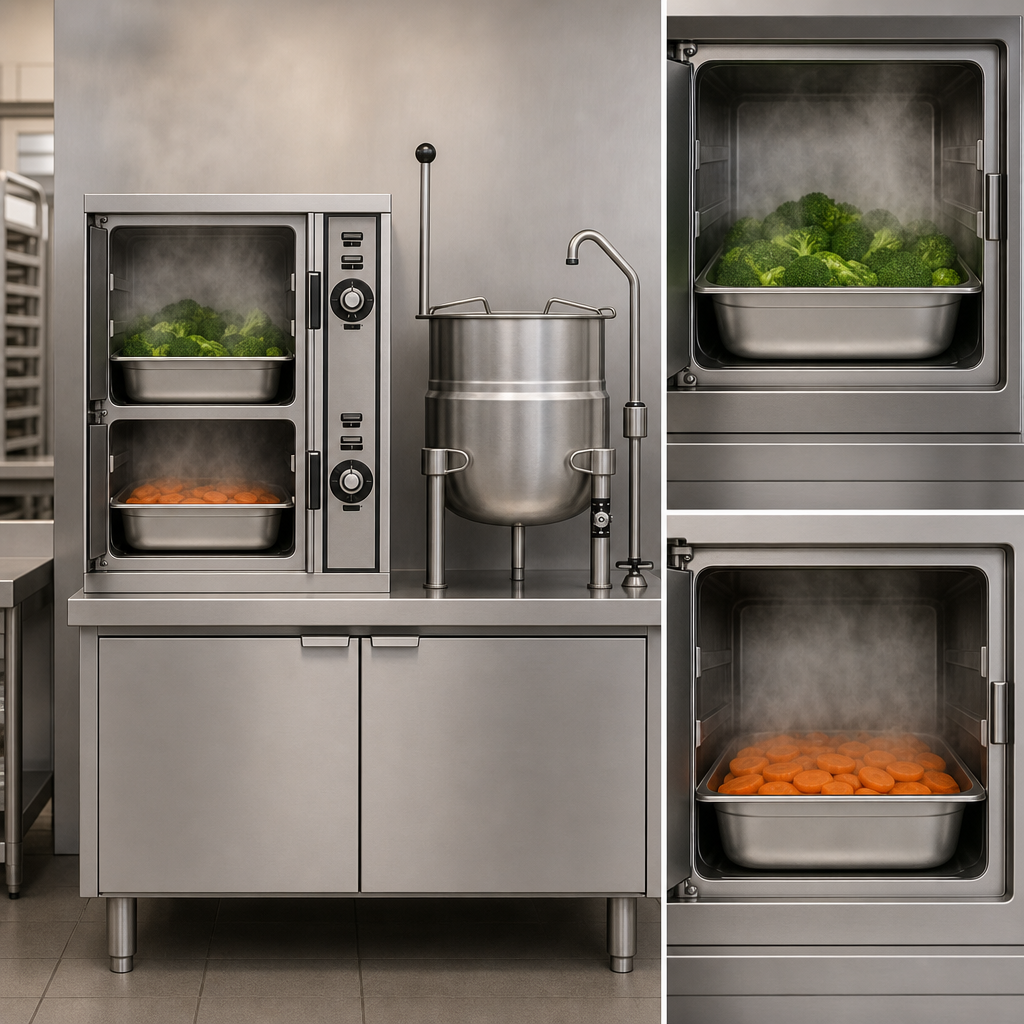

- Two separate chambers — each with ready light, cooking light and 60-minute timer.
- Holds 3 full-size (12" × 20") pans per compartment for a total of 6 pans.

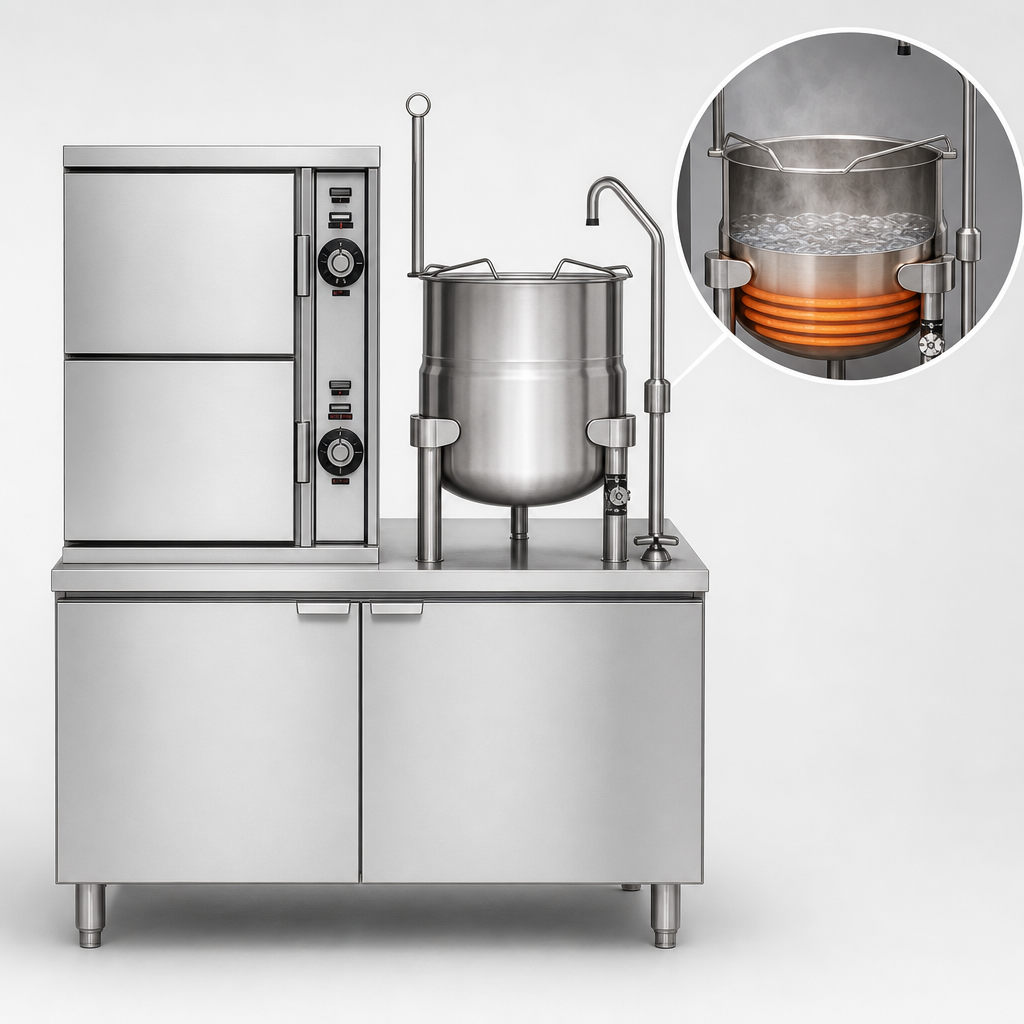

- Integrated 6 gal kettle with steam coil lets you cook and hold simultaneously.
- Automatic blowdown, split water line & factory water treatment system reduce scale and maintenance.
- Deck-mount faucet valve, swing nozzle & built-in sink speed up filling, rinsing and clean-up.
- Removable 316-SS pan supports and drip trough make wash-down quick and easy.
- Full safety suite: auto water-level control, pressure gauge & glass, operating & high-limit pressure controls, safety relief valve and CSD-1 package.
- 304 stainless steel exterior, heavy-duty 6" legs with adjustable flanged feet for secure floor mounting.
- ASME code-stamped boiler, NSF & cCSAus listed for worry-free compliance.
Technical specifications
| Model | SCX-2-6 |
|---|---|
| Compartments | 2 independent convection steam chambers |
| Pan capacity | 3 × 12" × 20" × 2½" pans per compartment (6 total) |
| Kettle capacity | 6 gal (22.7 L) steam-coil heated |
| Cabinet base width | 44" (1118 mm) |
| Overall height | 55.5" (1410 mm) to steamer top / 62.1" (1578 mm) max |
| Operating pressure | 9 – 11 psi (62 – 76 kPa) |
| Steam supply required | 25 – 45 psi (170 – 310 kPa) @ 200 lb / hr |
| Electrical | 115 VAC, 1-Phase, 60 Hz — 2 A per compartment (controls only) |
| Water connections | ½" NPT boiler feed • ⅜" OD hot & cold to faucet • 2" IPS drain |
| Shipping weight | Approx. 700 lb (318 kg) |
| Certifications | ASME, NSF, cCSAus |
What’s in the box
- Factory-installed water treatment system
- Automatic blowdown & split water line
- Deck-mount faucet with swing spout and integral sink
- Removable pan racks (stainless steel)
- 6" stainless legs with adjustable flanged feet
- Operator manual & 1-year parts-and-labor warranty
To maintain peak performance and warranty coverage, incoming water must meet Crown Steam Group guidelines: < 60 ppm total dissolved solids, < 1.5 ppm chlorine, pH 6.8 – 7.3.
