Crown (Middleby) SCX-2-6-6 Steam Kettles
Description
Crown SCX-2-6-6 Two-Compartment Convection Steamer & Kettle
Steam-coil powered • dual 6 gal kettles • 60 in / 1524 mm cabinet baseBoost production, slash cook times and free up your range with the Crown SCX-2-6-6. This self-contained station pairs a pressureless convection steamer (two independent compartments) with two 6-gallon steam-jacketed kettles—giving you the versatility to batch-cook vegetables, proteins, sauces and soups all at once from a single, space-saving footprint.
Key performance advantages
- Steam-coil boiler delivers 9 – 11 psi operating pressure for fast, even cooking

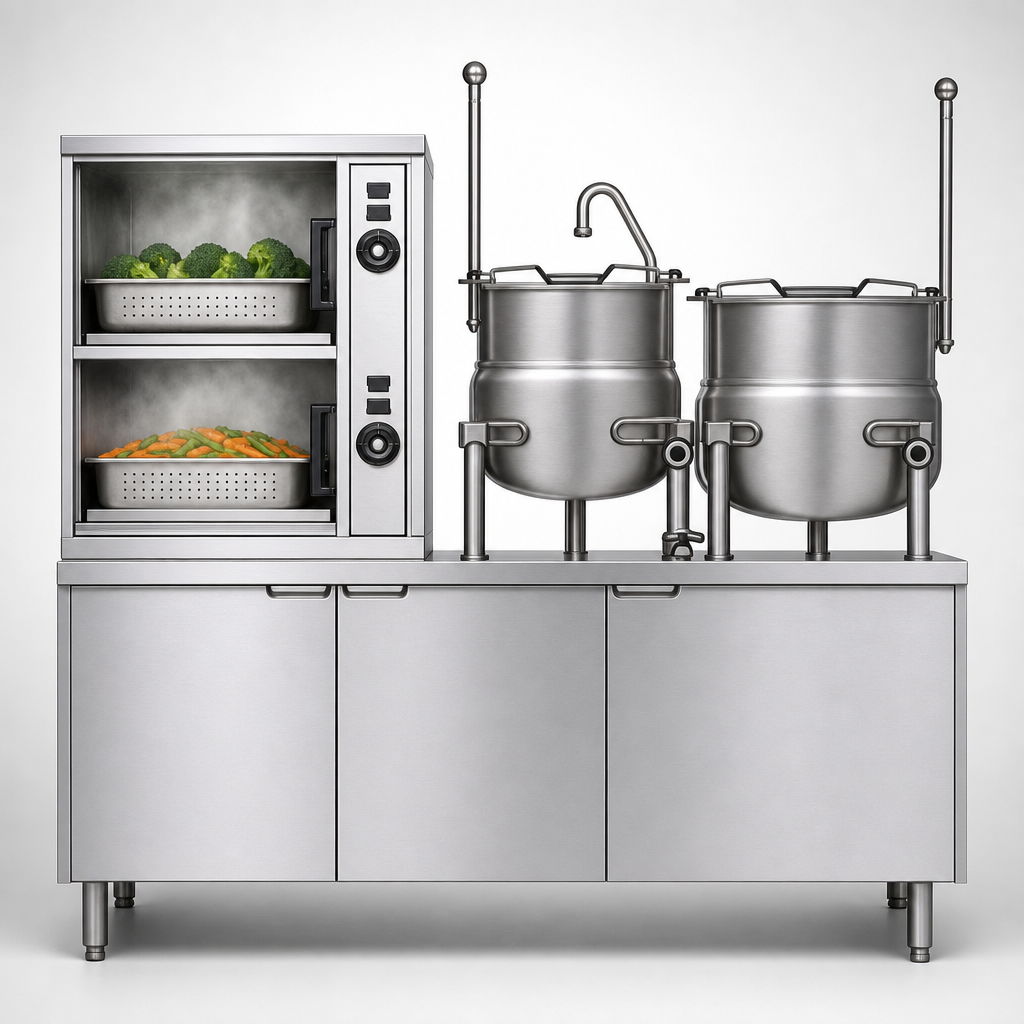

- (3) 12" x 20" hotel pan capacity per compartment (6 pans total)
- Independent 60-minute timer, ready & cook lights and end-of-cycle buzzer for each compartment
- Steam automatically shuts off when a door opens—no scorching, no wasted energy
- Removable stainless pan supports & drip trough for quick clean-ups

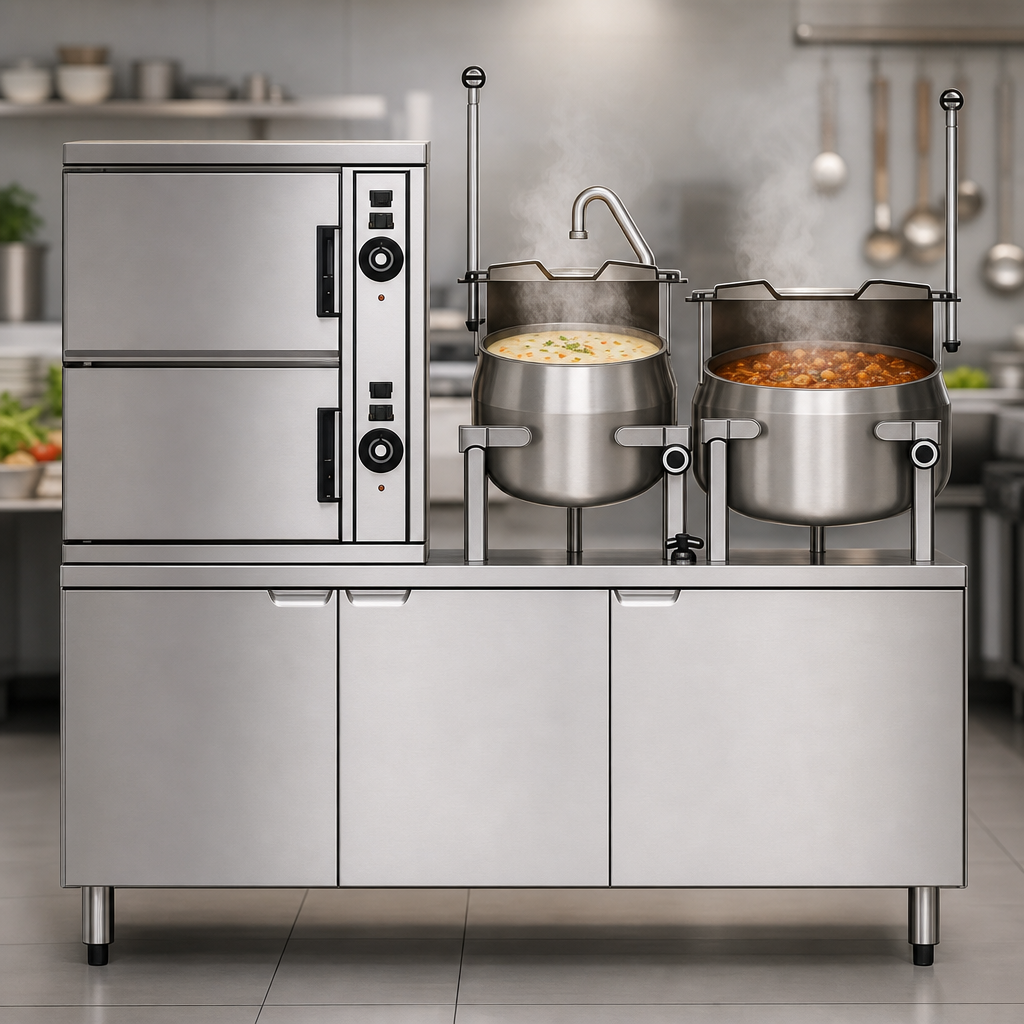

- Dual 6-gal tilting kettles with steam coils—perfect for stocks, sauces & small-batch soups
- Integrated sink, deck-mount faucet valve & swing nozzle for easy filling and rinsing
- Factory-installed water treatment system, split water line & automatic boiler blowdown to minimize scale
- CSD-1 compliant safety package: automatic water-level control, pressure & high-limit controls, gauge glass and ASME relief valve
- Full 304 stainless exterior, one-piece 316 stainless cooking chambers—built for heavy commercial use
- 6" stainless legs with adjustable flanged feet for bolting to the floor
- cCSAus & NSF listed; ASME code-stamped boiler
At-a-glance specifications
| Model | SCX-2-6-6 |
|---|---|
| Compartments / Kettles | 2 pressureless steam compartments | (2) 6 gal steam-jacketed kettles |
| Pan capacity | 3 full-size 12" x 20" pans per compartment (6 total) |
| Boiler type | Steam-coil heated; 200 lb/hr flow @ 25-45 psi incoming steam |
| Operating pressure | 9 – 11 psi (62 – 76 kPa) |
| Electrical | 115 VAC, 1-Ph, 60 Hz, 2 A per compartment (220 VAC 50 Hz optional) |
| Utility connections | Steam ¾" IPS • Cold/Hot water ⅜" NPT • Drain 2" IPS • Sink drain 1 ⅛" OD |
| Footprint (W × D × H) | 60" × 35" × 59.5" (1524 × 889 × 1511 mm) |
| Shipping weight | Approx. 930 lb (421 kg) |
| Certifications | NSF, cCSAus, ASME-coded & National Board registered |
What’s included
- Factory-installed water treatment cartridges
- Automatic blowdown & split water line
- Deck-mount faucet, swing nozzle & integral sink
- Comprehensive CSD-1 safety control package
- One-year parts & labor warranty (10-year kettle hemisphere warranty)
This unit is intended for commercial use only and must be installed in accordance with local codes. For full installation details download the latest manual at crownsteamgroup.com.
