Crown (Middleby)  |  SKU: SCX-2-6-10

Crown (Middleby) SCX-2-6-10 Steam Kettles

$80,021.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Crown steam group letter Parts list Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

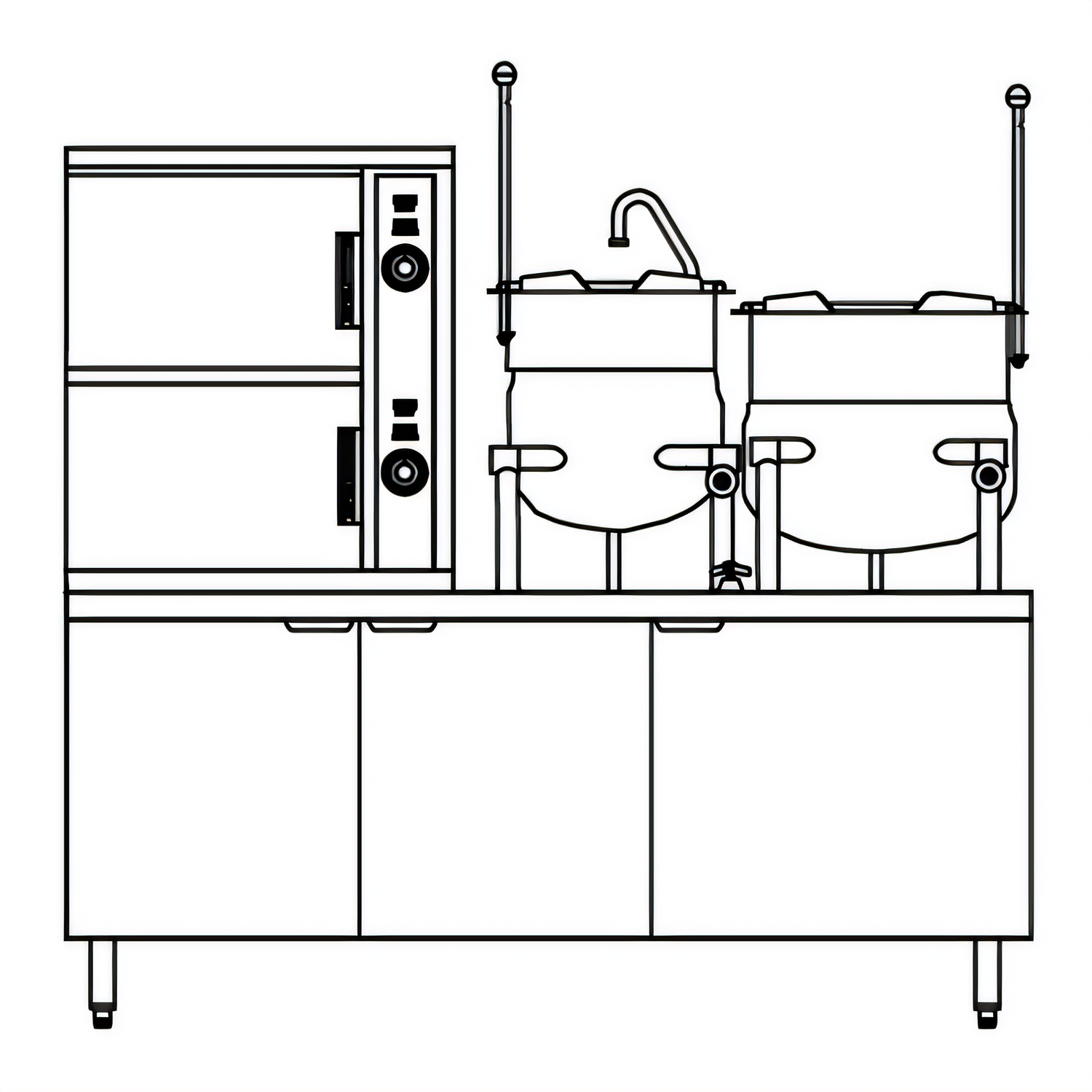

SCX-2-6-10 Two-Compartment Convection Steamer / Kettle

Steam-coil boiler base • 6 gal & 10 gal kettles • 60 in. cabinet

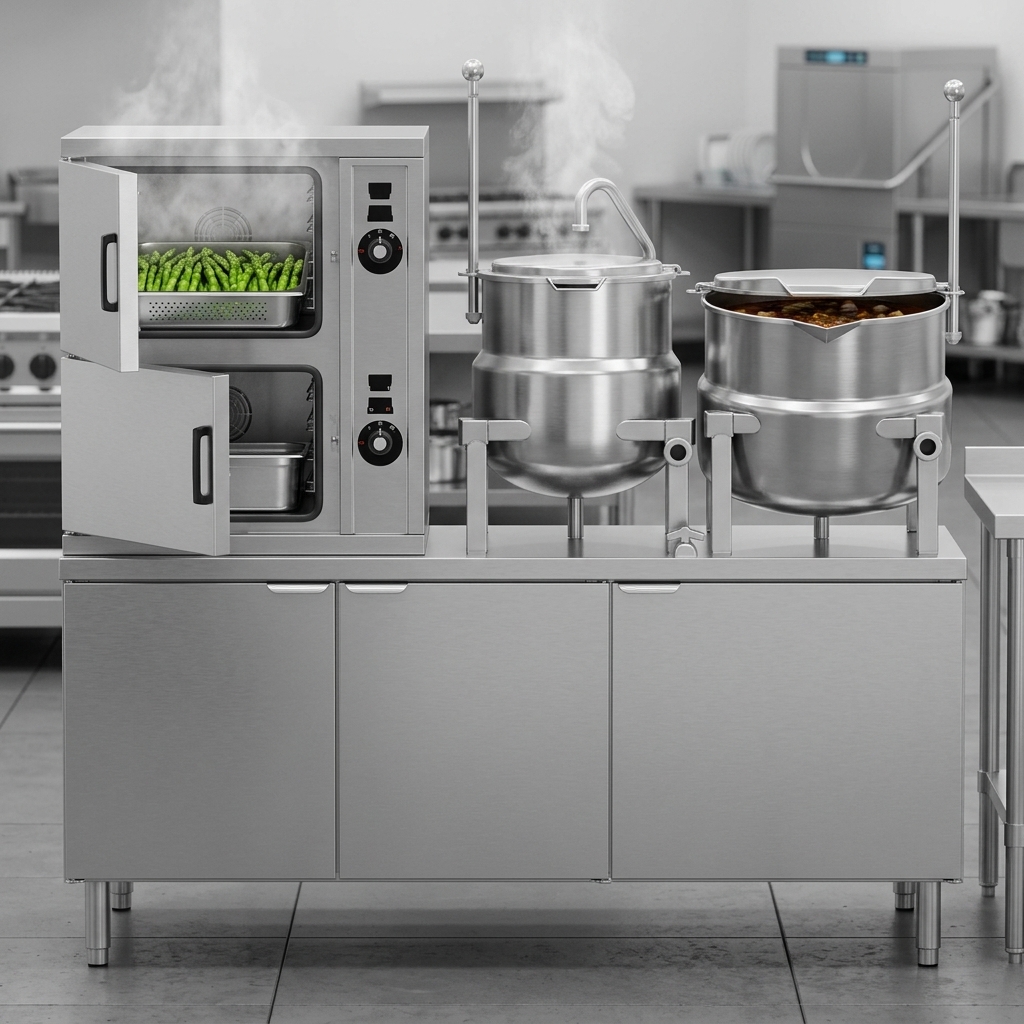

Built for high-volume kitchens that refuse to compromise on versatility, the Crown SCX-2-6-10 combines a powerful twin-compartment steamer with two jacketed kettles—all in one 60 inch footprint. From small-batch sauces in the 6 gallon kettle to stocks or soups in the 10 gallon kettle, you can steam, braise and boil simultaneously, keeping production moving and labor costs down.

Performance & Construction Highlights
  • Steam-coil heated boiler operates at 9–11 psi (62–76 kPa) for rapid, even cooking

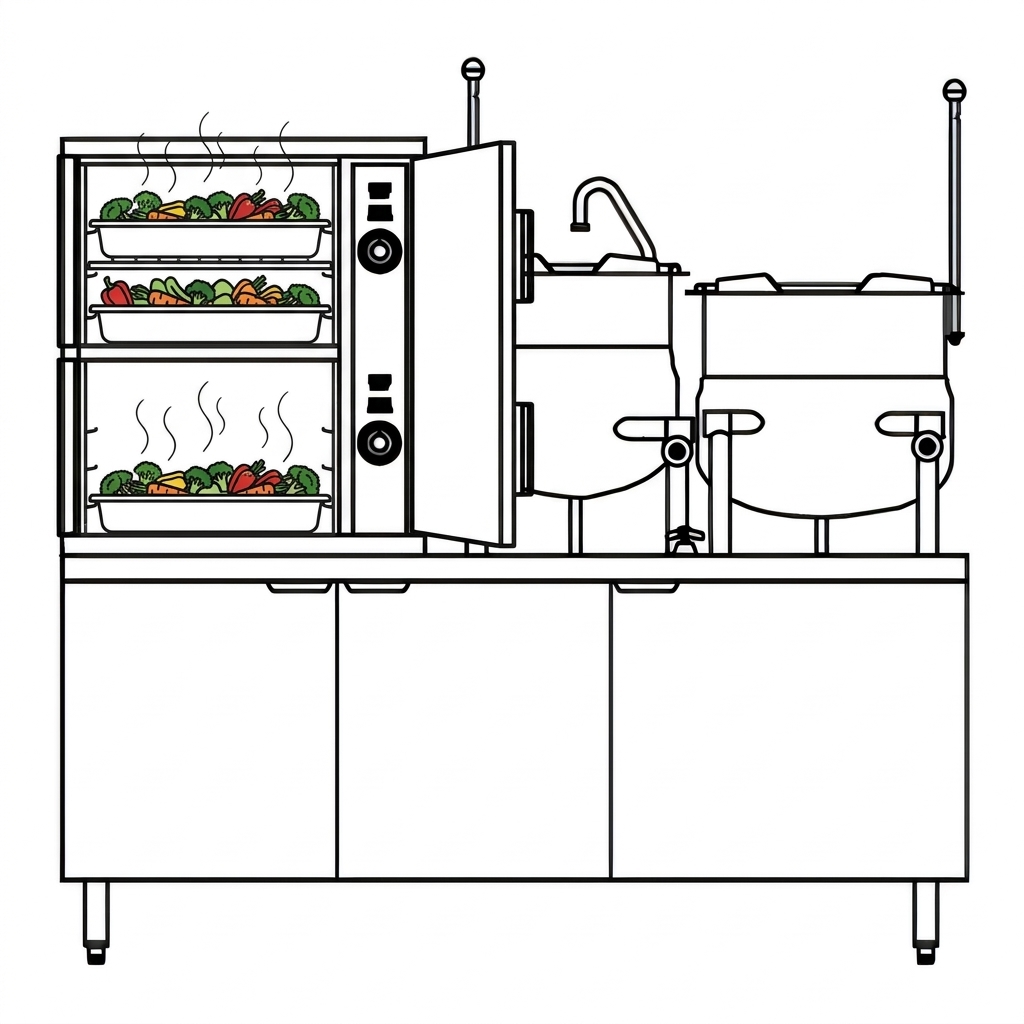

  • (2) independent cooking compartments, each holding three 12 × 20 hotel pans (2.5 in. deep)

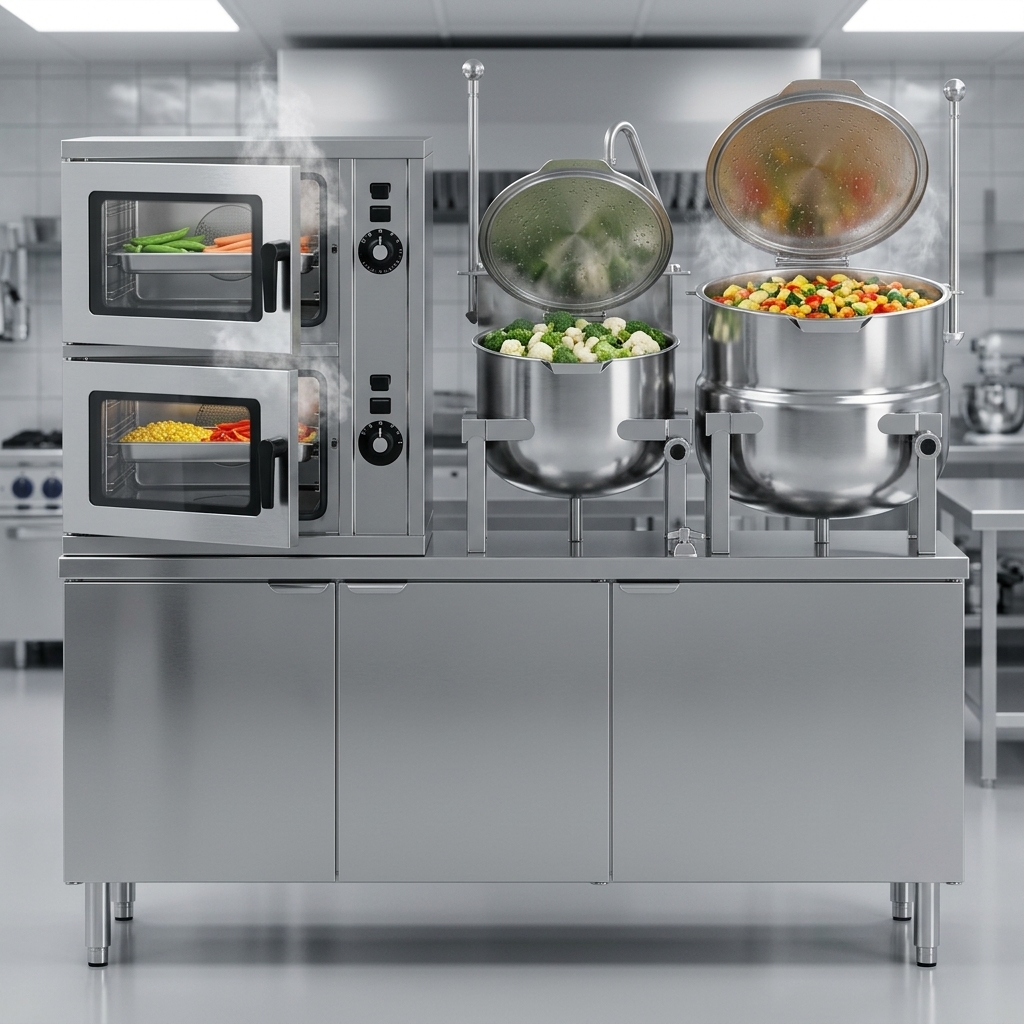

  • (1) 6 gal and (1) 10 gal 2⁄3-jacket kettles—ideal for side dishes, sauces and bulk recipes
  • 60-minute mechanical timer with audible buzzer and “ready/cooking” indicator lights per compartment
  • Automatic water level control, pressure gauge & glass sight tube for instant status checks
  • High-limit pressure control, safety relief valve & full CSD-1 code package for peace of mind
  • Integral water treatment system, split water line & automatic blow-down prolong boiler life
  • Deck-mount faucet valve with swing nozzle plus built-in hand sink simplifies filling & cleanup
  • Removable stainless pan supports and a drip trough keep doors drip-free when opened
  • 304 SS exterior; one-piece 316 SS chamber & kettle liners withstand heavy commercial use
  • 6 in. stainless legs with adjustable flanged feet for secure floor mounting
  • ASME-stamped, National Board registered; cCSAus & NSF certified
At-a-Glance Specifications
Model SCX-2-6-10
Compartments 2 pressureless, independent
Pan capacity 3 × 12 × 20 pans (2.5 in. deep) per compartment
Kettle sizes 6 gal (22.7 L) & 10 gal (37.9 L)
Boiler type Steam coil; 200 lb/hr flow @ 25–45 psi incoming
Operating pressure 9–11 psi (62–76 kPa)
Electrical 115 VAC, 1-Ph, 2 A per compartment
Water (cold) 3⁄8 in. NPT, 25–50 psi (170–345 kPa)
Steam inlet 3⁄4 in. IPS, 5–45 psi (34–310 kPa)
Drain 2 in. IPS to open floor drain
Cabinet width 60 in. (1 524 mm)
Shipping weight ≈ 970 lb (439 kg)
Warranty 1 yr parts & labor • 10 yr kettle hemisphere
Why Choose a Steam-Coil System?
  • Uses existing house steam—cuts energy costs versus electric elements or gas burners
  • Fewer moving parts—reduces downtime and maintenance expense
  • Modular cabinet—keeps boiler, controls, steamer and kettles in one easy-service unit
  • Built-in water treatment & automatic blow-down fight scale for longer component life
Water Quality Notice: For optimal performance and warranty compliance, incoming water must not exceed 60 ppm TDS, 20 ppm alkalinity or 1.5 ppm chlorine (pH 6.8 – 7.3). Treat water if necessary.

Intended for commercial use only. Specifications are subject to change without notice.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, cCSAus

Height

62.13in

Width

60.0in

Depth

33.0in

Shipping Weight

970.0lbs

Width (side - side)

60"

Compartments

2

Pan Capacity per Compartment

(3) 12"x20"x2-1/2" deep

Kettle

(1) 6 & (1) 10 gal

Specifications

Convection Steamer/Kettle, steam coil, (2) compartment, (1) 6 gallon & (1) 10 gallon kettles, (3) 12" x 20" pan capacity per compartment, 60" cabinet base, automatic blowdown, 60 minute timer per compartment, removable pan supports & drip trough, deck mount faucet valve, swing nozzle & integral sink, automatic water level control, pressure gauge, water gauge glass, operating pressure control, high limit pressure control & safety relief valve, CSD-1 code package, water treatment system, split water line, 316 stainless steel liner, 304 stainless steel construction, 6" legs, adjustable flanged feet, cCSAus, NSF
