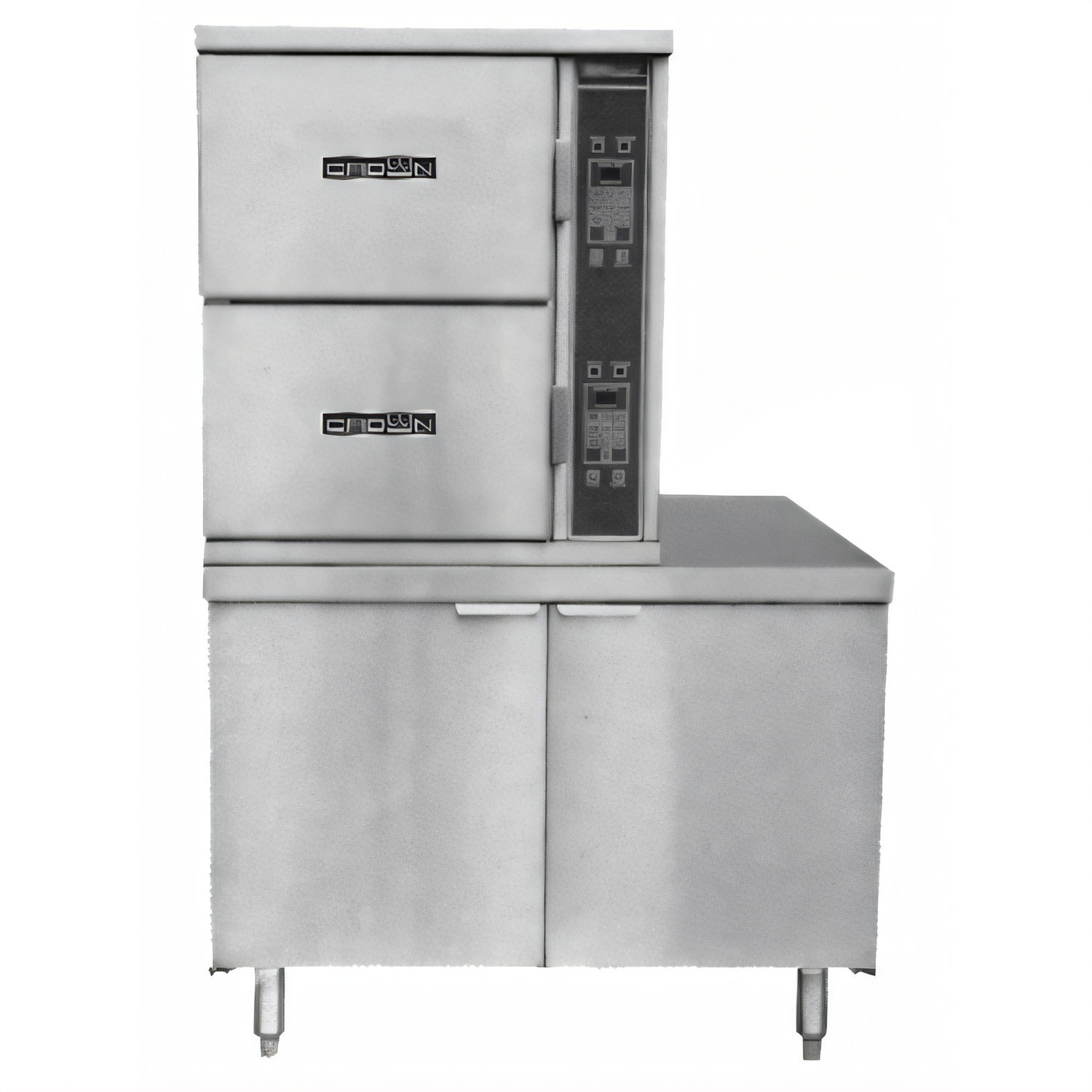

Crown SCX-2-24 Two Compartment Full-Size Steam Coil Convection Steamer with Cabinet Base
Crown SCX-2-24 Two Compartment Full-Size Steam Coil Convection Steamer with Cabinet Base
Floor Model, Steam Coil Heated, 6 Pan Capacity
Experience efficient and high-volume steaming with the Crown SCX-2-24, designed for consistent performance and durability in commercial kitchens.
- Equipped with two independent cooking compartments, each holding three 12" x 20" full-size pans.
- Features a steam coil heated boiler that operates at 9-11 PSI, requiring an incoming steam pressure of 25-45 PSI.
- Constructed with a durable 304 stainless steel exterior and a one-piece, all-welded 316 stainless steel cooking chamber liner.
- Includes independent 60-minute electric timers per compartment and automatic boiler blowdown for ease of use and maintenance.
- Comes standard with an integrated water treatment system and split water line to enhance appliance longevity and steam quality.
- Designed as a floor model with a robust 24-inch cabinet base and 6-inch adjustable stainless steel legs for secure installation.

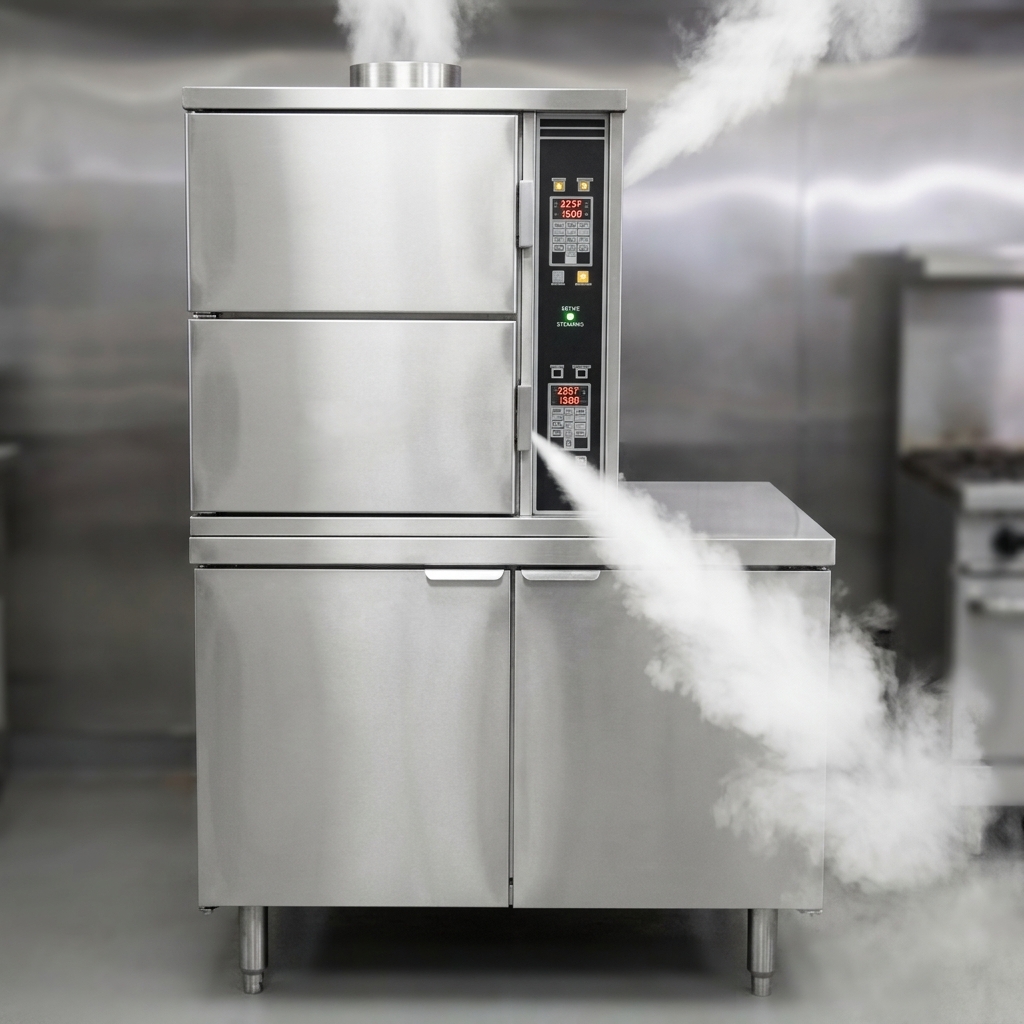

Steam Coil Heated Boiler
Internal boiler is heated by an incoming steam coil, operating at 9-11 PSI for efficient steam generation.

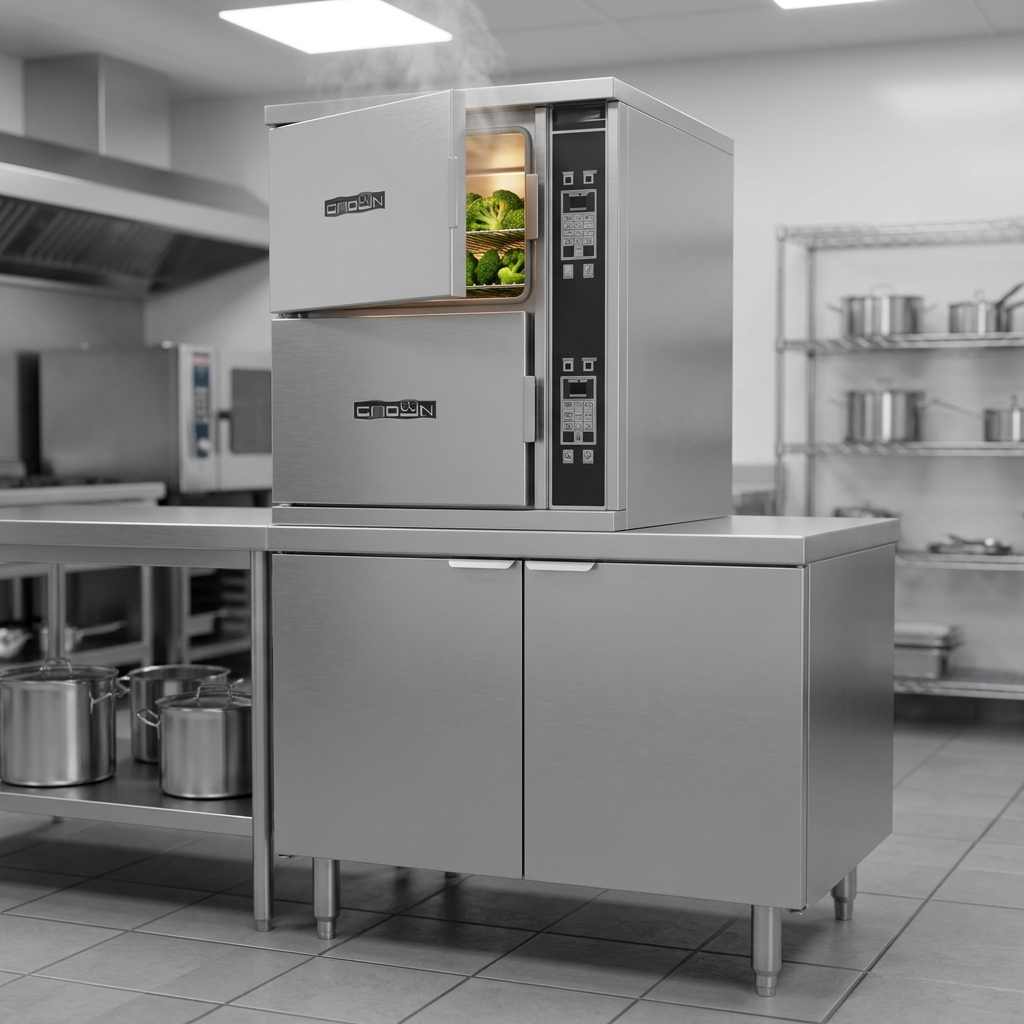

Dual Compartment Design
Two separate cooking compartments allow for simultaneous preparation of different food items or increased capacity.

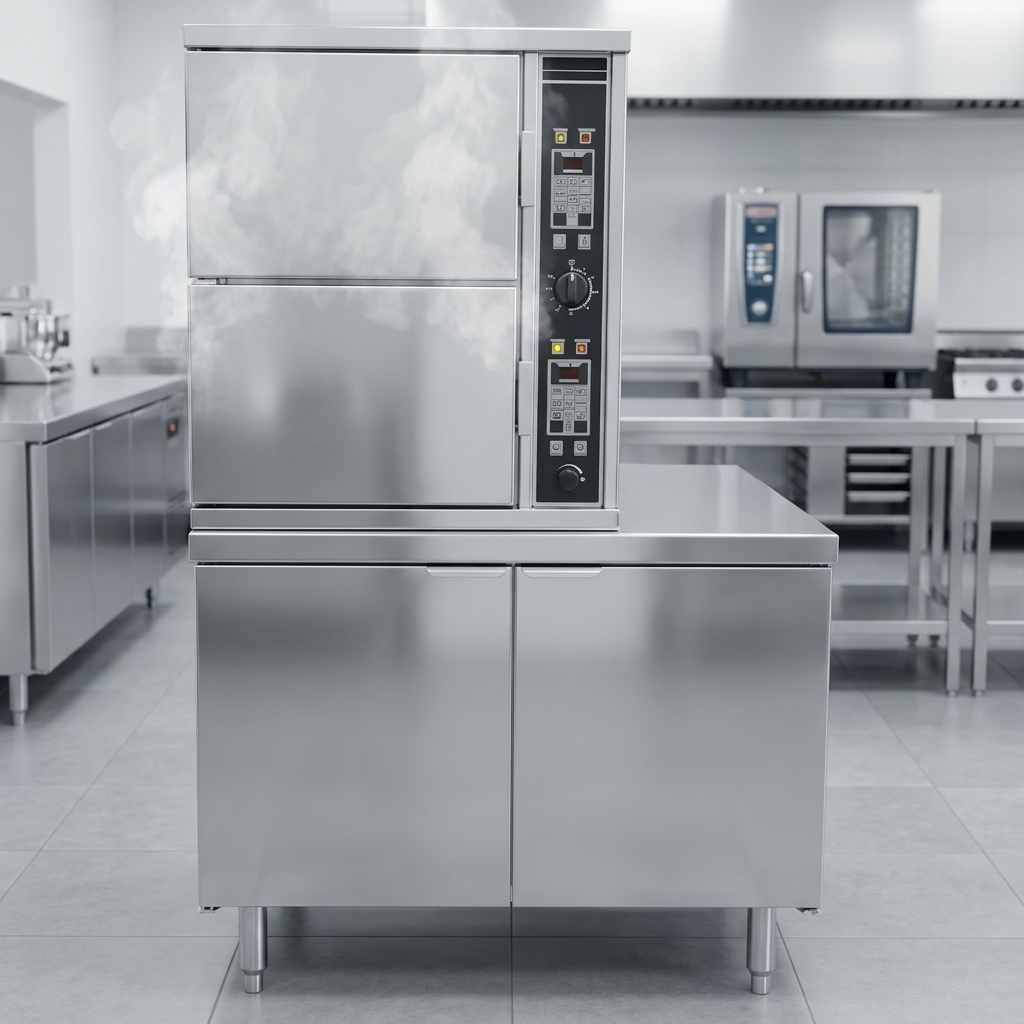

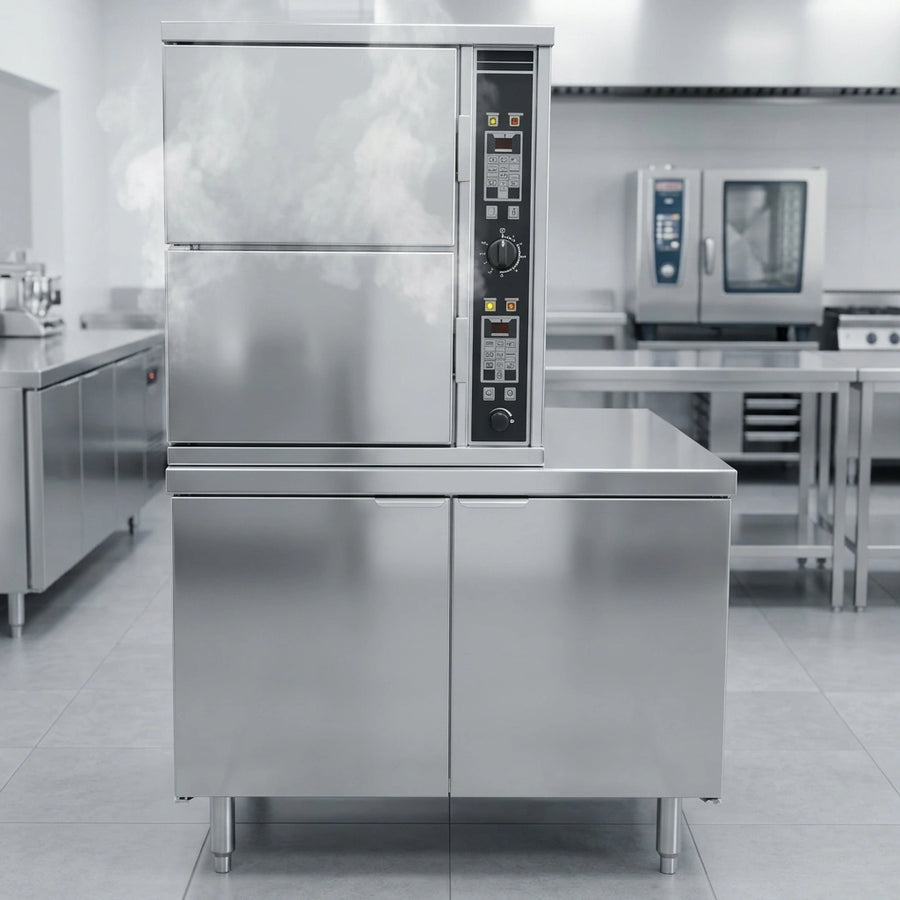

Automatic Blowdown
Automates the boiler cleaning process, helping to prevent scale buildup and maintain performance.
Independent 60-Minute Timers
Each compartment features its own 60-minute electric timer with a pilot ready light, pilot cooking light, and audible signal for precise cooking control.
Removable Pan Supports
Stainless steel pan supports can be easily removed for thorough cleaning and sanitation.
Stainless Steel Drip Trough
Collects condensate when the compartment door is opened, directing it to the drain to keep the cooking area clean.
Automatic Water Level Control
Ensures optimal water levels within the boiler for continuous and efficient steam production.
Comprehensive Boiler Controls
Includes a pressure gauge, water gauge glass, operating pressure control, safety high-limit pressure control, and safety relief valve for safe operation.
Integrated Water Treatment System
Standard feature designed to improve water quality, protect internal components, and extend the lifespan of the appliance.
Split Water Line
A standard feature that supports efficient water management for the steamer.
316 Stainless Steel Cooking Chamber
One-piece, all-welded liner made of high-grade 316 stainless steel for superior durability and corrosion resistance.
304 Stainless Steel Construction
Satin finish 304 stainless steel exterior provides excellent durability and a professional appearance.
Insulated Doors with Positive Lock
Doors feature a removable stainless steel inner liner, full perimeter gasket seal, and a positive lock mechanism with spring release.
Cabinet Base with Magnetic Latch
The modular steam coil boiler base is enclosed in a cabinet with hinged door(s) and magnetic latches.
6-Inch Stainless Steel Legs
Sturdy 6-inch stainless steel legs with 4 adjustable flanged feet allow for secure floor mounting.
Steam Cut-Off on Door Open
Steam flow to the chamber is automatically cut off when the door is opened during a cooking cycle and reactivated when closed for safety and efficiency.
Specifications
| Type | Convection Steamer |
|---|---|
| Style | Steam Coil |
| Installation Type | Floor Model (With Cabinet Base) |
| Compartments | 2 |
| Pan Capacity | 3 (12" x 20" x 2-1/2" deep) Per Compartment |
| Controls | 60 Minute Electric Timer |
| Material | 304 Stainless Steel |
| Interior Finish | 316 Stainless Steel |
| Electrical Connection | 1/2 Inch Conduit |
| Voltage | 115 Volts |
| Phase | 1-Phase |
| Hertz | 60 Hz |
| Amps | 4 Amps |
| Watts | 460 Watts |
| Steam Supply Connection | 3/4 Inch NPT |
| Steam Supply Pressure | 25-45 PSI (Incoming) |
| Boiler Operating Pressure | 9-11 PSI |
| Boiler Feed Water Connection Size | 1/2 Inch NPT |
| Boiler Feed Water Pressure | 25-50 PSI |
| Drain Connection Size | 2 Inches IPS |
| Drain Connection | Required |
| Water Connection | Required |
| Minimum Clearance (Sides) | 0 Inches |
| Minimum Clearance (Back) | 0 Inches |
| Shipping Width | 24 Inches |
| Shipping Depth | 33 Inches |
| Shipping Height | 56 Inches |
| Shipping Weight | 500 lb. |
| Selling Unit | Each |
| Units Per Case | 1 |
| Country of Origin | Canada |
Overall Dimensions:
24.0"W x 33.0"D x 55.5"HProduct Weight:
500.0 lbCertifications & Compliance
Warranty & Protection
Warranty coverage is contingent upon proper water quality management and installation.
