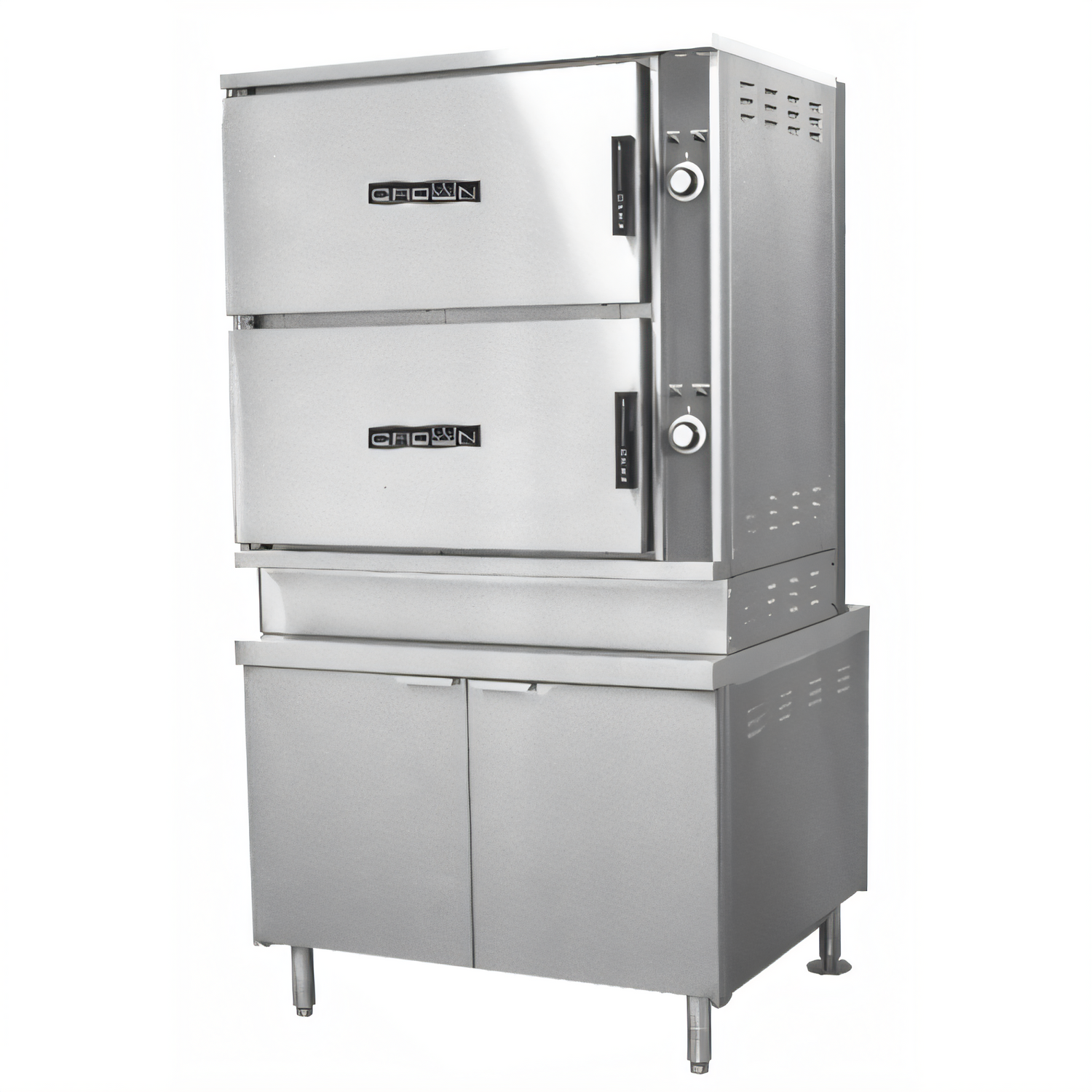

Crown SCX-16 Two Compartment Steam Coil Convection Steamer with Cabinet Base

SKU: SCX-16
$50,907.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cooking Equipment Cooking Equipment Countertop Steamer Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

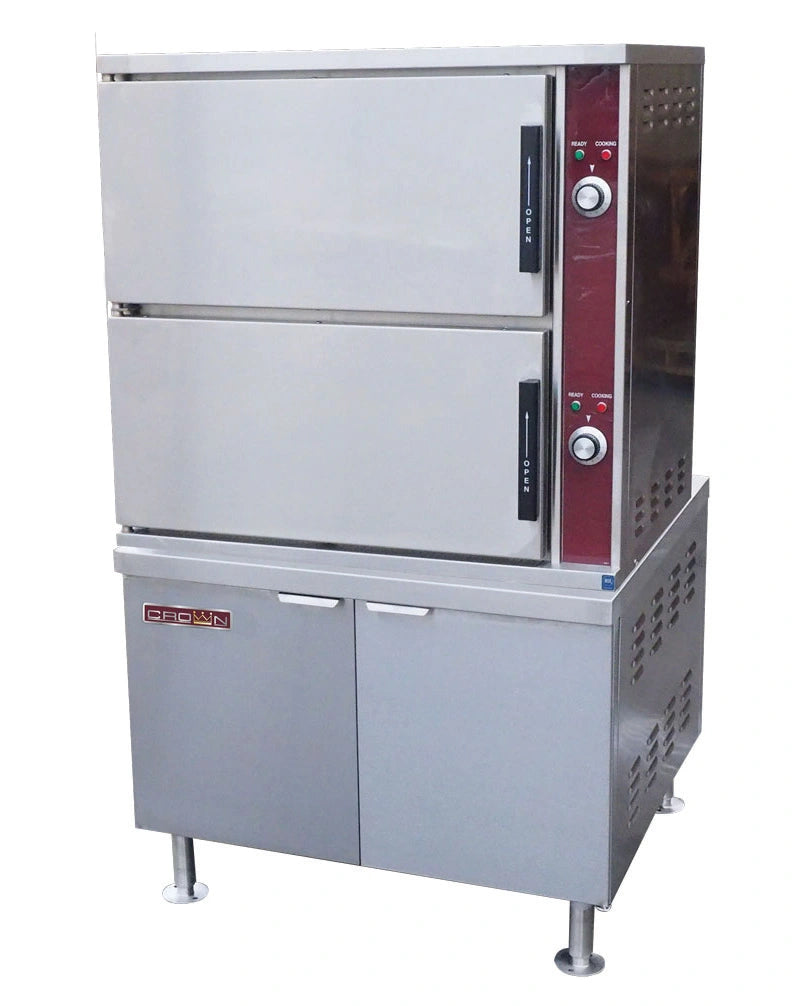

Crown SCX-16 Two Compartment Steam Coil Convection Steamer with Cabinet Base

Full-Size, Steam Coil Boiler, 2 Compartments, 16 Total Pan Capacity

The Crown SCX-16 offers high-capacity, efficient steam cooking with its robust steam coil boiler and convenient cabinet base, ideal for demanding commercial kitchens.

  • High-capacity two-compartment design holds up to (8) 12"x20"x2.5" full-size pans per compartment, totaling 16 pans.
  • Durable satin finish 304 stainless steel exterior and a one-piece, all-welded 316 stainless steel cooking chamber for longevity.
  • Equipped with a steam coil boiler operating at 9-11 PSI, utilizing an external steam supply.
  • Independent 60-minute mechanical timers per compartment for precise and flexible cooking control.
  • Features a comprehensive water treatment system and automatic boiler blowdown to ensure optimal performance and extend equipment life.
  • Floor model design with a cabinet base, 6" stainless steel legs, and adjustable flanged feet for secure, stable installation.

Overall Dimensions:

36.0"W x 33.13"D x 62.0"H

Product Weight:

800.0 lb

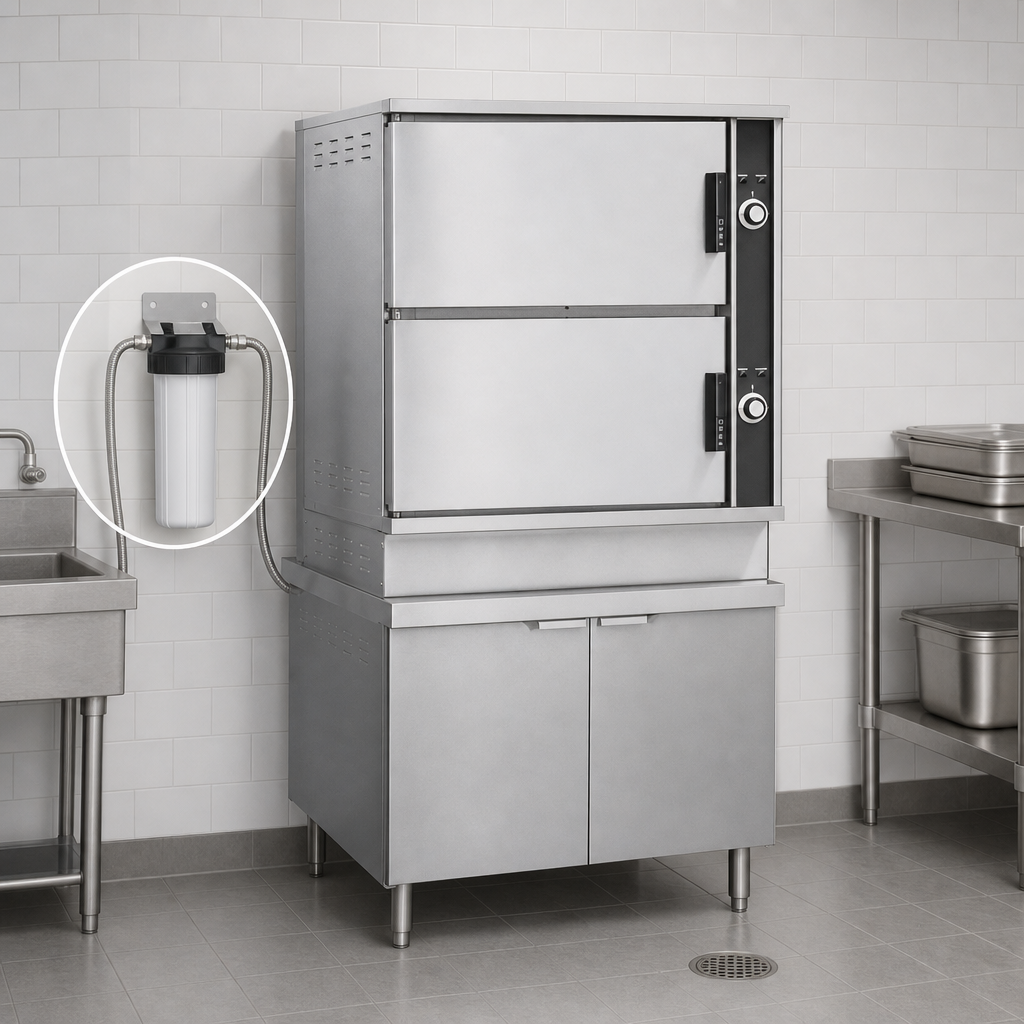

Water Treatment System

Included as a standard feature to ensure optimal water quality, which is critical for appliance performance and warranty coverage. Requires specific water guidelines to be met.

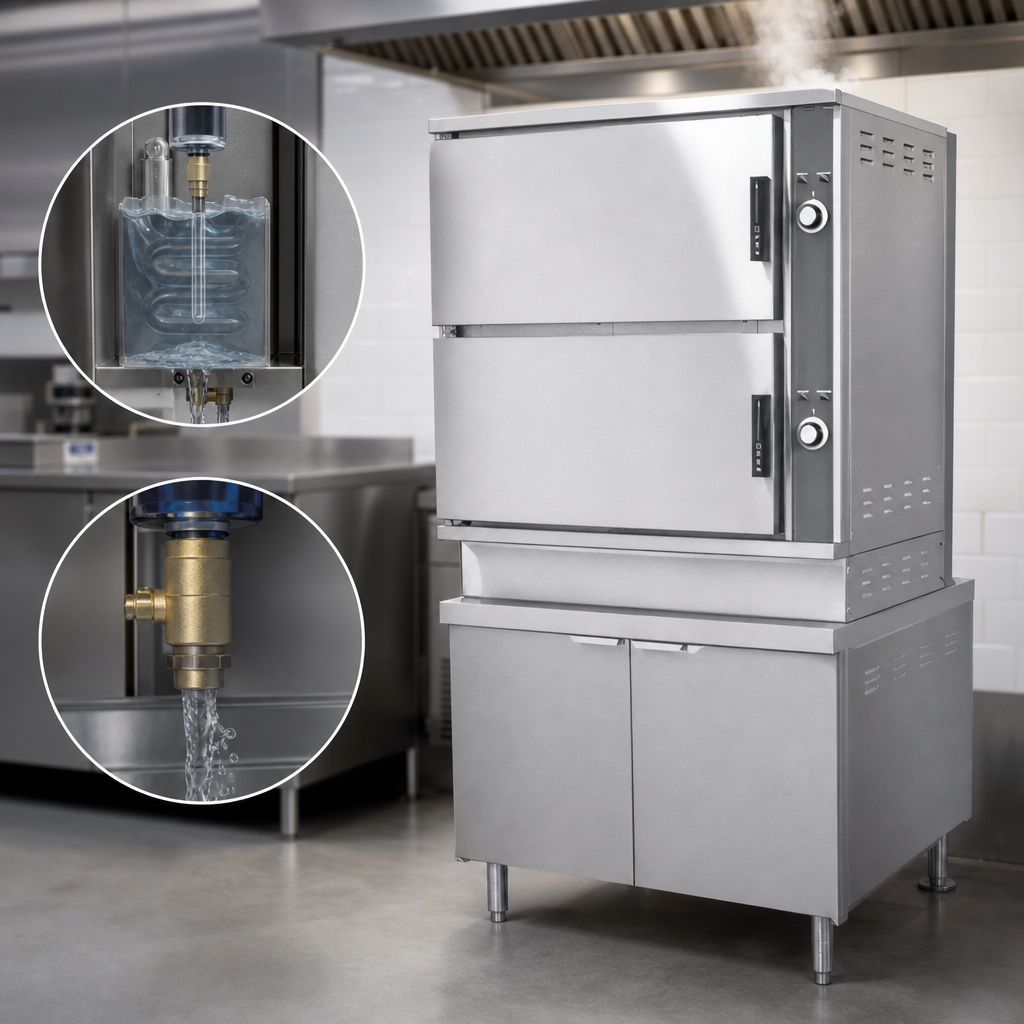

Automatic Boiler Blowdown

Automatically cleans the boiler to prevent scale buildup, maintain efficiency, and reduce maintenance requirements.

Split Water Line

Standard feature designed for efficient water management within the steamer system.

Adjustable Flanged Feet

Six-inch stainless steel legs are equipped with four adjustable flanged feet, allowing the unit to be securely fastened to the floor.

Two Independent Cooking Compartments

Each compartment is independently controlled with a 60-minute timer, a green ready pilot light, and a red cook pilot light, enabling simultaneous cooking of different items.

316 Stainless Steel Cooking Chamber

The cooking chambers are constructed from one-piece, all-welded 316 stainless steel, offering superior durability and corrosion resistance for prolonged commercial use.

Satin Finish 304 Stainless Steel Construction

The steamer's exterior is made of satin finish 304 stainless steel, providing a robust, professional appearance that is easy to clean.

Insulated Doors with Positive Lock

Doors feature a removable inner liner, full perimeter gasket seal, and a positive lock and seal mechanism. Steam flow to the cooking chamber is interrupted when the door is opened.

Removable Stainless Steel Pan Supports

Provided within each compartment for easy cleaning and flexible pan configurations.

Stainless Steel Drip Trough

Collects condensate when doors are opened and is connected directly to the drain, ensuring a cleaner operating environment.

Cabinet Base with Hinged Doors

Mounted on a cabinet base with a full perimeter angle frame, reinforced counter, and boiler mountings, featuring an all stainless steel exterior and hinged doors for convenient storage.

Type Convection Steamer
Style Steam Coil Boiler
Installation Type Floor Model (With Cabinet Base)
Compartments 2
Pan Capacity 8 Full-Size (2.5 Inches Deep) Per Compartment
Controls 60-Minute Mechanical Timer Per Compartment
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Boiler Type Steam Coil
Operating Steam Pressure 9-11 PSI
Incoming Steam Supply Pressure 25-45 PSI
Incoming Steam Connection Size 3/4" IPS
Incoming Steam Flow 200 lbs. Per Hour
Water Inlet Size 3/8" O.D. Tubing
Water Inlet Pressure 25-50 PSI
Water Connection Required
Drain Connection Size 2" IPS
Drain Connection Required
Voltage 115 Volts
Phase 1-Phase
Hertz 60 Hz
Amps 2 Amps Per Compartment
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 62 Inches
Shipping Weight 800 lbs.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Warranty coverage is contingent upon proper installation and maintenance, especially regarding water quality.

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Parts list PDF Download PDF Crown steam group letter PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The SCX-16 features a steam coil heated boiler that operates at 9-11 PSI. It requires an external incoming steam pressure of 25-45 PSI with a flow of 200 lbs. per hour for its steam coil.
For optimal performance and warranty coverage, the water supply must meet specific guidelines: Total dissolved solids less than 60 PPM, Total alkalinity less than 20 PPM, Silica less than 13 PPM, Chlorine less than 1.5 PPM, and a pH Factor between 6.8 - 7.3. A Crown Steam Group Water Treatment System is recommended if water does not meet these standards.
Each compartment of the SCX-16 can accommodate up to (8) 12"x20"x2.5" full-size pans or (16) 1" deep full-size pans.
Yes, the steamer is mounted on a cabinet base with 6" stainless steel legs and includes 4 adjustable flanged feet designed for securing the unit to the floor.
Steam flow to the cooking chamber is automatically interrupted when a door is opened during the cooking cycle and is reactivated once the door is closed.
