Crown (Middleby) SCX-10-6-6 Steam Kettles
Description
Crown SCX-2-6-6 Two-Compartment Convection Steamer & Kettle
Steam-coil powered • (2) 6 gal kettles • 60" cabinet baseBuilt for high-volume, high-precision production, the Crown SCX-2-6-6 pairs a powerful steam-coil boiler with two 6 gallon kettles and twin pressureless steamer compartments. From veggies and shellfish to sauces and stocks, you can batch, braise, blanch and hold – all in one space-saving 60" footprint.
At a glance

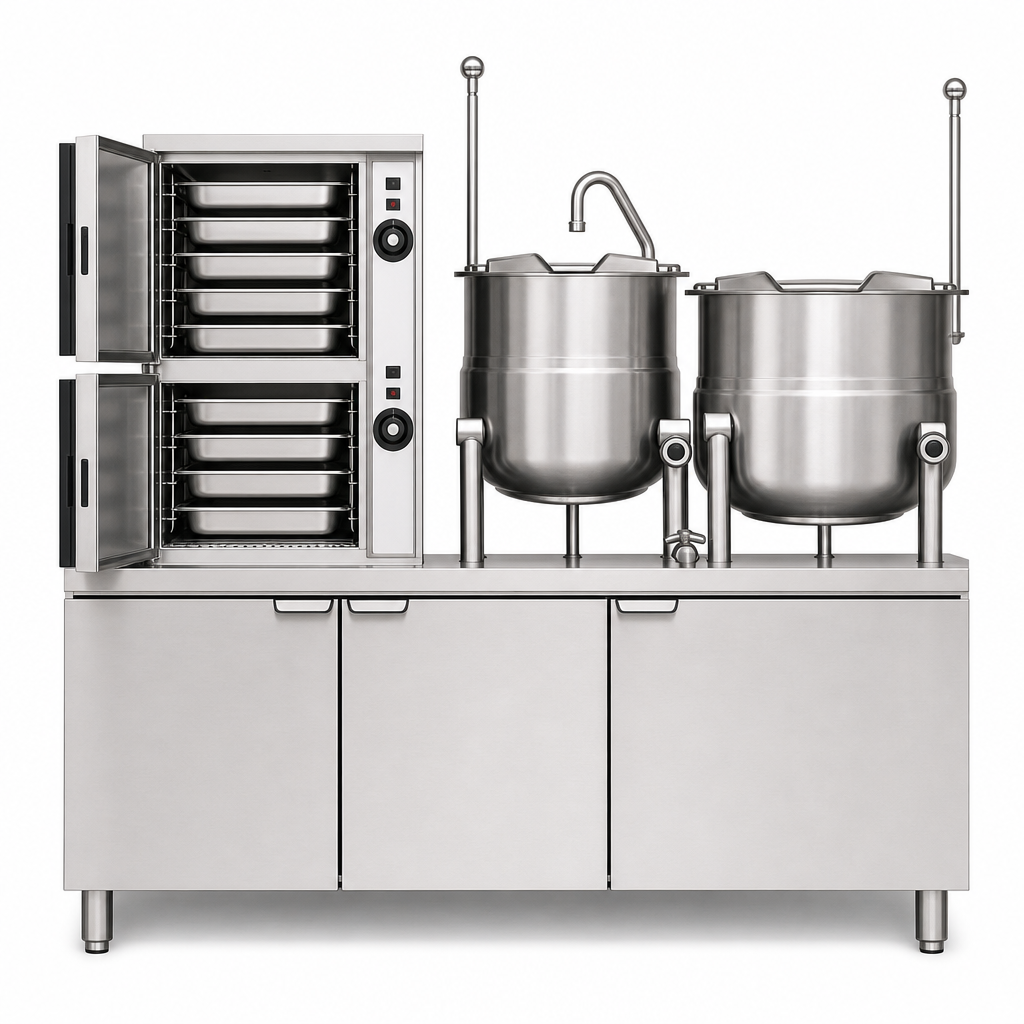

- Two independent 14" W × 10.625" H × 21" D steam cavities – each holds up to 6 full-size 12" × 20" pans (1" deep) with removable racks

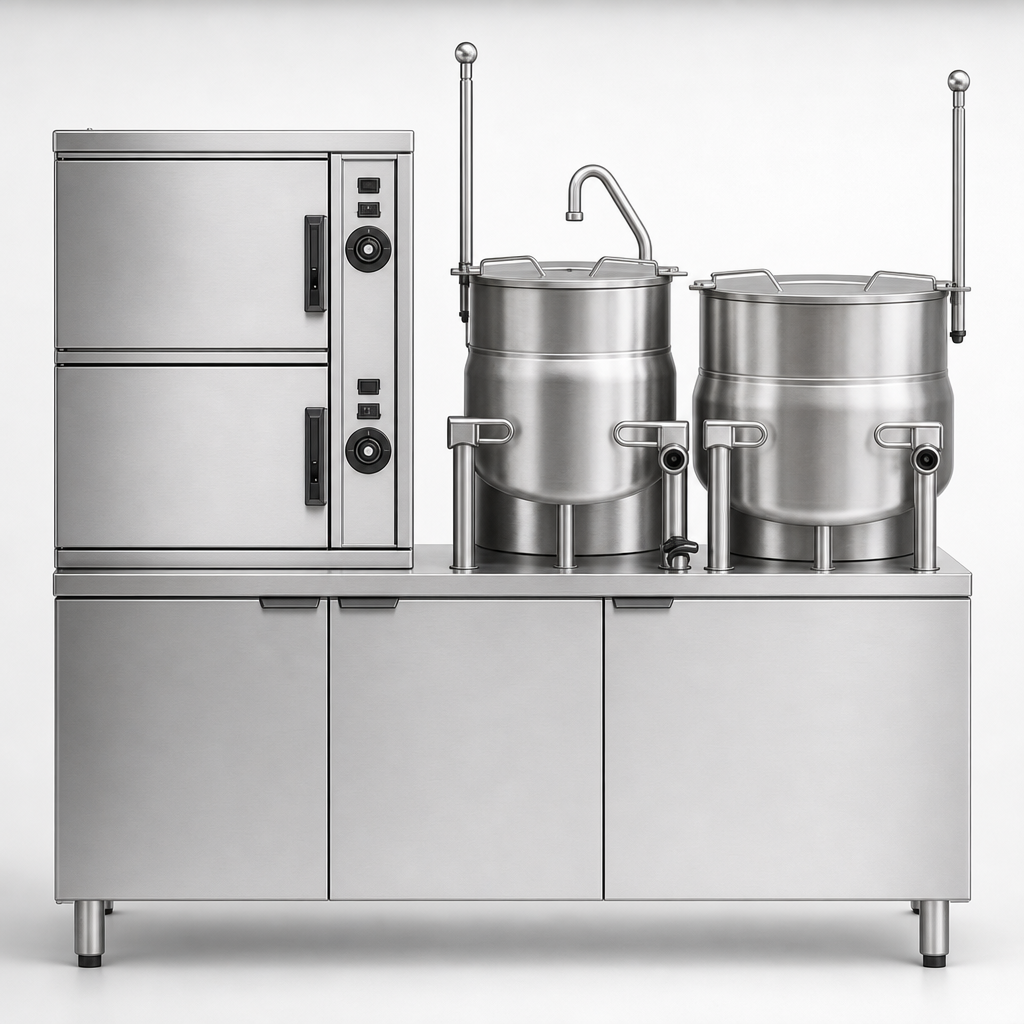

- (2) 6 gal steam-coil kettles – ideal for soups, sauces & small-batch production
- 9-11 psi steam-coil boiler matched for 25-45 psi incoming steam
- 60 min electro-mechanical timer & audible buzzer per compartment
- Door interlock cuts steam when opened for operator safety
- Deck-mount faucet valve, swing nozzle & integral sink for rapid kettle filling & rinsing
- Automatic water level control, pressure gauge, water gauge glass & CSD-1 controls
- Automatic blowdown plus factory-supplied water treatment system
- Split water line keeps treated boiler water separate from condensate cooling water
- Durable 304 stainless exterior & 316 stainless liner – resists corrosion & pitting
- 6" stainless legs with adjustable flanged feet for bolt-down installation
- Certified cCSAus, NSF & ASME-code stamped boiler
Technical specifications
| Model | SCX-2-6-6 |
|---|---|
| Compartments / Doors | 2 pressureless convection steam chambers |
| Pan capacity (per compartment) | 6 × 1" | 3 × 2.5" | 2 × 4" | 1 × 6" full-size 12" × 20" pans |
| Kettle capacity | 2 × 6 gal (22.7 L) steam-coil jackets |
| Boiler operating pressure | 9–11 psi (62–76 kPa) |
| Incoming steam | 25–45 psi (170–310 kPa) • 200 lb/hr flow |
| Control voltage | 115 VAC, 1 Ø, 60 Hz – 2 A per compartment |
| Overall width | 60" (1524 mm) cabinet base |
| Shipping weight | ≈ 930 lb (421 kg) |
| Construction | 304 SS exterior • one-piece 316 SS chamber liner |
| Included systems | Water treatment, automatic blowdown, split water line, CSD-1 package |
| Certifications | cCSAus • NSF • ASME boiler code |
For optimum performance and warranty protection, incoming water must be treated to < 60 ppm TDS, < 1.5 ppm chlorine, 6.8–7.3 pH. The included Crown Water Treatment System simplifies compliance.
Peace-of-mind warranty
- 1-year parts & labor, plus 10-year Hemisphere kettle shell warranty
- ASME-registered boiler vessel with prorated 2-year shell coverage
