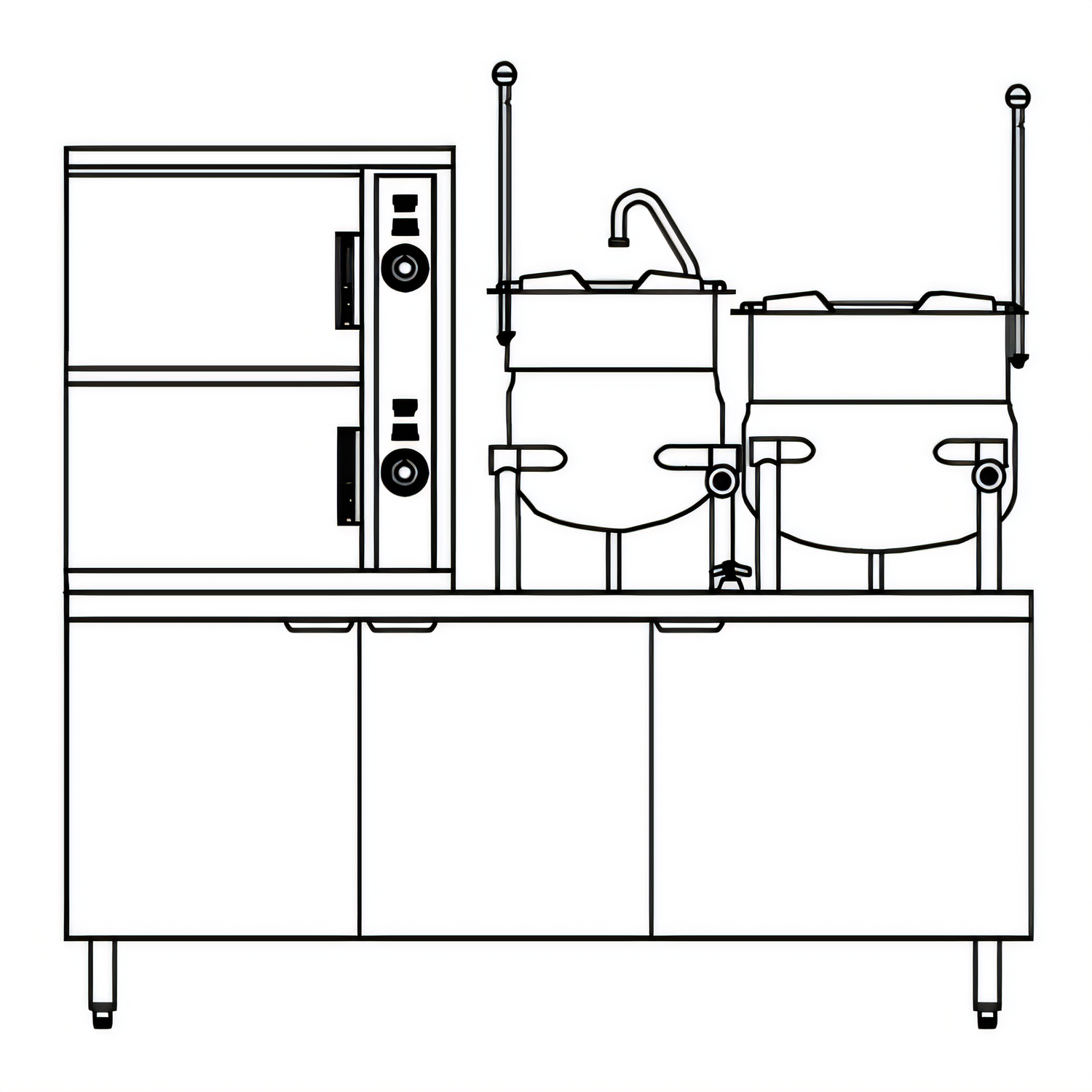

Crown SCX-2-6-10 Convection Steamer/Kettle Station

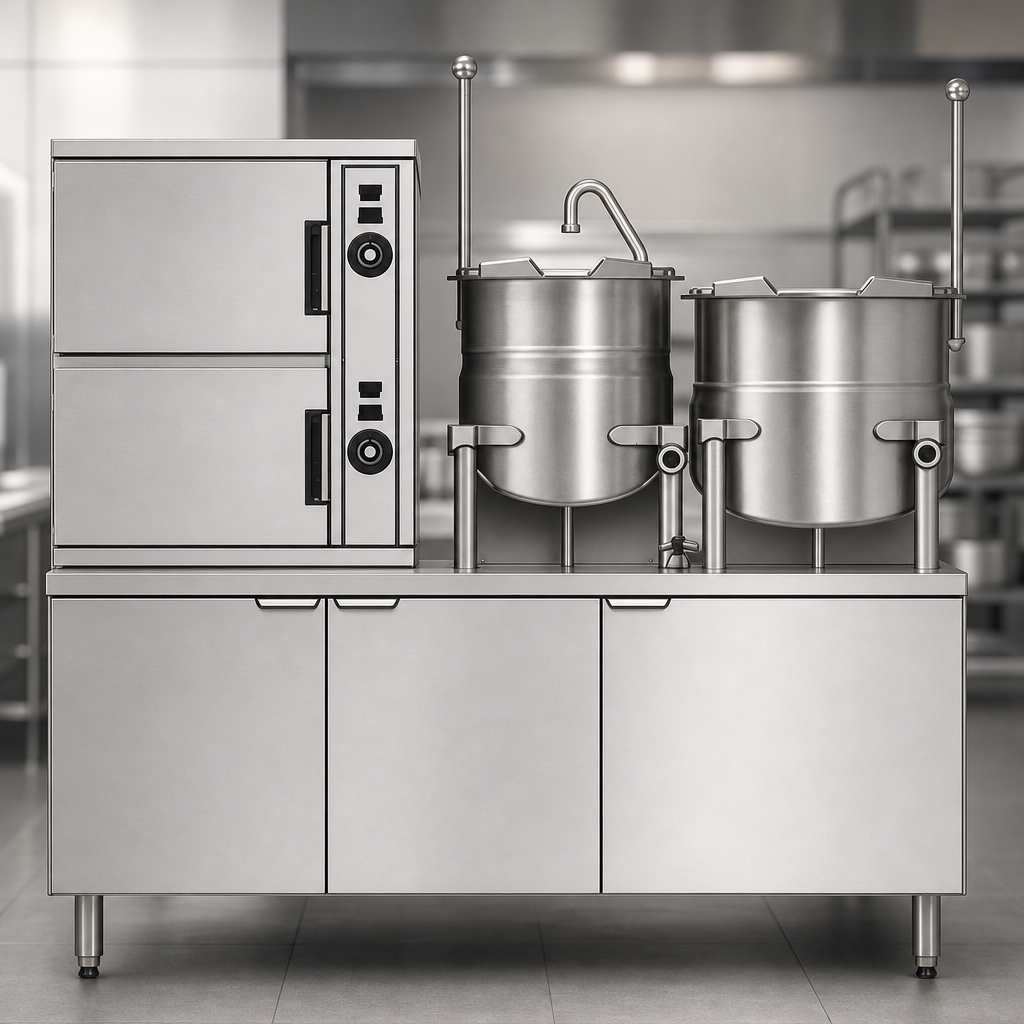

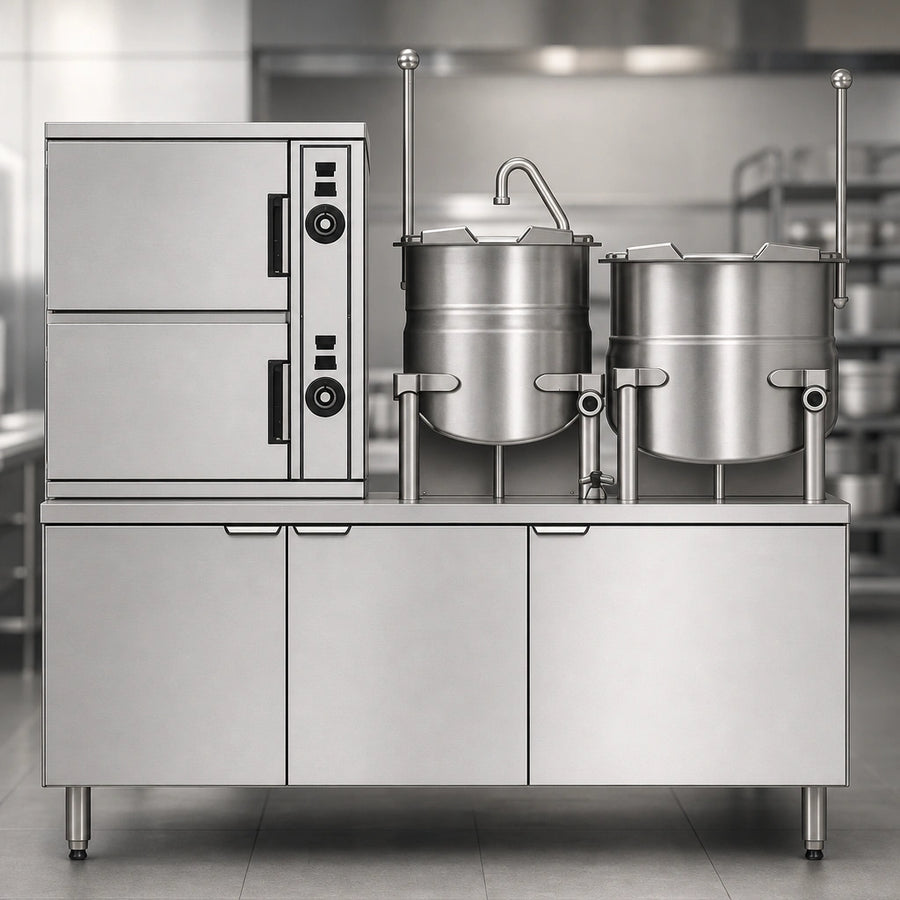

Built for kitchens that refuse to compromise on speed or consistency, the Crown SCX-2-6-10 pairs two pressure-less convection steamer compartments with a 6-gallon and a 10-gallon steam-coil jacketed kettle—all on a compact 60" cabinet base. From delicate vegetables to hearty soups, you’ll get rapid, even results while freeing up valuable range space.

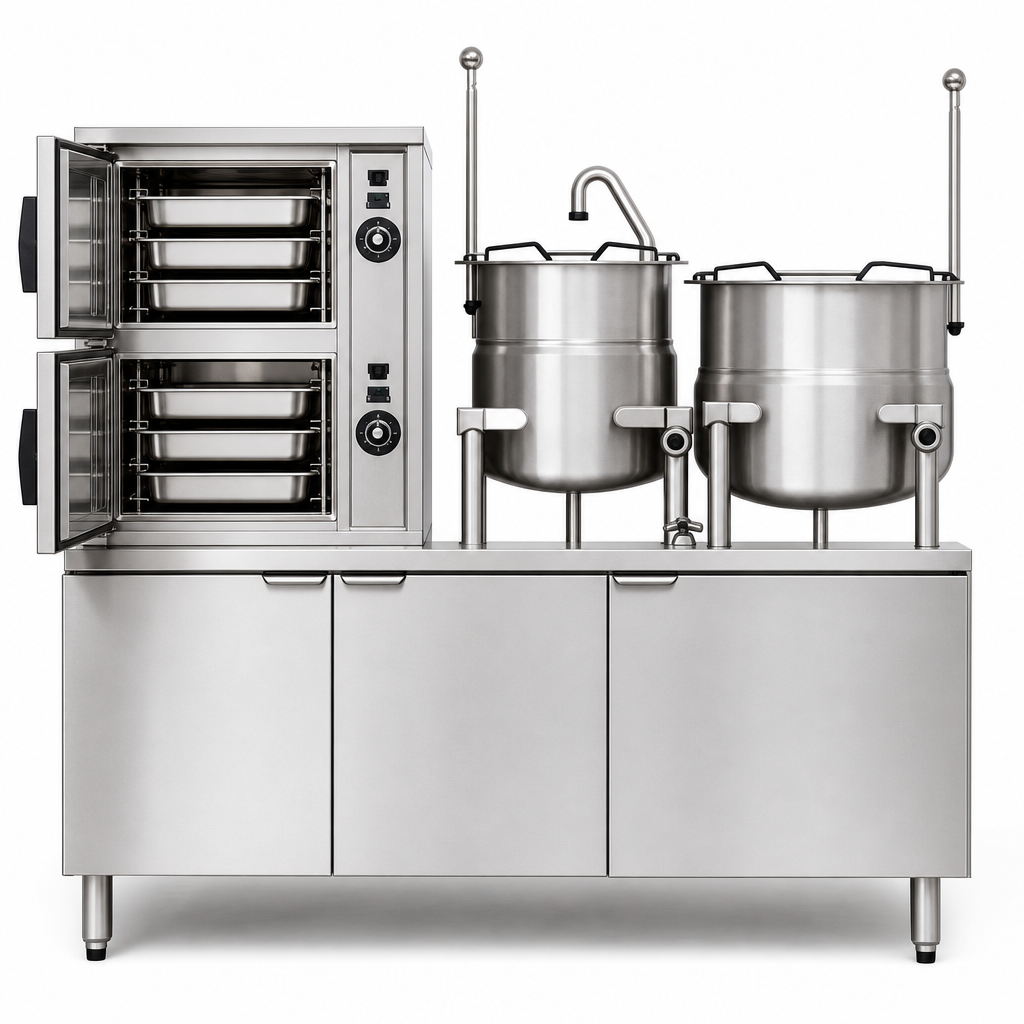

• Holds 5 full-size 12"x20" pans per compartment (10 total).
• Independent 60-minute timer, pilot-ready light & cook light for each compartment.
• Steam-coil boiler operates at 9–11 psi; accepts incoming steam 25–45 psi.
• Included water treatment system, split water line & automatic blowdown for longer equipment life.
• Automatic water-level control, pressure gauge & water gauge glass keep operators informed at a glance.
• CSD-1 code package with operating-pressure control, high-limit pressure control & safety relief valve.
• Swing-nozzle deck faucet and integral sink speed up filling, draining & cleanup.
• Removable stainless-steel pan supports & drip trough simplify sanitation.
• Durable 316 SS liner & 304 SS exterior with satin finish—built for the rigors of daily commercial use.
• Sturdy 6" stainless legs with adjustable flanged feet for secure floor mounting.
• cCSAus, NSF, ASME code stamped & National Board registered.

• 1/2" conduit electrical connection.
• 3/4" IPS incoming steam at 5–45 psi (pressure-reducing valve required above 50 psi).
• 3/8" NPT cold water (25–50 psi) and separate 3/8" O.D. hot & cold lines for faucet.
• 2" IPS open floor drain for steamer & kettle condenser; 1-1/8" O.D. sink drain.

Intended for commercial use only. One-year parts & labor warranty (kettle shell: 10-year hemisphere warranty).
