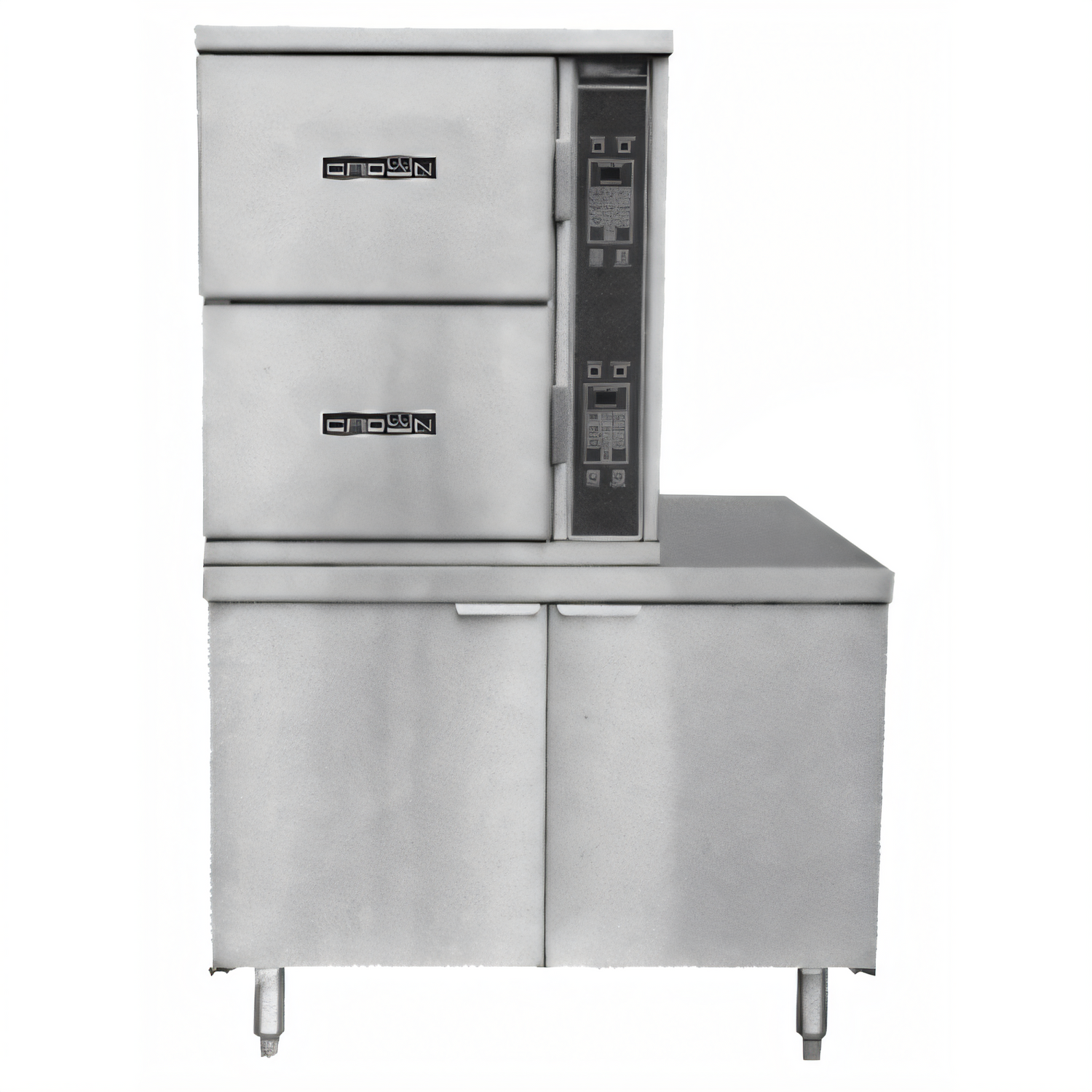

Crown SCX-10-24 Two-Compartment Steam Coil Convection Steamer with 24" Cabinet Base
Crown SCX-10-24 Two-Compartment Steam Coil Convection Steamer with 24" Cabinet Base
Full-Size, 10 Pan Capacity Per Compartment, Floor Model
Designed for high-volume commercial kitchens, the Crown SCX-10-24 convection steamer delivers efficient and consistent steam cooking with its robust steam coil boiler system.
- Equipped with two independent cooking compartments, each accommodating five 12" x 20" full-size pans (2-1/2" deep).
- Features a powerful steam coil heated boiler operating at 9-11 PSI for reliable and consistent steam generation.
- Constructed from durable 304 stainless steel with a seamless, all-welded 316 stainless steel cooking chamber for longevity and hygiene.
- Includes a comprehensive water treatment system and automatic blowdown to minimize maintenance and extend boiler life.
- Each compartment is controlled by an independent 60-minute electric timer with audible signal and pilot lights for precise cooking.
- Floor model design with a sturdy 24-inch cabinet base and 6" stainless steel legs with adjustable flanged feet for secure installation.
Overall Dimensions:
24.0"W x 33.0"D x 68.5"HProduct Weight:

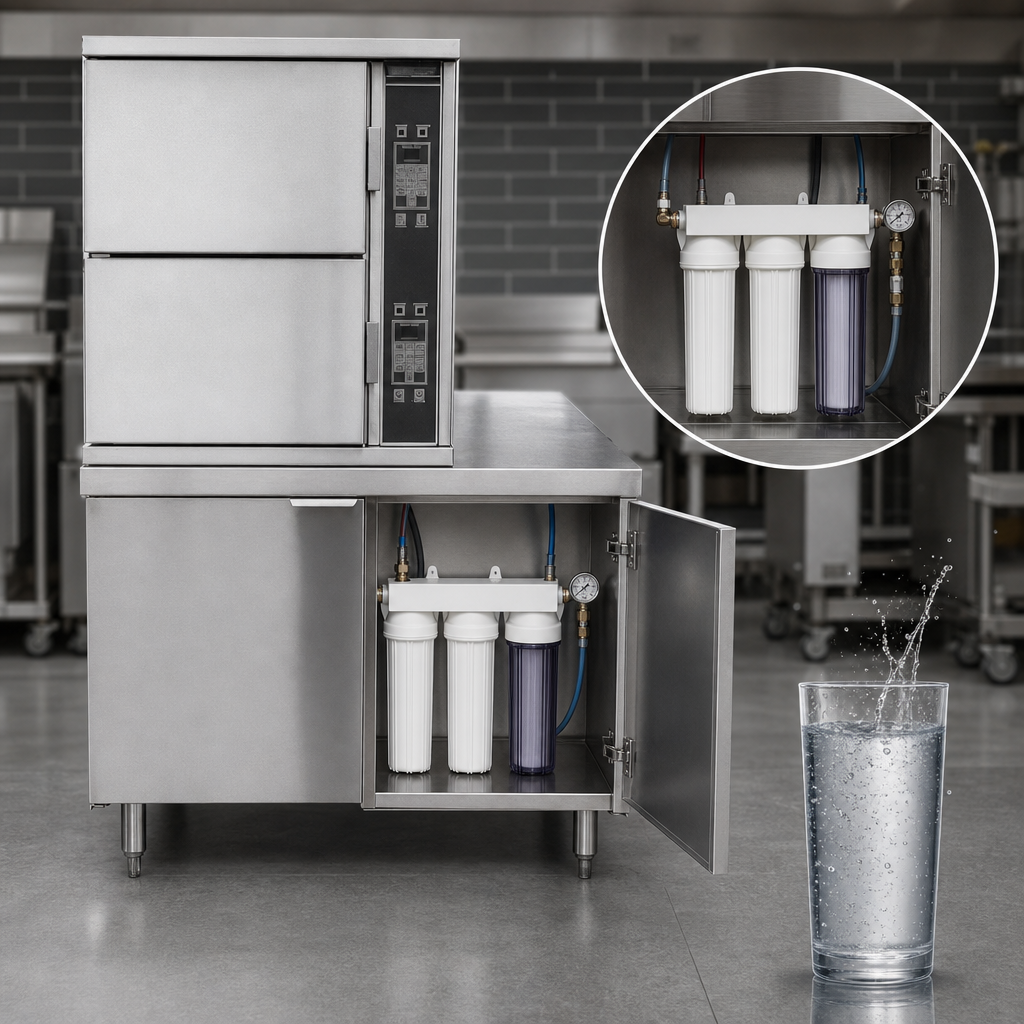

575.0 lbWater Treatment System
Ensures optimal water quality, contributing to efficient operation and adherence to warranty requirements by minimizing mineral buildup.

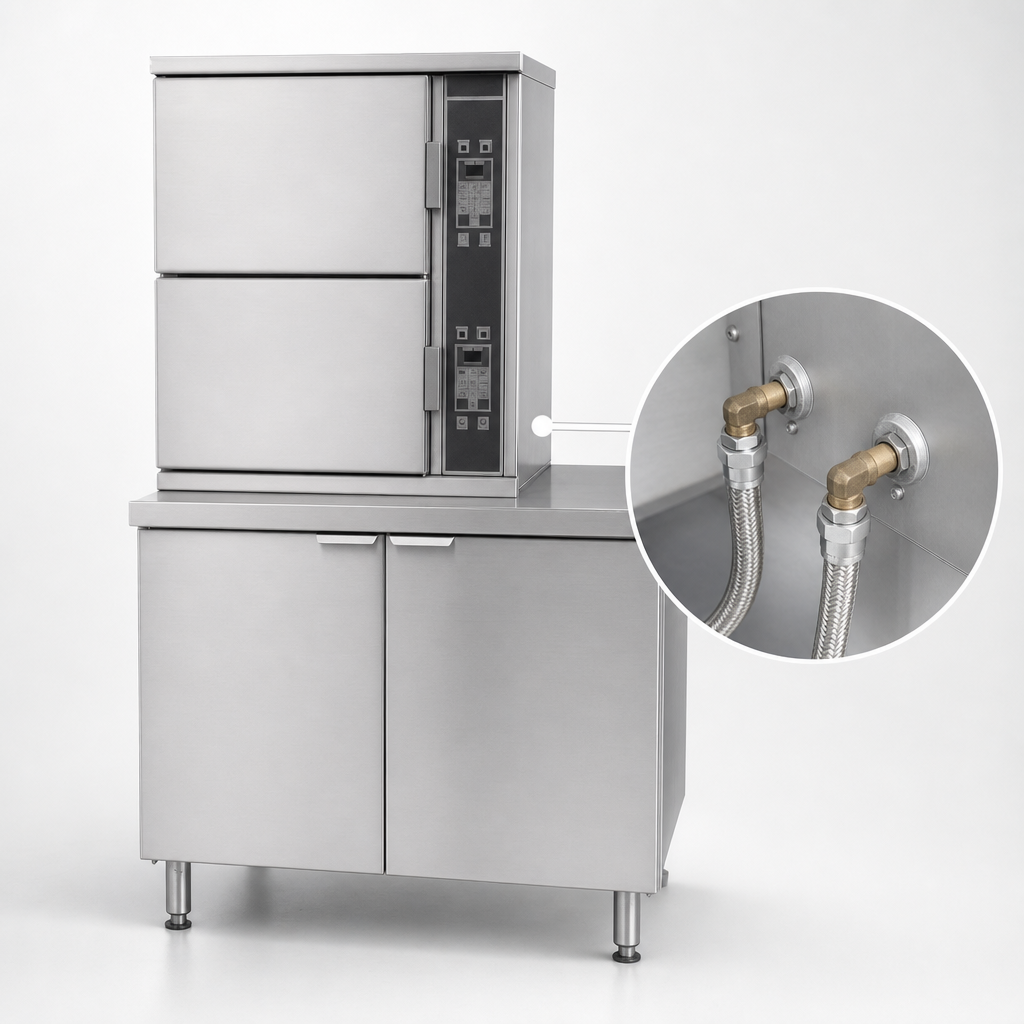

Split Water Line
Provides flexible and convenient plumbing connection for the unit's water supply.
Automatic Blowdown
Automatically purges sediment from the boiler, reducing manual maintenance and extending the lifespan of the heating elements and boiler components.
Removable Stainless Steel Pan Supports
Allows for easy cleaning and flexibility in configuring various pan sizes within the cooking compartments.
Stainless Steel Drip Trough
Collects condensate when the cooking compartment doors are opened, preventing water from dripping onto the floor and enhancing safety.
Independent 60-Minute Electric Timers
Each cooking compartment has its own electric timer with a pilot ready light, pilot cooking light, and an audible signal to precisely control cooking cycles.
Automatic Water Level Control
Continuously monitors and maintains the optimal water level within the steam boiler for consistent steam production.
Pressure Gauge and Water Gauge Glass
Provides visual indication of boiler operating pressure and water level, allowing for easy monitoring.
Operating and High-Limit Pressure Controls
Regulates the boiler's operating pressure and includes a safety high-limit control along with a safety relief valve to ensure safe operation.
Steam Flow Cut-Off on Door Opening
Automatically stops steam flow to the chamber when the door is opened during a cooking cycle, reactivating when the door is closed, enhancing safety and efficiency.
Cabinet Base with Hinged Door(s) and Magnetic Latch
Provides an enclosed space for the boiler and controls, accessible via hinged doors with secure magnetic latches.
6" Stainless Steel Legs with Adjustable Flanged Feet
Elevates the unit for cleaning access and allows for secure, level installation on various floor types.
One-Piece, All-Welded Type 316 Stainless Steel Cooking Chamber
Offers superior corrosion resistance and durability, making it easy to clean and maintain sanitary conditions.
Certifications & Compliance
Warranty & Protection
Standard commercial warranty, with conditions regarding water quality.
