Crown (Middleby)

Crown SC-3 Three Compartment Steam Coil Pressure Steamer with Cabinet Base

SKU: SC-3
$59,631.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

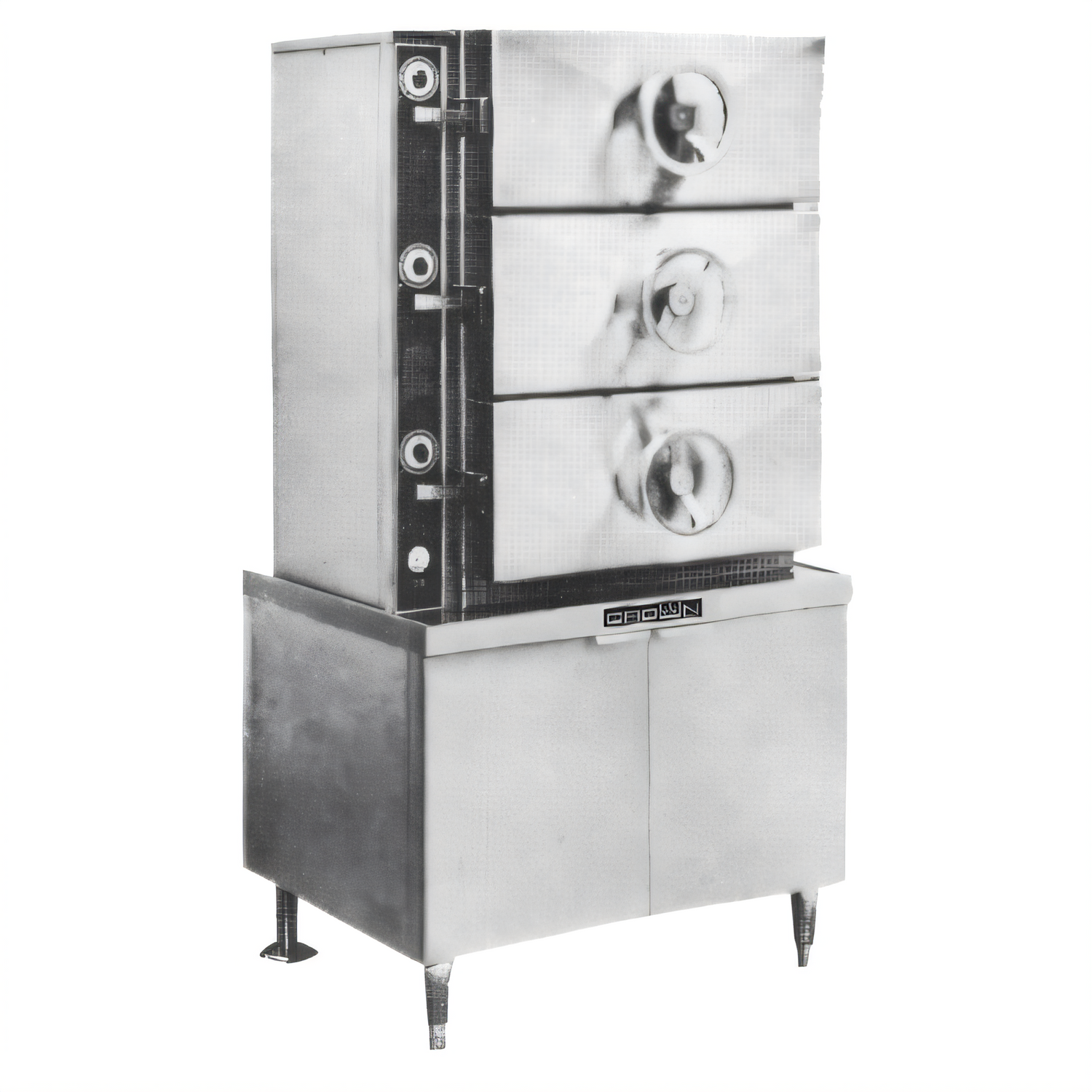

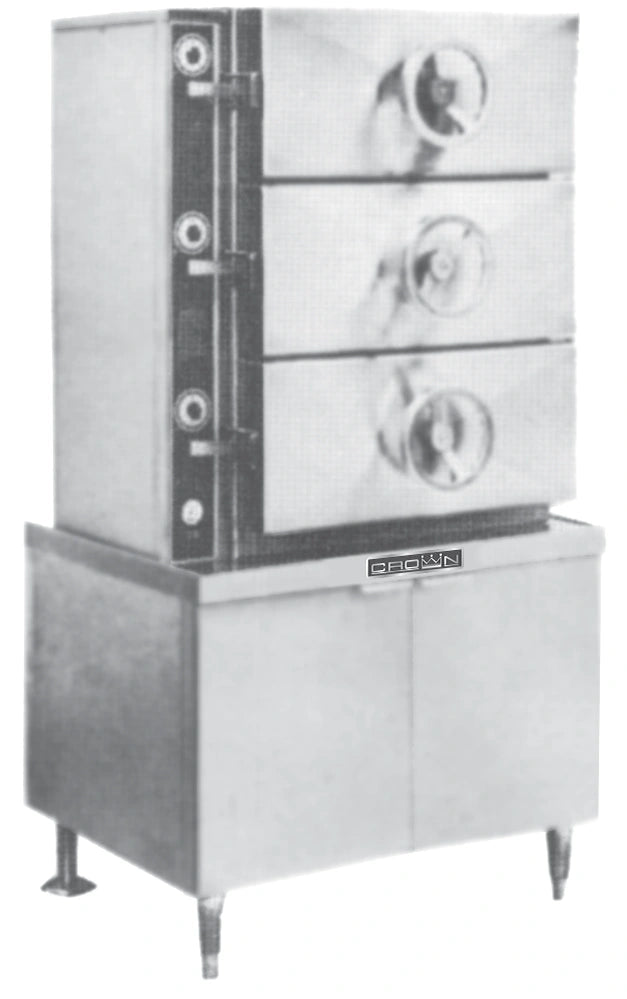

Crown SC-3 Three Compartment Steam Coil Pressure Steamer with Cabinet Base

Full-Size Pan Capacity, Automatic Timer Controls, Floor Model

Experience efficient, high-volume steam cooking with the Crown SC-3, a robust three-compartment pressure steamer designed for demanding commercial kitchens.

  • Three independently controlled compartments maximize cooking flexibility and capacity.
  • Steam coil heated boiler maintains optimal steaming conditions at 9-11 psi.
  • Automatic timer controls with visible and audible signals ensure precise cooking results.
  • Heavy-duty Type 304 #4 finish stainless steel construction for durability and easy cleaning.
  • Integrated water treatment system and automatic blowdown extend equipment lifespan and performance.
  • Universal pan supports accommodate various pan sizes, with capacity for six 12"x20"x2-1/2" deep pans per compartment.

Three Independent Compartments

Allows for simultaneous cooking of different food items with individual control, maximizing kitchen efficiency.

Experience peak kitchen efficiency with the Crown SC-3's three independent steaming compartments, allowing simultaneous cooking of diverse menu items.

Steam Coil Heated Boiler

Internal boiler operates at 9-11 psi (62-76 kPa), heated by an incoming steam supply, ensuring consistent and powerful steam generation.

Experience powerful and consistent steam generation with the high-performance steam coil heated boiler, ensuring perfectly cooked dishes every time.

Automatic Timer Controls

Each compartment is independently controlled by an automatic timer with visible and audible signals, automatically shutting off steam and draining condensate at the cycle's end.

Each compartment features independent automatic timer controls, ensuring precise cooking and effortless operation in any busy kitchen.

Durable Stainless Steel Construction

Built from all-welded Type 304 #4 finish stainless steel for exceptional longevity and hygienic operation.

Integrated Water Treatment System

Standard inclusion of a water treatment system helps prevent mineral buildup and ensures optimal water quality for steam production, crucial for warranty coverage.

Automatic Boiler Blowdown

Automatically cleans the boiler to reduce scale accumulation and maintain efficiency.

Split Water Line

Separates boiler feed and condensate lines for improved system performance and water management.

Water in "Y" Strainer

Protects the condensate feed line from particulates, ensuring smooth operation.

Ergonomic Doors

Doors feature a removable inner aluminum plate liner, full perimeter gasket seal, and a wheel-and-screw closing mechanism, opening 180° for full access.

Universal Pan Supports

Each compartment is equipped with universal pan supports to accommodate various full-size pan depths.

Cabinet Base with Adjustable Legs

Mounted on a sturdy cabinet base with a full perimeter angle frame and 6-inch stainless steel legs fitted with adjustable flanged feet for secure installation and easy cleaning access.

Specifications

Type Pressure Steamer
Style Compartment Steamer
Installation Type Floor Model (With Cabinet Base)
Compartments 3
Pan Capacity (6) 12"x20"x2-1/2" deep Per Compartment
Controls Automatic Timer
Material 304 Stainless Steel
Interior Finish Stainless Steel
Finish No. 4 Stainless Steel
Voltage 115 Volts
Amps 6 Amps
Phase 1-Phase
Hertz 60 Hz
Incoming Steam Pressure 25-45 psi
Incoming Steam Flow 200 lbs/hr
Boiler Feed Water Connection Size 1/2" O.D. Tubing
Condensate Cold Water Connection Size 1/2" O.D. Tubing
Drain Connection Size 2" IPS
Steam Take-Off Connection Size 3/4" IPS (Optional)
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 41 Inches
Shipping Depth 34 Inches
Shipping Height 68 Inches
Shipping Weight 950 lb.

Overall Dimensions:

41.0"W x 33.88"D x 68.0"H

Product Weight:

950.0 lb
Manufacturer Crown (Middleby)
Certifications ["NSF", "cCSAus"]
Height 68.0in
Width 41.0in
Depth 33.88in
Shipping Weight 950.0lbs
Compartments 3
Controls automatic controls
Pan Capacity per Compartment (6) 12"x20"x2-1/2" deep
Width (side - side) 36"
Specifications Pressure Steamer, steam coil heated boiler, (3) compartments, 36" cabinet base, independent automatic timer controls, CSD-1 package, removable shelf supports, water treatment system, split water line, water in "Y" strainer, stainless steel interior, 304 stainless steel construction, 6" legs with adjustable flanged feet, cCSAus, NSF

Frequently Asked Questions

For optimal performance and warranty coverage, the water supply must have less than 60 PPM total dissolved solids, less than 20 PPM total alkalinity, less than 13 PPM silica, less than 1.5 PPM chlorine, and a pH factor between 6.8 - 7.3. A Crown Steam Group Water Treatment System is recommended if your water does not meet these standards.
Yes, the SC-3 features a steam coil heated boiler that operates on incoming steam pressure of 25-45 psi (170-310 kPa) and requires a flow of 200 lbs. (90kg) per hour.
Each compartment of the SC-3 is independently controlled by an automatic timer, which includes visible and audible signals. At the end of the cooking cycle, the controls automatically shut off steam, drain condensate, and sound a continuous alarm until manually turned off.
Each compartment of the SC-3 can accommodate up to six 12"x20"x2-1/2" deep full-size pans, or fewer pans of greater depth (e.g., four 4" deep or two 6" deep pans).
The standard operation is 115 VAC, 1 Phase, 60 Hz. However, a 220-240 VAC operation option is available at an additional cost.
Yes, this appliance is intended for commercial use only and is not designed for household use.
