Crown SC-2 Steam Coil Pressure Steamer
2-Compartment • 36 in Cabinet Base • cCSAus & NSF CertifiedBuilt for high-volume commercial kitchens, the Crown SC-2 delivers lightning-fast, nutrient-locking steam production from a rugged 304 stainless steel package. Two independently controlled pressure compartments let you prepare vegetables, proteins or starches simultaneously while a steam-coil boiler and factory-installed water treatment system keep maintenance low and uptime high.
Standard Features
- 9–11 psi steam-coil heated boiler; sized for 200 lb/hr (90 kg) steam flow

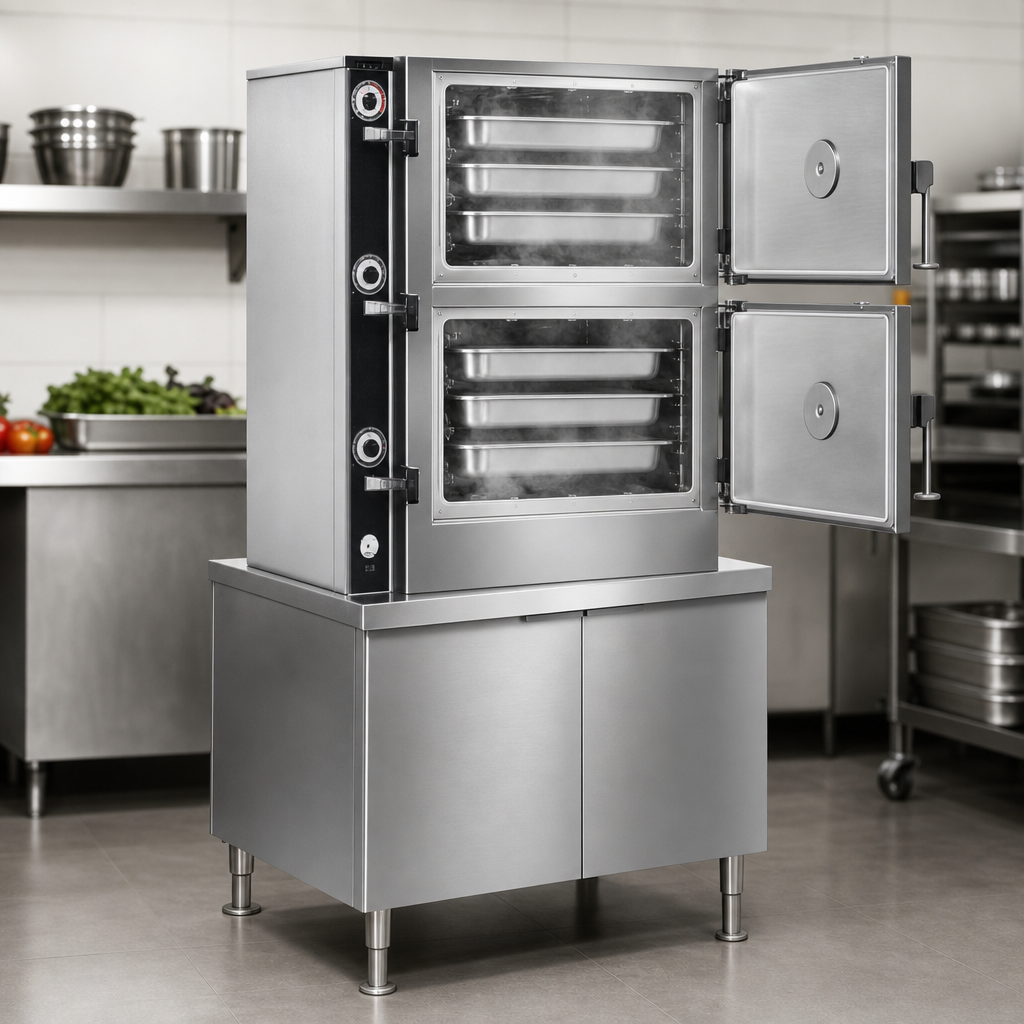

- Two pressure compartments, each with its own 60-min automatic timer, visible pilot light & end-of-cycle buzzer
- All-welded 304 #4-finish stainless steel exterior & interior for maximum sanitation and durability
- Door opens a full 180° and seals with a wheel-and-screw mechanism; removable aluminum inner liner for easy cleaning
- Universal pan supports included; per-compartment capacity up to 14 × 1 in, 6 × 2.5 in, 4 × 4 in or 2 × 6 in hotel pans (12 × 20 in)
- Factory-installed water treatment system, automatic boiler blow-down & split water line
- Water-in “Y” strainer on condenser feed protects internal components
- Reinforced 36 in cabinet base with full-perimeter frame and hinged storage doors
- 6 in stainless legs with adjustable flanged feet for floor mounting
- ASME code stamped boiler, cCSAus & NSF listings
Popular Options & Accessories (extra cost)
- 220–240 VAC operation (specify voltage)
- Ball float trap (BFT) for condensate
- Sheet-pan or wire-rack supports
- Single or double pantry spray hose & bracket
- Stainless steel back panel or frame, correctional package and more
Technical Specifications
| Compartments | 2 pressure compartments, max 6 psi (41 kPa) |
|---|---|
| Boiler Type | Steam-coil, 9–11 psi operating pressure |
| Standard Electrical | 115 VAC, 1-phase, 60 Hz, 2 A per compartment (½ in conduit) |
| Steam Supply | 25–45 psi (170–310 kPa) incoming steam |
| Water Connections |
½ in O.D. boiler feed 25–50 psi ½ in O.D. cold-water condensate 25–50 psi |
| Drain | 2 in IPS to open floor drain (no solid connection) |
| Optional Steam Take-Off | ¾ in IPS connection |
| Overall Dimensions | 36 in W × 41 in D × 82.1 in H (914 × 1041 × 2086 mm) |
| Construction | All-welded 304 stainless steel; #4 finish |
| Certifications | cCSAus, NSF, ASME-code boiler |
Service connections are located under the cabinet base; refer to installation manual for rough-in details.
Warranty
One-year parts & labor warranty; prorated two-year warranty on the boiler shell. See full warranty statement for details.
