Crown (Middleby) OB-3-2-40-E Steam Kettles

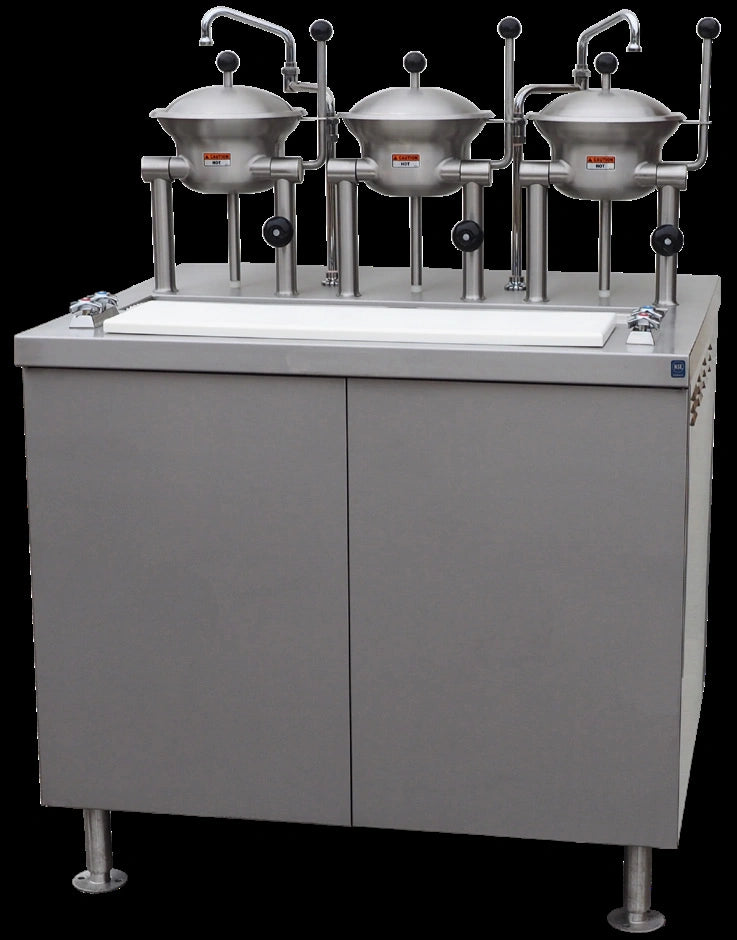

Crown OB-3-2-40-E Electric Oyster Bar Kettle/Cabinet Assembly

Serve perfectly steamed oysters, clams, sauces or sides in record time. The Crown OB-3-2-40-E combines three independent 2-litre kettles with a high-performance electric steam boiler, all in a space-saving 40 inch footprint. From raw bar to banqueting line, it delivers precision, speed and cleanliness that stock pots simply can’t match.

Key advantages

• Triple 2 L kettles let you run three small batches at once—ideal for à-la-minute service and reduced waste.
• Manual 90° forward tilt with stay-cool handle for safe, complete emptying.
• Direct-steam connection guarantees fast, even heat with no hot spots.
• 316 SS kettle liner shrugs off salt, acids and chlorine for extended life.
• Integrated spillage sink and removable drain screen keep worktops sanitary.
• Water treatment system, automatic level control and automatic blow-down slash daily maintenance time.
• Steam control valve concealed in right leg—no exposed piping to snag.
• Fully NSF & cCSAus listed and factory-equipped with CSD-1 compliant boiler controls.

Standard features

• 24 kW electric steam boiler operating at 9–11 psi (62–76 kPa). Optional 36 kW & 42 kW elements available.
• Voltage choices: 208, 220 or 240 V (1 Ø / 3 Ø)  |  380/220 V, 415/240 V or 480 V (3 Ø).
• Automatic water level control with split water line.
• Automatic boiler blow-down and factory-set safety relief valve.
• Secondary high-limit pressure control and easy-read pressure gauge.
• All #4 finish stainless-steel exterior with reinforced countertop.
• Hinged cabinet doors with magnetic catches; removable side panels for service.
• 6″ stainless legs with adjustable flanged feet and rear floor-anchoring holes.
• Lift-off kettle covers supplied standard.

At-a-glance specs

*Dimensions are taken from manufacturer drawings and include legs; verify clearance requirements before installation.

Water supply must meet Crown Steam Group quality guidelines (≤ 60 ppm TDS, pH 6.8–7.3, chlorine < 1.5 ppm). Failure to comply may affect performance and warranty.
