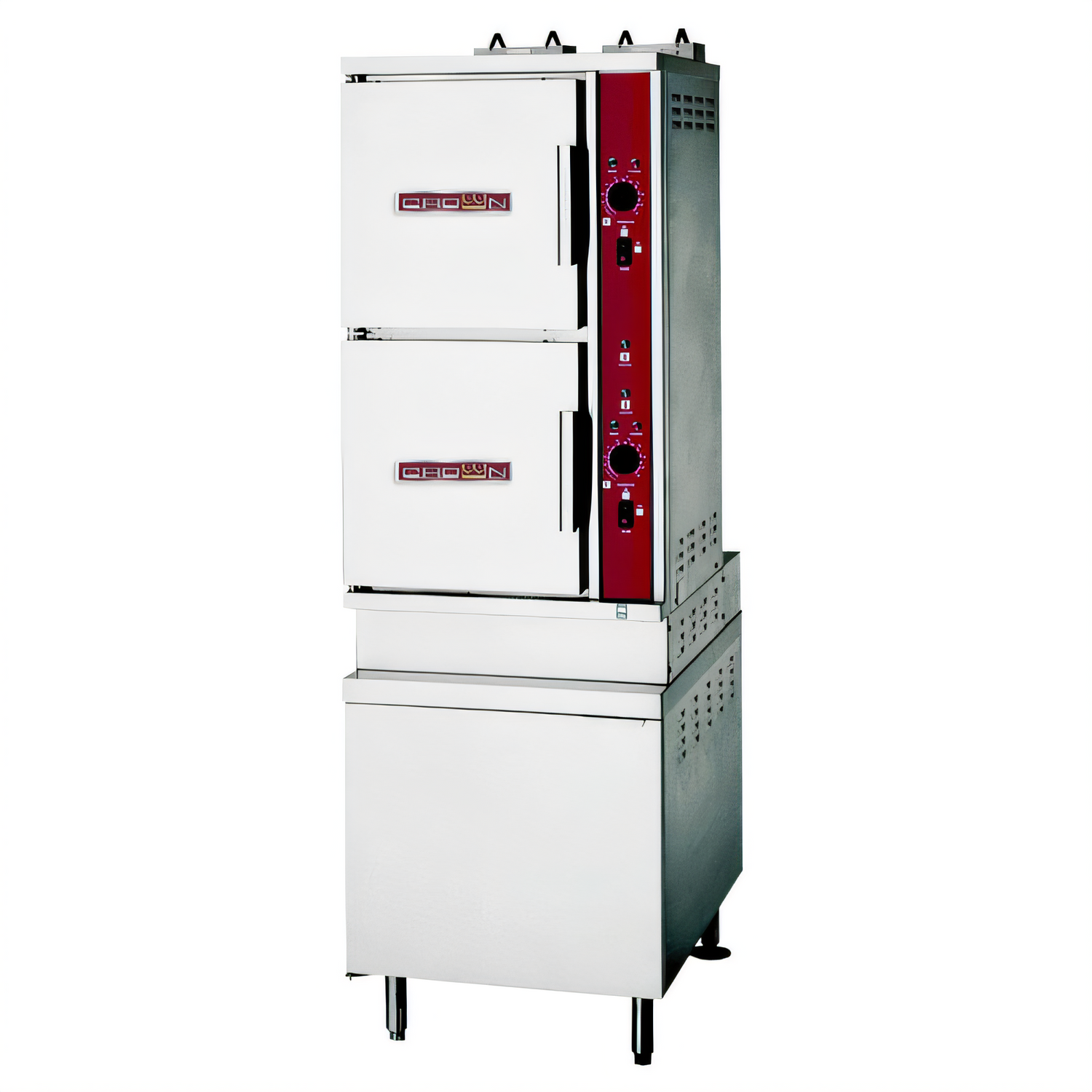

Crown GSX-16HE Two-Compartment Full-Size Gas Convection Steamer with Cabinet Base

SKU: GSX-16HE
$38,175.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steamer Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Crown GSX-16HE Two-Compartment Full-Size Gas Convection Steamer with Cabinet Base

16 Pan Capacity, Natural Gas or Propane, Floor Model

Efficiently steam large batches of food with the robust Crown GSX-16HE gas convection steamer, designed for consistent performance and durability in commercial kitchens.

  • Large 16 full-size pan capacity across two compartments, ideal for high-volume operations.
  • Durable 304 stainless steel exterior and 316 stainless steel interior liner ensure longevity and easy cleaning.
  • Equipped with manual controls, electronic ignition, Delime mode, and automatic blowdown for reliable operation and maintenance.
  • Designed as a floor model with a 36" cabinet base and 6" adjustable flanged legs for stable installation.
  • Features split water connections and an included water filter system to maintain optimal steam quality and extend appliance life.
  • Operates on natural gas or propane with a powerful 190,000 BTU input for rapid steam generation.

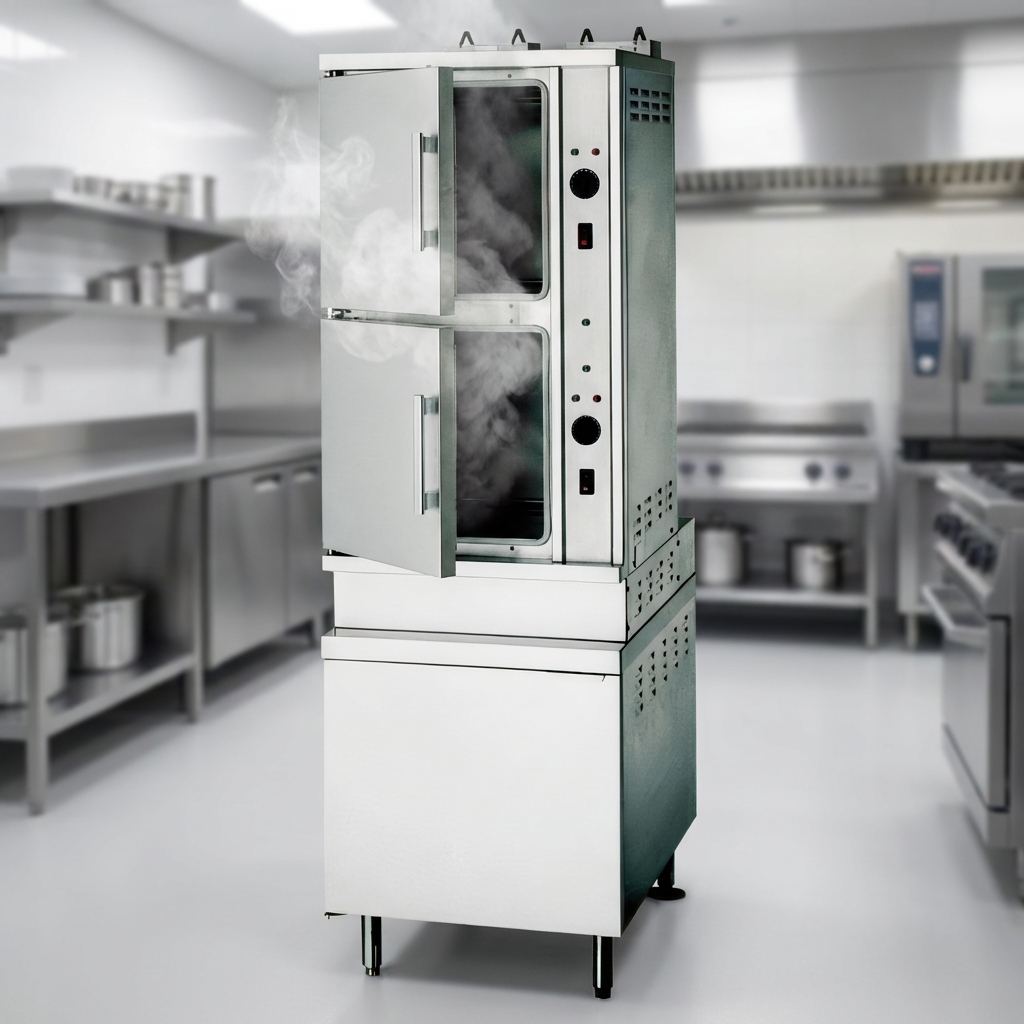

Two Steaming Compartments

Allows for simultaneous cooking of different food items or larger batches, increasing kitchen efficiency.

Effortlessly steam different food items simultaneously with this commercial steamer's two spacious, independent compartments.

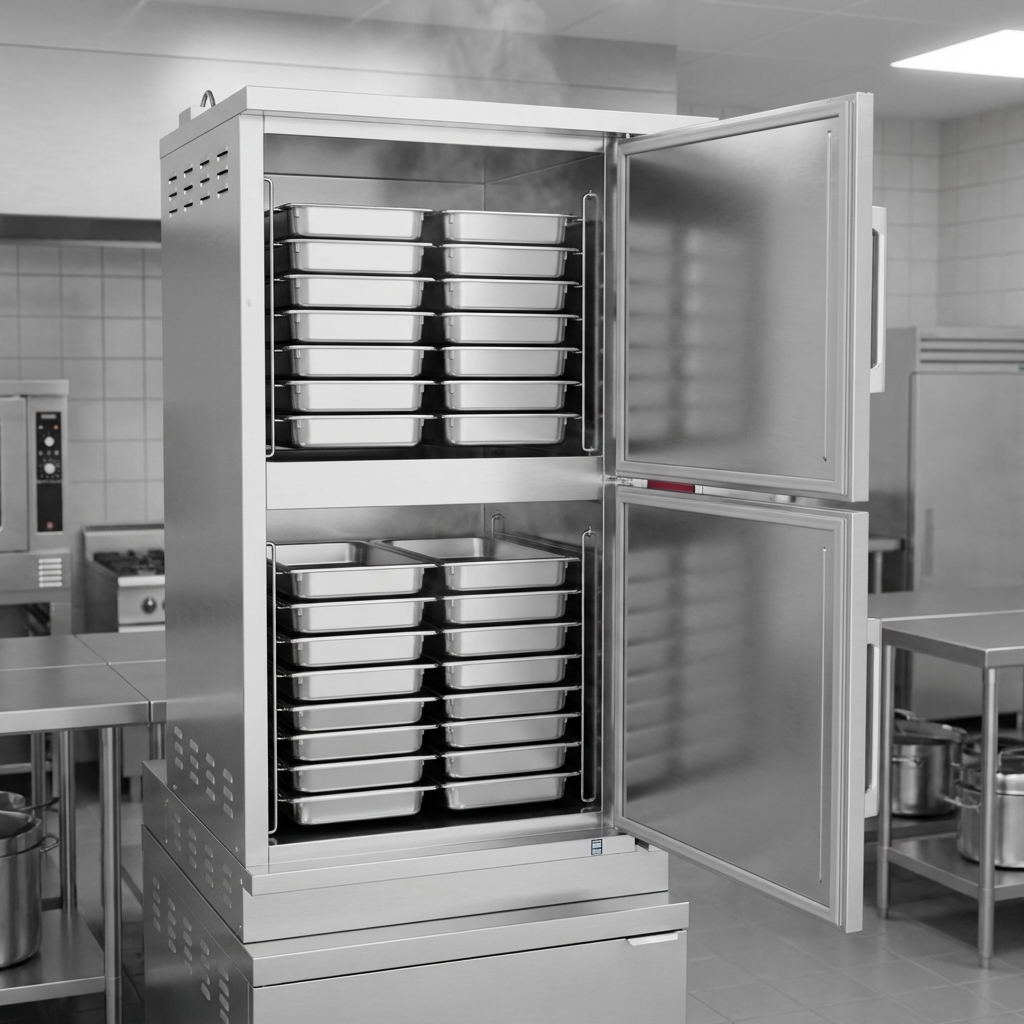

16 Full-Size Pan Capacity

Accommodates up to sixteen 12"x20"x2-1/2" deep full-size steam pans (8 per compartment) for high-volume cooking.

Experience high-volume efficiency with this steamer's impressive capacity for sixteen full-size steam pans.

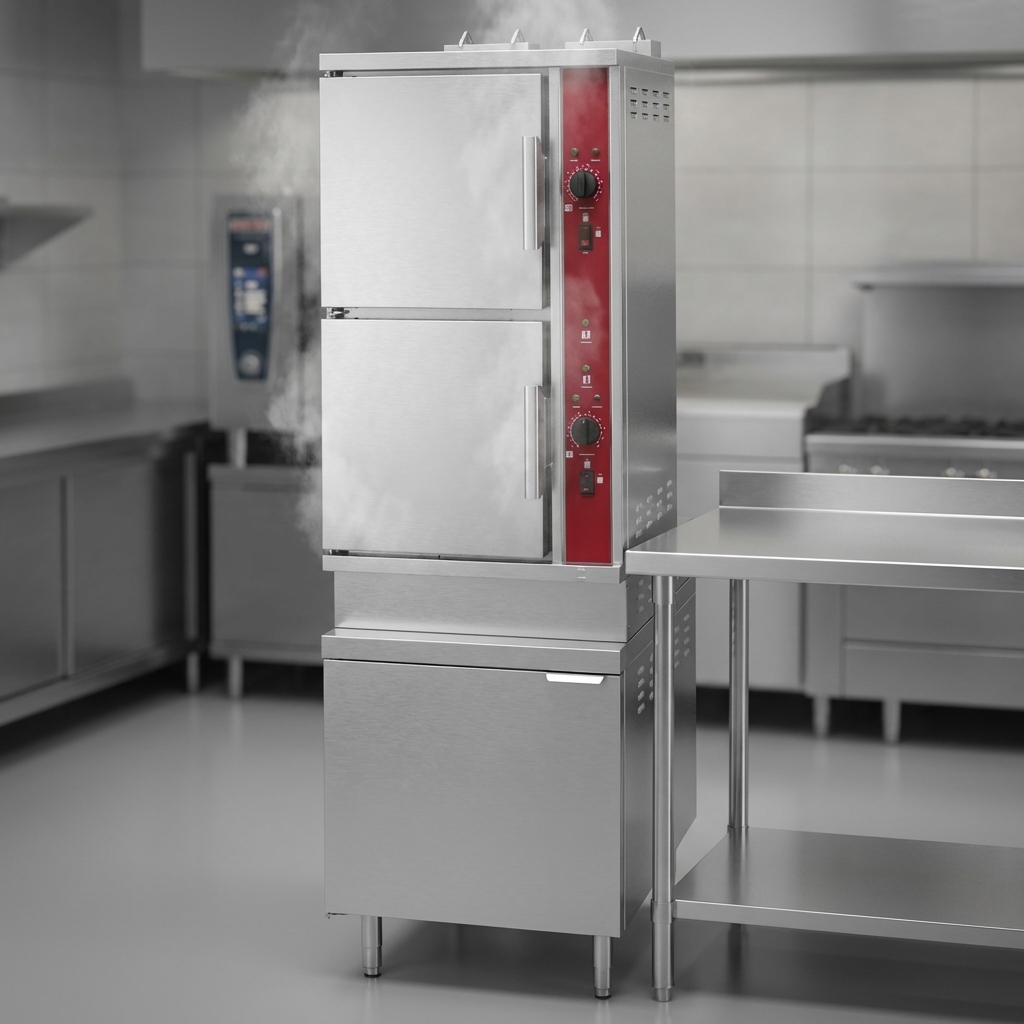

36" Cabinet Base

Provides a sturdy foundation for the floor model installation, integrating seamlessly into commercial kitchen layouts.

This image showcases the steamer's sturdy 36-inch cabinet base, seamlessly integrating into a professional kitchen environment.

Manual Controls with Electronic Ignition

Offers straightforward operation and reliable, instant startup for each cooking cycle.

Delime Mode & Automatic Blowdown

Simplifies maintenance by reducing mineral buildup and automatically flushing the boiler, extending the life of the unit.

Single Drain with Temperature Control

Features a Thermostatic Cooling Valve (TCV) to ensure condensate water discharged into the drain is at or below 140°F, meeting local plumbing codes.

Split Water Connections

Separate connections for boiler feed and condensate cold water optimize water management and supply to the steamer.

Included Water Filter System

Helps maintain optimal water quality, which is essential for the longevity and performance of the steamer and is crucial for warranty coverage.

Removable Pan Supports

Facilitates easy cleaning and offers flexible loading options for various pan sizes.

Safety Relief Valve

Ensures safe operation by automatically releasing excess pressure from the steam generators.

Stainless Steel Construction

Features a 316 stainless steel interior liner for superior corrosion resistance and a durable 304 stainless steel exterior.

6" Adjustable Flanged Legs

Provides stability and allows for precise leveling on non-combustible floors, ensuring proper installation.

Specifications

Type Convection Steamer
Style Two Steam Generators
Installation Type Floor Model (With 36" Cabinet Base and 6" Legs)
Compartments 2
Pan Capacity 16 Full-Size Pans (8 Per Compartment)
Pan Size 12" x 20" x 2-1/2" Deep
BTU 190,000 BTU
Watts 56 kW
Gas Type Natural Gas or Propane
Gas Connection Size 3/4" IPS
Gas Inlet Pressure (Natural Gas) 6"-14" W.C.
Gas Inlet Pressure (Propane) 12"-14" W.C.
Voltage 120 Volts
Amps 4 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Breaker Size 15 Amps
Controls Manual
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Water Connection Required
Drain Connection Required
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 71 Inches
Shipping Weight 900 lb.
Country of Origin Canada
Selling Unit Each
Units Per Case 1

Overall Dimensions:

36.0"W x 33.13"D x 70.38"H

Product Weight:

900.0 lb
Manufacturer Crown (Middleby)
Certifications ["NSF", "CSA Star", "CSA Flame"]
Height 70.38in
Width 36.0in
Depth 33.13in
Shipping Weight 900.0lbs
Interior Finish 316 stainless steel
Pan Capacity per Compartment (8) 12"x20"x2-1/2 deep
Type 2 steam generators
Width (side - side) 36"
Specifications Convection Steamer, gas, (2) compartments, (16) pan capacity total, 36" cabinet base, manual controls, electronic ignition, Delime mode & automatic blow down, single drain with temperature control, split water connections, includes water filter system, removable pan supports, safety relief valve, 316 stainless steel liner, 304 stainless steel construction, 6" legs, adjustable flanged feet, 190,000 BTU, CSA Star, CSA Flame, NSF

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Standard commercial warranty applies; refer to manufacturer's website for full details.

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GSX-16HE steamer requires a 120 Volt, 60 Hertz, single-phase electrical connection with a maximum draw of 4 Amps. It comes with a 6-foot cord and a 3-prong plug (NEMA 5-15P), and a separate 15 Amp supply is needed for each unit.
To ensure optimal performance and warranty coverage, the water supply to the steamer must meet specific guidelines: Total dissolved solids less than 60 PPM, Total alkalinity less than 20 PPM, Silica less than 13 PPM, Chlorine less than 1.5 PPM, and a pH Factor between 6.8 - 7.3. Use of Middleby's Water Treatment System is recommended if water does not meet these standards.
Yes, the steamer must be installed on non-combustible floors. It requires 0" clearance on the left and right sides and 6" clearance from the back from both combustible and non-combustible construction. Adequate clearances for air openings and servicing must also be maintained.
The Delime mode helps prevent mineral buildup within the steam generator, while the automatic blowdown feature periodically flushes out the boiler, contributing to easier maintenance and extended equipment life. Failure or malfunction due to poor water quality and scale buildup is not covered under warranty.
A 3/4" IPS (Iron Pipe Size) supply line is required for the gas connection. The unit can operate on either natural gas with a supply pressure between 6"-14" W.C. or propane with a supply pressure between 12"-14" W.C.
