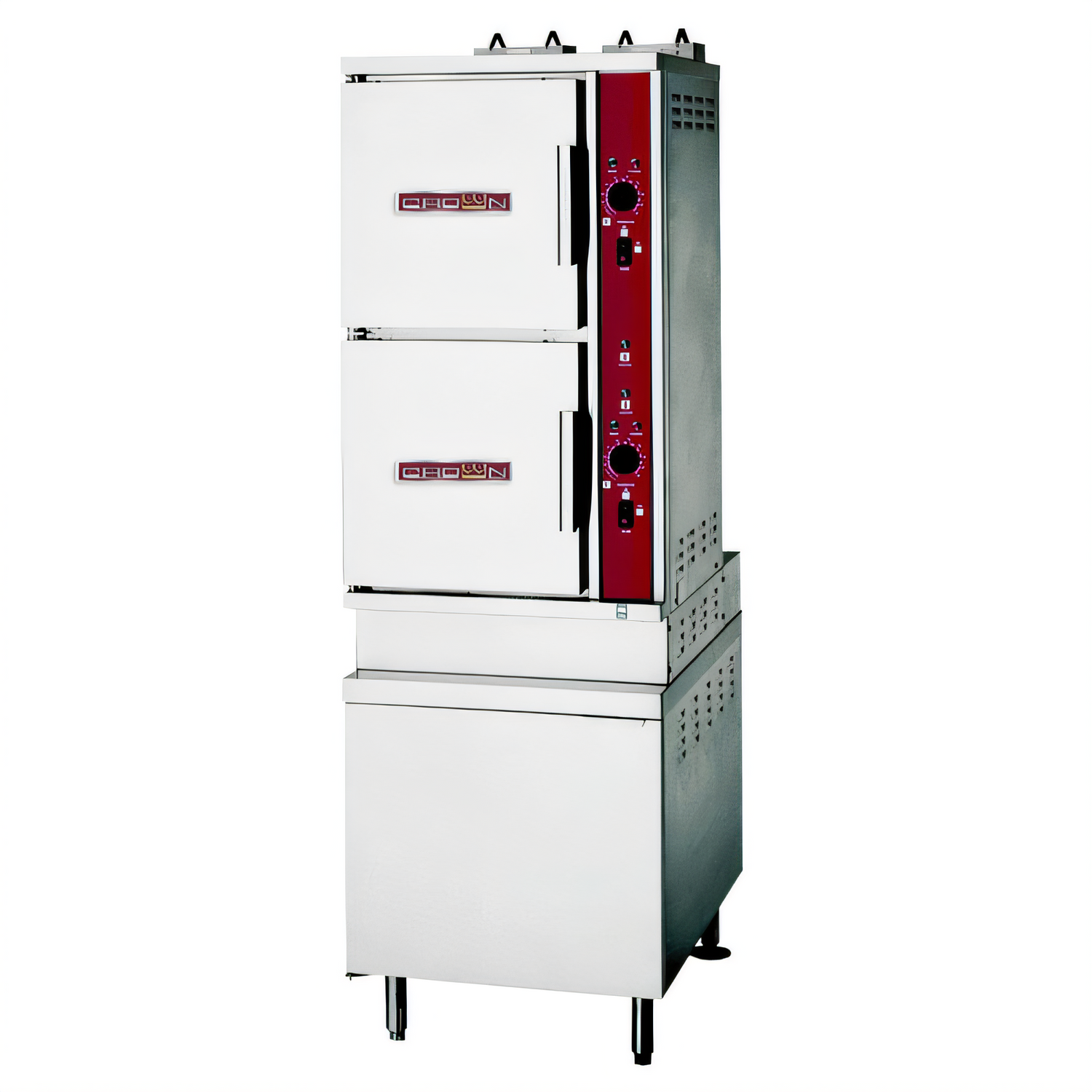

Crown GSX-10HE Two Compartment Full-Size Gas Convection Steamer

10 Pan Capacity Total, 24" Cabinet Base, Manual Controls, Electronic Ignition

The Crown GSX-10HE is a robust, gas-fired convection steamer designed for high-volume commercial kitchens, offering efficient and precise steam cooking with its dual compartment design.

  • Features two independent cooking compartments with a total capacity of 10 full-size pans.
  • Delivers efficient gas-fired steam generation with 190,000 BTU/hr for rapid cooking.
  • Equipped with user-friendly manual controls and reliable electronic ignition.
  • Includes Delime mode and automatic blow down for simplified maintenance and extended equipment lifespan.
  • Constructed with durable 304 and 316 stainless steel for superior corrosion resistance and commercial reliability.
  • Comes with an integrated water filter system to ensure optimal water quality, crucial for performance and warranty compliance.

Overall Dimensions:

24.0"W x 33.13"D x 71.88"H

Product Weight:

700.0 lb

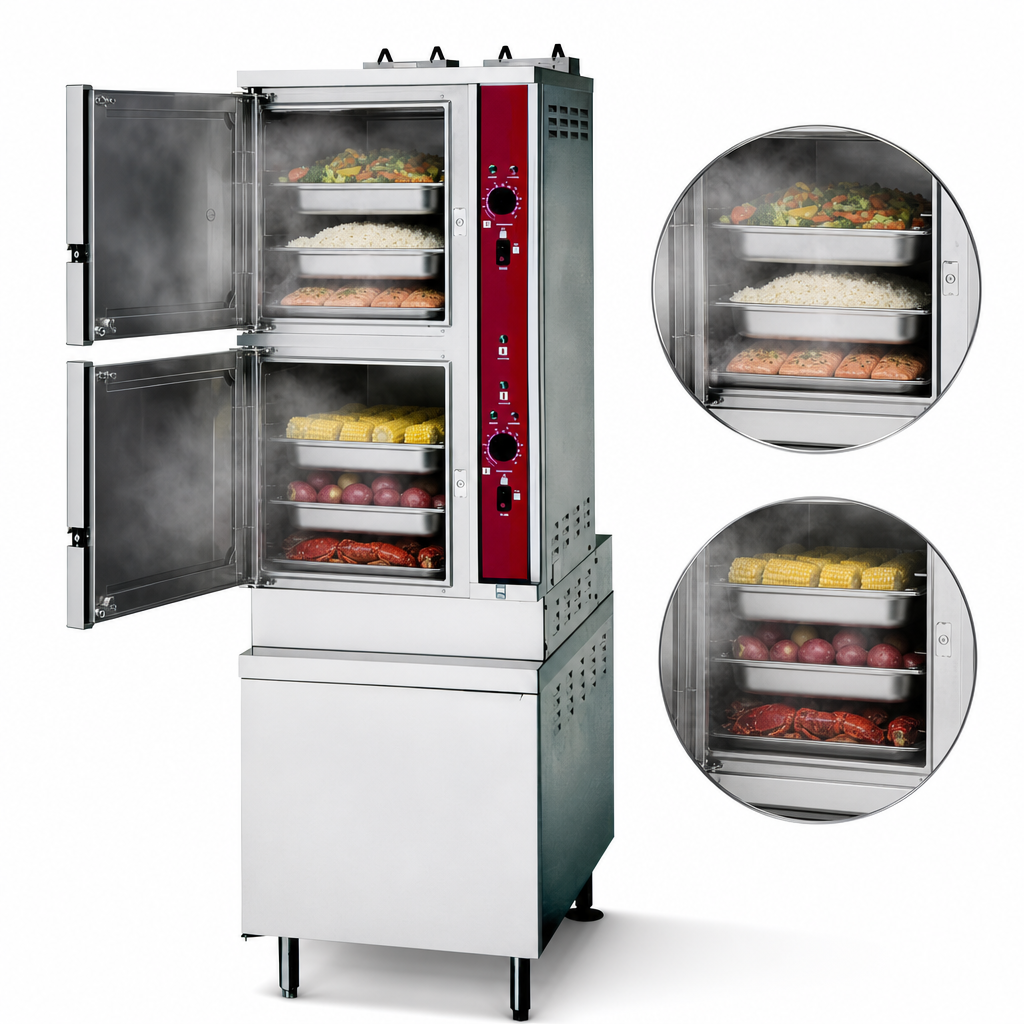

Two Independent Compartments

Allows for simultaneous cooking of different food items, enhancing kitchen productivity and versatility.

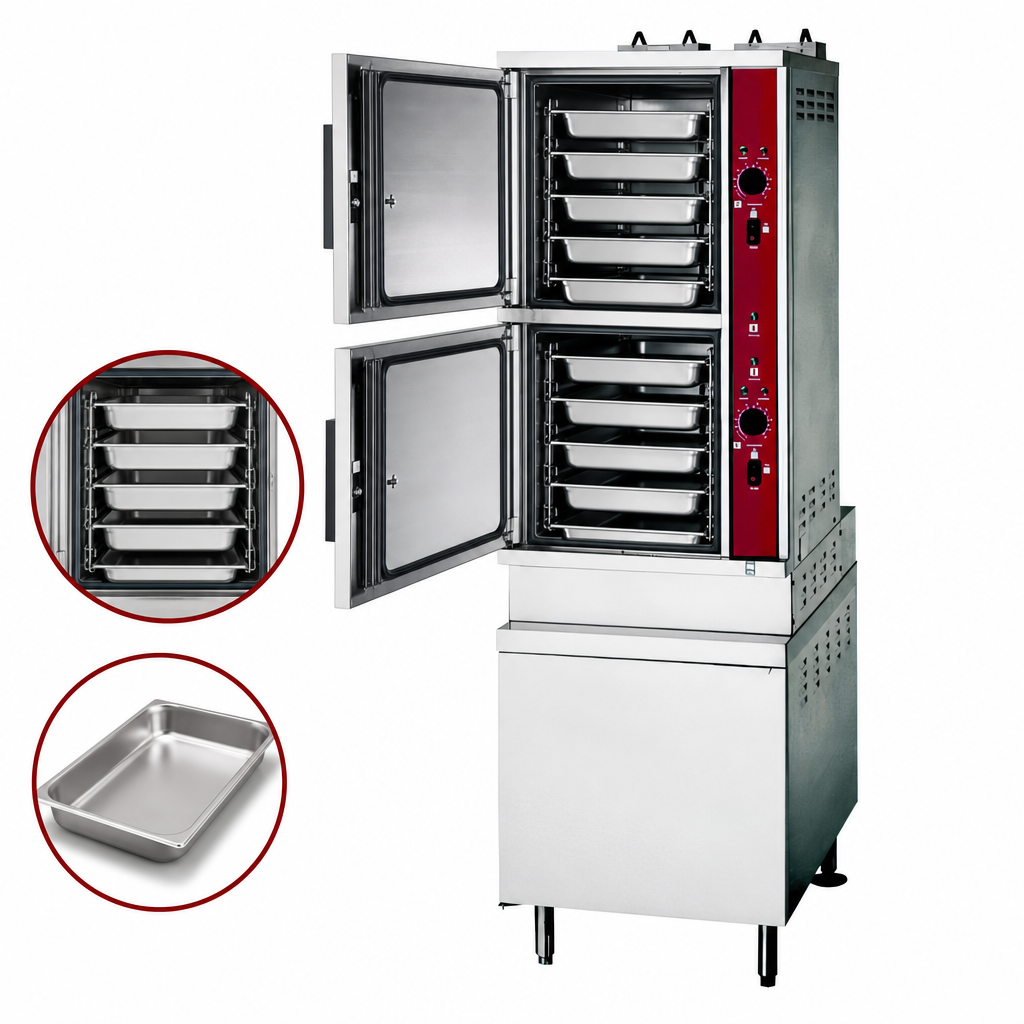

10 Full-Size Pan Capacity

Each compartment holds 5 full-size 12"x20"x2-1/2" deep steam table pans, providing ample capacity for high-volume operations.

24" Cabinet Base

Provides a sturdy foundation and elevates the cooking compartments to a comfortable working height.

Manual Controls

Straightforward and reliable operation with individual 60 or 120-minute timers for each cooking compartment.

Electronic Ignition

Ensures quick, consistent, and safe startup of the gas burners.

Delime Mode and Automatic Blow Down

Simplifies cleaning and actively prevents mineral buildup in the steam generators, extending component life and maintaining efficiency.

Single Drain with Temperature Control

Manages the temperature of condensate discharge to comply with plumbing codes and ensures safe drainage.

Split Water Connections

Optimizes water supply to each steam generator for efficient and consistent steam production.

Integrated Water Filter System

Provides treated water, which is essential for peak performance, reduced maintenance, and warranty validity by preventing scale buildup.

Removable Pan Supports

Facilitates easy cleaning of the cooking compartments and allows for flexible loading configurations.

Safety Relief Valve

Ensures safe operation by automatically releasing excess pressure from the steam generators.

316 Stainless Steel Liner

High-grade stainless steel interior construction offers superior corrosion resistance and durability in the cooking chambers.

304 Stainless Steel Construction

Durable and easy-to-clean exterior and structural components for long-lasting commercial use.

6" Legs with Adjustable Flanged Feet

Provides stable, level installation and allows for proper cleaning underneath the unit.

Cold Water Condenser

Located in the rear of the cooking chamber, it condenses steam prior to discharge, preventing steam leakage around the door gasket.

Type Pressureless Convection Steamer
Style Floor Model
Installation Type Floor Model (With Stand)
Compartments 2
Pan Capacity 10 Full-Size Pans (2-1/2" deep)
Pan Capacity Per Compartment 5 Full-Size Pans (2-1/2" deep)
Controls Manual Timer, Electronic Ignition
Gas Type Natural Gas
BTU 190,000 BTU/hr
Gas Connection Size 3/4 Inch IPS
Gas Inlet Pressure (Natural Gas) 6-14 Inches W.C.
Gas Inlet Pressure (Propane) 12-14 Inches W.C.
Electrical Connection 120 Volts
Amps 4 Amps
Watts 480 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 Feet
Drain Connection Size 2 Inches IPS
Water Inlet Size (Boiler Feed) 3/8 Inch O.D.
Water Inlet Size (Condensate) 3/8 Inch O.D.
Water Connection Required
Drain Connection Required
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Legs 6 Inches
Clearance (Sides) 0 Inches
Clearance (Back) 6 Inches
Country of Origin Canada
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 34 Inches
Shipping Height 72 Inches
Shipping Weight 700 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Refer to manufacturer's warranty details.

Documents

PDF Cutsheet PDF Download PDF Crown steam group letter PDF Download PDF Middleby financial flyer PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The GSX-10HE requires a 120 Volt, 60 Hz, single-phase electrical connection, drawing a maximum of 4.0 Amps. It comes with a 6-foot cord and a 3-prong (NEMA 5-15P) grounded plug.
This unit requires a 3/4 inch IPS gas supply line. For Natural Gas, the supply pressure should be between 6 and 14 Inches W.C., with a manifold pressure of 3.5 Inches W.C. For Propane (LP), the supply pressure should be between 12 and 14 Inches W.C., with a manifold pressure of 10 Inches W.C. It is crucial to use the correct gas type as specified on the unit's rating plate.
For optimal performance and warranty coverage, water supplied to the generator must be softened to no more than 2.0 grains of hardness and have a pH between 6 and 7.5. Specific guidelines include Total dissolved solids less than 60 PPM, Total alkalinity less than 20 PPM, Silica less than 13 PPM, and Chlorine less than 1.5 PPM. An integrated water filter system is included to help meet these standards.
The steamer is equipped with a Thermostatic Cooling Valve (TCV) that controls the temperature of the condensate water flowing through the drain. This valve is factory-set to keep the drain water at or below 140°F, but it can be adjusted to meet local plumbing code requirements. Adjusting the TCV outwards lowers the drain temperature, while inwards increases it.
Minimum clearances from combustible and noncombustible construction are 0 inches on the left side, 0 inches on the right side, and 6 inches from the back. Adequate clearance must also be provided for air openings into the combustion chamber and for ease of servicing.
