Crown (Middleby)  |  SKU: GS-40N

Crown (Middleby) GS-40N Braising Pans & Tilt Skillets

$29,137.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Installation & operation Middleby financial flyer Warranty sheet
Related Searches
Braising Pans & Tilt Skillets Specialty Cooking Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

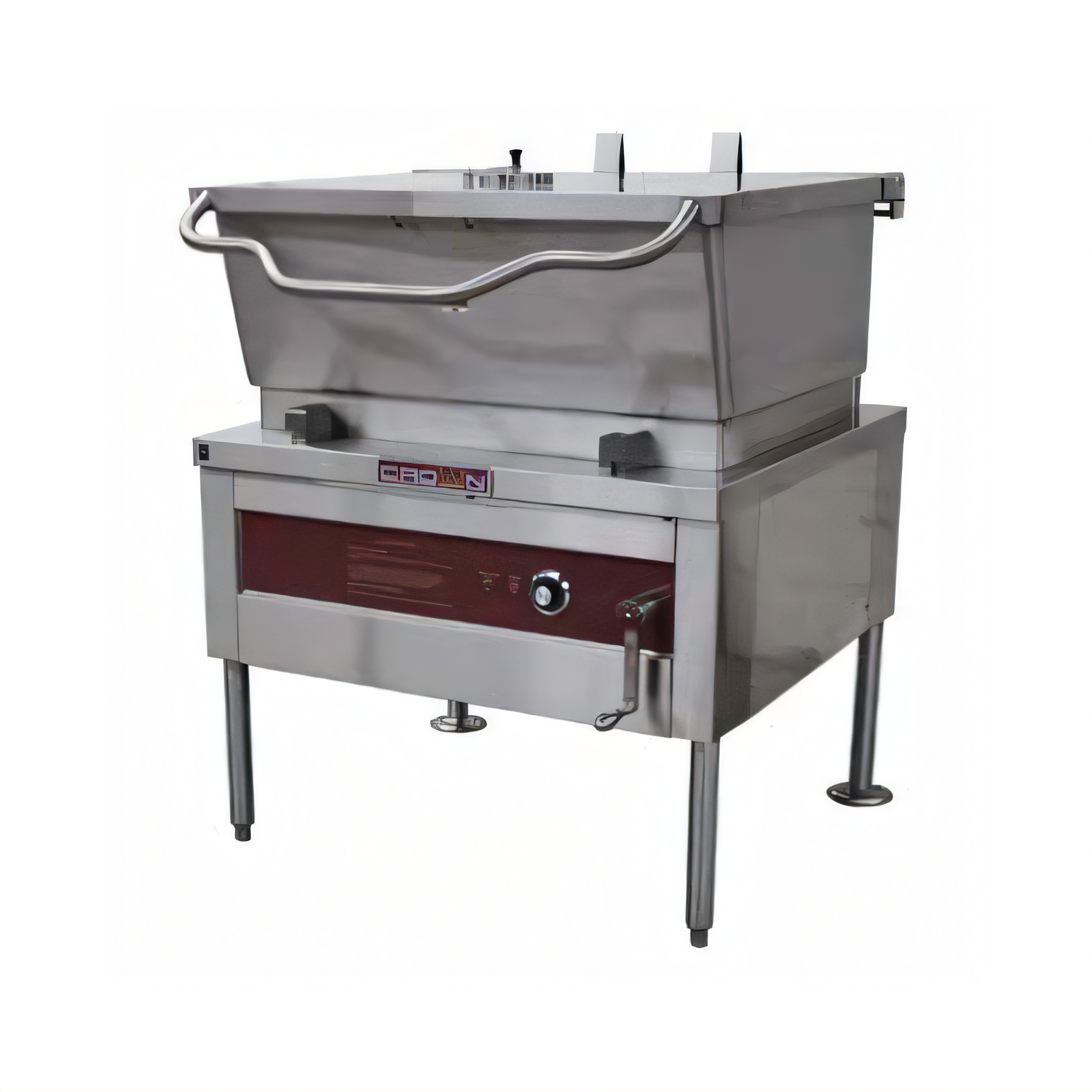

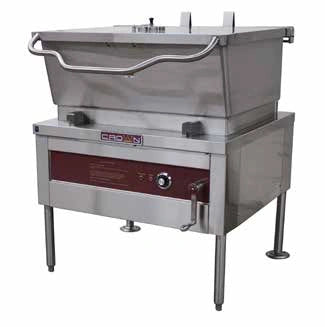

Crown GS-40N Narrow 40 Gallon Gas Tilting Skillet (Manual Tilt)

High-output 100,000 BTU | 304 SS construction | NSF & CSA certified

Replace multiple pieces of equipment with one work-horse. The Crown GS-40N braises, sautés, grills, poaches, holds and more—all in a compact 36 inch footprint that fits narrow cooklines. A manual, gear-driven tilt and spring-assisted cover make handling large batches effortless, while the powerful 100,000 BTU burner package brings every inch of the 3⁄4 inch triple-ply cooking surface up to temperature fast and evenly.

Key advantages

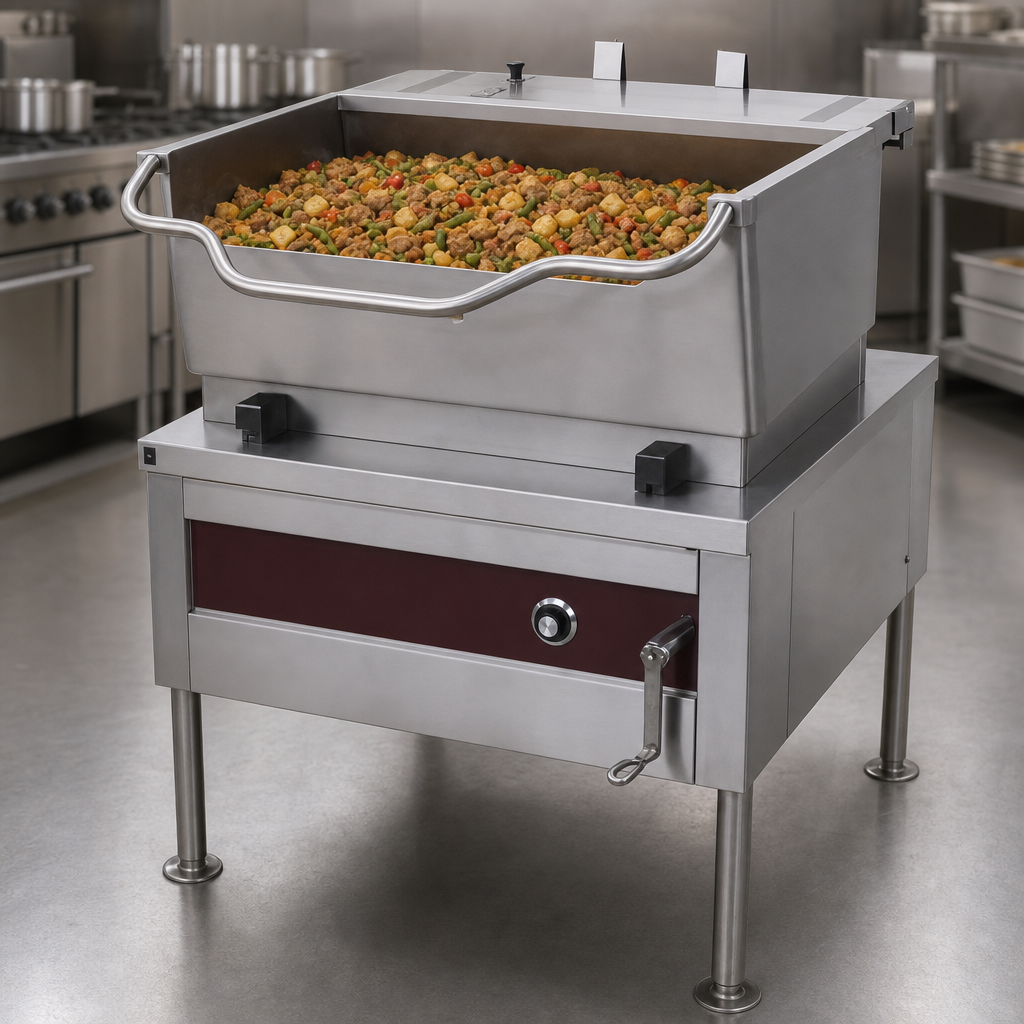

  • 40 gal (152 L) capacity—ideal for high-volume kitchens, commissaries & institutions
  • Stainless steel atmospheric burners with electronic ignition for reliable, instant starts
  • Wide 100-450 °F (38-232 °C) thermostat plus high-temp cut-off at 500 °F for built-in safety
  • Thermostat & ignition indicator lights give at-a-glance status
  • 304 SS 10-gauge pan with coved corners and mirror polished interior for fast cleanup
  • 3⁄4" triple-ply cooking surface with 3⁄8" aluminum core—uniform heat distribution, no hot spots

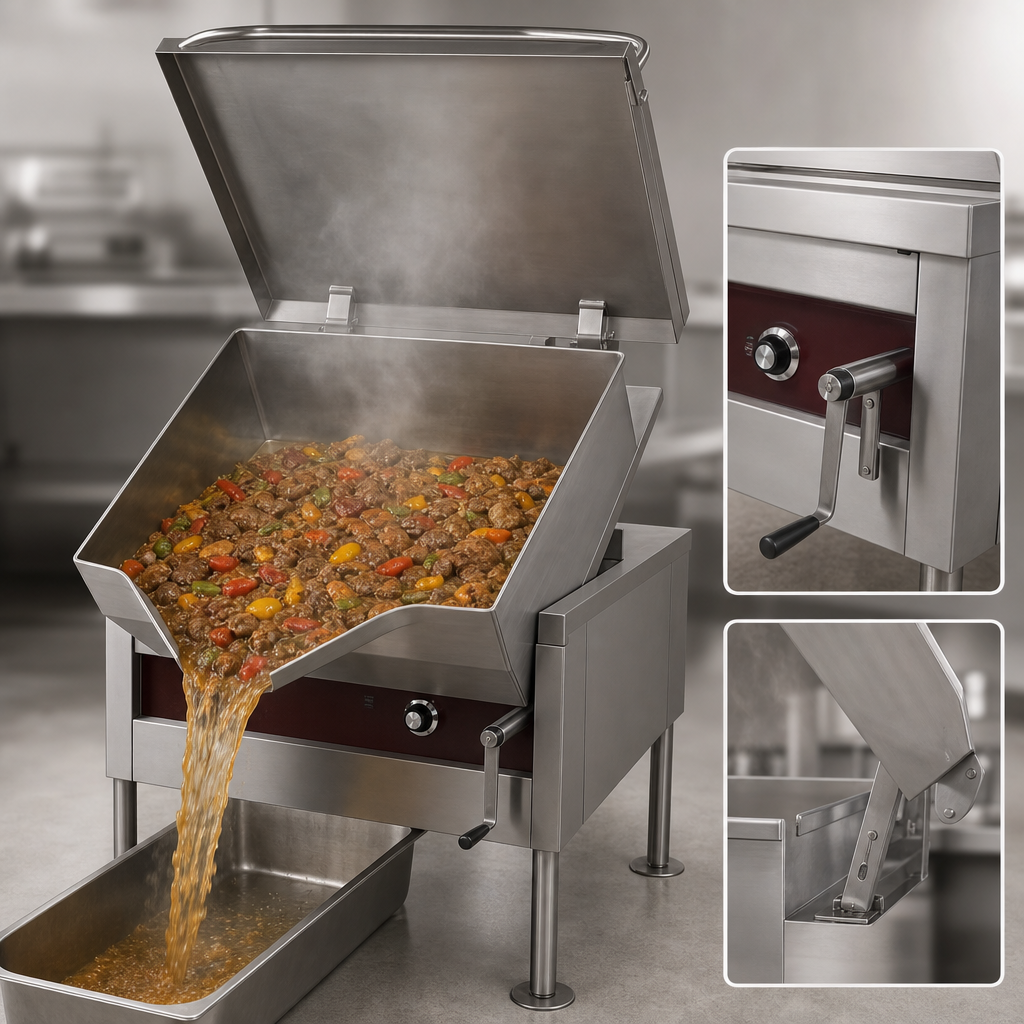

  • Manual tilt with permanently lubricated gearbox; shuts burners off if tilted >5°
  • Spring-assisted cover with full-width handle, condensate drip edge & vent port
  • Removable stainless pour strainer for precise, mess-free draining
  • Heavy-duty 1 ⅝" tubular SS frame, front adjustable bullet feet & rear flanged feet for secure floor mounting
  • Controls housed in NEMA-2 splash-proof enclosure (115 V, 2 A cord & plug included)

Specifications

Model GS-40N
Capacity 40 gal / 152 L
Energy Source Natural or Propane Gas
Total Input 100,000 BTU / 29.3 kW
Temperature Range 100-450 °F (38-232 °C)
Gas Connection ¾" NPT (rear)
Gas Supply Pressure Nat 6-14" W.C.  |  LP 11-14" W.C.
Electrical 115 V, 1-ph, 50/60 Hz, 2 A (6 ft cord & 3-prong plug)
Exterior Dimensions (W × D × H) 36" × 39.5" × 42.5"
(914 × 1 003 × 1 080 mm) – cover closed
Height – Cover Open 75.5" (1 918 mm)
Shipping Weight 565 lb / 257 kg
Minimum Clearance 6" (152 mm) at rear; non-combustible floor only
Certifications CSA Star, CSA Flame, NSF
Warranty 1 yr parts & labor (10 yr kettle body)

Popular accessories (sold separately)

  • 2" or 3" draw-off valve with strainer
  • Etched liter markings for precise batching
  • Steam pan insert (SPI-40)
  • Sliding drain pan or pan carrier
  • Single or double pantry faucets with swing spout & spray hose
  • 220 V control transformer kit
  • Correctional package for secure installations
Important: Installation must be performed by qualified personnel in accordance with local codes. Unit requires a ¾" gas supply, 115 V outlet for controls, and secure anchoring to a non-combustible floor.

Need flexible financing? Ask about Middleby Equipment Financing for fast credit decisions and affordable monthly payments.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA Star, CSA Flame

Height

75.5in

Width

36.0in

Depth

48.13in

Shipping Weight

565.0lbs

Capacity

40 - 49 gal

Base

open frame

Tilt

manual tilt

Specifications

Tilting Skillet, gas, narrow, 40 gallon capacity, manual tilt, spring assisted cover, electronic ignition, thermostat & ignition indicator lights, high temp safety cut-off, removable pour strainer, 304 stainless steel construction, tubular legs, adjustable bullet feet front, adjustable flanged feet rear, 100,000 BTU, CSA Star, CSA Flame, NSF
