Crown (Middleby) GS-40-QS Braising Pans & Tilt Skillets
Description

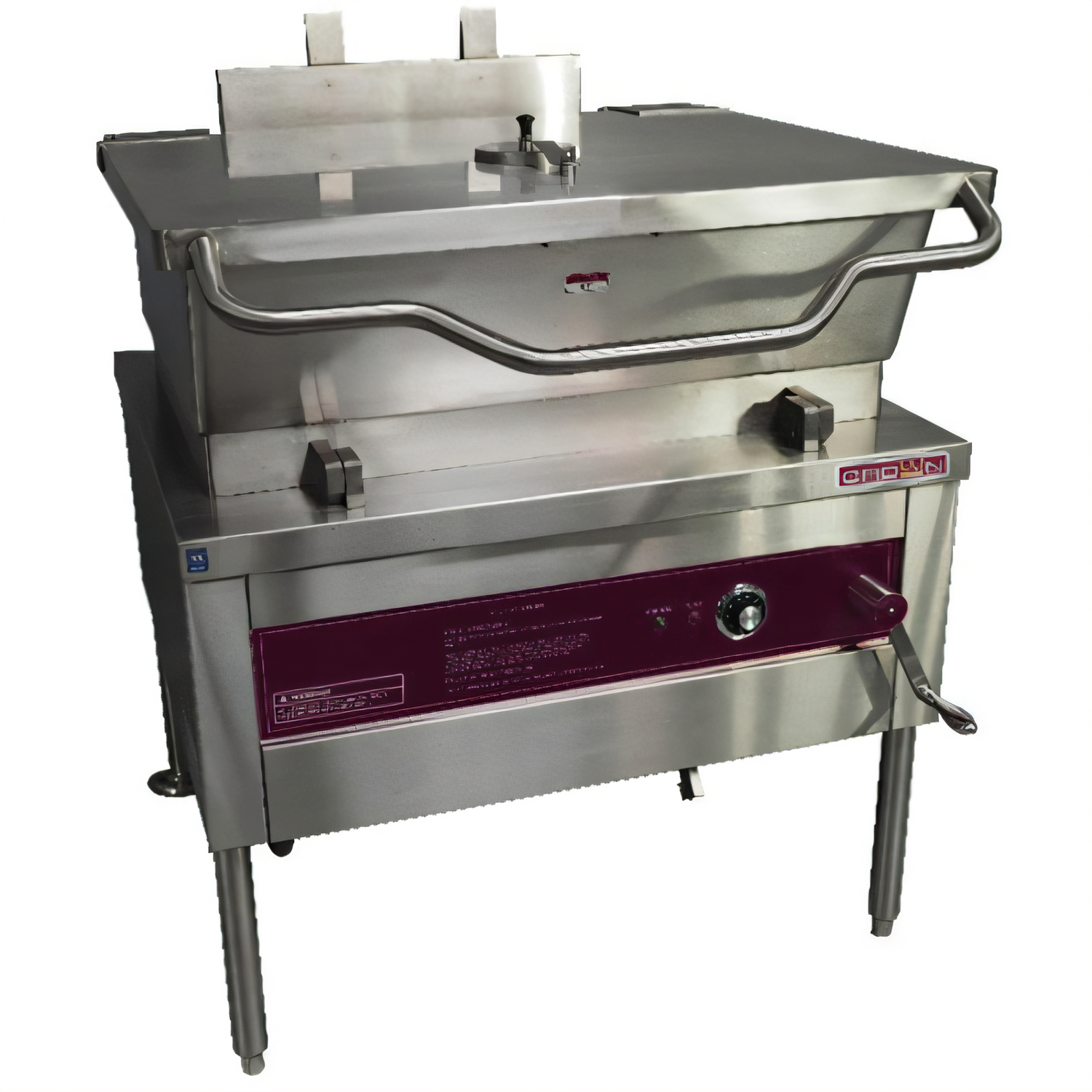

Crown GS-40 Gas Tilting Skillet – 40 Gallons / 152 L
125,000 BTU • Manual Tilt • 304 Stainless SteelReplace multiple pieces of equipment with one powerhouse. The Crown GS-40 braises, sautés, pan-fries, steams and holds up to 40 gallons (152 L) of product—all while delivering even, controllable heat and effortless pour-off. Built for high-volume commercial kitchens, this gas-fired tilting skillet pairs rugged 304 stainless construction with precise solid-state temperature control for dependable, repeatable results shift after shift.
Why You’ll Love It
- Big-batch capacity: 40 gal (152 L) pan formed from 10-gauge 304 stainless with coved corners for fast cleanup.
- Even heat, every corner: ¾" triple-ply cooking surface with a ⅜" aluminum core distributes 125 k BTU evenly over the entire pan.
- Manual gearbox tilt: Self-contained, permanently lubricated mechanism provides smooth, controlled pouring.
- Spring-assisted cover: Full-width handle, no-drip condensate guide and vent port with swing cover keep operators safe and dry.
- Solid-state thermostat: 100–450 °F (38–232 °C) set-point with green “Ignition” and red “Heat” indicator lights.
- Built-in safeguards: Electronic ignition, high-limit cut-off at 500 °F (260 °C) and tilt switch that shuts burners off when pan is raised more than 5°.
- Easy pour-off: Sloped front, removable stainless pour strainer and optional 2" or 3" draw-off valves.
- Rock-solid frame: 1 ⅝" square tubular stainless base with adjustable bullet feet (front) and flanged feet (rear) for floor anchoring.
- Certified for the line: CSA Star, CSA Flame and NSF listings for gas safety and sanitation.
Specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Energy Source | Natural or Propane Gas – 125,000 BTU / 36.6 kW hr |
| Temperature Range | 100 – 450 °F (38 – 232 °C) |
| High-Limit Safety | 500 °F (260 °C) automatic cut-off |
| Ignition | Electronic, intermittent pilot |
| Gas Connection | ¾" IPS (rear) |
| Electrical (controls only) | 115 VAC, 1 ph, 50/60 Hz, 2 A (6 ft cord & plug supplied) |
| Exterior Dimensions | 48" W × 43.5" D × 41.6" H * (1219 × 1105 × 1057 mm) |
| Shipping Weight | ≈ 720 lb / 327 kg |
| Construction | Pan, cover & frame: 304 stainless steel |
| Listings | CSA Star, CSA Flame, NSF |
*Height measured to pan lip; allow additional clearance for open cover.
Popular Accessories (Sold Separately)
- 2" or 3" draw-off valve with strainer
- Sliding drain pan (Model S-SDP-2)
- Etched liter/gallon markings
- Pan carrier or half-size pan carrier
- Single or double pantry faucets with swing spout and/or spray hose
Intended for commercial use on non-combustible floors only. Installation must conform to local codes and the latest edition of the National Fuel Gas Code. Professional installation recommended.
