Crown (Middleby) GS-30-QS Braising Pans & Tilt Skillets
Description

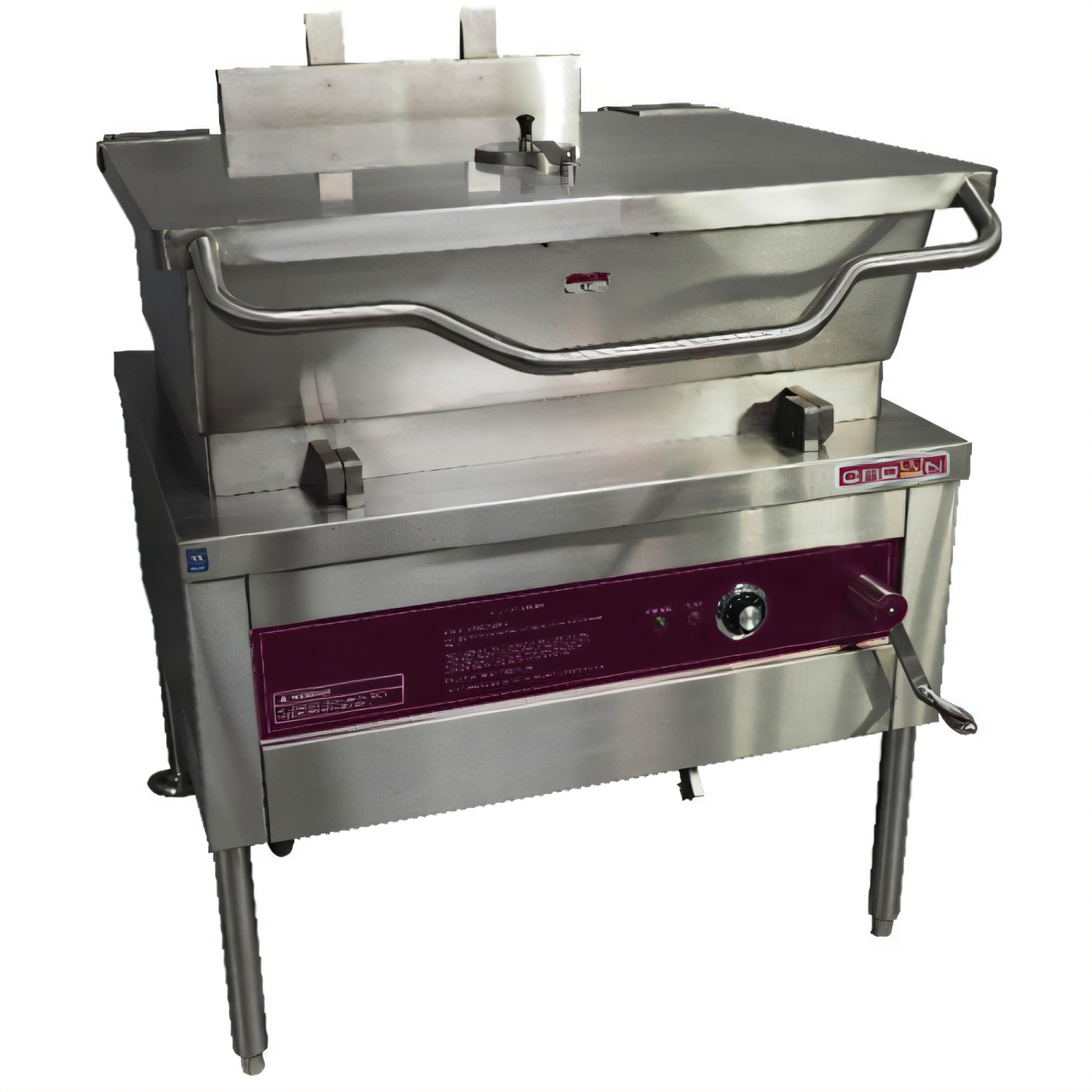

Crown GS-30 Gas Tilting Skillet – 30 gal / 100,000 BTU
Manual-tilt braising pan for high-volume sautéing, searing, simmering & moreBuilt for kitchens that refuse to compromise, the Crown GS-30 delivers the speed of a griddle, the capacity of a kettle, and the flexibility of a skillet—all in one rugged, floor-mounted unit. With 304 stainless steel construction, a spring-assisted lid, and an ultra-even triple-ply cooking surface, you’ll braise, grill, steam, pan-fry or hold up to 30 gallons (114 L) of product with confidence.
Key performance features
- 100,000 BTU stainless steel atmospheric burners for rapid preheat
- ¾" triple-ply cooking surface with ⅜" aluminum core for even heat distribution
- Solid-state thermostat (100–450 °F) with indicator lights for temperature & ignition status
- Electronic ignition with intermittent pilot and high-limit safety cut-off @ 500 °F
- Manual, self-contained gear-box tilt—smooth, precise pouring every time
- Removable pour-lip strainer and etched gallon markings speed up portioning & cleanup
- Spring-assisted cover with no-drip condensate guide, swing vent & full-width handle
- 10-gauge 304 stainless pan with coved corners—NSF-easy to wipe, deglaze & sanitize
- 1 ⅝" welded tubular frame, front adjustable bullet feet & rear flanged feet for floor anchoring
- Operates on Natural or Propane gas; 115 VAC, 1-phase, 2 A cord & plug supplied
Technical specifications
| Capacity | 30 gal / 114 L |
|---|---|
| Heat input | 100,000 BTU / 29.3 kW |
| Temperature range | 100 – 450 °F (38 – 232 °C) |
| High-limit cut-off | 500 °F (260 °C) |
| Tilt mechanism | Manual gearbox with 5° safety shut-off |
| Fuel options | Natural Gas (6–14" W.C.) or Propane Gas (11–14" W.C.) |
| Gas connection | ¾" IPS, rear |
| Electrical | 115 VAC, 50/60 Hz, 1-phase, 2 A (6' cord & 3-prong plug) |
| Overall dimensions | 36" W × 39.5" D × 41.1" H (914 × 1003 × 1045 mm) |
| Shipping weight | 550 lb / 250 kg |
| Clearances* | Sides 0" • Back 6" |
| Certifications | CSA Star • CSA Flame • NSF |
Popular accessories (sold separately)
- 2" or 3" draw-off valve with strainer
- Sliding drain pan (model S-SDP-2)
- Etched liter markings
- Single or double pantry faucets with swing spout & spray hose kits
- Steam pan inserts & half-size pan carriers
*Clearances are factory recommendations for proper ventilation and service access.
Maximum two (2) units per order. Intended for commercial use only.
