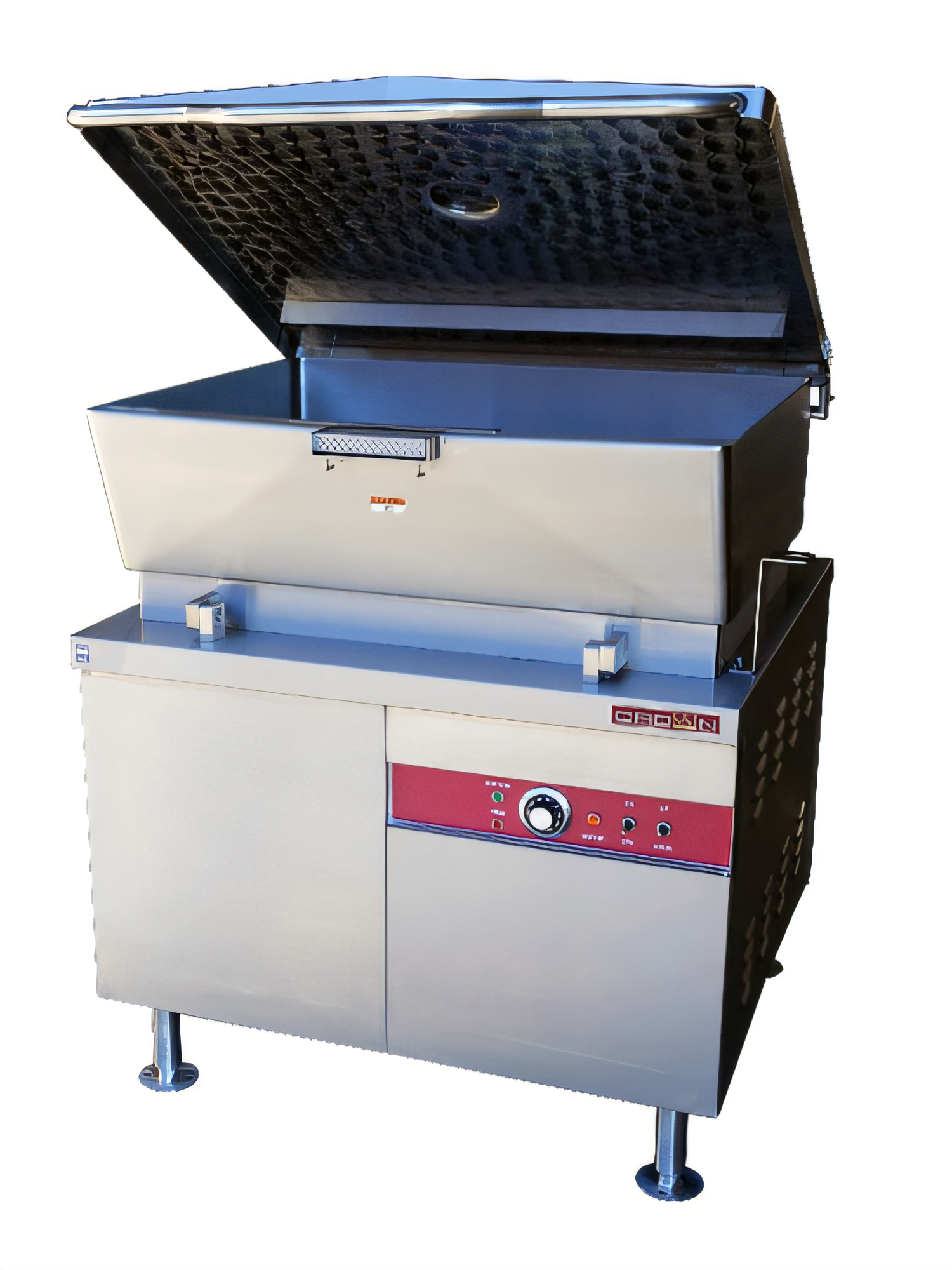

Crown GMTS-40 40 Gallon Gas Cabinet Base Hydraulic Tilting Skillet

SKU: GMTS-40
$43,846.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment

Crown GMTS-40 40 Gallon Gas Cabinet Base Hydraulic Tilting Skillet

Full-Size, Natural Gas or Propane, Cabinet Base

Designed for demanding commercial kitchens, the Crown GMTS-40 offers versatile, high-capacity cooking with precise temperature control and effortless hydraulic tilting.

  • Large 40-gallon capacity ideal for high-volume cooking of various dishes.
  • Robust 10 gauge 304 stainless steel pan body with a polished interior ensures durability and easy cleaning.
  • 3/4 inch triple-ply cooking surface with a 3/8 inch aluminum core provides superior, even heat distribution.
  • Hydraulic lift system with a 1/2 HP motor allows for smooth and precise tilting action.
  • Solid state thermostat maintains cooking temperatures between 100°F and 450°F.
  • Gas supply automatically shuts off when the pan is tilted, enhancing safety.

Overall Dimensions:

44.0"W x 46.5"D x 40.5"H

Product Weight:

825.0 lb

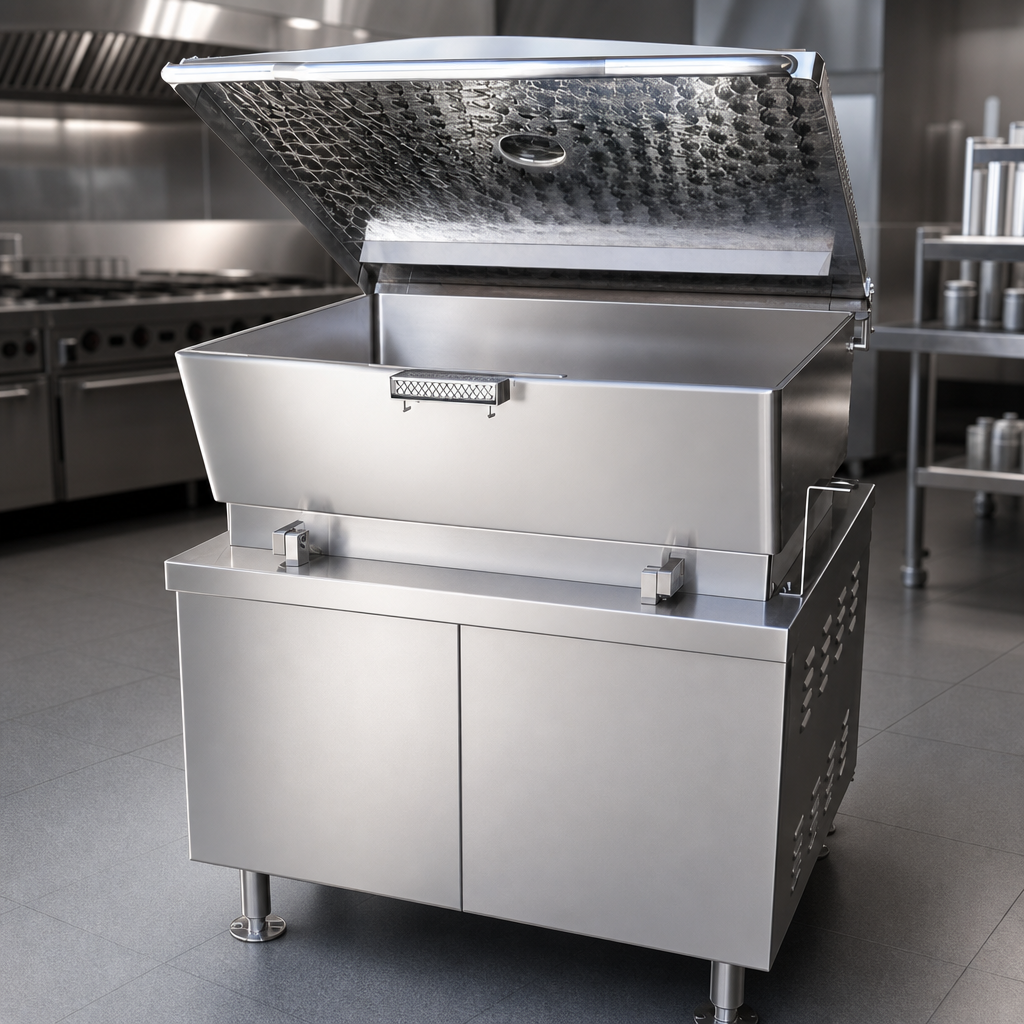

Heavy-Duty Stainless Steel Construction

Pan body formed from 10 gauge 304 stainless steel with a #4 finish exterior and polished interior. Cabinet base enclosed with #4 finish type 304 stainless steel, featuring removable side panels and two stainless steel front cabinet doors.

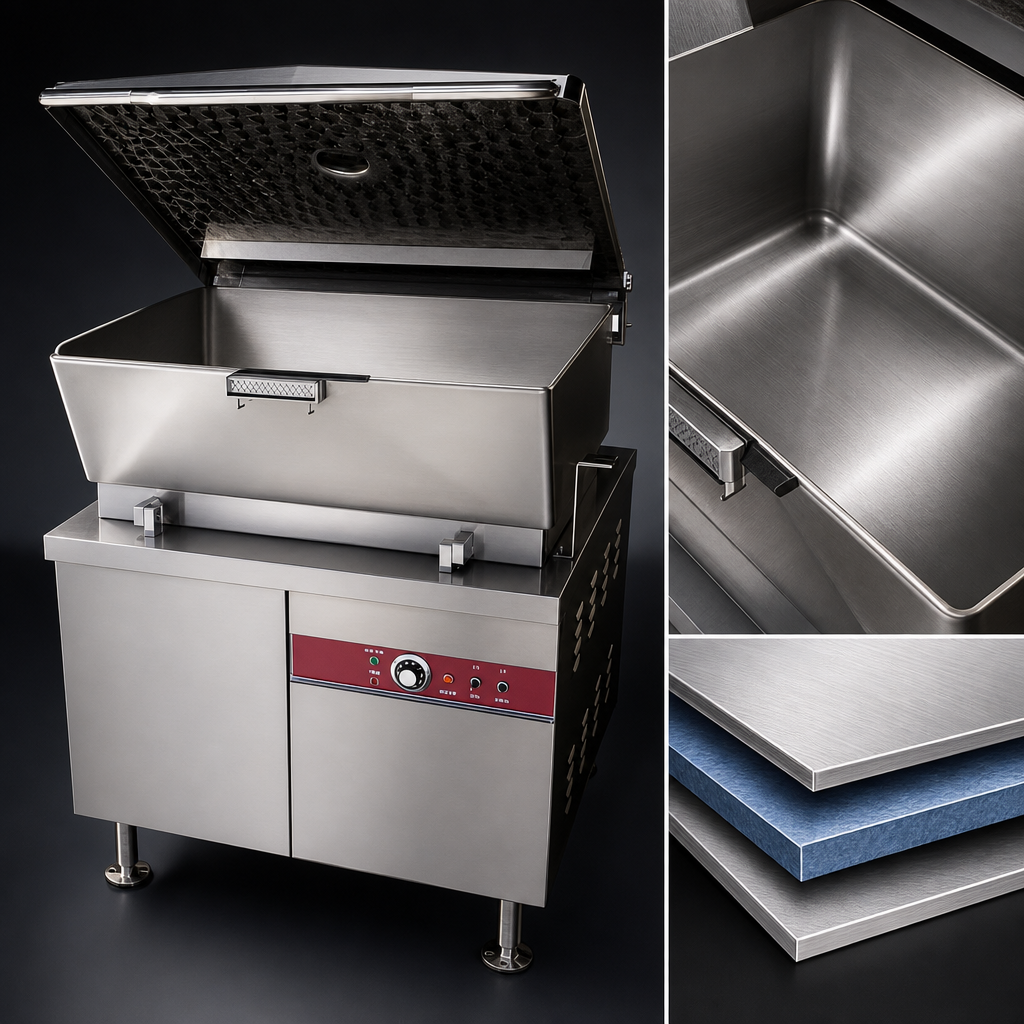

Efficient Heating Surface

3/4 inch triple-ply construction cooking surface with a 3/8 inch thick aluminum core ensures even heat distribution over the entire cooking area.

Precise Temperature Control

Features a solid state thermostat for accurate cooking temperatures ranging from 100°F to 450°F (38°C to 232°C). High limit thermostat located on the pan bottom for added safety.

Hydraulic Tilting System

Powered by a 1/2 HP electric motor for smooth and precise tilting, allowing for easy pour control and emptying. Pan is front hinged with a sloped front for optimal pouring.

Integrated Safety Features

Includes a tilt safety switch that automatically shuts off the gas supply to the burners when the pan is tilted, an electronic ignition system, and a temperature light.

Spring-Assisted Cover

Stainless steel hinged cover comes with a handle, spring assistance for easy opening and closing, and a no-drip condensate guide.

Removable Pour Lip Strainer

Designed with a removable pour lip strainer for convenience during operation and cleaning.

Sturdy Cabinet Base

Mounted on a heavy-duty welded angle constructed frame, fitted with 6 inch stainless steel legs and 4 adjustable flanged feet for securing to the floor.

Type Tilting Skillet
Style Cabinet Base
Installation Type Floor Model (With Cabinet Base)
Pan Capacity 40 Gallons (152 Liters)
BTU 100,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inches IPS
Gas Inlet Pressure Natural Gas: 6 - 14 Inches W.C., Propane: 11 - 14 Inches W.C.
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 10 Amps Minimum Supply
Horsepower 1/2 HP
Controls Solid State Thermostat, Electronic Ignition, Hydraulic Lift
Temperature Range 100°F - 450°F
Material 304 Stainless Steel
Interior Finish Polished Stainless Steel
Shipping Weight 825 lb.
Shipping Width 44 Inches
Shipping Depth 47 Inches
Shipping Height 41 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Crown steam group letter PDF Download PDF Middleby financial flyer PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The GMTS-40 operates on 120 Volts, 60 Hz, single phase with a grounding wire, and requires a 10 Amp minimum electrical supply for its hydraulic lift system and controls. It can also be configured for 220 VAC, 1 phase, 50 Hz operation with an optional accessory.
The GMTS-40 can operate on either Natural Gas or Propane Gas. Please specify your gas type when ordering, as the unit will be configured accordingly.
The GMTS-40 features a solid state thermostat that allows for precise cooking temperatures between 100°F and 450°F (38°C and 232°C).
For enhanced safety, the GMTS-40 includes a tilt safety switch that automatically shuts off the gas supply when the pan is tilted. It also has a high limit thermostat on the pan bottom and a temperature light.
No, the GMTS-40 is designed for easy cleaning. It features a pan body formed from 10 gauge 304 stainless steel with a polished interior and coved corners, making it simple to wipe down. It also includes a removable pour lip strainer.
