Crown (Middleby) GMT-6 Steam Kettles
$29,977.50
Unit price
/
Unavailable
Description

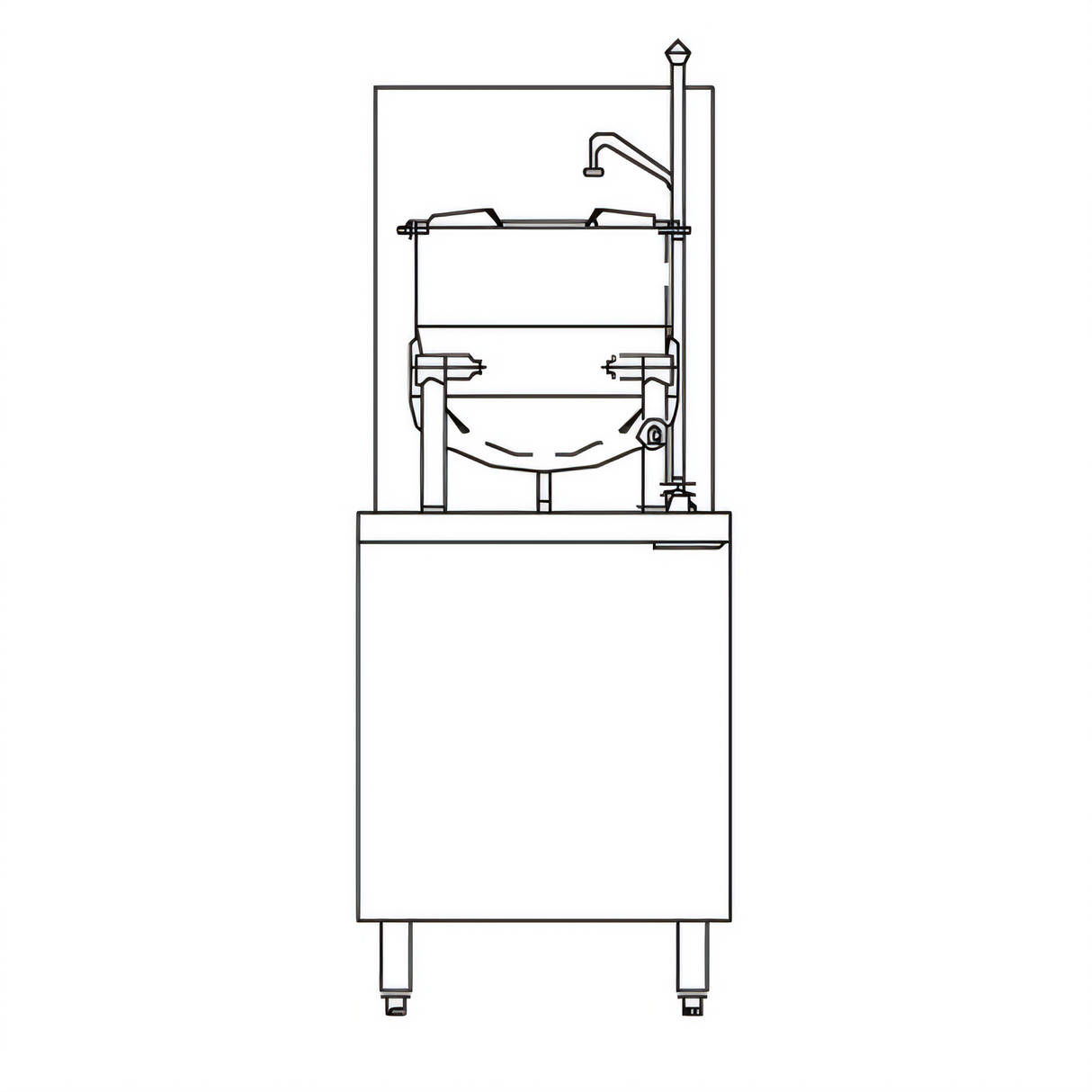

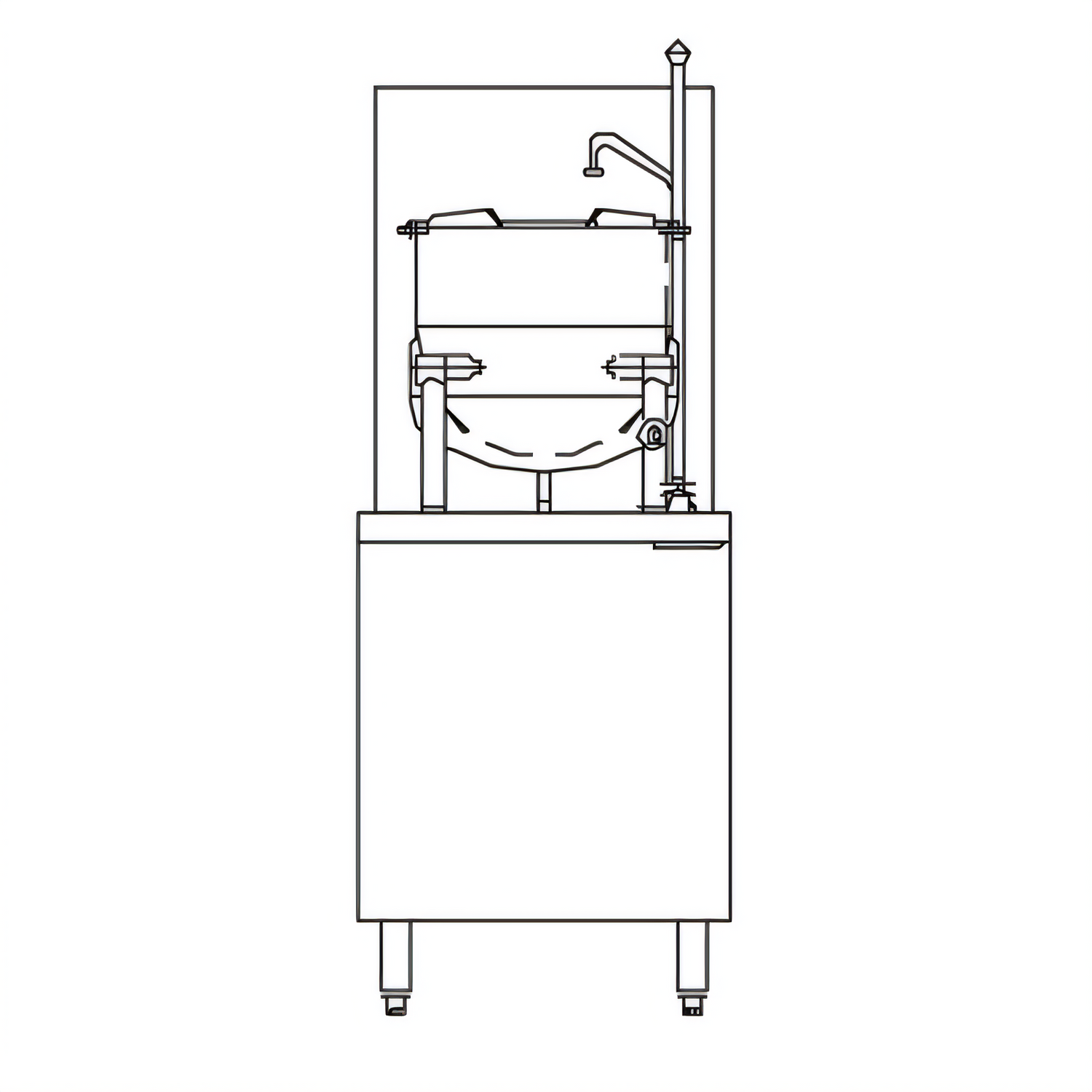

Crown GMT-6 Gas Tilting Kettle & Cabinet Assembly – 6 gal
24" boiler base • integrated sink & faucet • 200,000 BTUCook, fill and clean in one compact footprint. The Crown GMT-6 pairs a 6 gallon 2/3-jacket tilting kettle with a powerful gas-fired steam boiler, stainless cabinet base and 3" deep rinsing sink—everything you need for fast, high-volume production of soups, sauces, gravies and more.
Why chefs choose the GMT-6
- 316 SS hemispherical kettle interior stands up to acidic recipes & cleans easily
- Rapid 15 psi steam from a 200,000 BTU boiler with electronic ignition
- CSD-1 flame-safe controls, safety relief valve & individual steam trap for peace of mind
- Full 90°+ manual tilt with heat-resistant handle for controlled, splash-free pouring
- Double pantry hot & cold fill faucet plus 3" deep stainless sink with grate & splash guard
- Factory-installed water treatment system & split water line extend component life
- 304 SS exterior, removable side panels & hinged storage door for easy service access
- 6" adjustable stainless legs with flanged feet for code-compliant floor mounting
- NSF listed and CSA Star / CSA Flame certified
- 10-year hemisphere kettle warranty (1-year parts & labor overall)
Product specifications
| Model | GMT-6 |
|---|---|
| Capacity | 6 gal / 23 L |
| Kettle design | Tilting, 2/3 steam jacket, hemispherical bottom |
| Liner material | 316 stainless steel |
| Exterior finish | 304 stainless steel, #4 brush |
| Steam pressure | 15 psi (103 kPa) |
| Heat input | 200,000 BTU/h |
| Gas connection | 3/4" IPS – Natural Gas (4" WC min) or LP (11" WC min) |
| Electrical | 115 VAC, 1 ph, 50/60 Hz, 2 A |
| Cabinet width | 24" / 610 mm |
| Overall height | ≈66" / 1680 mm |
| Sink depth | 3" / 76 mm |
| Certifications | NSF, CSA Star, CSA Flame, ASME & NB registered |
Utility connections
- Gas: 3/4" IPS line
- Cold water (boiler & faucet): 3/8" OD tubing @ 25–50 psi
- Hot water (faucet): 3/8" OD tubing @ 25–50 psi
- Drain: 2" IPS to open floor drain (sink drain 1-1/8" OD)
- Electrical: 1/2" conduit feed, 2 A
Water quality requirement
Total dissolved solids must be under 60 ppm with a pH of 6.8–7.3.
Always install and maintain the supplied water treatment system—failure to do so can void the warranty.
Made in Toronto, Canada by Crown – a Middleby brand.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, CSA Star, CSA Flame
Height
66.13in
Width
24.0in
Depth
33.0in
Shipping Weight
450.0lbs
Kettles
(1) 6 gallon
Base
24" wide cabinet
Kettle Liner
316 stainless steel
Specifications
Kettle/Cabinet Assembly, gas, (1) 6 gallon tilting kettle, 2/3 jacket, 24" cabinet base, electronic ignition, double pantry fill faucet, 3" deep stainless steel sink, CSD-1 package, water treatment system, split water line, safety relief valve, 316 stainless steel liner, 304 stainless steel exterior finish, 6" stainless steel legs & adjustable flanged feet, 200,000 BTU, NSF, CSA Star, CSA Flame
