Crown (Middleby) GMT-6-6 Steam Kettles
Description

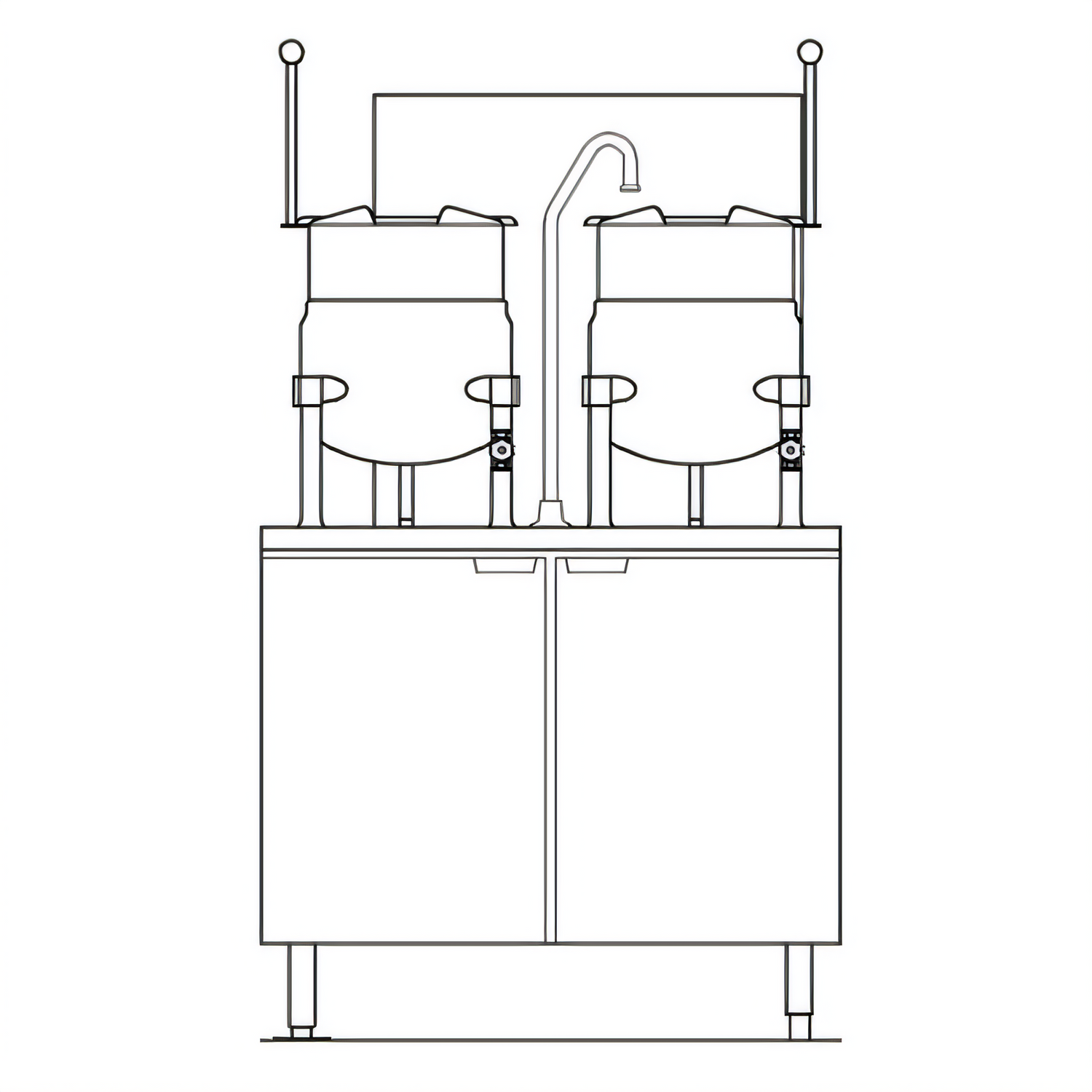

Crown GMT-6-6 Double 6-Gallon Tilting Kettle & Cabinet Assembly
36" Gas Boiler Base | 250,000 BTU | 15 psi SteamHigh-performance steam cooking packed into only three feet of floor space. The Crown GMT-6-6 couples two 6-gallon tilting kettles with an integrated gas steam boiler, giving busy commercial kitchens the speed, versatility, and consistency they need service after service.
Key Advantages
- Two independent 6 gal (23 L) kettles for simultaneous prep of soups, sauces, sides, and more.
- 316 SS kettle liners handle acidic ingredients without pitting or flavor carry-over.
- Gas-fired boiler delivers up to 250,000 BTU at 15 psi for rapid heat-up and recovery.
- Electronic ignition, automatic blow-down, split water lines, and CSD-1 compliant controls come factory-installed.
- Full 90° manual tilt with heat-proof handle for safe, complete emptying.
- 3" deep stainless sink with splash-guard grates plus double pantry fill faucet right on the work surface.
- 304 SS exterior, reinforced countertop, and 6" legs with adjustable flanged feet for rock-solid installation.
- Factory water treatment system protects boiler and preserves warranty.
- NSF listed and CSA Star / Flame certified for gas safety & sanitation.
Detailed Specifications
| Model | GMT-6-6 |
|---|---|
| Capacity | (2) × 6 gal / 23 L tilting kettles |
| Jacket Coverage | 2/3 steam jacket, hemispherical bottom |
| Kettle Construction | 316 SS liner, 304 SS exterior shell |
| Boiler Input | 250,000 BTU/hr (natural or LP) • 15 psi operating pressure |
| Electrical | 115 VAC, 1-phase, 50/60 Hz (controls) |
| Overall Size | 36" W × 32" D × 45 ⅞" H (914 × 813 × 1 166 mm) |
| Included Features | Electronic ignition, automatic blow-down, CSD-1 controls, water treatment system, split water lines, safety relief valve, sink & faucet package |
| Certifications | NSF, CSA Star, CSA Flame |
Utility Requirements
- Gas: 3/4" NPT, 250 kBTU (optional 300 kBTU upgrade)
- Electric: 1/2" conduit, 115 VAC, 1-phase, 60 Hz
- Water: 3/8" NPT cold feed (boiler) & 3/8" NPT cold feed (condensate), 25–50 psi
- Drain: 2" IPS to open floor drain
- Optional 3/4" NPT steam take-off for auxiliary equipment
Peace-of-Mind Warranty
- 10-year hemisphere warranty on kettle bodies
- 1-year parts & labor on complete assembly
Important: Incoming water must not exceed 60 PPM TDS, pH 6.8–7.3. The included water treatment system is mandatory for warranty coverage.
Commercial use only – not for household installation.
