Crown (Middleby) GMT-10 Steam Kettles
Description

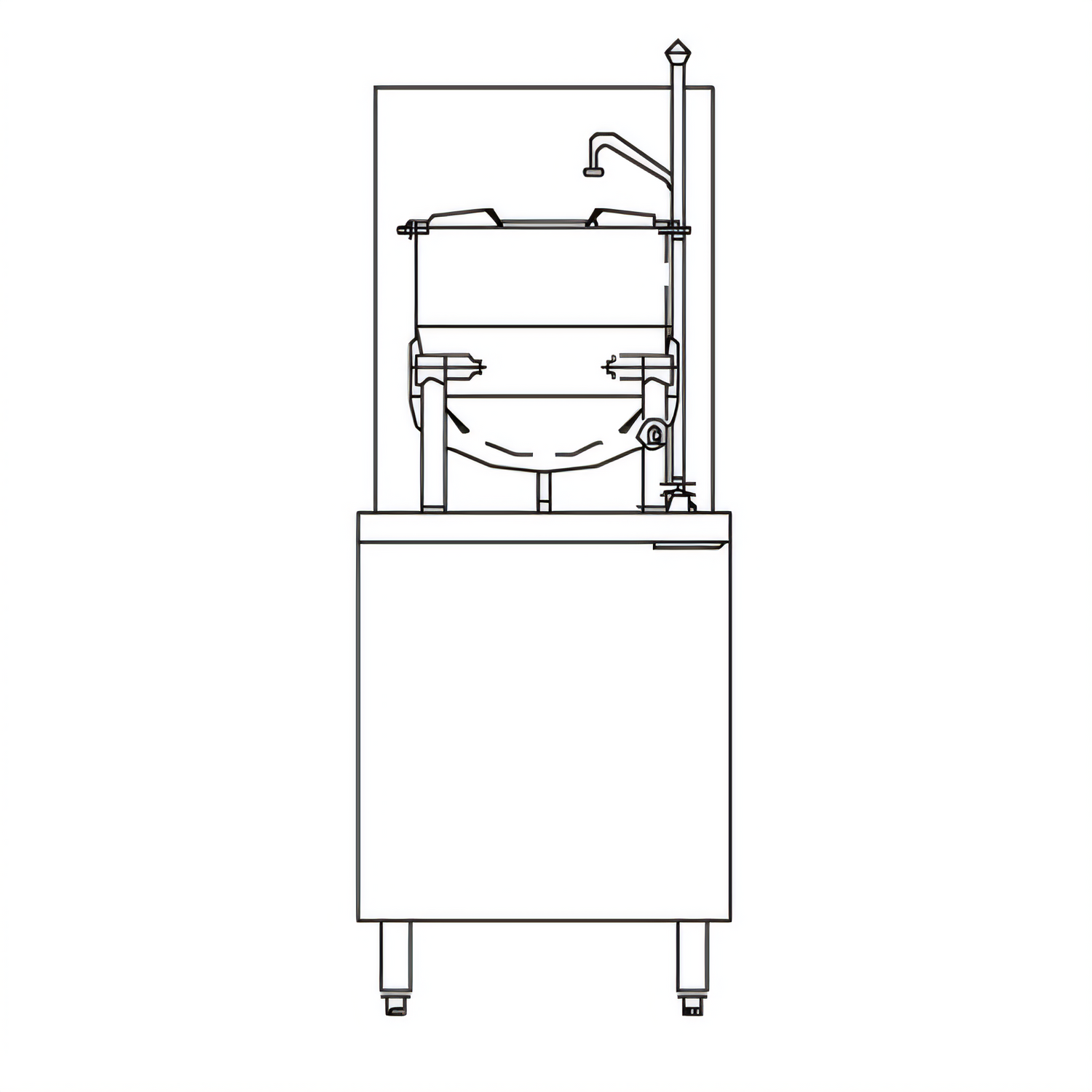

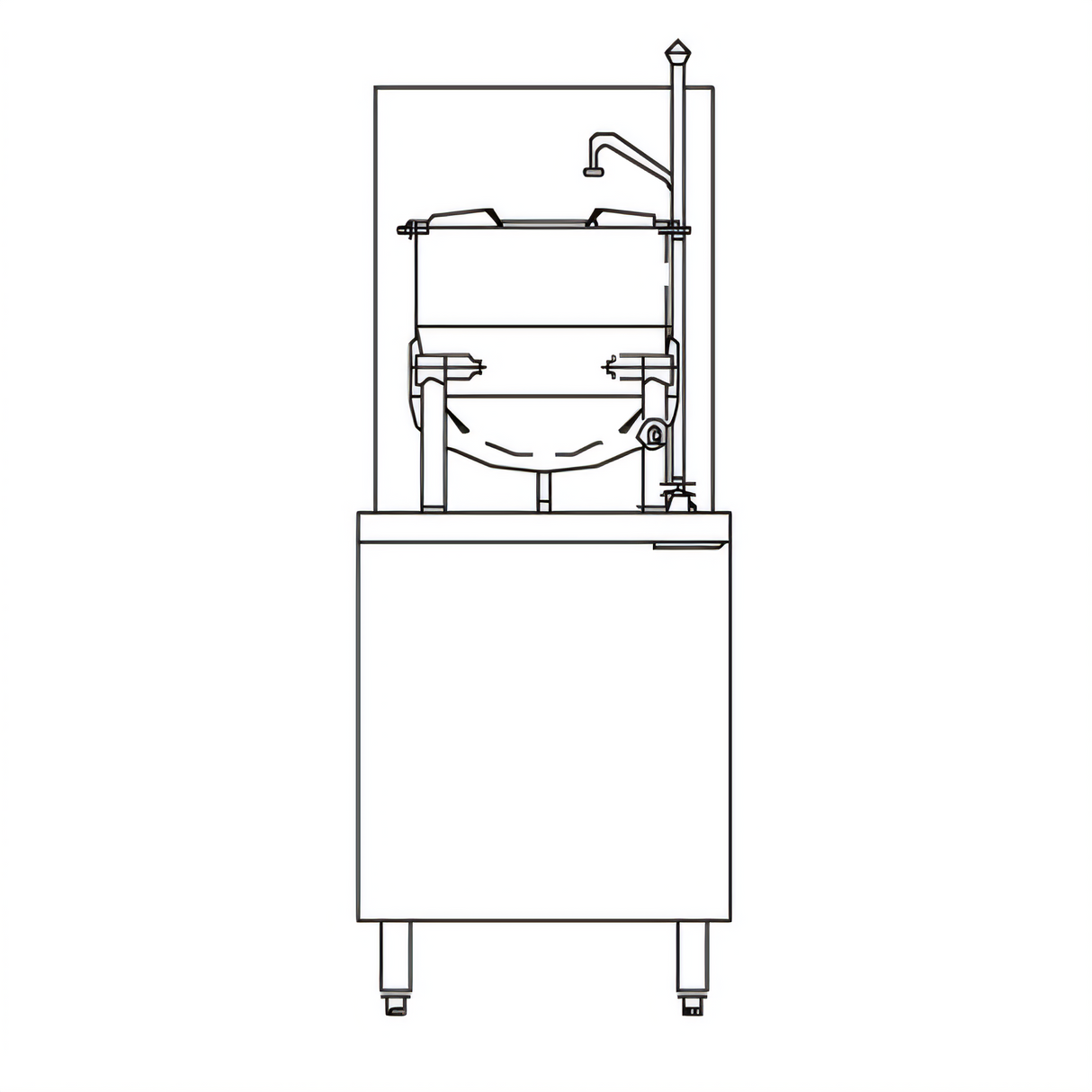

Crown GMT-10 Gas Boiler-Base Tilting Kettle Assembly
10 gal (38 L) • 200,000 BTU • 24" Cabinet BaseBuilt for high-volume, high-acid cooking, the Crown GMT-10 pairs a 10-gallon 2/3-jacket steam kettle with an integrated gas boiler base. 316 stainless-steel kettle liner, electronic ignition, and a factory-installed CSD-1 safety package deliver rock-solid performance that meets the toughest codes in North America.
Why it belongs in your kitchen
- Powerful 200,000 BTU gas-fired 15 psi boiler generates instant, even steam.
- 316 SS kettle interior resists acidic ingredients — perfect for tomato, citrus or vinegar-based recipes.
- Effortless 90°+ manual tilt with heat-resistant handle empties product completely.
- Hemispherical bottom maximises heat transfer and eliminates hot spots.
- 24" full-perimeter cabinet base includes double pantry hot/cold faucet, 3" deep sink, grate & splash guard.
- Factory-installed water treatment system and split water line protect the boiler and extend warranty life.
- CSD-1 boiler controls, safety relief valve and individual steam traps for code-compliant operation.
- Durable #4-finish 304 SS exterior with 6" stainless legs & adjustable flanged feet for bolt-down security.
- NSF listed and CSA Star/Flame approved; kettle & boiler are ASME code-stamped & NB registered.
Technical specifications
| Capacity | 10 gal / 38 L |
|---|---|
| Jacket coverage | 2/3 kettle body |
| Heat input | 200,000 BTU/hr (Natural or LP gas) |
| Steam boiler pressure | 15 psi (103 kPa) |
| Electrical | 115 VAC, 1-phase, 50/60 Hz, 2 A |
| Gas connection | ¾" IPS – 4" W.C. Nat / 11" W.C. LP |
| Water connections | 3⁄8" O.D. hot, cold & treated inlets; 2" IPS drain; 1 1⁄8" O.D. sink drain |
| Cabinet width | 24" (610 mm) |
| Legs / feet | 6" stainless with adjustable flanged feet |
| Construction | 316 SS liner, 304 SS exterior, aluminised back panel |
| Certifications | NSF, CSA Star, CSA Flame, ASME, NB |
| Standard inclusions | Water treatment system, double pantry faucet, sink, CSD-1 controls, electronic ignition |
| Warranty | 1 yr parts & labour, 10 yr hemisphere kettle, 2 yr prorated boiler shell |
Installation notes
- Unit must be bolted through the flanged feet.
- Provide treated water <60 PPM TDS; failure to meet water specs voids warranty.
- Open floor drain required – kettle and sink drains are not to be hard-piped.
For floors with epoxy or other combustible coatings, contact Crown Steam Group for approved mounting solutions.
