Crown (Middleby) GMT-10-6 Steam Kettles
Description

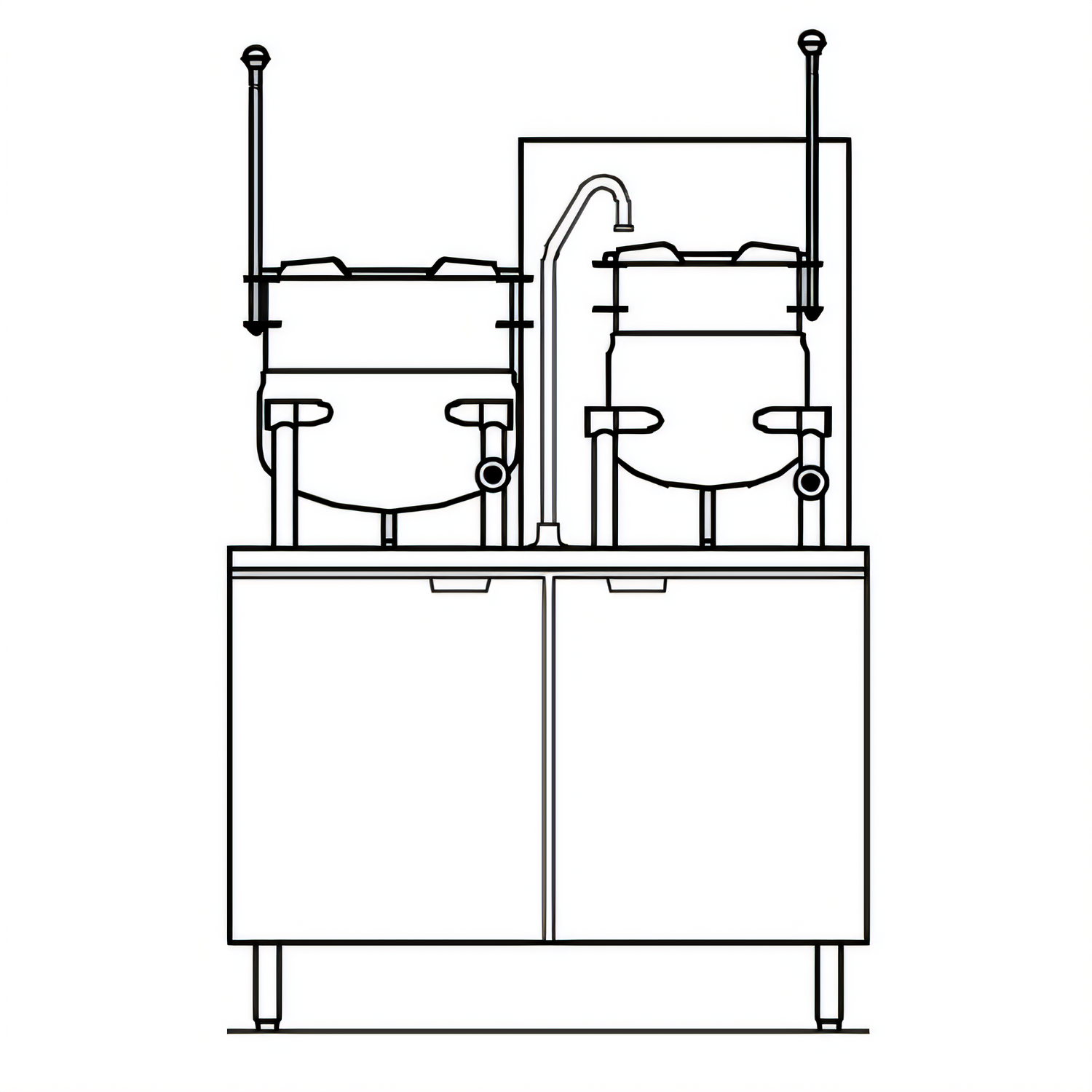

GMT-10-6 Gas Tilting Kettle / Cabinet Assembly

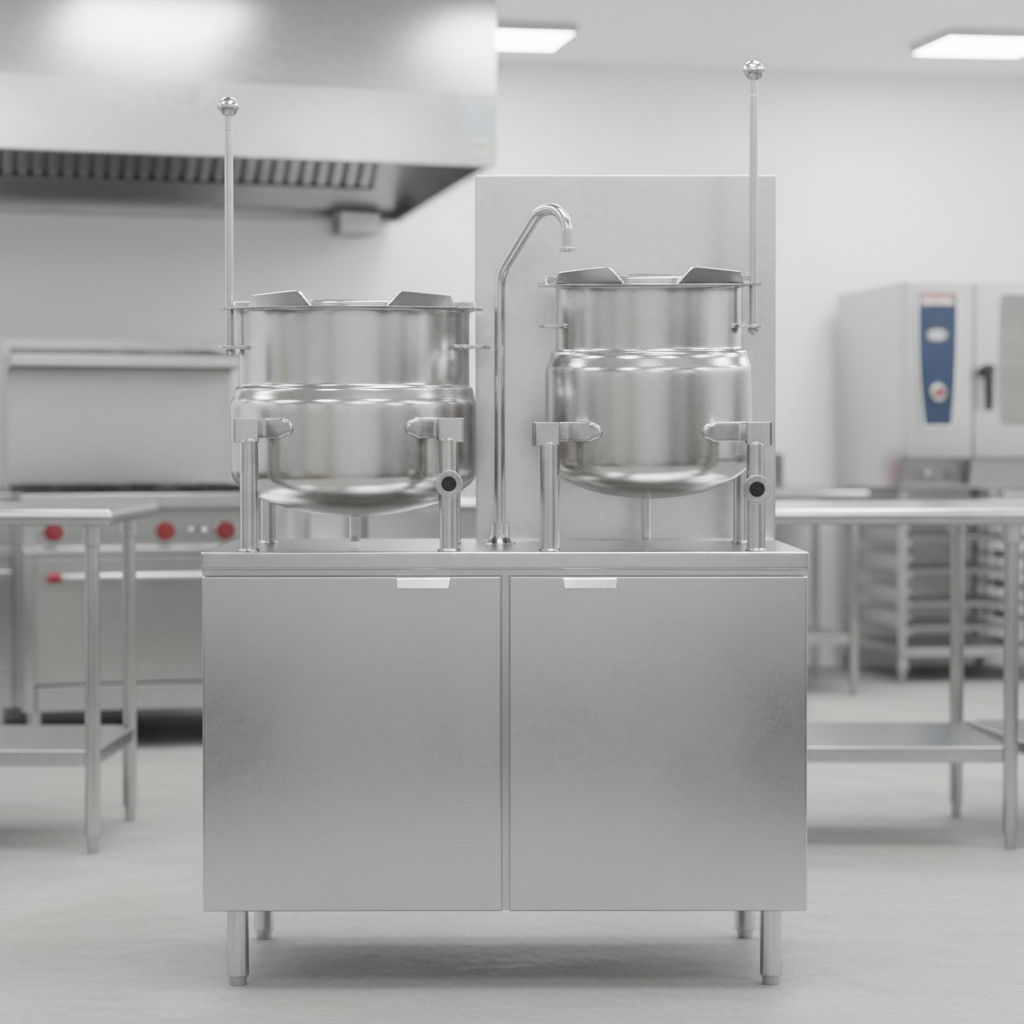

Crown Steam • 6 gal + 10 gal • Direct-Steam on 42" Boiler BaseBuilt from the ground up for high-volume, high-acid and high-efficiency cooking, the Crown GMT-10-6 pairs a 6-gallon and a 10-gallon 2/3-jacket tilting kettle on a space-saving 42 inch gas boiler base. With 250,000 BTU of steam power, automatic boiler care and a factory-installed water treatment system, this all-in-one station keeps production moving while protecting your investment.
Why You’ll Love It
- Two independent tilting kettles—prep small batches or bulk sauces simultaneously.
- 15 psi steam jacket surrounds 2⁄3 of the kettle body for rapid, even heat.
- 316 SS liner resists acidic foods; 304 SS exterior delivers lasting good looks.

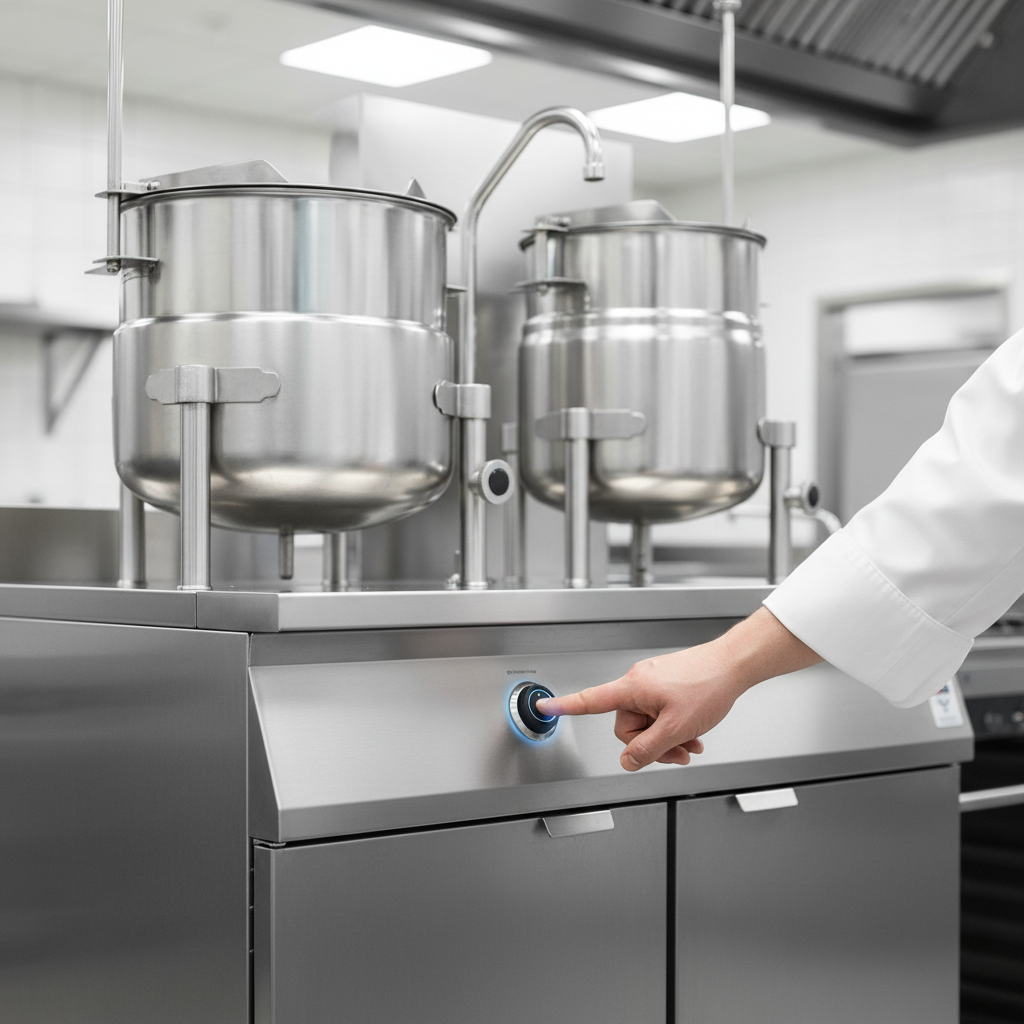

- Gas boiler with electronic ignition, CSD-1 controls & automatic blowdown for worry-free performance.
- Factory-installed water treatment & split water lines safeguard the boiler and simplify maintenance.
- Integrated double pantry faucet, 3" deep sink, grate & splash guard—no extra plumbing required.
- Six-inch stainless legs with adjustable flanged feet bolt securely to the floor.
- NSF listed and CSA Star/Flame certified for gas safety.
Built for Heavy-Duty Production
- Hemispherical kettle bottoms promote superior heat circulation and complete emptying.
- Large stay-cool tilt handles let you pour past 90° with smooth, positive control.
- Concealed steam manifolds feature a dedicated safety relief valve & steam trap for each kettle.

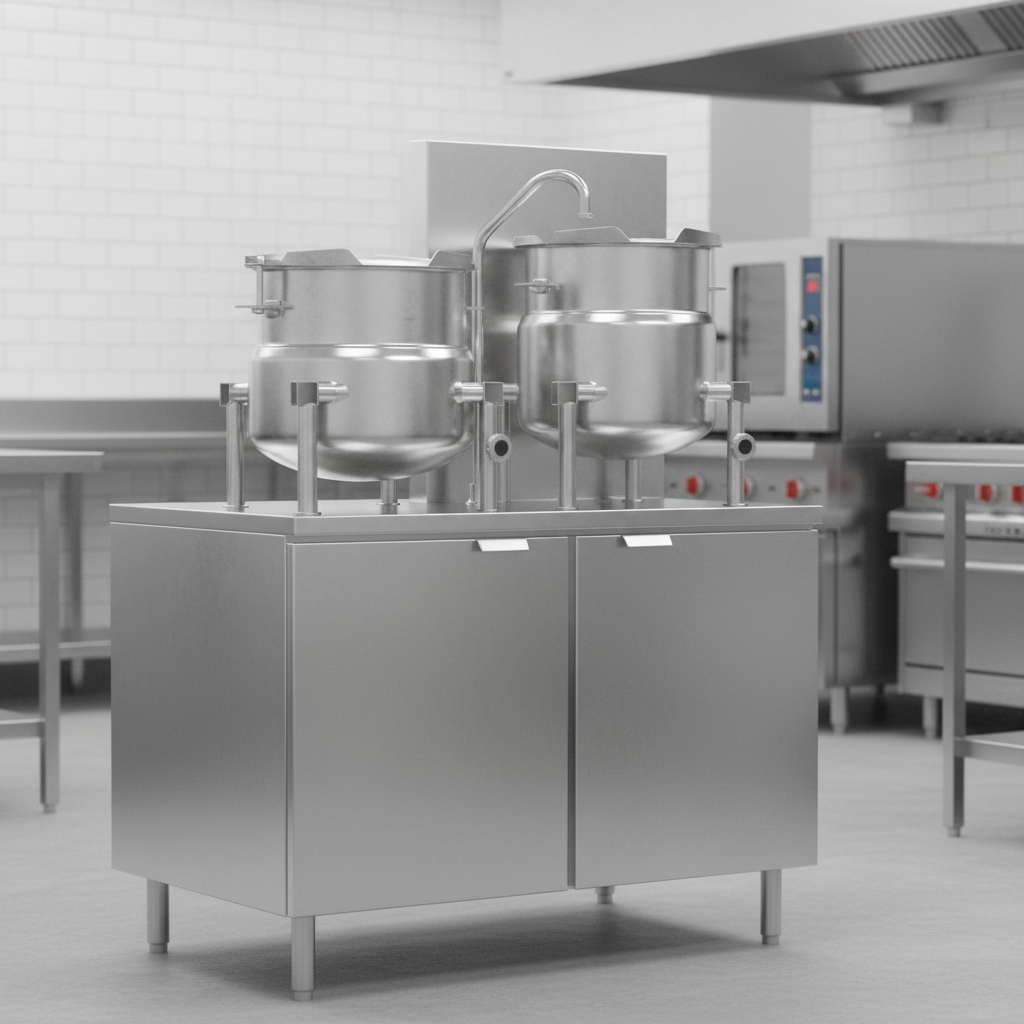

- Full-perimeter angle-frame cabinet with reinforced counter and removable side panels.
- Aluminized steel rear panel stands up to heat while keeping costs in check.
At-a-Glance Specs
| Capacities | 6 gal (23 L) & 10 gal (38 L) tilting kettles |
|---|---|
| Steam Pressure | 15 psi (103 kPa) |
| Boiler Input | 250,000 BTU/h (73.3 kW) gas fired |
| Jacket Coverage | 2⁄3 jacket |
| Cabinet Width | 42 in W × 38 in D × 53 in H (overall) |
| Shipping Weight | ≈ 800 lb (368 kg) |
Utility Requirements
| Gas | 3⁄4" IPS, Natural gas 4" WC min. or LP 11" WC min. |
|---|---|
| Electrical | 115 VAC, 1-phase, 50/60 Hz (electronic ignition & controls) |
| Cold Water (Boiler) | 3⁄8" OD tubing, 25-50 psi treated |
| Cold Water (Faucet) | 3⁄8" OD tubing, 25-50 psi, NSF-61 compliant |
| Hot Water (Faucet) | 3⁄8" OD tubing, 25-50 psi |
| Drain | 2" IPS to open floor drain |
| Sink Drain | 1-1⁄8" OD tubing |
Certifications & Warranty
- NSF listed for sanitation
- CSA Star & CSA Flame gas approvals
- Standard 10-year hemispherical kettle warranty + 1-year parts & labor
Intended for commercial kitchens only. Proper water quality (≤ 60 ppm TDS) is required to maintain warranty.
