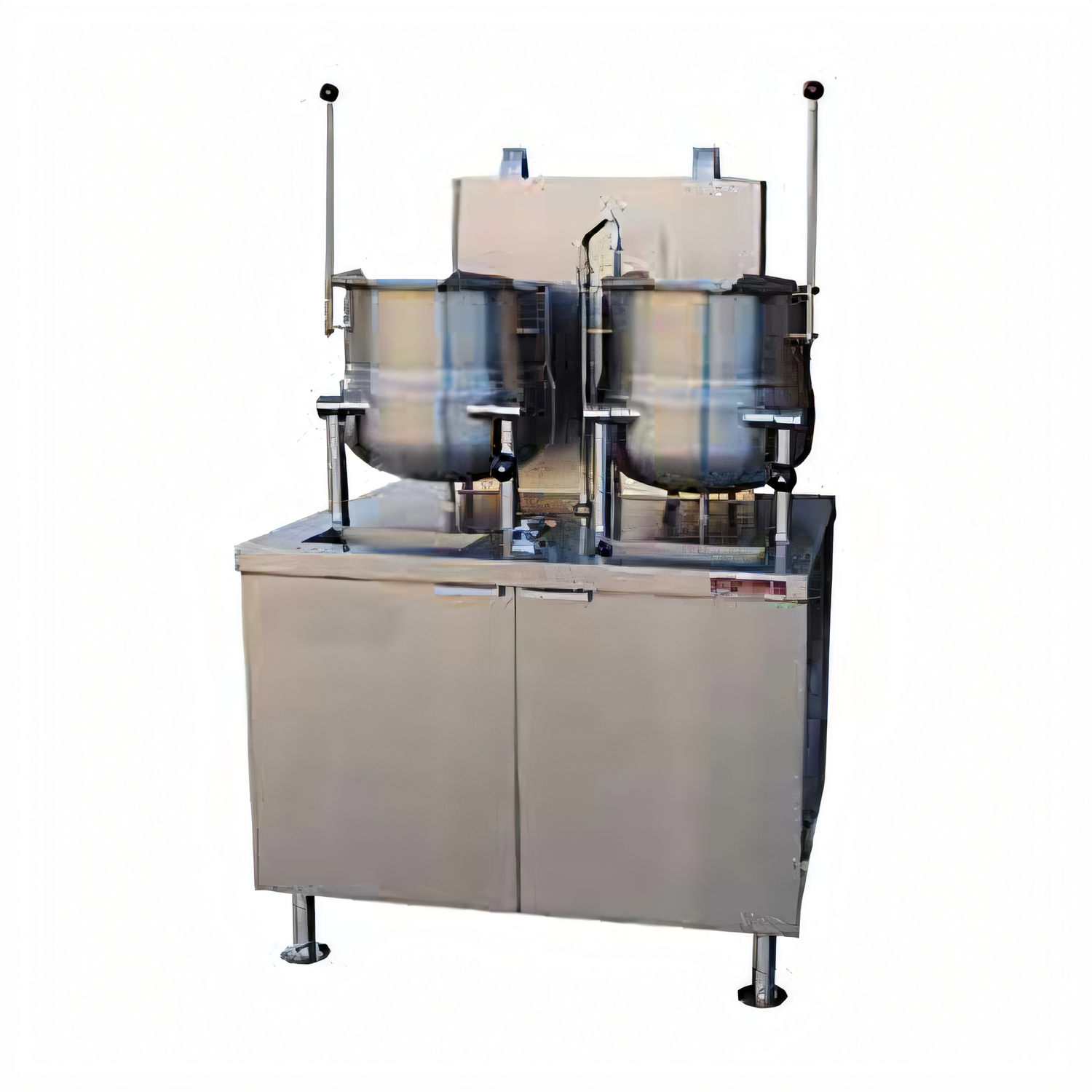

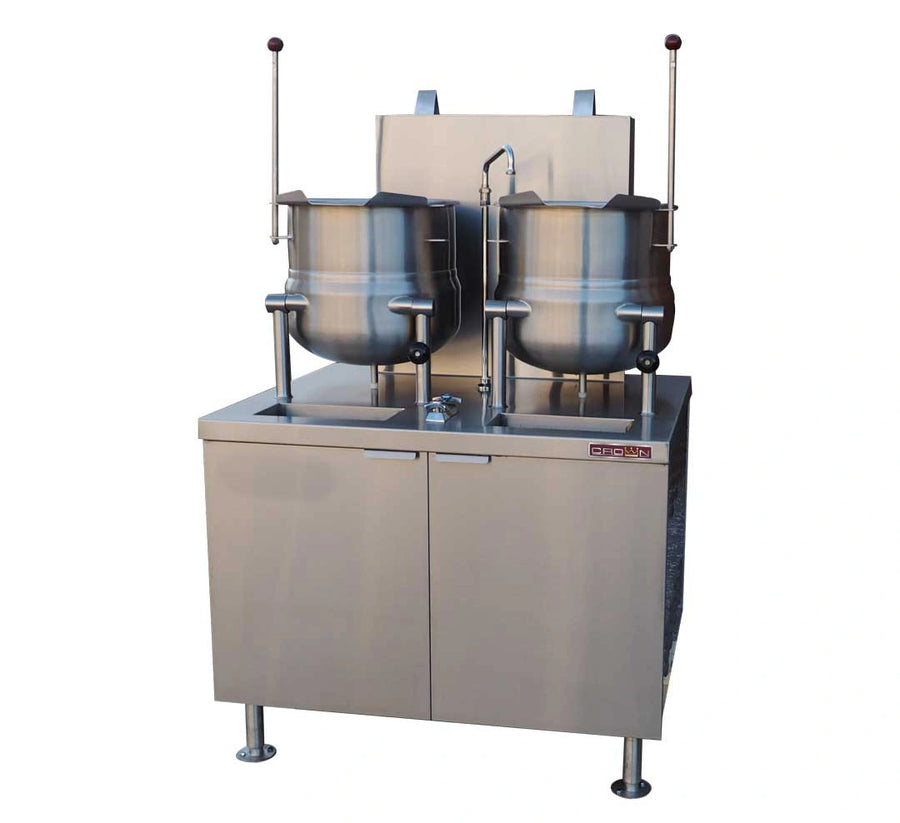

Crown GMT-10-10 Double 10 Gallon Tilting Steam Kettle with 42-Inch Gas Boiler Base
Crown GMT-10-10 Double 10 Gallon Tilting Steam Kettle with 42-Inch Gas Boiler Base
(2) 10 Gallon Capacity, Natural Gas or Propane, 42-Inch Cabinet Base
Efficiently prepare large batches with two 10-gallon tilting steam kettles integrated into a robust gas boiler cabinet, featuring advanced controls and a comprehensive water treatment system.
- Equipped with dual 10-gallon capacity tilting kettles for high-volume cooking operations.
- Integrated 42-inch gas boiler base provides reliable steam generation with electronic ignition.
- Features CSD-1 boiler controls, automatic water level control, and automatic blowdown for safety and ease of maintenance.
- Standard water treatment system and split water line ensure optimal performance and longevity.
- Kettle interiors crafted from 316 stainless steel, ideal for high-acid content products, with a durable 304 stainless steel exterior.
- Includes a double pantry fill faucet and 3-inch deep stainless steel sink for convenient workflow.
- Designed with a hemispherical kettle bottom for superior heat circulation and efficient cooking.

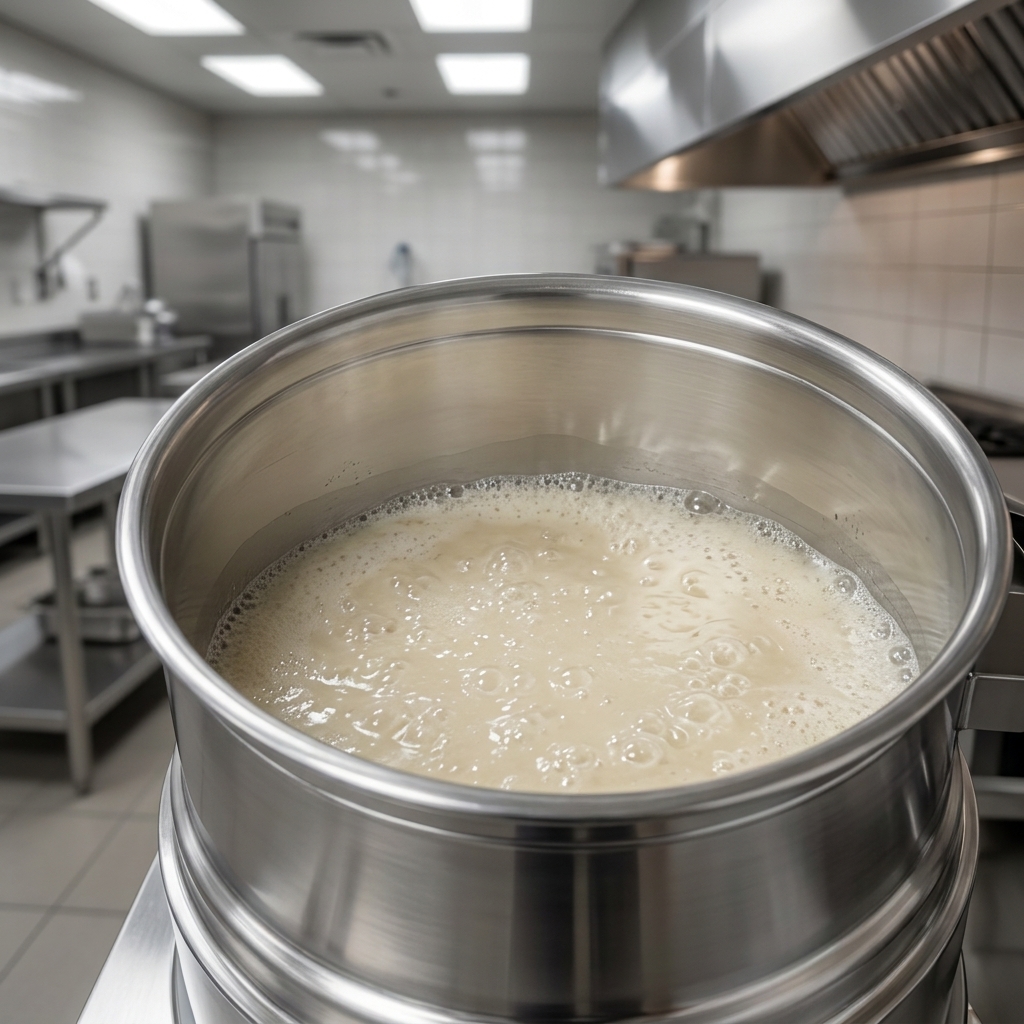

Double Wall Kettle Interior
Forms a steam jacket around the lower 2/3 of each kettle, ensuring uniform and efficient heating for consistent cooking results.

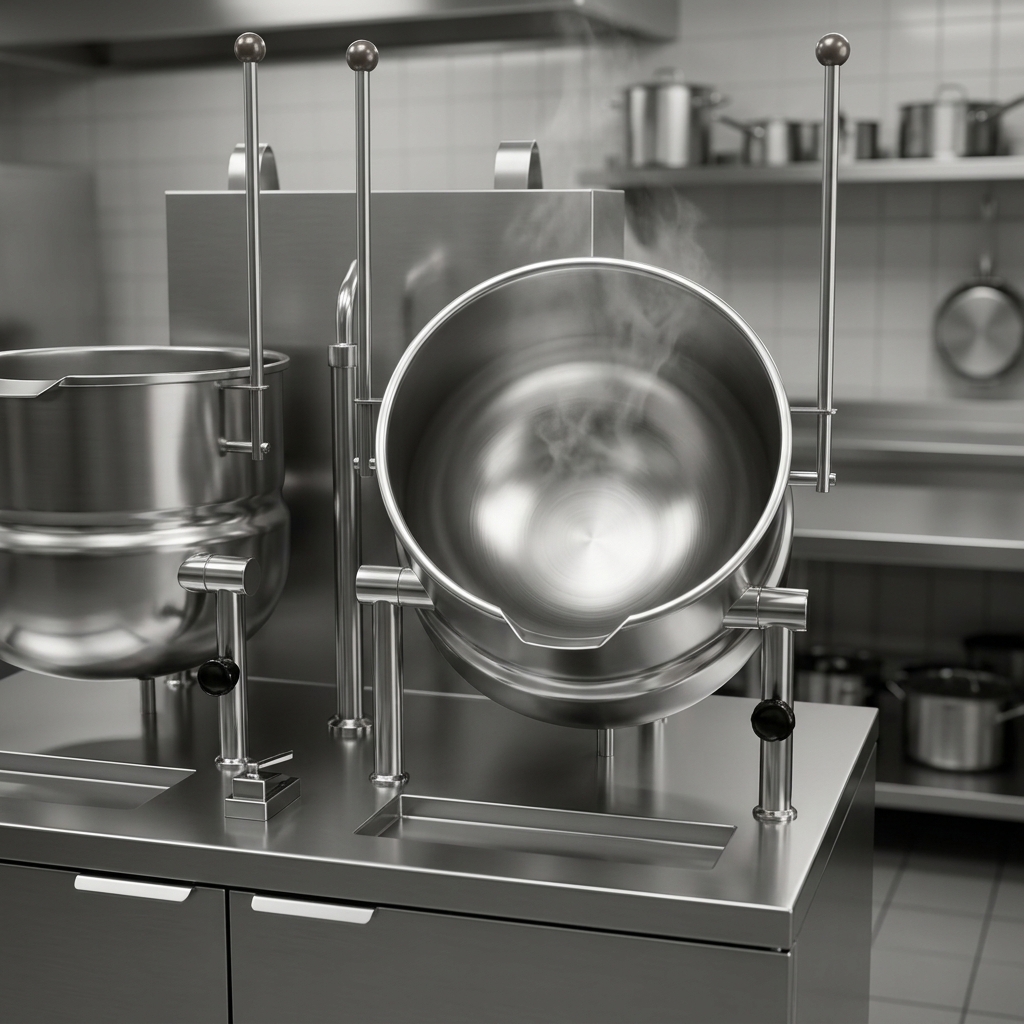

Hemispherical Kettle Design
The bottom of each kettle is designed spherically to optimize heat circulation and cooking efficiency.

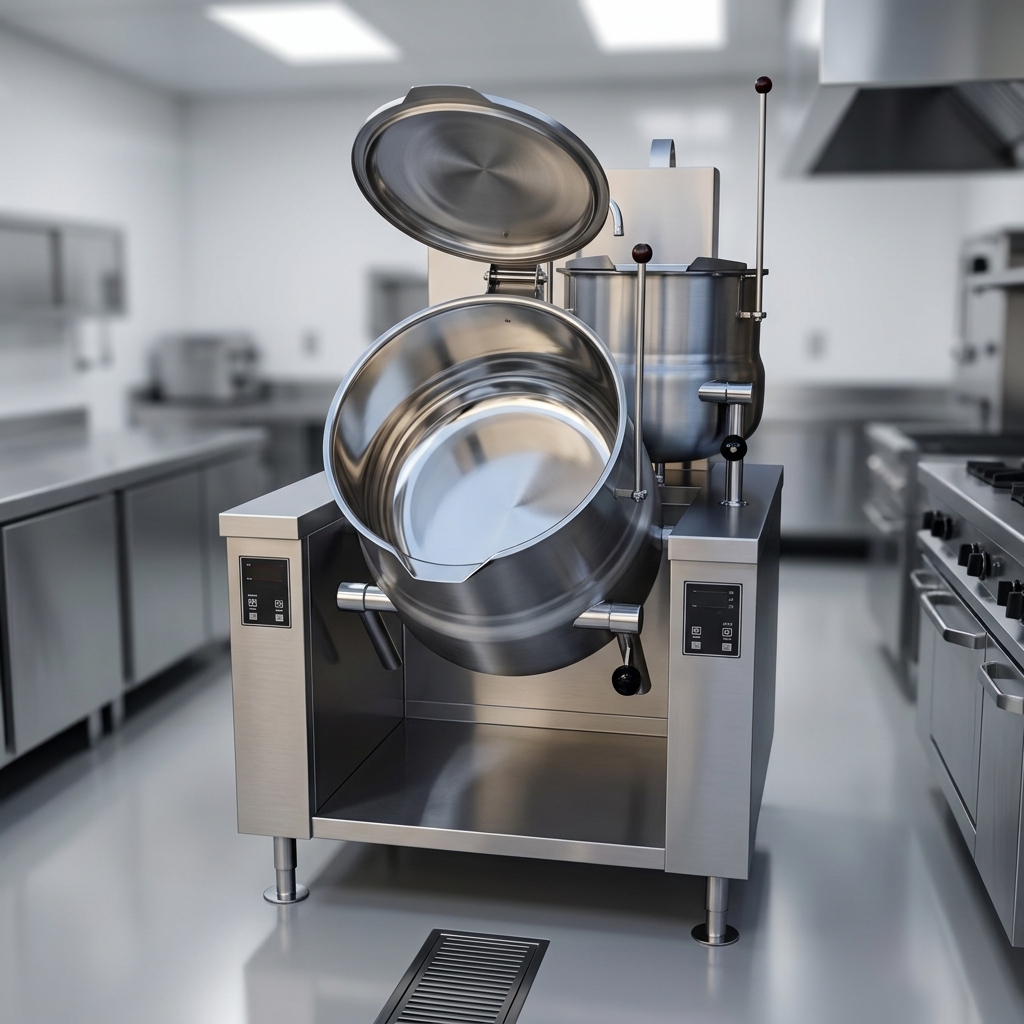

316 Stainless Steel Kettle Liner
Interior construction with 316 stainless steel offers superior corrosion resistance, particularly for high-acid food products.
Easy Tilt Mechanism
Each kettle is fitted with a tilt handle and heat-resistant knob, allowing it to tilt forward past 90° for complete emptying and easy cleaning.
Robust Cabinet Base
Features a full perimeter angle frame, reinforced counter, hinged doors with magnetic catches, and removable side panels, all with a #4 stainless steel exterior and aluminized steel back.
Advanced Boiler Controls
Includes automatic water level control, automatic blowdown, pressure gauge, water gauge glass, operating pressure control, safety high-limit pressure control, safety relief valve, split water line, electronic ignition, and CSD-1 boiler controls for safe and precise operation.
Double Pantry Fill Faucet
A hot and cold water faucet with control valves provides convenient water access for filling and cleaning.
Integrated Sink
Features a 3-inch (76 mm) deep stainless steel sink with drain, grates, and splash guard for easy rinsing and waste disposal.
Standard Water Treatment System
Includes a comprehensive water treatment system as standard, critical for maintaining appliance performance and warranty coverage.
Concealed Steam Manifolds
Steam manifolds are hidden within the cabinet, fitted with a safety relief valve and steam trap for each kettle.
Adjustable Flanged Feet
Equipped with 6-inch stainless steel legs and 4 adjustable flanged feet for stable installation and securing to the floor.
Specifications
| Type | Kettle/Cabinet Assembly |
|---|---|
| Style | Tilting Steam Kettle |
| Installation Type | Floor Model (With Cabinet Base) |
| Compartments | 2 |
| Capacity | (2) 10 Gallons (38 Liters) |
| Interior Finish | 316 Stainless Steel (Kettle Liner) |
| Finish | #4 Stainless Steel (Exterior) |
| BTU | 250,000 BTU |
| Gas Type | Natural Gas or Propane |
| Gas Connection Size | 3/4 Inches IPS |
| Gas Inlet Pressure (Natural Gas) | 4 Inches W.C. |
| Gas Inlet Pressure (Propane) | 11 Inches W.C. |
| Voltage | 115 Volts |
| Phase | 1-Phase |
| Hertz | 50/60 Hz |
| Electrical Connection | 1/2 Inches O.D. conduit |
| Drain Connection Size | 2 Inches IPS (Main Drain) |
| Sink Drain Connection Size | 1-1/8 Inches O.D. tubing |
| Water Connection (Condensate Cold) | 3/8 Inches O.D. tubing (25-50 PSI) |
| Water Connection (Boiler Cold) | 3/8 Inches O.D. tubing (25-50 PSI) |
| Water Connection (Faucet Cold) | 3/8 Inches O.D. tubing (25-50 PSI) |
| Water Connection (Faucet Hot) | 3/8 Inches O.D. tubing (25-50 PSI) |
| Controls | CSD-1 Boiler Controls, Electronic Ignition, Automatic Water Level, Automatic Blowdown |
| Country of Origin | Canada |
| Selling Unit | Each |
| Units Per Case | 1 |
| Shipping Width | 42 Inches |
| Shipping Depth | 33 Inches |
| Shipping Height | 66 Inches |
| Shipping Weight | 820 lb. |
Overall Dimensions:
42.0"W x 33.0"D x 65.13"HProduct Weight:
820.0 lbCertifications & Compliance
Warranty & Protection
Standard warranty with specific exclusions for issues arising from poor water quality or improper installation.
