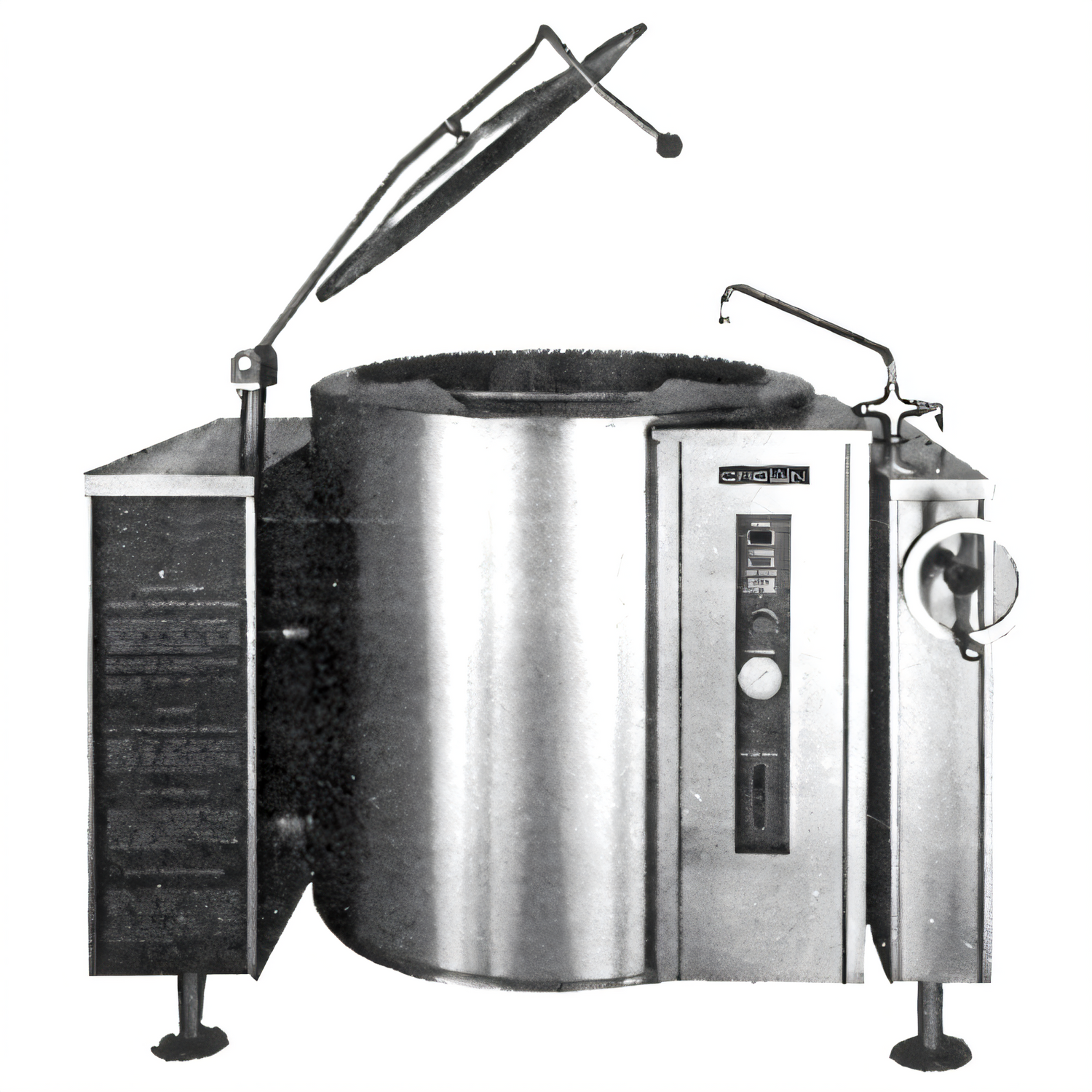

Crown (Middleby) GLT-60 Steam Kettles
Crown (Middleby) GLT-60 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) GLT-60 Steam Kettles
Description
Crown GLT-60 Gas Steam Tilting Kettle 60 gal / 227 L • 120,000 BTU • 316 SS Interior
Power through high-volume soups, sauces, pastas and stocks with the Crown GLT-60. This self-contained, gas-fired steam kettle blends rapid, even heating with a smooth crank-tilt dump system to keep production moving and quality consistent shift after shift.
Why chefs choose the GLT-60
- High-efficiency power burner (natural or LP) with electronic ignition — no pilot to waste energy.

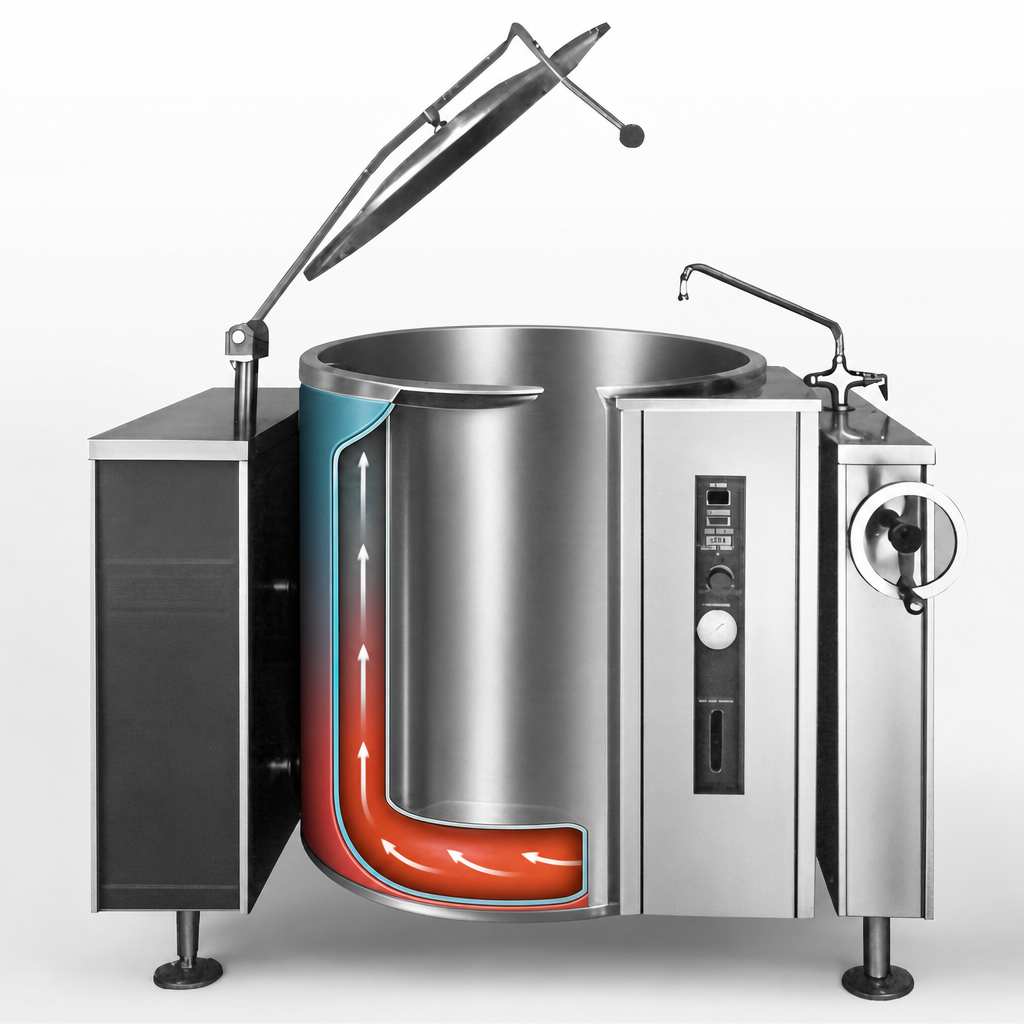

- 2/3 steam jacket surrounds product for fast, uniform heat; ASME-stamped to 50 psi.
- 316 stainless steel liner stands up to acidic ingredients; fully insulated stainless exterior stays cool.

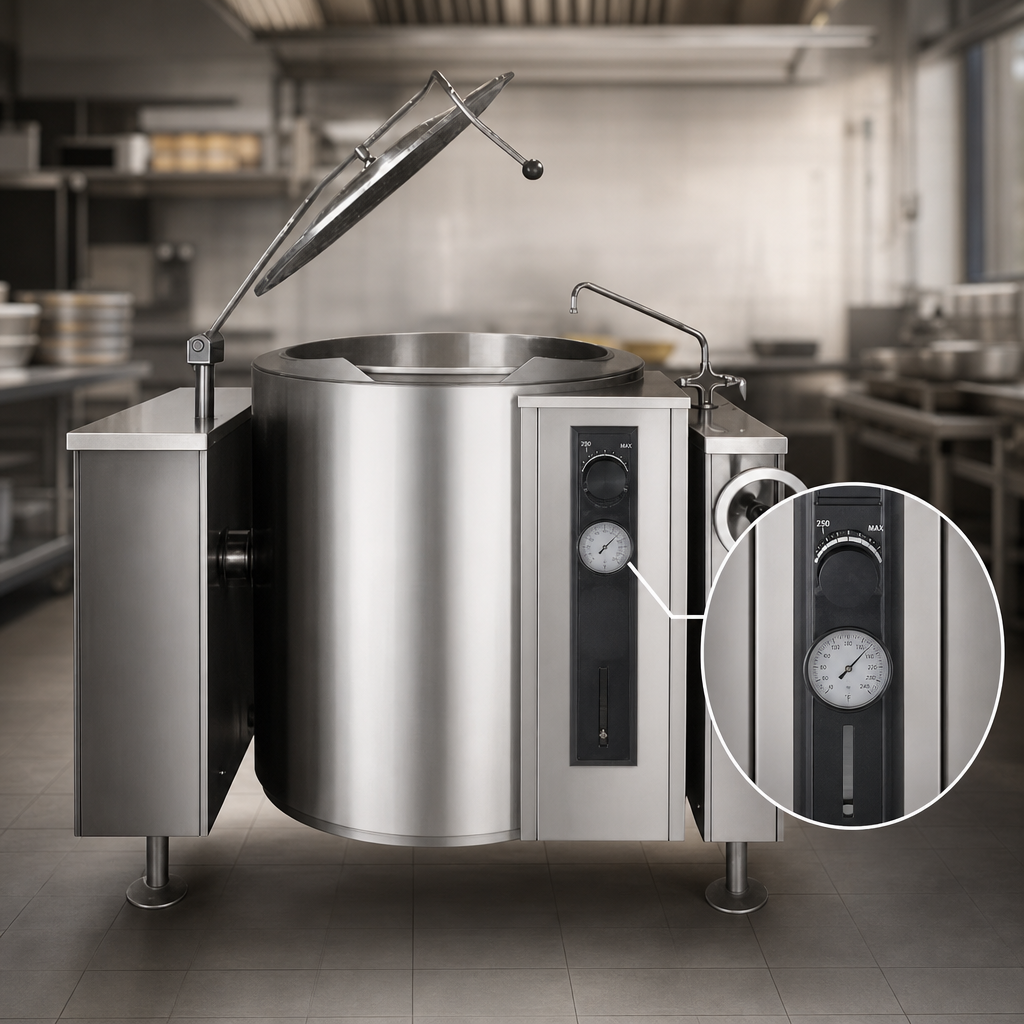

- Direct-immersion thermostat (165 – 275 °F / 74 – 135 °C) delivers precise temperature control.
- Crank handwheel tilts kettle past 90° for complete emptying and easy wash-down.
- Operator feedback at a glance: cooking light, ignition light, low-water light, pressure gauge & sight glass.
- Comprehensive safety suite — low-water shut-off, pressure switch, pressure relief & 100 % gas shut-off valve.
- Three-piece split faucet bracket included; accepts optional single or double pantry fillers.
- Drip-proof console on rugged 1-5/8 in. dia. stainless legs with flanged feet for floor anchoring.
- Plug-and-play: 120 VAC, 1-phase, 4 A with 6 ft cord and 3-prong plug.
- Certified for the toughest kitchens — CSA Star, CSA Flame, NSF.
Technical specifications
| Capacity | 60 gal (227 L) |
|---|---|
| Heat input | 120,000 BTU/hr • 35.2 kW |
| Gas connection | 3/4 in. NPT (manual shut-off to be field-supplied) |
| Electrical | 120 VAC, 1 Ph, 50/60 Hz, 4 A (cord & plug furnished) |
| Operating temp. | 165 – 275 °F (74 – 135 °C) |
| Jacket rating | 50 psi (ASME) |
| Interior / exterior | 316 SS liner / insulated stainless shell |
| Tilt mechanism | Manual crank, > 90° dump angle |
| Overall size W × D × H | 59 in. × 45.63 in. × 82 in. (1 499 × 1 159 × 2 083 mm) |
| Shipping weight | Approx. 1 142 lb (518 kg) |
| Certifications | CSA Star, CSA Flame, NSF, ASME |
Options such as etched gallon/litre markings, spring-assist cover, draw-off valves and faucet kits are available to tailor the GLT-60 to your production line.
