Crown (Middleby) GLT-40F Steam Kettles
Description

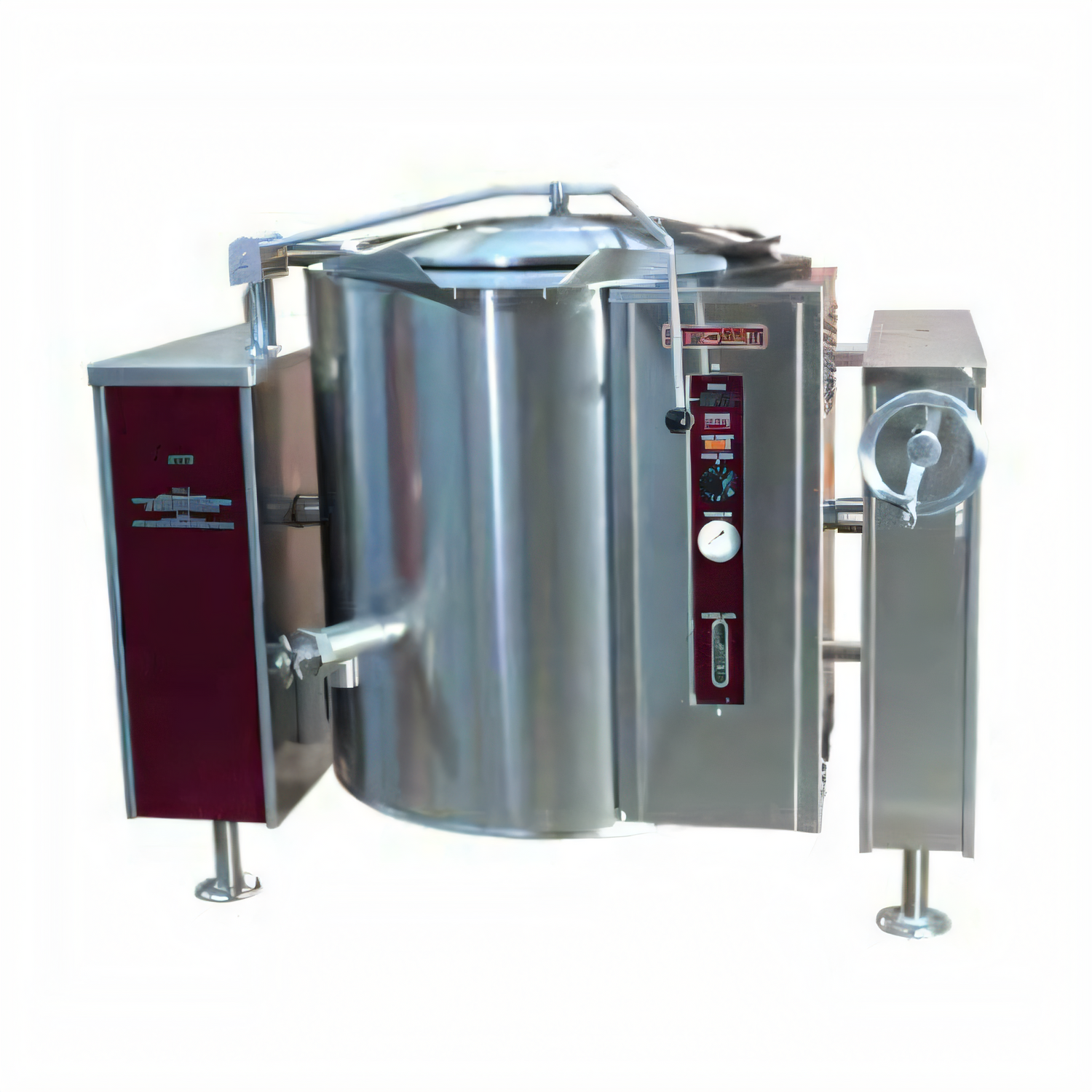

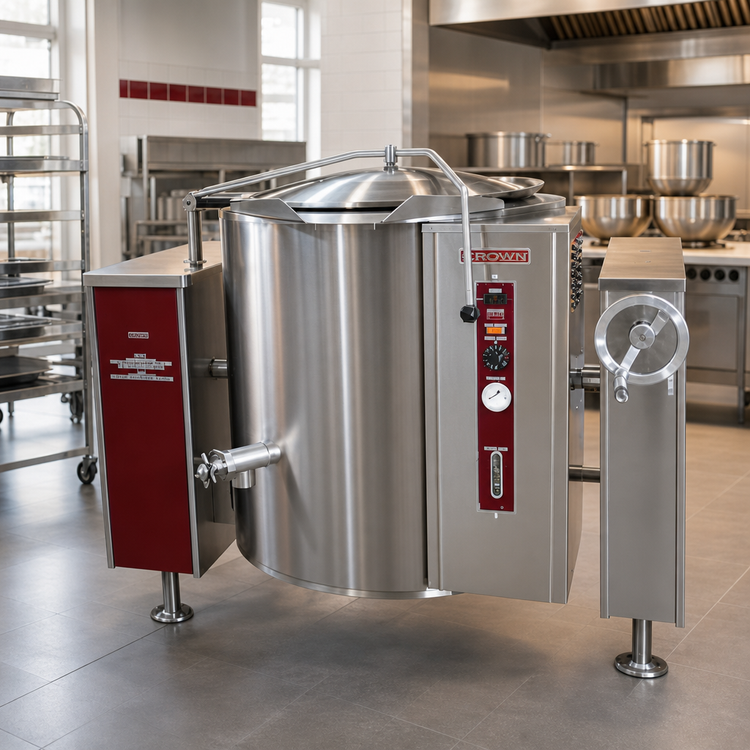

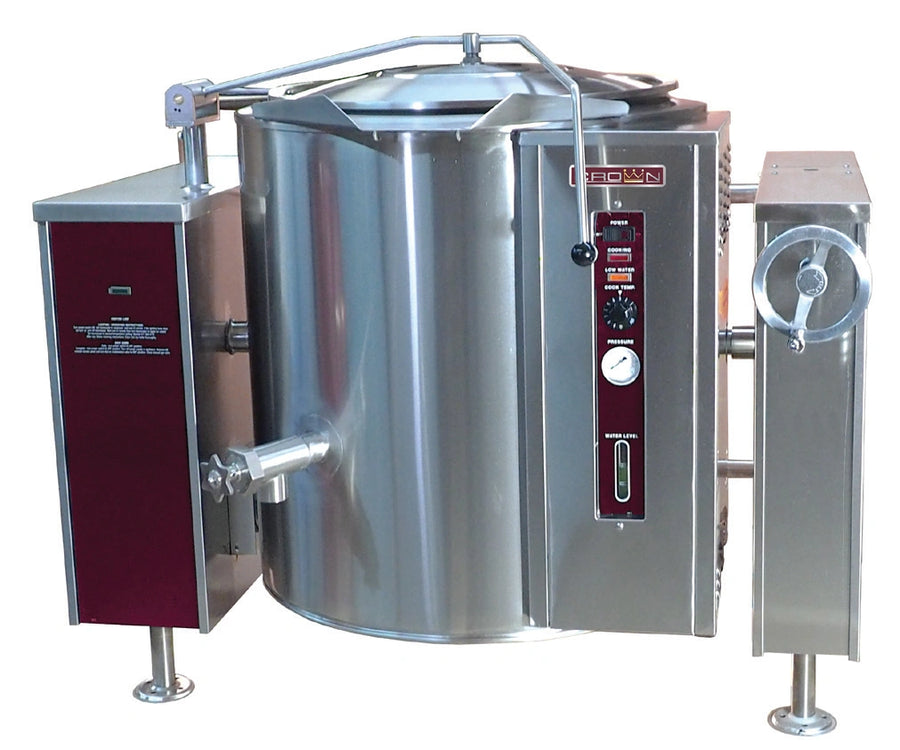

Crown GLT-40F Gas Full-Jacket Tilting Kettle – 40 Gal
120,000 BTU | 50 PSI | 316 SS linerBoost batch cooking capacity and consistency with Crown’s GLT-40F, a self-contained 40-gallon gas tilting kettle designed for high-output kitchens that demand precision, safety and speed. A fully jacketed hemispherical bowl, 316 stainless steel liner and high-efficiency power burner deliver fast, even heat from 165 °F up to 275 °F—perfect for soups, sauces, pasta, chili, stock and more.
Key performance & safety features
- Full 50 PSI steam jacket wrapped completely around the kettle for maximum heat transfer
- High-efficiency forced-air burner (natural or LP) – 120,000 BTU/hr

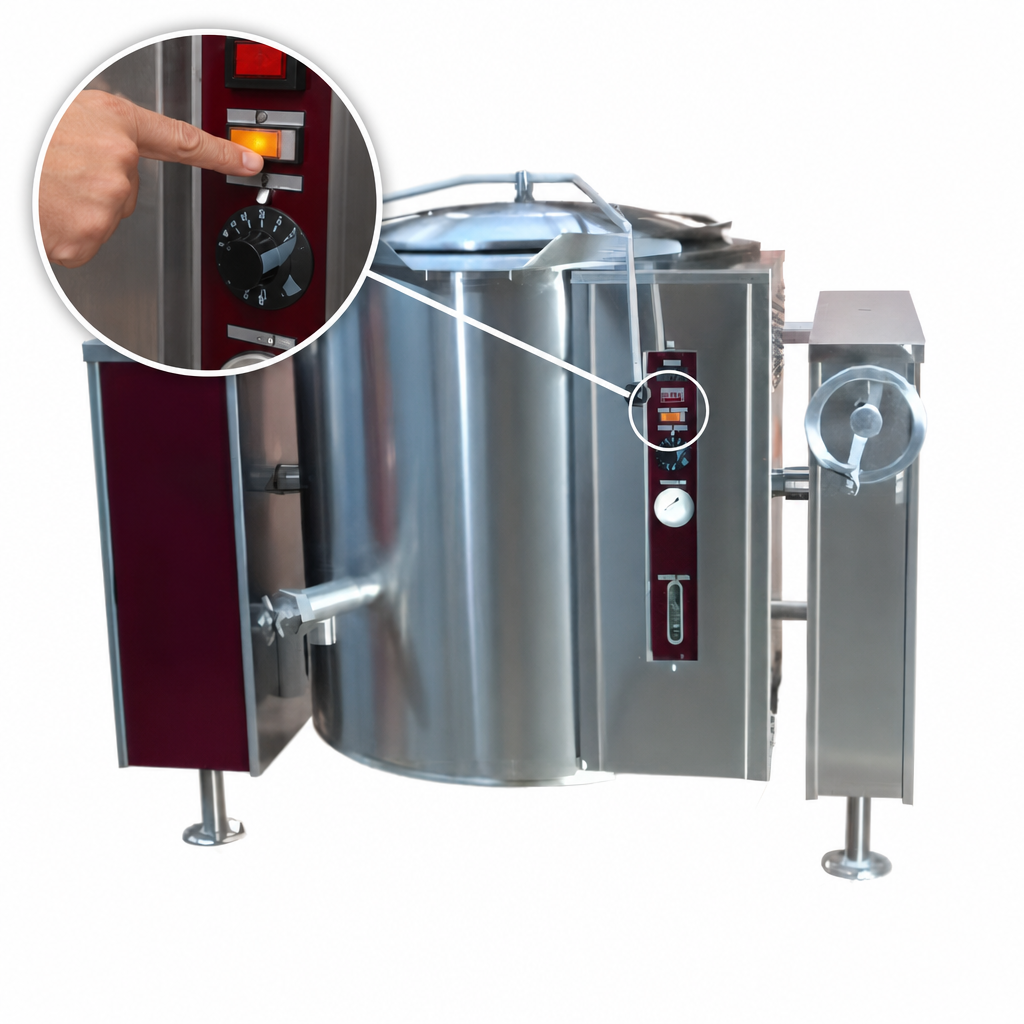

- Electronic ignition with dedicated cooking & ignition indicator lights

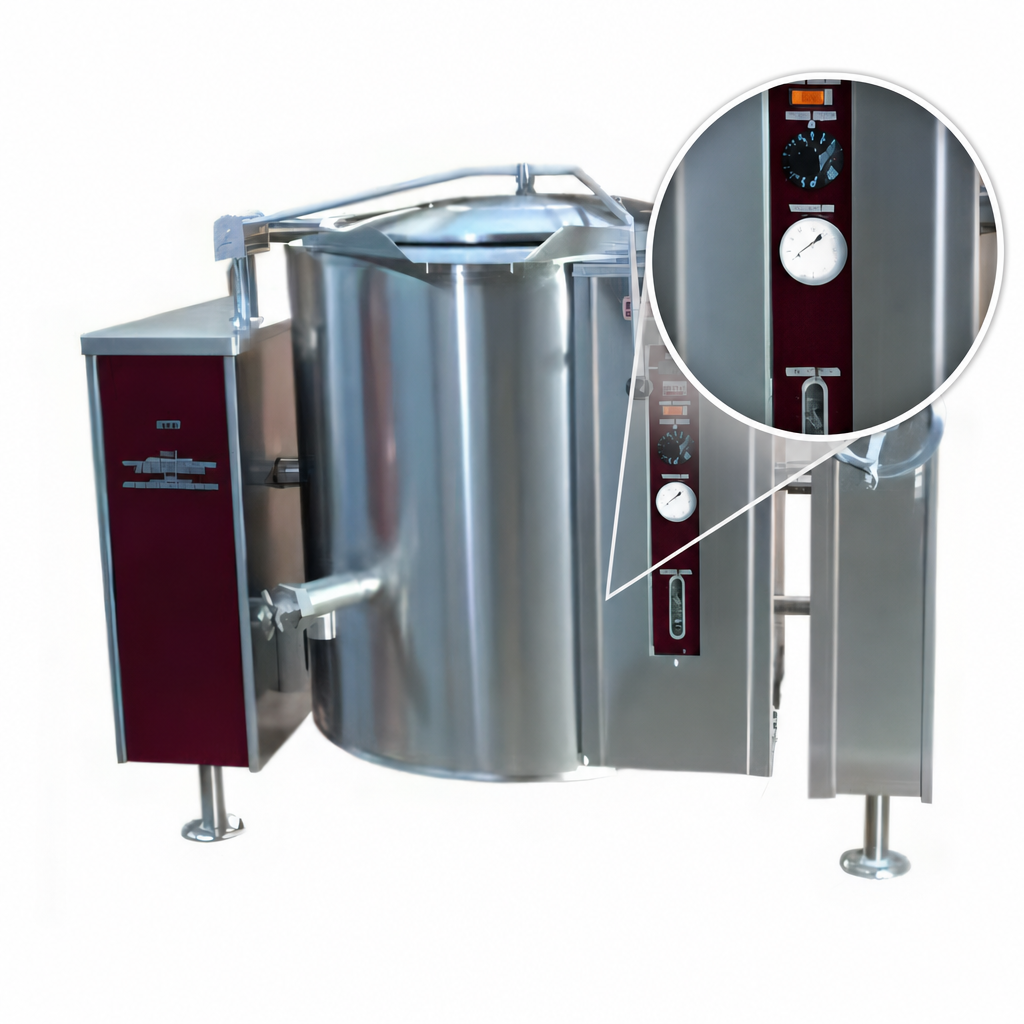

- Direct-immersion thermostat for ± accurate temperature control
- Crank tilt mechanism pivots past 90° for effortless, complete emptying
- Low-water shut-off & indicator light safeguards jacket
- Built-in pressure gauge, pressure switch & factory-set pressure relief valve
- 100 % safety gas shut-off valve for peace of mind
- Water sight glass for at-a-glance jacket level checks
- Three-piece split faucet bracket accepts single or double pantry faucets (optional)
- 1-5/8″ heavy-duty stainless steel legs with flanged feet for floor bolting
- Fully insulated exterior reduces heat loss and energy costs
- Certified: CSA Star, CSA Flame, NSF, ASME code stamped & National Board registered
Popular options (factory installed)
- Spring-assist stainless steel cover
- Etched gallon or litre graduations
- 2″ or 3″ tangent draw-off valve with perforated strainer
- Single or double pantry faucet with 18″ swing spout
- Correctional & marine packages, pour strainers, basket assemblies and more
Technical specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Steam jacket | Full (double-wall) 50 PSI, factory sealed distilled water |
| Heat input | 120,000 BTU/hr (35.2 kW) |
| Gas type & inlet | Natural or LP gas, ¾″ NPT rear connection |
| Operating temp. range | 165 °F – 275 °F (74 °C – 135 °C) |
| Electrical | 120 V, 1 ph, 4 A, 6′ cord & NEMA 5-15P plug |
| Construction | 316 SS interior liner, fully insulated 304 SS exterior & console |
| Tilt mechanism | Manual crank, self-locking screw jack, >90° pour angle |
| Overall dimensions (approx.) | 59″ W × 39″ D × 46″ H |
| Shipping weight | 1,100 lb / 499 kg |
| Minimum clearances | Sides 0″, Back 4″ (non-combustible floor only) |
Hemisphere kettle body carries Crown’s industry-leading 10-year warranty; unit ships with 1-year parts & labor coverage.
Model: GLT-40F | Form GLT-40F Rev 2 (09/2021)
