Crown (Middleby)  |  SKU: GLT-40

Crown (Middleby) GLT-40 Steam Kettles

$35,689.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Crown steam group letter Middleby financial flyer Installation & operation Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

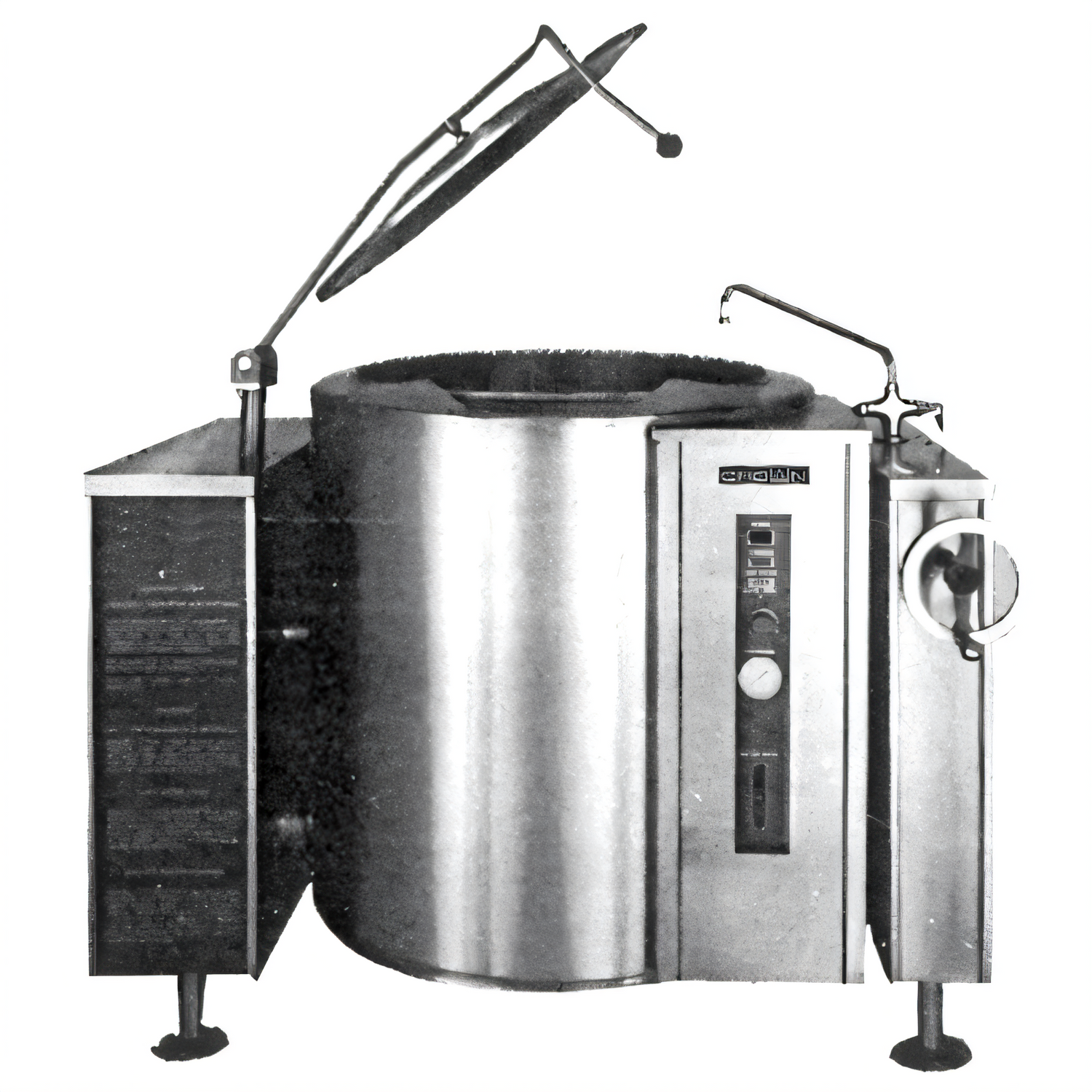

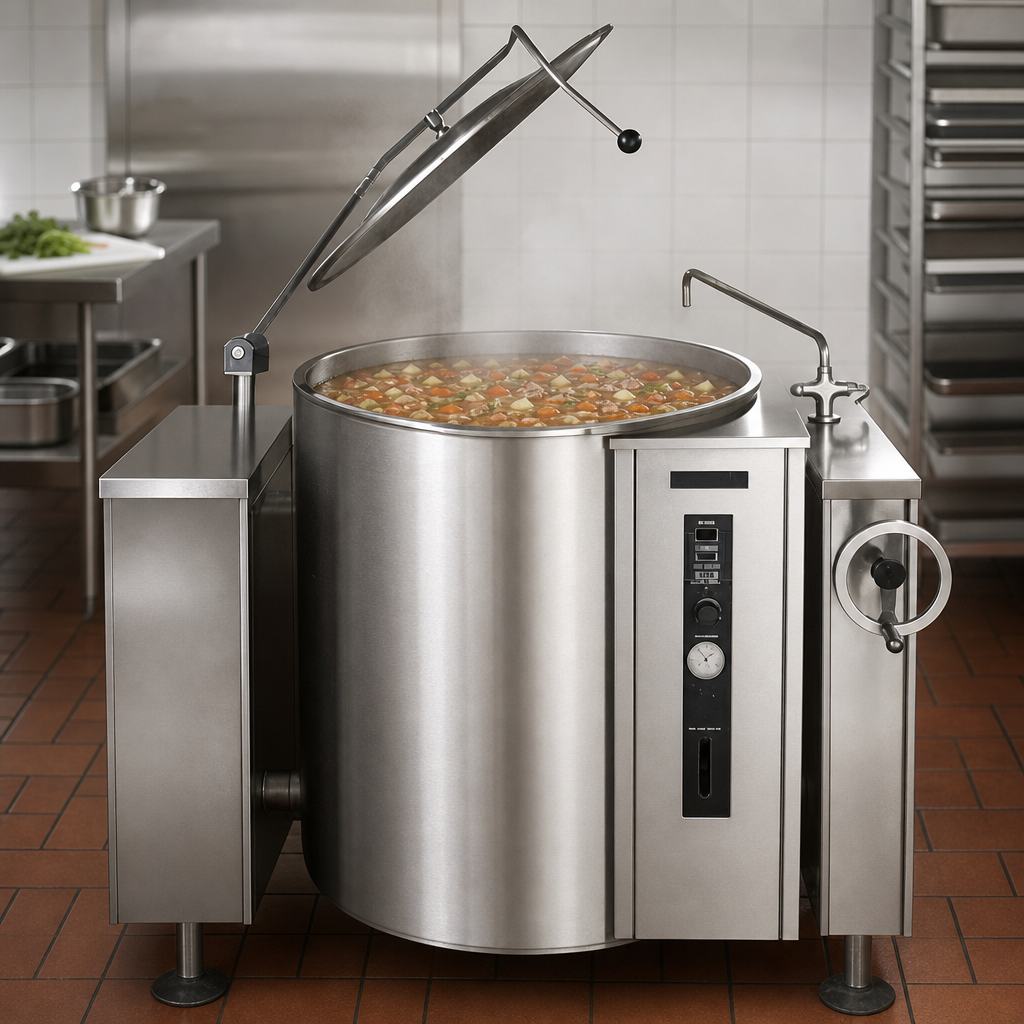

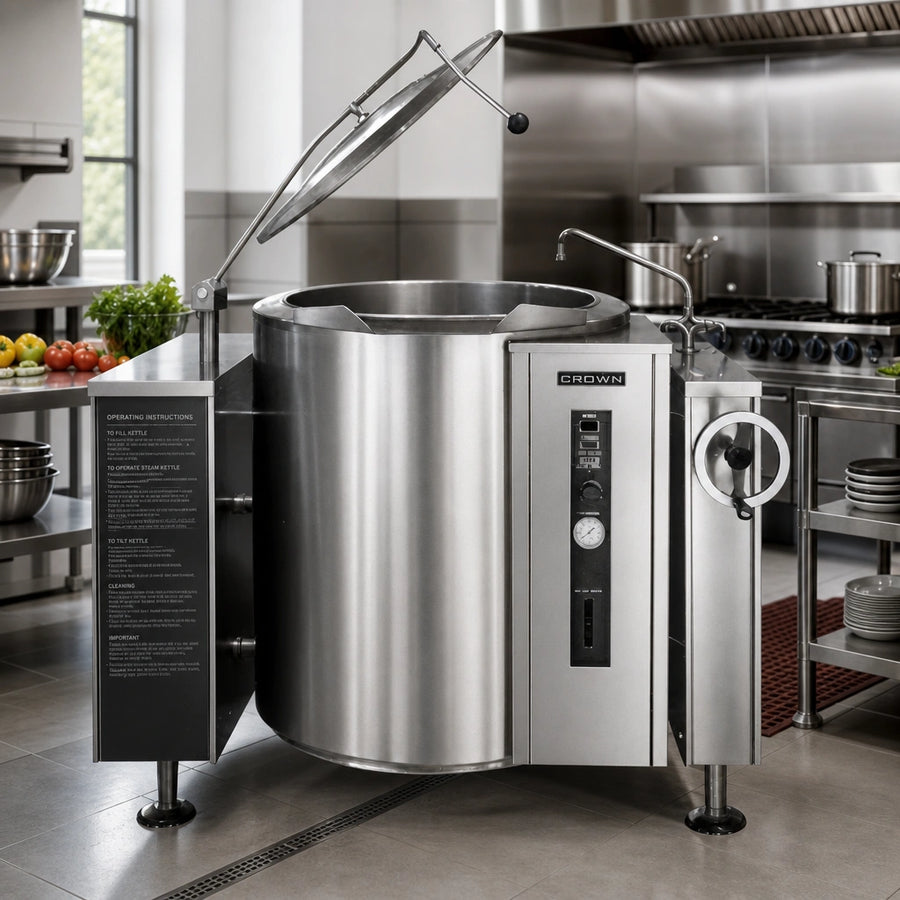

GLT-40 Gas Steam Tilting Kettle – 40 Gal.

Crown Steam | Self-contained, 2/3-jacket, 100 000 BTU

Engineered for high-volume kitchens that refuse to compromise on speed, safety, or product quality. The Crown GLT-40 delivers a full 40 gallons (152 L) of evenly-heated cooking capacity in a compact footprint, powered by a high-efficiency 100 000 BTU burner and a self-contained 2/3 steam jacket – no external boiler required.

Why chefs choose the GLT-40

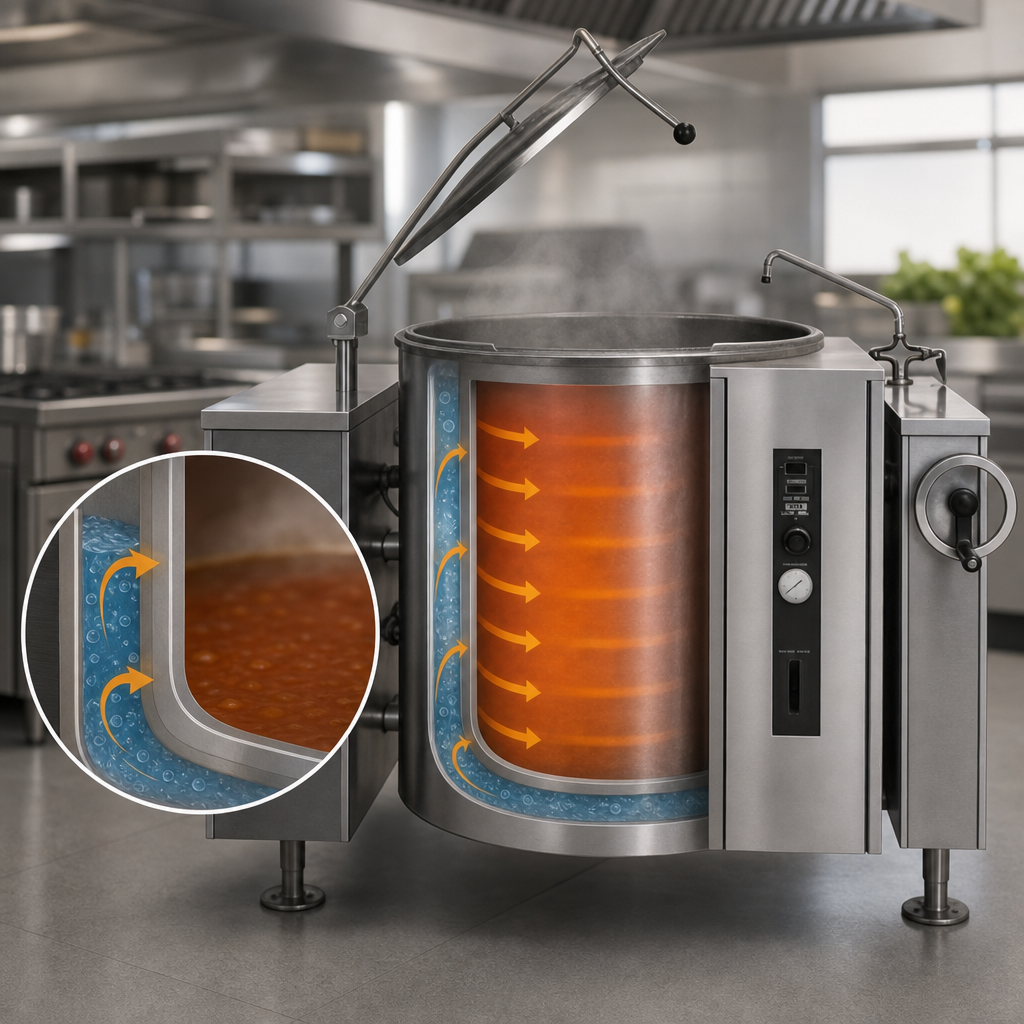

  • 2/3 steam jacket surrounds the lower kettle for fast, uniform heat transfer up to 50 psi.
  • 316 stainless steel interior resists acid & salt corrosion – perfect for tomato-based sauces and stocks.
  • Precision direct-immersion thermostat (165 °F – 275 °F / 74 °C – 135 °C) maintains tight temperature control.
  • Electronic ignition with dedicated ignition & cooking indicator lights – lights at the touch of a button.
  • Manually-cranked tilt mechanism pivots past 90 ° for complete emptying and effortless cleaning.
  • Water sight glass & pressure gauge keep the jacket status visible at a glance.
  • Full safety package: low-water shut-off with warning light, pressure switch, pressure relief valve & 100 % gas shut-off.
  • Drip-proof stainless console, 1-5/8" dia. welded legs & flanged feet for rock-solid, code-compliant installation.
  • Factory-insulated exterior keeps heat in the food – not in your kitchen.
  • Comes standard with a 3-piece split faucet bracket for easy field-mounting of a kettle filler.

Technical Specifications

Capacity 40 gal | 152 L
Heat Source Natural or LP gas, high-efficiency power burner
Input 100 000 BTU/hr (29.3 kW)
Gas Connection ¾" NPT (shut-off valve supplied)
Operating Pressure 6"–14" W.C. (Natural)  /  11"–14" W.C. (LP)
Electrical 120 V, 1 ph, 50/60 Hz, 4.0 A – pre-wired with 6 ft cord & plug
Temperature Range 165 °F – 275 °F (74 °C – 135 °C)
Jacket Rating ASME stamped, 50 psi (345 kPa)
Interior / Exterior 316 stainless liner / insulated stainless exterior
Dimensions (W × D × H) 55.25" × 43.63" × 76" (1403 × 1108 × 1930 mm)
Shipping Weight 930 lb | 422 kg
Clearance Sides: 0"   Back: 4" (102 mm)
Certifications CSA Star, CSA Flame, NSF, ASME, National Board

Common Add-Ons (sold separately)

  • Spring-assist stainless cover (CH-40)
  • Etched gallon or litre graduations (GM-40 / LM-40)
  • Tangent draw-off valves – 2" or 3" with strainer (TVT-2 / TVT-3)
  • Single or double pantry kettle fillers (SP-KF-GK / DP-KF-GK)
  • Pour strainer, basket assemblies, pan carrier & more

Accessories ship factory-installed when ordered with the kettle.

Utility Requirements

  • Non-combustible floor mounting – anchor through flanged feet (2 holes Ø 7/16" on 2.5" B.C.)
  • Level, ¾" gas supply line with accessible manual shut-off
  • 120 V grounded receptacle within 6 ft (1.8 m)
  • Cold & hot water ⅜" OD tubing if faucet filler option is selected
Commercial appliance: This kettle is intended for institutional and food-service use only. Do not install in residential settings.

Need financing? Ask about Middleby Equipment Financing and start cooking today.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA Star, CSA Flame

Height

53.25in

Width

55.25in

Depth

43.63in

Shipping Weight

930.0lbs

Kettle Liner

316 stainless steel

Kettle Jacket

partial jacket

Width

49 - 62 inches

Capacity

30 - 45 gallon

Specifications

Tilting Kettle, gas, 40 gallon capacity, 2/3 jacket, thermostatic control, electronic ignition, crank tilt, direct immersion thermostat, water sight glass, cooking & ignition indicator lights, pressure gauge, low water shut-off & indicator light, pressure switch, pressure relief valve, gas shut-off valve, faucet bracket, 316 stainless steel interior liner, stainless steel exterior, console & 1-5/8" diameter legs, flanged feet, 100,000 BTU, CSA Star, CSA Flame, NSF
