Crown (Middleby) GLT-30 Steam Kettles
Description

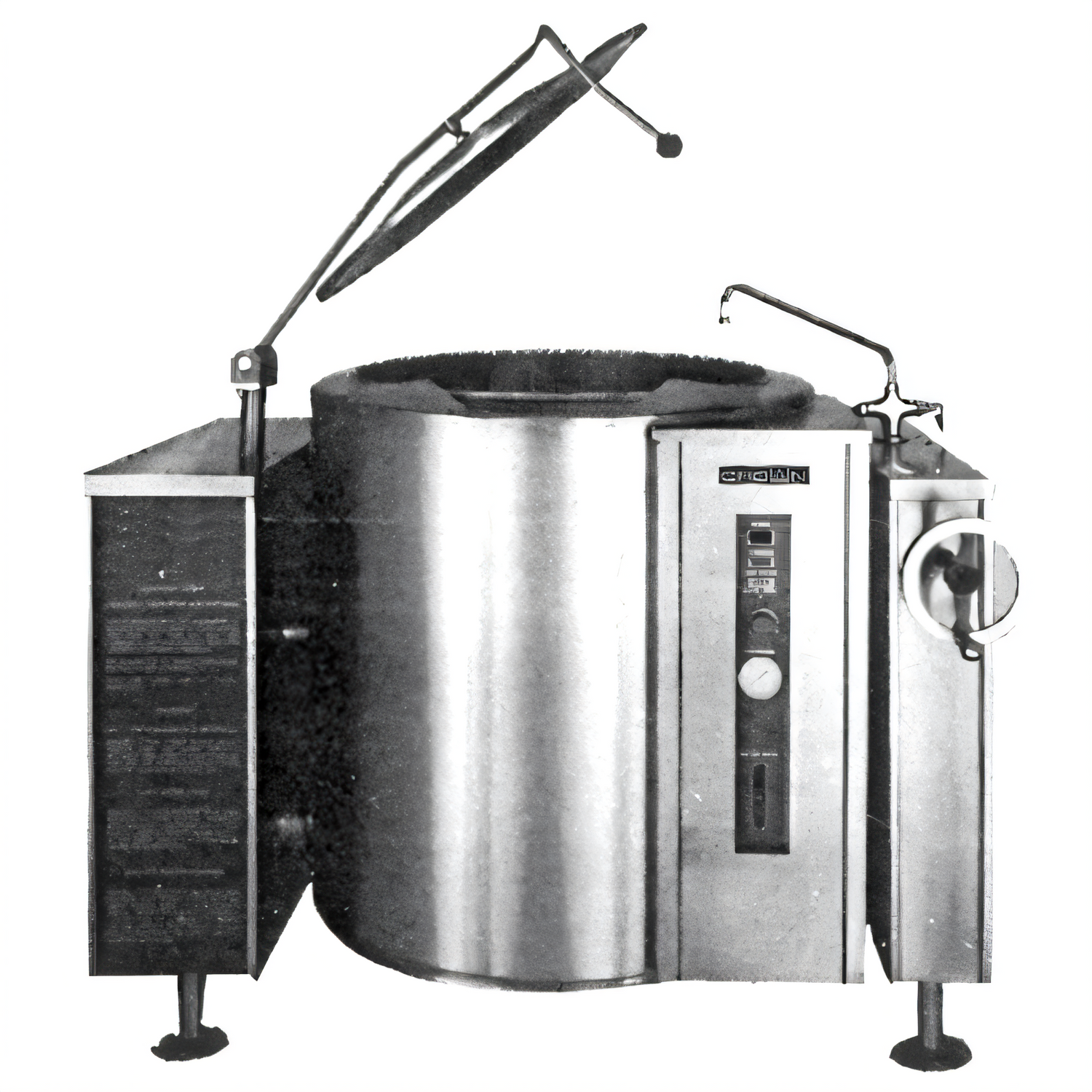

Crown GLT-30 30-Gallon Gas Steam Tilting Kettle
Self-contained • 100,000 BTU • 2/3 JacketedBuilt for demanding commercial kitchens, the Crown GLT-30 delivers high-volume production with the gentle, even heat of steam. Its crank-tilt design, precision thermostat and 316 stainless interior make it the dependable choice for soups, sauces, pastas, custards and more.
Why You’ll Love It
- 30 gal / 114 L capacity cooks up to 240 (8 oz) portions in one batch.
- High-efficiency 100,000 BTU power burner reaches temperature fast and recovers quickly.
- 2/3 steam jacket wraps product in uniform heat—no hot spots or scorching.

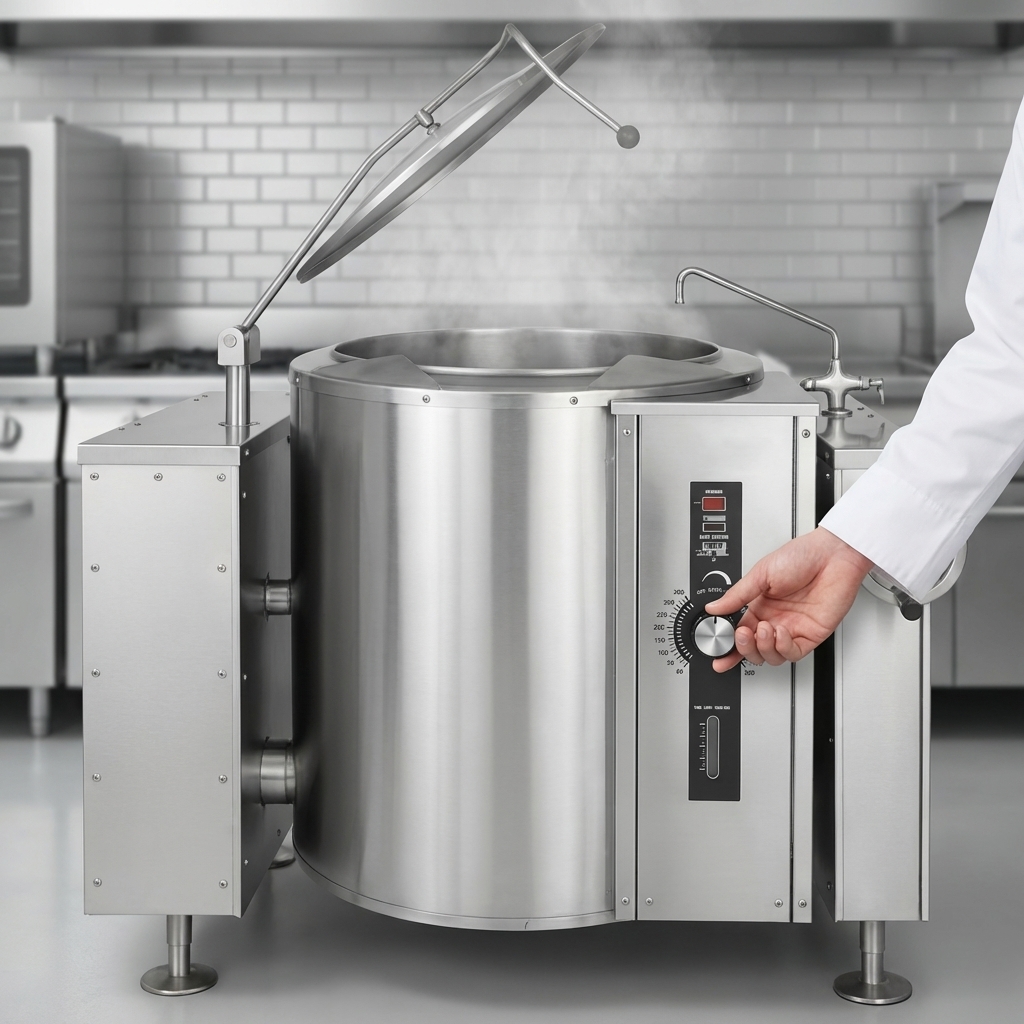

- Direct-immersion thermostat holds 165 °F–275 °F (74 °C–135 °C) with ±1 °F accuracy.
- 316 stainless steel liner withstands acidic ingredients for extended kettle life.

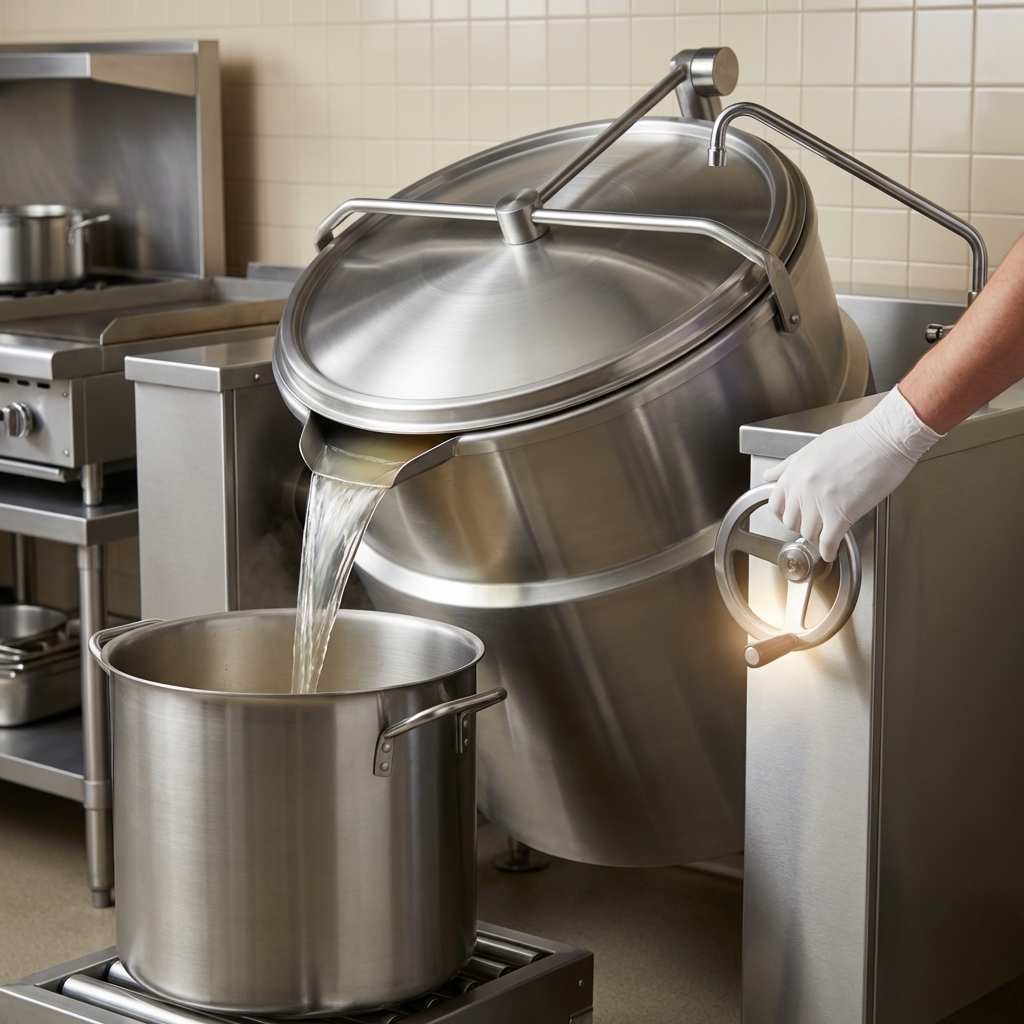

- Hand-wheel crank rotates kettle past 90° for complete, controlled emptying.
- Full insulation keeps exterior cooler and saves energy.
Smart, Operator-Friendly Controls

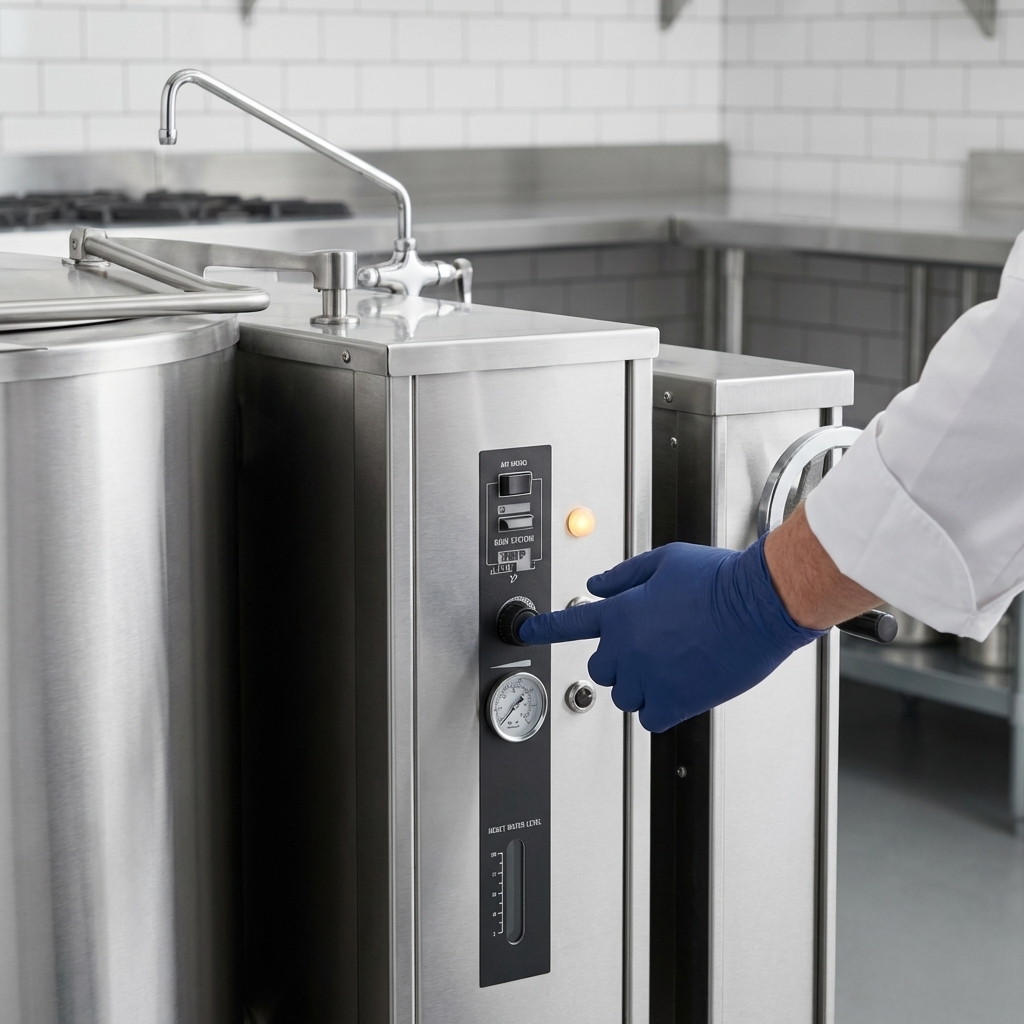

- Electronic ignition – no standing pilot saves gas.
- Green “Cooking” light and amber “Ignition” light give instant operating feedback.
- Large pressure gauge and water sight glass for at-a-glance jacket status.
- Low-water cut-off with red warning light protects the heating system automatically.
- Front-facing recessed control panel keeps adjustments within easy reach.
Safety You Can Trust
- Pressure relief valve, pressure switch and 100 % safety gas shut-off valve.
- Stainless console & 1-5/8" flanged legs bolt to the floor for rock-solid stability.
- Certified CSA Star, CSA Flame and NSF for gas safety & sanitation compliance.
Technical Specs
| Model | GLT-30 |
|---|---|
| Capacity | 30 gal (114 L) |
| Heat Source | Natural or LP gas, 100,000 BTU/hr |
| Steam Jacket Rating | 0–50 psi |
| Temperature Range | 165 °F – 275 °F / 74 °C – 135 °C |
| Gas Connection | 3/4" NPT (rear) |
| Electrical | 120 VAC, 1 ph, 50/60 Hz, 4 A (6 ft cord & plug included) |
| Interior | 316 stainless steel, hemispherical bottom |
| Exterior | Fully insulated stainless steel |
| Overall Dimensions | 26" W × 55.25" D × 43.63" H (660 mm × 1403 mm × 1108 mm) |
| Shipping Weight | 900 lb / 408 kg |
| Certifications | CSA Star, CSA Flame, NSF |
Need a different size? The Crown GLT Series is also available in 20, 40 and 60-gallon capacities.
Optional accessories—etched gallon/litre markings, draw-off valves, spring-assist cover, kettle fillers and more—can be factory-installed or ordered separately.
