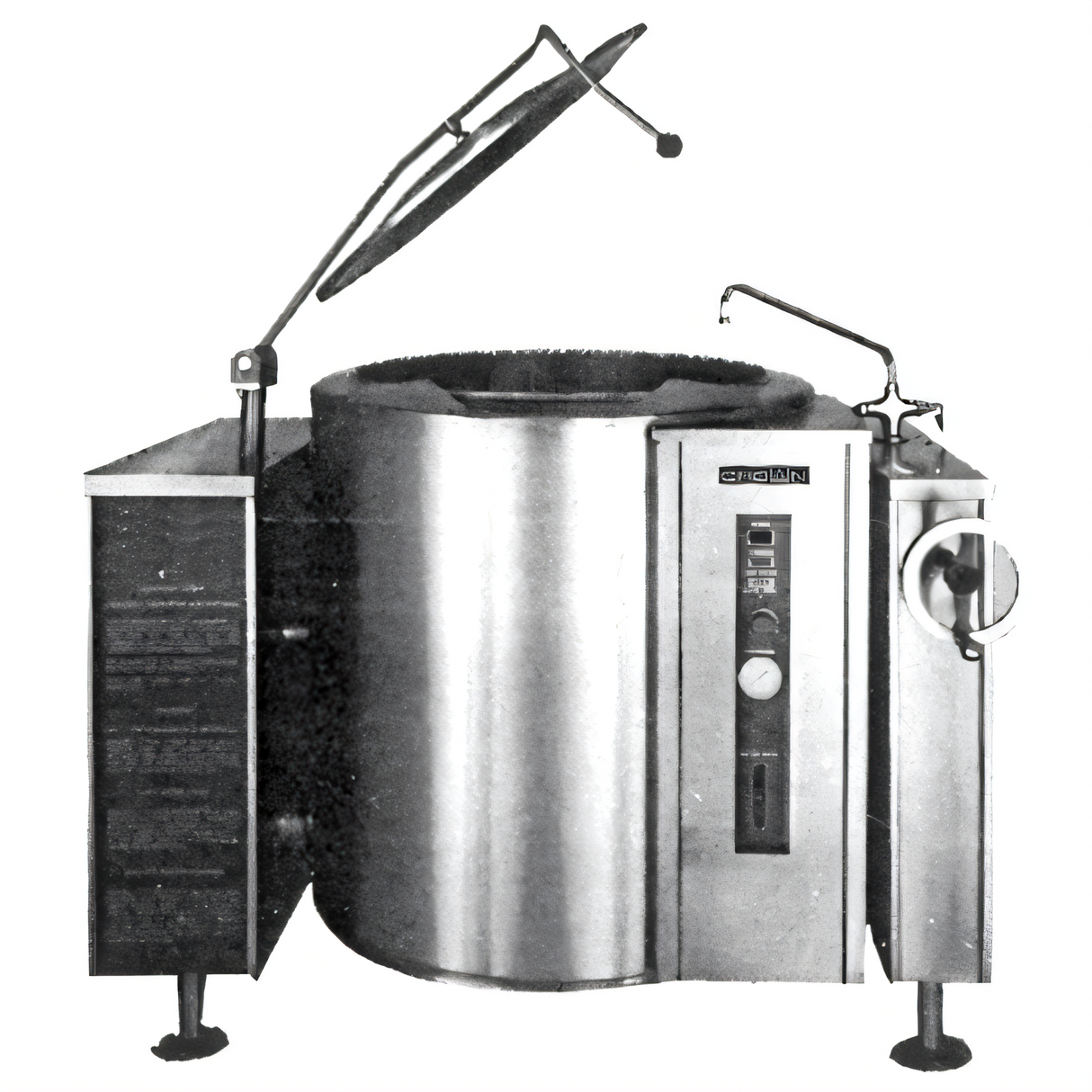

Crown GLT-20 20 Gallon Gas Steam Tilting Kettle
Self-contained • 2⁄3 Steam Jacket • Manual Crank Tilt • 80,000 BTUBuilt for high-volume, high-acid production, the Crown GLT-20 gives you 20 gallons (76 L) of 316 stainless-steel cooking capacity with the speed and efficiency of an 80,000 BTU gas-fired steam jacket. A smooth hand-crank tilt, electronic ignition, and built-in safety systems keep your kitchen moving fast—and worry-free.
Key performance advantages

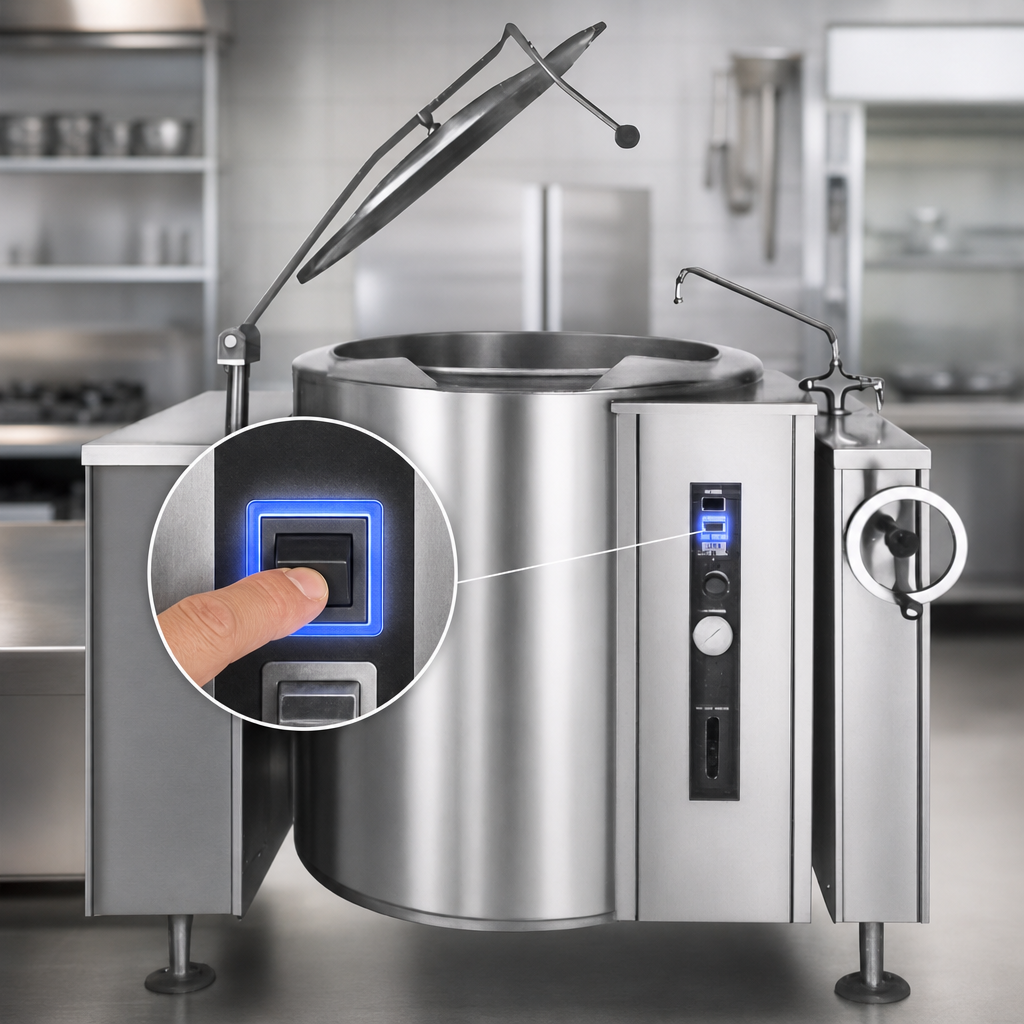

- High-efficiency power burner system (Natural or LP) with electronic ignition and ignition indicator light

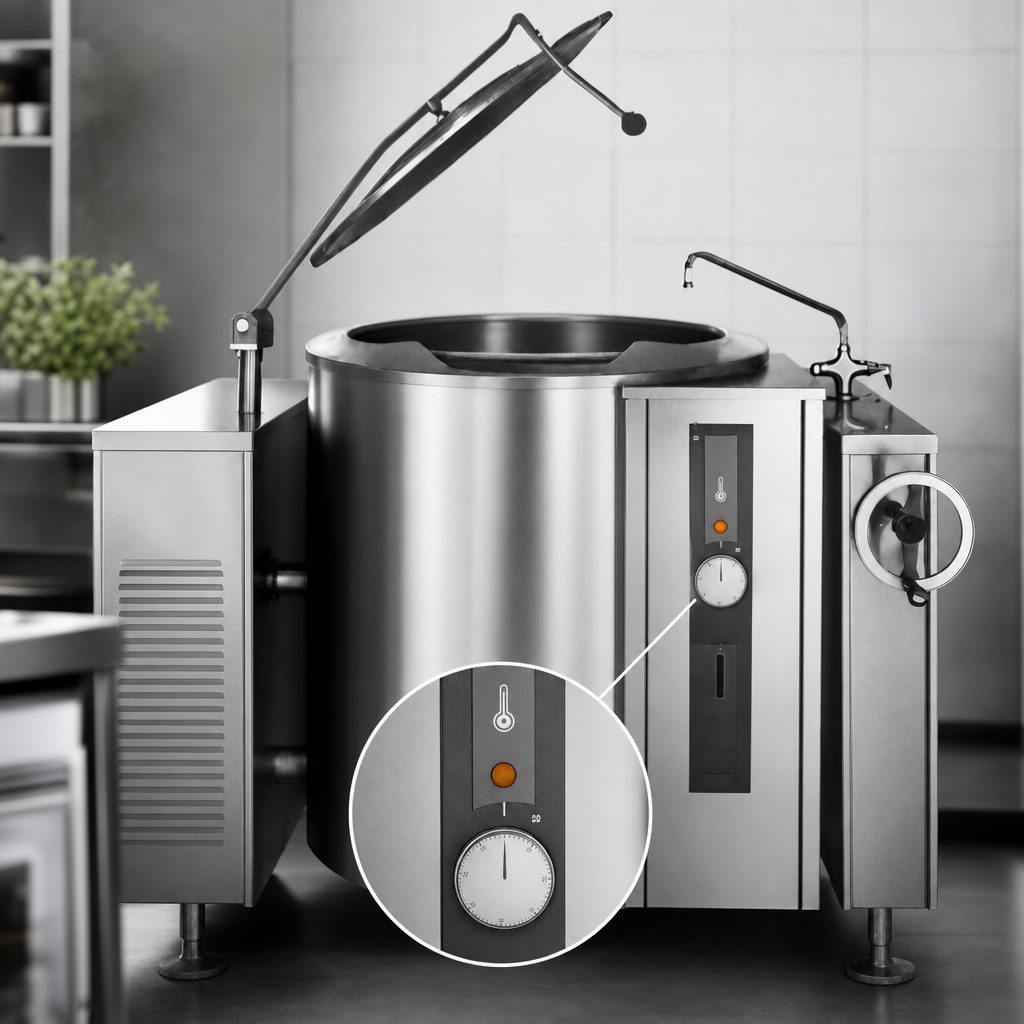

- Direct-immersion thermostat delivers a 165 °F – 275 °F (74 °C – 135 °C) cooking range
- Fully insulated 2⁄3 steam jacket for rapid, even heating up to 50 psi
- Hemispherical bottom maximizes heat circulation and simplifies cleanup
- Manual crank tilts past 90° for complete product removal and quick wash-down
- 316 stainless-steel interior stands up to acidic foods; stainless exterior and consoles resist dents and corrosion
- Water sight glass, cooking light and pressure gauge keep operators informed at a glance
- Factory-installed 3-piece split faucet bracket—ready for an optional kettle filler
Built-in safety & reliability
- Low-water cut-off with indicator light
- Pressure switch & pressure relief valve (ASME)
- 100 % safety gas shut-off valve
- CSA Star & Flame and NSF certified
Technical specifications
| Capacity | 20 gal / 76 L |
|---|---|
| Heat input | 80,000 BTU / 23.4 kW |
| Jacket coverage | Lower 2⁄3 of kettle |
| Temperature range | 165 °F – 275 °F (74 °C – 135 °C) |
| Operating pressure | Up to 50 psi (steam jacket) |
| Gas connection | ¾" NPT rear inlet |
| Electrical | 120 V, 1 ph, 50/60 Hz, 4 A (6' cord & NEMA 5-15P) |
| Interior / exterior | 316 SS liner / 304 SS exterior, fully insulated |
| Tilt mechanism | Handwheel crank, gear-driven, tilts > 90° |
| Legs / floor mount | 1 ⅝" Ø all-welded SS legs with flanged feet (anchor holes) |
| Overall dims (W×D×H) | 48.1" × 40.6" × 76.5" (1222 × 1032 × 1943 mm) |
| Shipping weight | ≈ 700 lb / 318 kg |
| Minimum clearances | Sides 0" | Back 4" |
| Certifications | CSA Star, CSA Flame, NSF |
Popular accessories (sold separately)
- Spring-assist stainless cover
- 2" or 3" tangent draw-off valve with perforated strainer
- Single or double pantry kettle filler with swing spout
- Etched gallon/litre markings or graduated measuring strip
- Triple basket assembly & pan carrier
Looking for a larger capacity? Crown GLT tilting kettles are also available in 30, 40 and 60 gallon sizes.
