Crown (Middleby) GL-80E Steam Kettles
Description

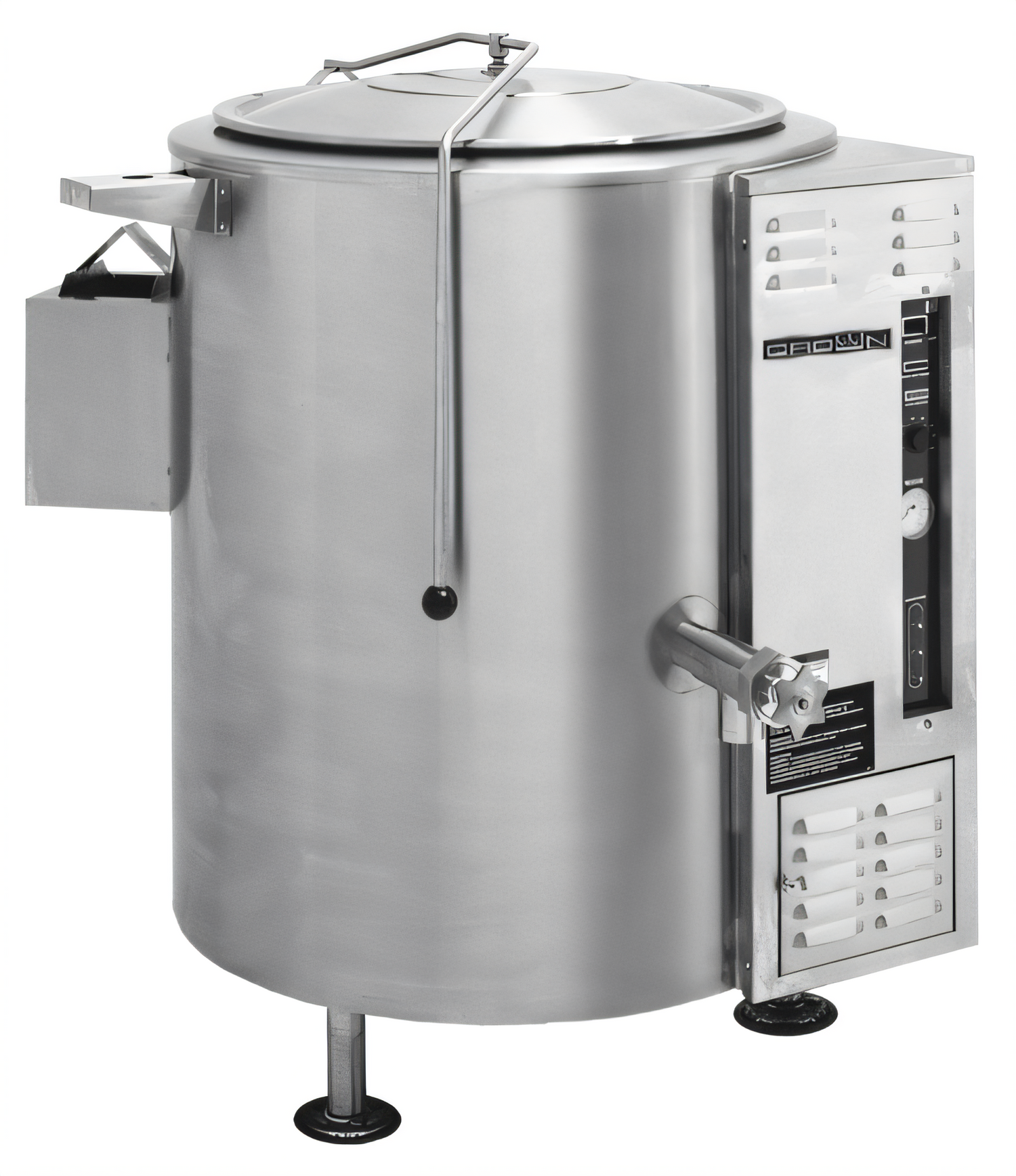

GL-80E | 80-Gallon Gas Stationary Steam Kettle
Crown (a Middleby brand)Built for the busiest production kitchens, the Crown GL-80E delivers fast, even heat over an enormous 80-gallon (303 L) capacity without the need for an external boiler. From silky béchamel to hearty chili, every batch cooks predictably, safely and with minimal labor.
Key advantages
- Massive 80 gal output—serve hundreds of portions in one cycle.
- 150,000 BTU burner and 2/3 steam jacket eliminate scorching & hot spots.

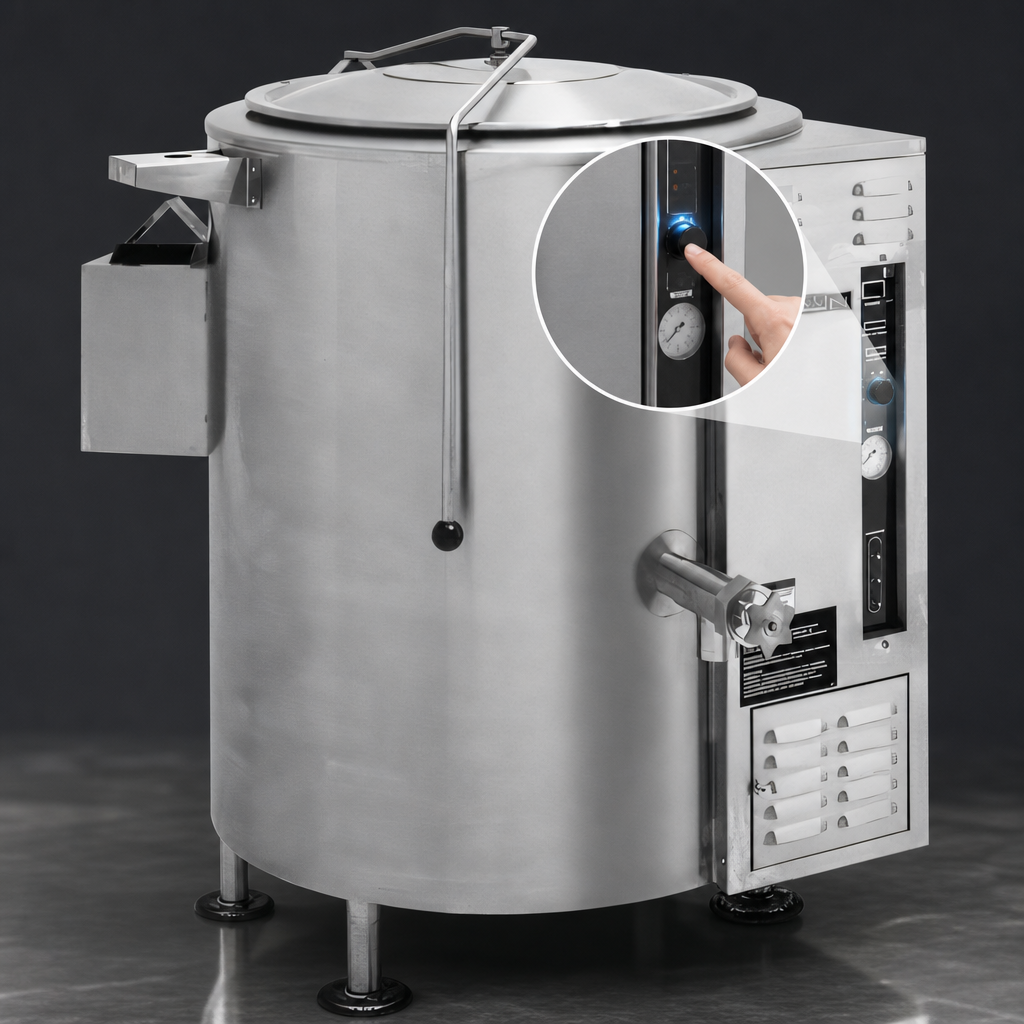

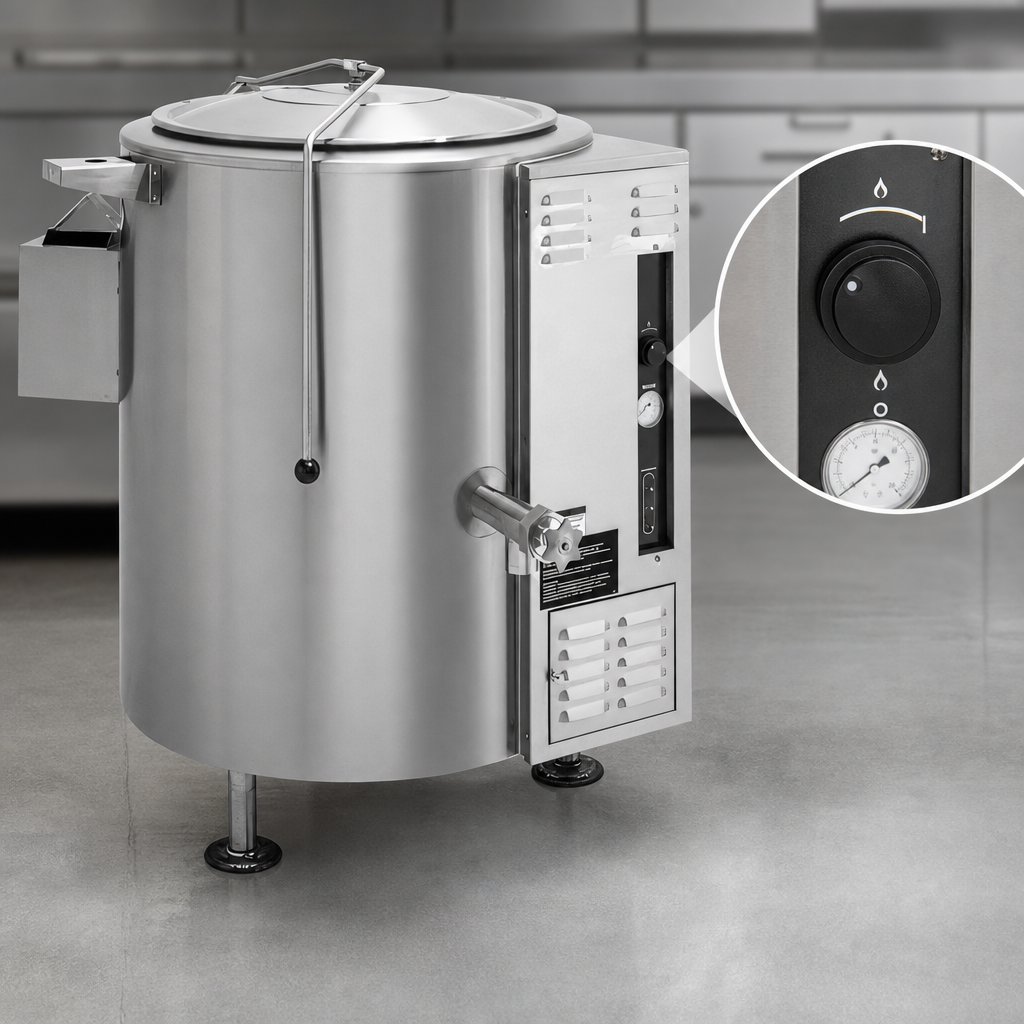

- Electronic ignition & direct-immersion thermostat (165 °F – 265 °F / 74 °C – 130 °C) for repeatable results.
- 316 SS liner resists acidic foods; 304 SS exterior stands up to daily abuse.
- Operator-centric controls: cooking light, water sight glass, pressure gauge, low-water light & cut-off.
- 2" tangent draw-off valve with perforated strainer speeds portioning & cleaning.
- Spring-assisted, stay-open cover and included faucet bracket streamline workflow.
- Stable, easy-to-clean heavy-duty tri-leg base.
- Fully certified – CSA-Star, CSA-Flame & NSF.
What’s included
- Perforated draw-off strainer
- Spring-assisted hinged cover
- Faucet mounting bracket
Technical specifications
| Model | GL-80E (Natural or Propane) |
|---|---|
| Capacity | 80 gal / 303 L |
| Steam jacket | Lower 2/3 of kettle |
| Heat input | 150,000 BTU / 44 kW |
| Temp. range | 165 °F – 265 °F / 74 °C – 130 °C |
| Working pressure | Up to 35 psi / 241 kPa |
| Gas connection | 3/4" NPT (Nat 6-14" W.C. | LP 11-14" W.C.) |
| Electrical | 120 V, 1-ph, 50/60 Hz, 2 A (6' cord & plug) |
| Dimensions (W × D × H) | ≈ 41 5/8" × 35 1/2" × 52 3/4" (1057 × 902 × 1340 mm) |
| Shipping weight | ≈ 950 lb / 430 kg |
| Certifications | CSA-Star, CSA-Flame, NSF |
Need gallon/liter etching, a 3" draw-off valve or integrated kettle filler? Ask about factory options to tailor this kettle to your exact workflow.
