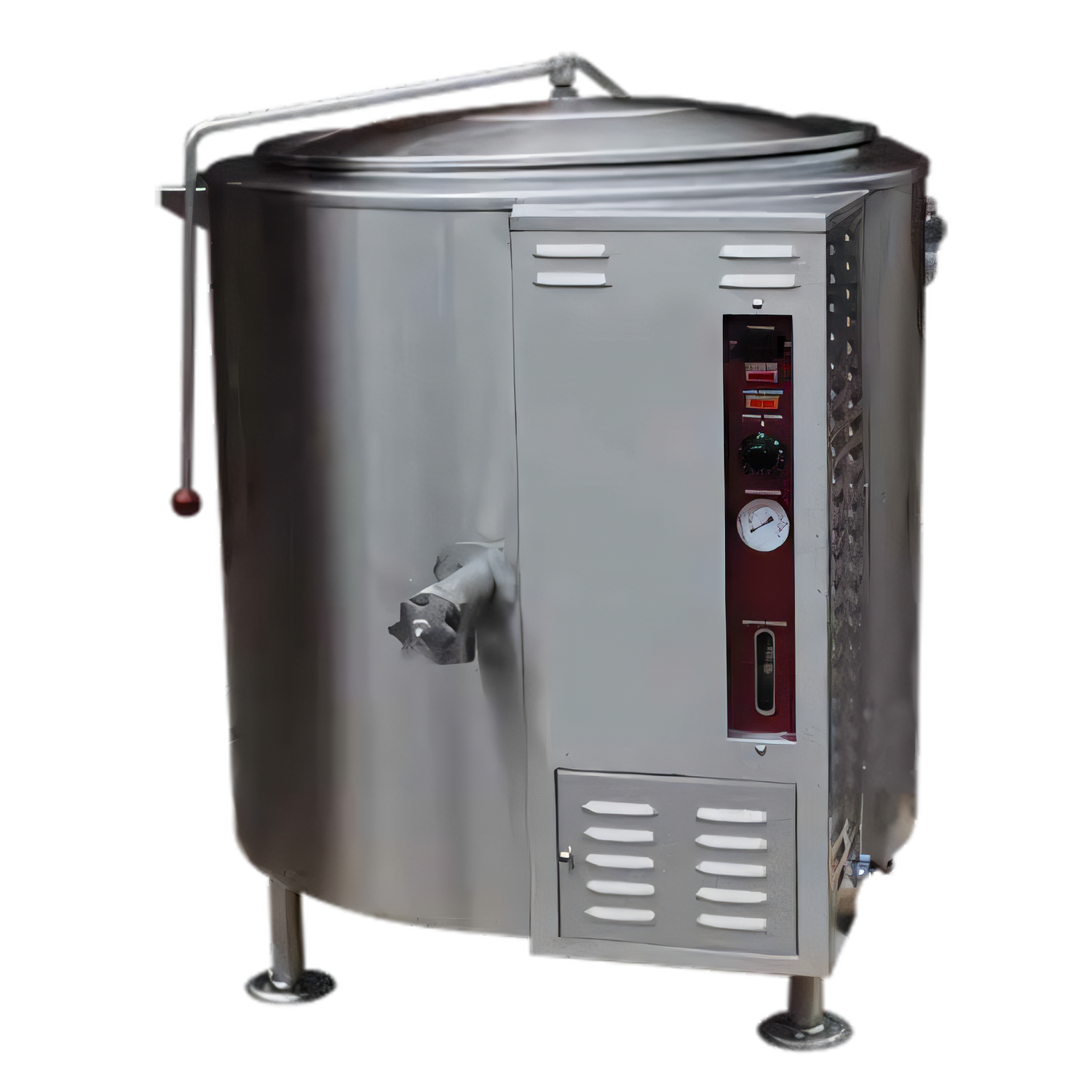

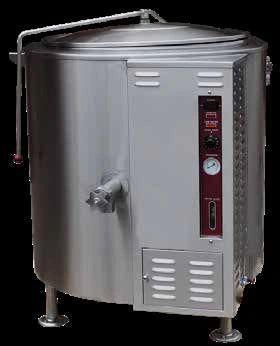

Crown GL-60FE 60 Gallon Full-Jacket Gas Stationary Steam Kettle

Floor Model, Natural Gas or Propane, Electronic Ignition

The Crown GL-60FE delivers efficient and consistent cooking performance for high-volume commercial kitchens with its powerful gas heating and full-jacket steam system.

  • 60-gallon capacity ideal for large batch cooking operations.
  • Full-jacket steam system ensures even heat distribution and prevents scorching.
  • Durable construction with 316 stainless steel interior liner and 304 stainless steel exterior.
  • Features user-friendly controls including a direct immersion thermostat and electronic ignition.
  • Equipped with essential safety features such as low water cut-off, pressure relief valve, and a vacuum/pressure gauge.
  • Standard 2-inch draw-off valve allows for convenient and efficient product removal.

Overall Dimensions:

42.63"W x 44.5"D x 49.5"H

Product Weight:

800.0 lb

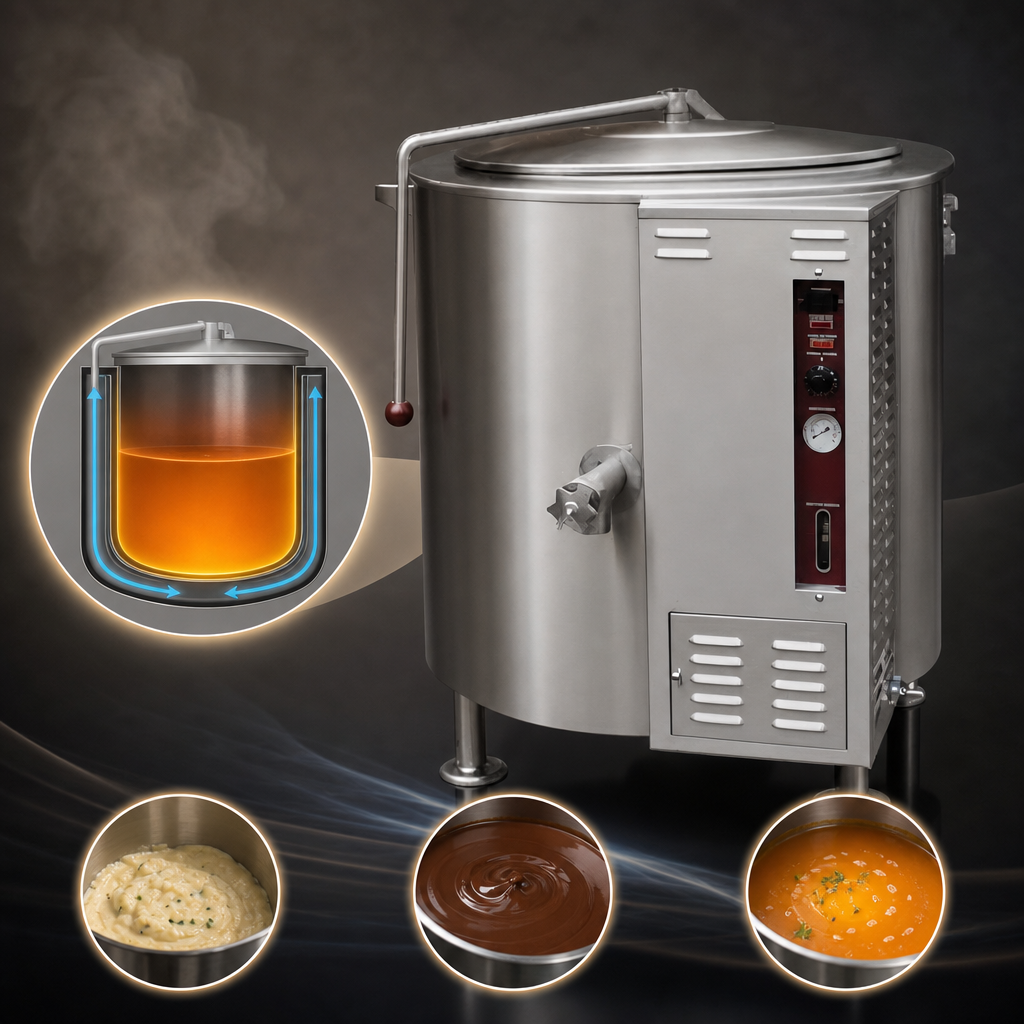

Full-Jacket Steam Design

Ensures even heating across the entire kettle surface, preventing hot spots and scorching, ideal for delicate recipes or maintaining precise temperatures.

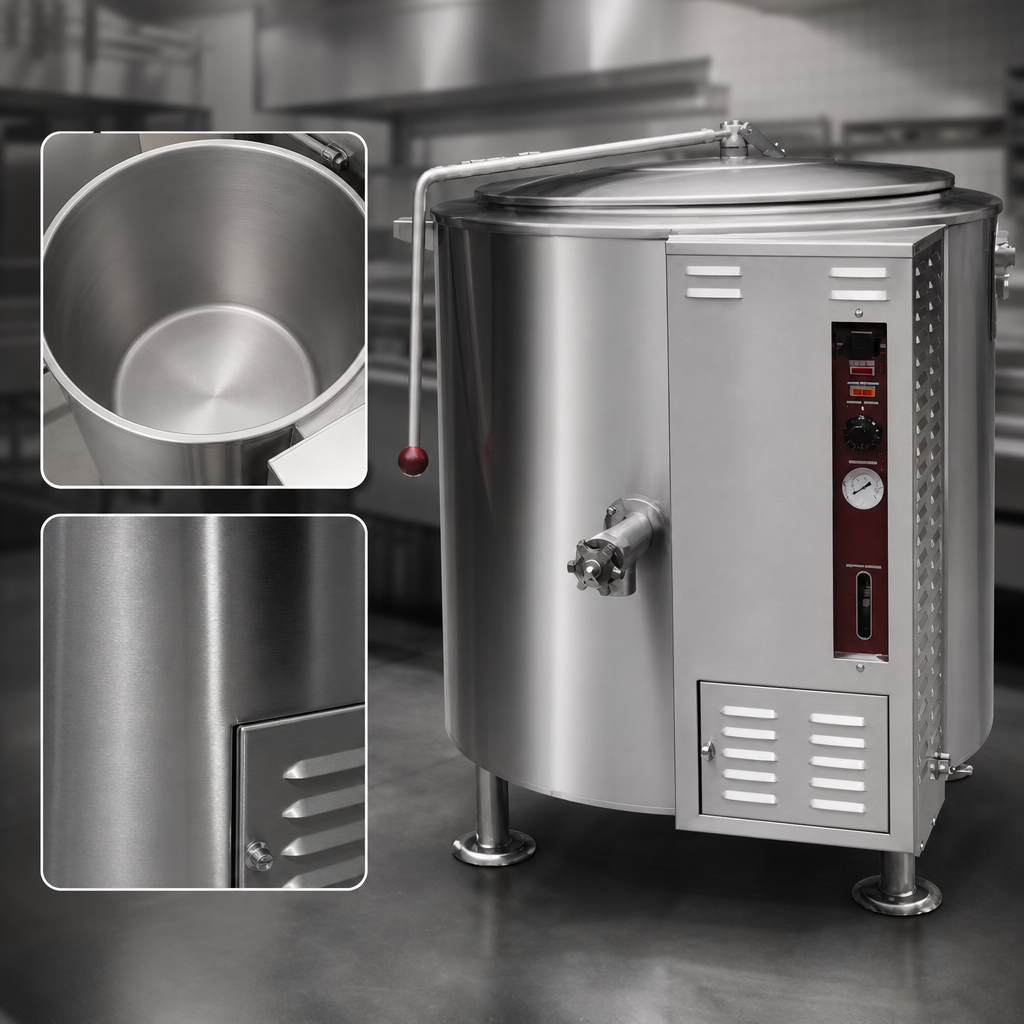

Durable Stainless Steel Construction

The kettle features a one-piece, all-welded interior liner made of type 316 stainless steel with a #4 sanitary finish, while the exterior is constructed from type 304 stainless steel with a #4 sanitary finish for longevity and hygiene.

Efficient Gas Heating

Utilizes stainless steel high-efficiency atmospheric tubular burners that are easily serviceable, providing powerful and consistent heat for various cooking tasks.

Advanced Control Panel

A recessed control panel is conveniently located on the front side of the unit, offering easy access and visibility for the operator, including electronic ignition and direct immersion thermostat.

Comprehensive Safety System

Equipped with a low water level cut-off and indicator light, a pressure relief valve (35 PSI max design pressure), and a pressure control system to ensure safe operation.

Operational Monitoring

Includes a water sight glass, cooking pilot light, and a vacuum/pressure gauge for continuous monitoring of kettle conditions.

Spring Assist Hinged Cover

A stainless steel cover with spring assist makes opening and closing easy and safe, enhancing operational efficiency.

Tri-Leg Base with Adjustable Feet

Features 6-inch stainless steel legs fitted with flanged adjustable feet, providing stability and allowing for leveling on uneven surfaces.

Type Stationary Kettle
Style Full Jacket Steam Kettle
Installation Type Floor Model (With Tri-Legs)
Capacity 60 Gallons (227 Liters)
BTU 150,000 BTU
Gas Connection Size 3/4 Inch
Gas Inlet Pressure 6-14 Inches W.C.
Voltage 115 Volts
Amps 2.0 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type 3-Prong Plug
Cord Length 6 Feet
Controls Thermostatic, Electronic Ignition
Temperature Range 165°F to 265°F
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Draw-Off Valve Size 2 Inches
Pressure Relief Valve Setting 35 PSI
Shipping Weight 800 lb.
Shipping Width 43 Inches
Shipping Depth 45 Inches
Shipping Height 50 Inches
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GL-60FE operates on either Natural Gas or LP Gas. It requires a 3/4 inch supply pipe connection. For Natural Gas, the supply pipe pressure should be 6-14 inches W.C., and for Propane, it should be 11-14 inches W.C.
The standard GL-60FE operates on 115 Volts, 1-Phase, 50/60 Hz, drawing a maximum of 2.0 Amps. It is furnished with a 6-foot cord and a 3-prong plug for field wire electrical connection. A 220 VAC, 1-phase, 50/60 Hz option is available.
The kettle operates within a temperature range of 165°F to 265°F (74°C to 130°C), controlled by a direct immersion thermostat.
The GL-60FE includes several safety features: a low water level cut-off and indicator light, a pressure relief valve set at 35 PSI maximum design pressure, and a pressure control system.
The interior kettle liner is a one-piece, all-welded construction of type 316 stainless steel with a #4 sanitary finish. The exterior is made of type 304 stainless steel, also with a #4 sanitary finish.
Yes, the GL-60FE comes standard with a spring-assist stainless steel hinged cover and a 2-inch (50 mm) draw-off valve for easy dispensing.
