Crown (Middleby)  |  SKU: GL-60E

Crown (Middleby) GL-60E Steam Kettles

$29,741.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

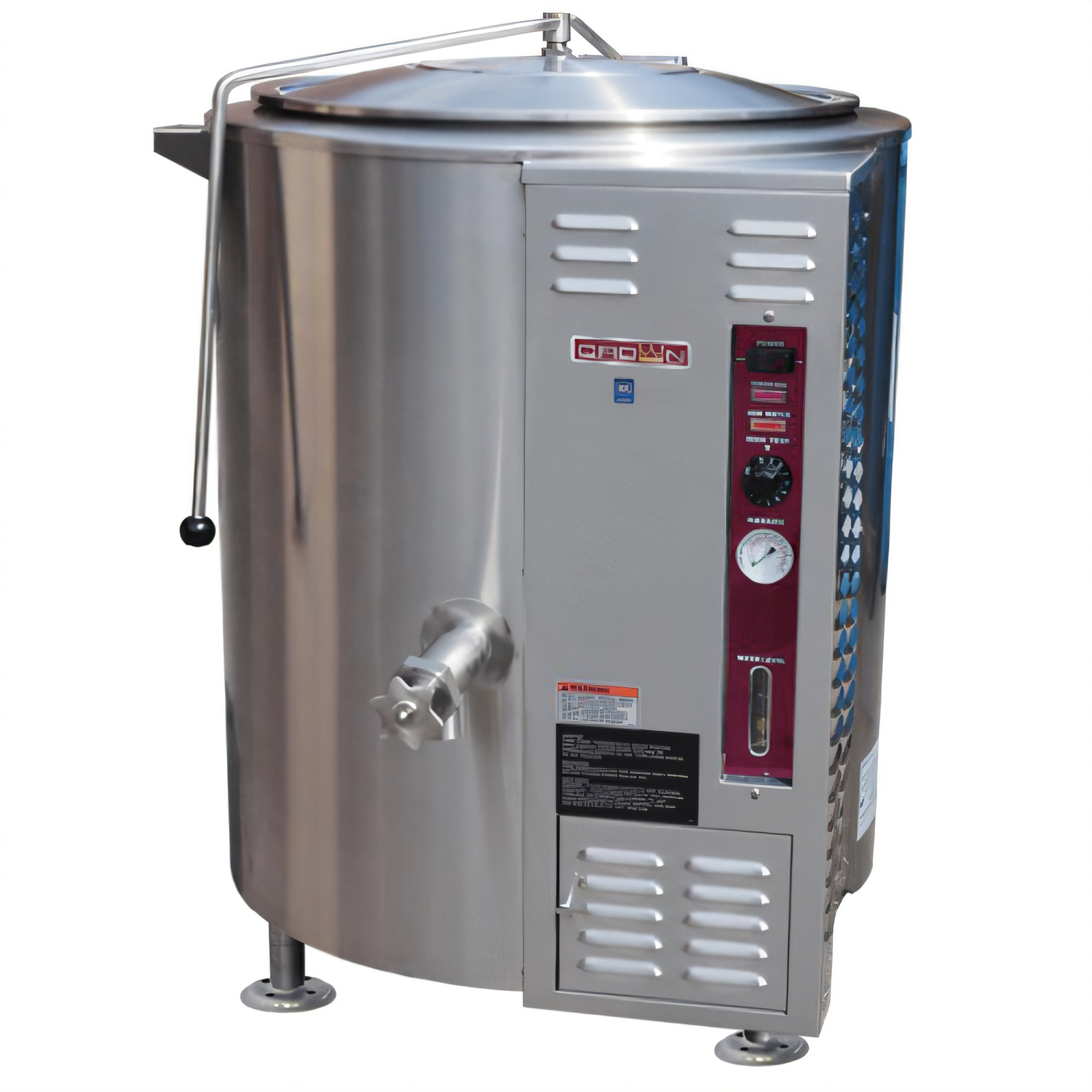

Crown GL-60E 60-Gallon Gas Stationary Steam Kettle

Self-contained • 2/3 Jacket • 130,000 BTU

Built for serious production, the Crown GL-60E delivers a full 60 gallons (227 L) of steam-powered, even-heat cooking in a rugged, easy-to-operate package—perfect for large-batch soups, sauces, pastas and braises.

Key features

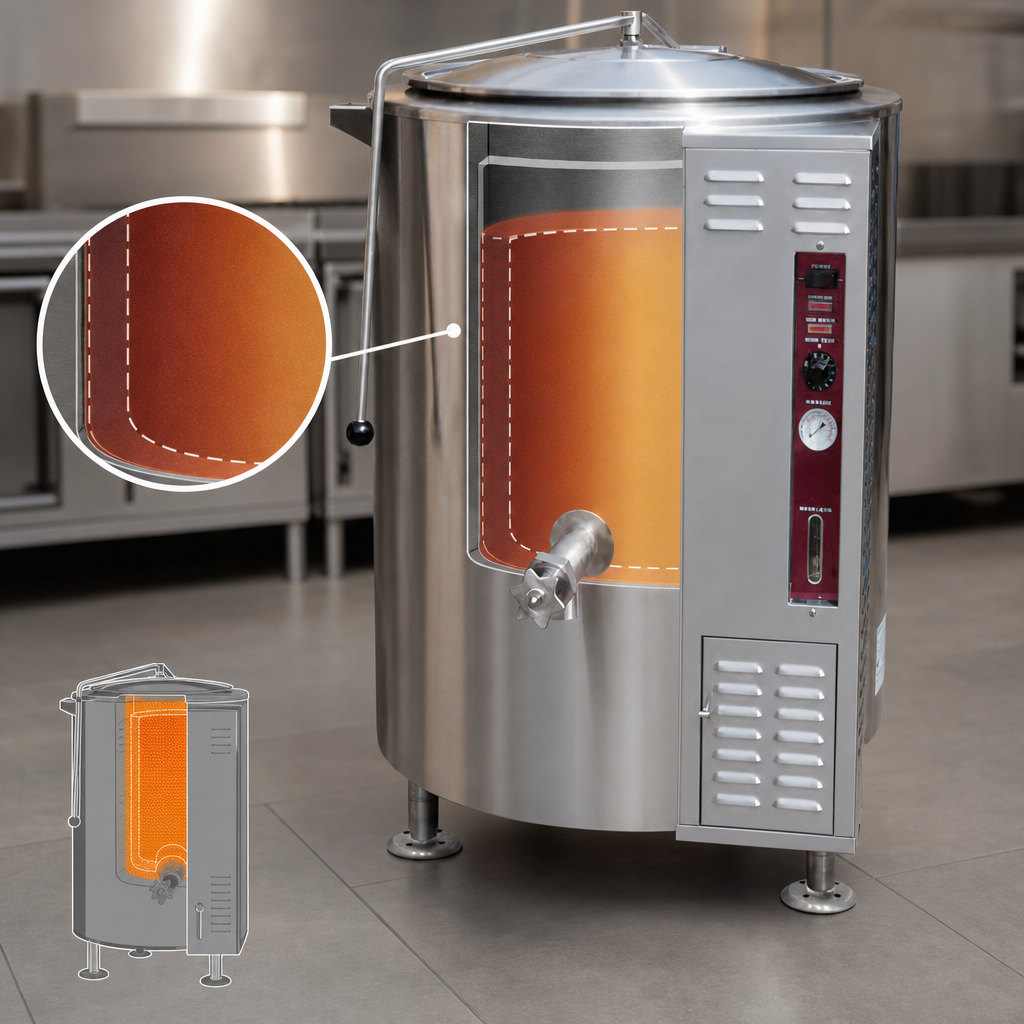

  • 2/3 steam jacket provides uniform heat transfer and rapid recovery—no external boiler required.

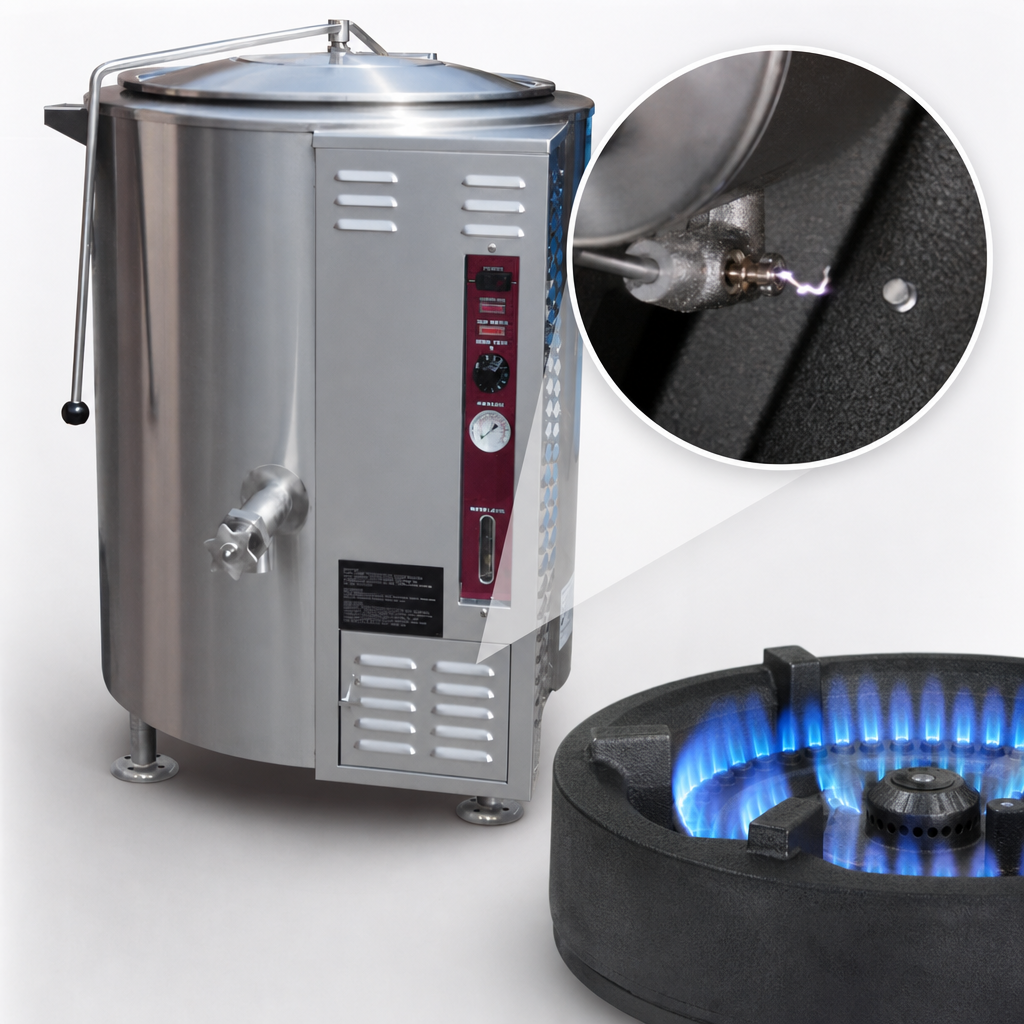

  • High-efficiency stainless steel burners with electronic ignition (no standing pilot) save energy and maintenance time.
  • Direct-immersion thermostat maintains precise temperatures from 165 °F to 275 °F (74 °C – 135 °C).
  • Recessed front control panel keeps all indicators—water sight glass, cooking light, pressure gauge & low-water light—right where you need them.
  • Comprehensive safety suite: low-water cut-off, pressure relief valve & pressure switch are factory-installed.
  • 316 SS one-piece interior liner with #4 sanitary finish resists acidic foods and harsh cleaning chemicals.
  • 304 SS exterior, tri-leg base and 6″ adjustable legs hold up to years of heavy commercial use.

Included with every GL-60E

  • 2″ tangent draw-off valve with perforated strainer
  • Spring-assisted hinged cover—lift with one hand, stays put
  • Faucet mounting bracket (ready for optional kettle filler)

Technical specifications

Capacity 60 gal / 227 L
Jacket coverage 2/3 of kettle body
Heat input 130,000 BTU/hr
Gas type (inlet pressure) Natural 6″–14″ W.C.  /  LP 11″–14″ W.C.
Gas connection 3/4″ NPT
Electrical 120 VAC, 1-Ph, 4 A (6′ cord with NEMA 5-15P)
Operating pressure ASME stamped to 50 psi (345 kPa)
Temperature range 165 °F – 275 °F (74 °C – 135 °C)
Interior material 316 SS, #4 sanitary finish
Exterior material 304 SS, #4 sanitary finish
Base Tri-leg with 6″ adjustable stainless legs
Dimensions (W × D × H) 30″ × 39.75″ × 84.5″   (762 × 1 010 × 2 146 mm)
Shipping weight 720 lb / 327 kg
Certifications CSA-Star, CSA-Flame, NSF, ASME

Intended for commercial use only. Installation and operation must conform to local codes and the latest edition of ANSI Z223.1/NFPA 54 or CSA B149.1 as applicable.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA

Height

49.38in

Width

39.75in

Depth

44.5in

Shipping Weight

720.0lbs

Kettle Jacket

partial jacket

Kettle Liner

316 stainless steel

Capacity

60 gal

Base

tri-leg

Specifications

Stationary Kettle, gas, 60 gallon capacity, 2/3 jacket, thermostatic control, electronic ignition, direct immersion thermostat, water sight glass, cooking light, pressure gauge & low water indicator light, low water cut off, pressure relief valve, pressure switch, 2" draw-off, includes: perforated strainer, spring assisted hinged cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, tri-leg, 130,000 BTU, CSA-Star, CSA-Flame, NSF
