Crown (Middleby) GL-40FE Steam Kettles
Description

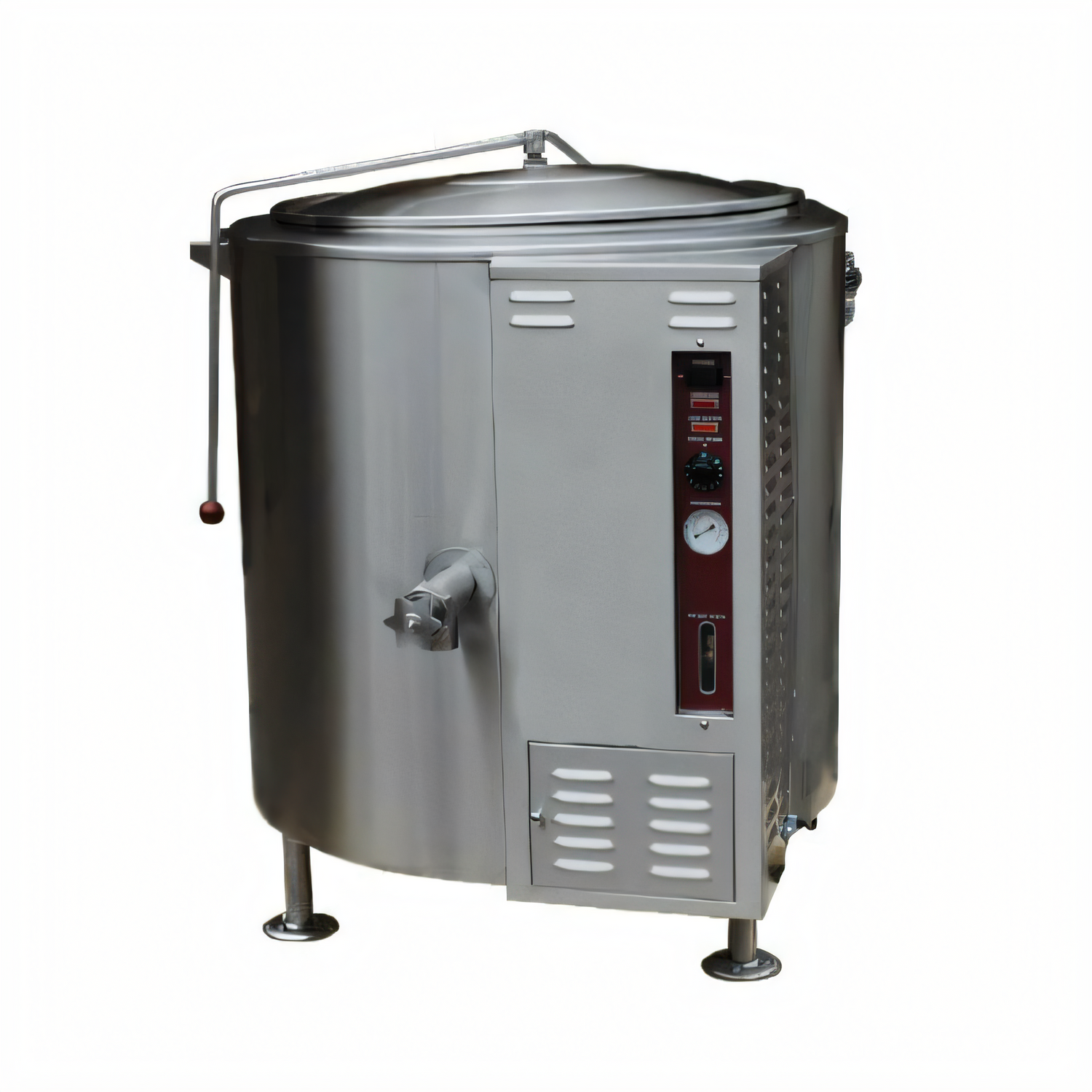

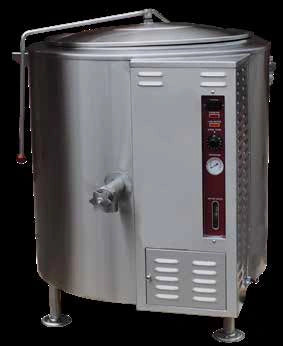

Crown GL-40FE 40 Gallon Gas Stationary Full-Jacket Steam Kettle
130,000 BTU • 316 SS liner • Self-contained steam sourceTurn out batch after batch of perfectly heated soups, sauces and stocks with Crown’s GL-40FE. The self-contained, full-jacket design delivers rapid, even heating without an external boiler, while a rugged 316 stainless steel liner stands up to acidic ingredients and daily cleaning. If you need reliability, capacity and precision in one footprint-conscious package, this kettle checks every box.
Why chefs choose the GL-40FE
- High-efficiency stainless steel atmospheric burners supply 130,000 BTU/h.
- Full jacket rated to 50 psi (345 kPa) heats product up to 50 % faster than 2/3-jacket models.
- Direct-immersion thermostat (165 – 275 °F) with electronic ignition for one-touch start-up and precise control.

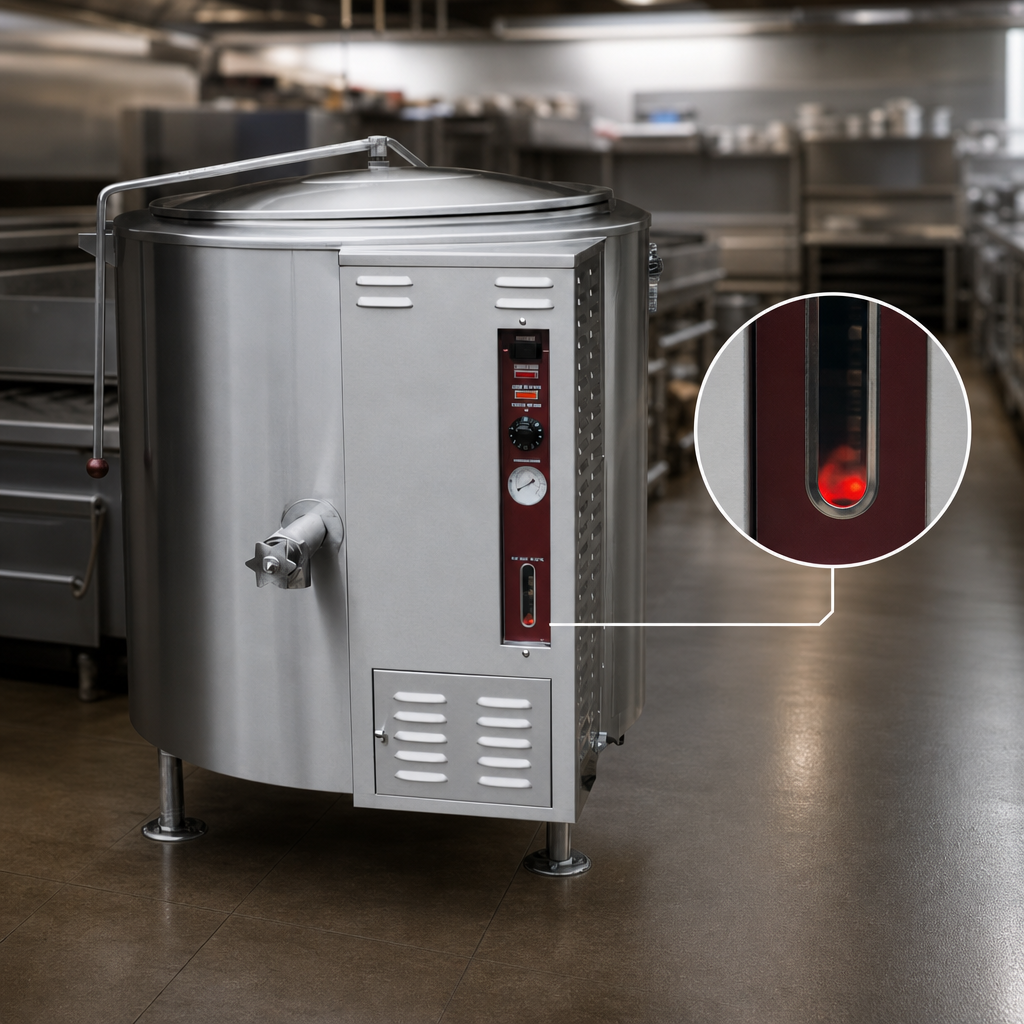

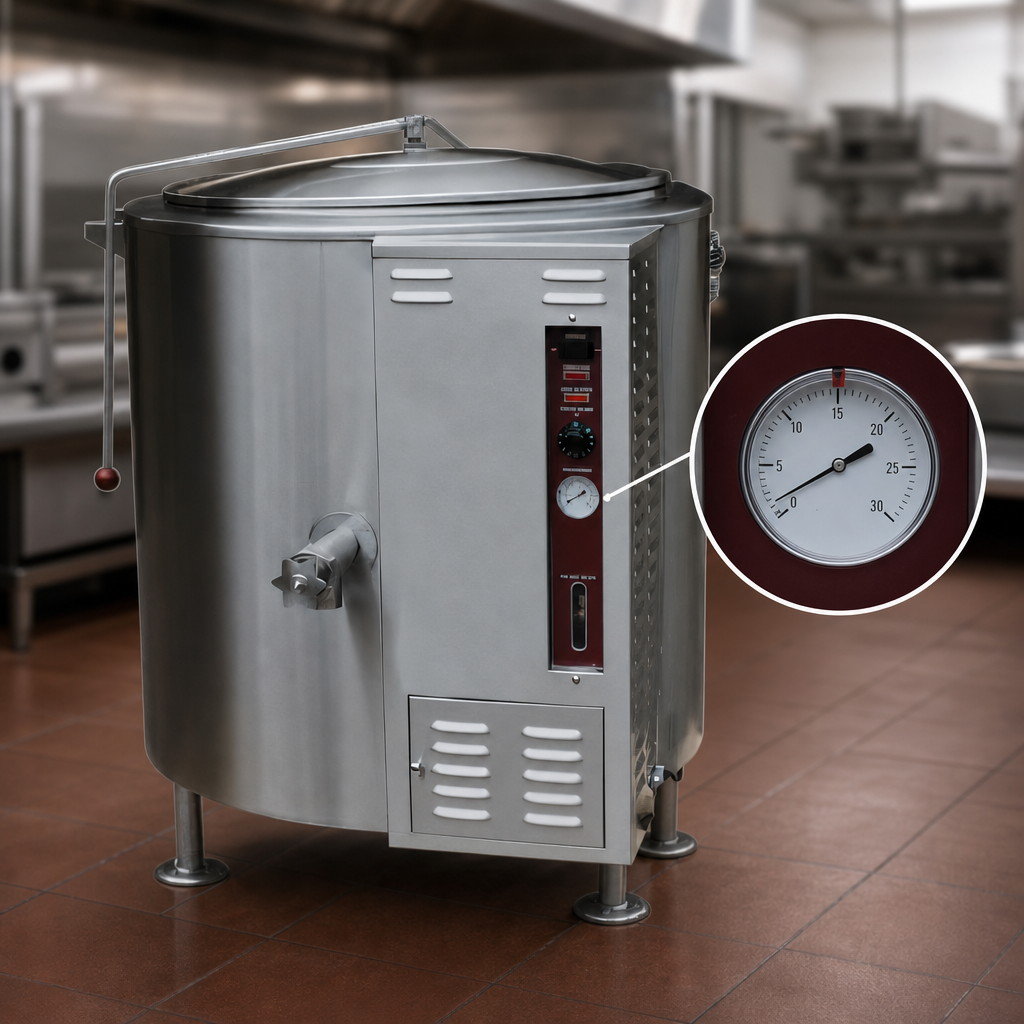

- Integrated control panel puts the vacuum/pressure gauge, water sight glass, cooking pilot light and low-water indicator in full view.
- Built-in safety: low-water cut-off, pressure relief valve and pressure control keep staff and equipment protected.
- 2 in. draw-off valve with perforated strainer speeds portioning and filtering.
- Spring-assist stainless steel lid reduces fatigue and prevents slamming.
- Tri-leg base with 6 in. flanged, adjustable feet bolts securely to the floor.
- Shipped ready to plug in (115 VAC, 1-phase, 4 A) and plumb (¾ in. NPT gas).
- NSF listed, CSA Star & Flame approved and ASME code stamped for peace of mind.
Technical specifications
| Capacity | 40 gal / 152 L |
|---|---|
| Jacket type | Full, self-contained steam jacket | 50 psi max |
| Heat source | Natural or Propane gas | 130,000 BTU/h |
| Temperature range | 165 – 275 °F (74 – 135 °C) |
| Thermostat | Direct-immersion, adjustable with electronic ignition |
| Gas connection | ¾ in. NPT | Supply pressure 6-14" W.C. (NG) / 11-14" W.C. (LP) |
| Electrical | 115 VAC, 1-phase, 50/60 Hz, 4 A | 6 ft cord & 3-prong plug |
| Draw-off valve | 2 in. with perforated strainer (included) |
| Construction | 316 SS welded liner | 304 SS exterior | Spring-assist SS cover |
| Overall dimensions* | 30" W × 41.5" D × 41.5" H (762 × 1054 × 1054 mm) |
| Shipping weight | 700 lb (318 kg) |
| Certifications | NSF, CSA Star, CSA Flame, ASME, NB registered |
*Height shown with lid closed. Allow 78.5" (1994 mm) clearance for full lid opening.
Included with your kettle
- Perforated draw-off strainer
- Spring-assisted stainless steel hinged cover
- Faucet bracket (pantry faucet sold separately)
- Factory-mounted tri-leg base with adjustable flanged feet
- Installation & operation manual
