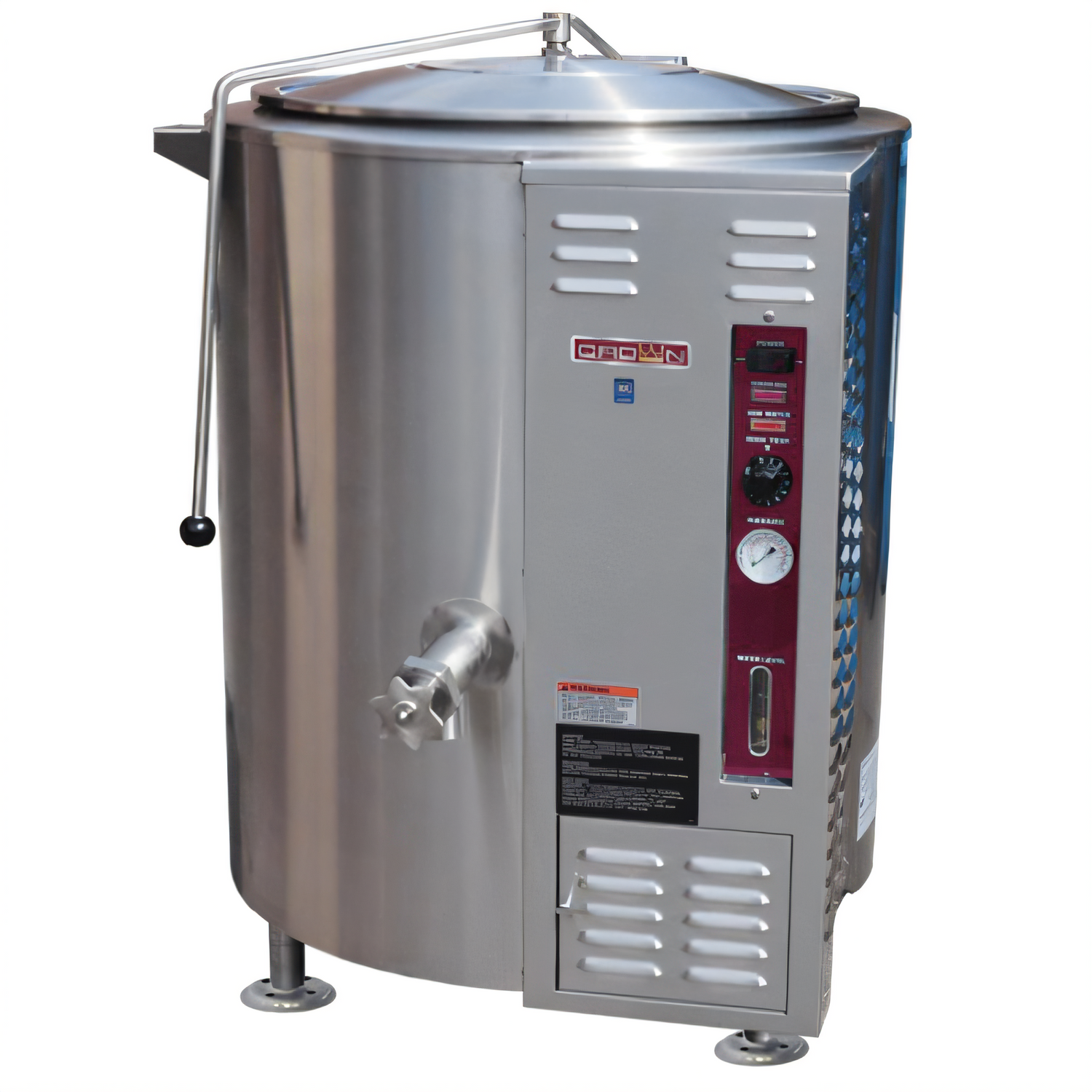

Crown GL-30E 30 Gallon 2/3 Jacketed Stationary Gas Steam Kettle with Tri-Leg

30 Gallon, 2/3 Jacketed, Natural Gas/Propane Ready, Floor Model

Engineered for high-volume commercial kitchens, the Crown GL-30E delivers reliable, efficient steam cooking with durable stainless steel construction.

  • 30-gallon capacity ideal for large batch cooking in commercial settings.
  • Durable 316 stainless steel interior liner with a 304 stainless steel exterior for longevity and hygiene.
  • Features a 2/3 steam jacket for even and efficient heating.
  • Equipped with electronic ignition and user-friendly thermostatic controls for precise temperature management.
  • Built-in safety features including low water cut-off, pressure relief valve, and pressure switch.
  • High-efficiency stainless steel burners provide 100,000 BTU/hr for powerful heating.
  • Tri-leg design with adjustable stainless steel legs for stable floor placement.

Overall Dimensions:

35.5"W x 40.5"D x 39.5"H

Product Weight:

575.0 lb

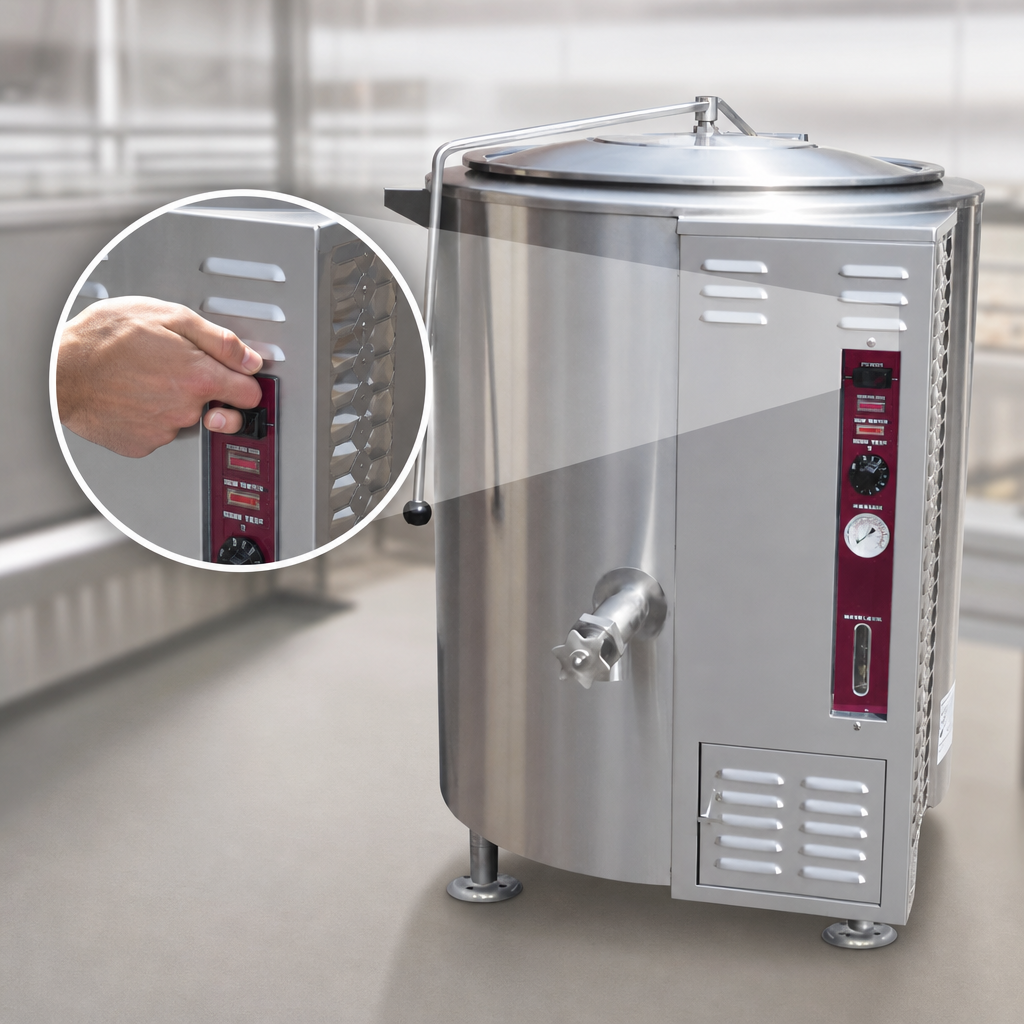

Electronic Ignition

Standard with electronic ignition for easy and reliable startup.

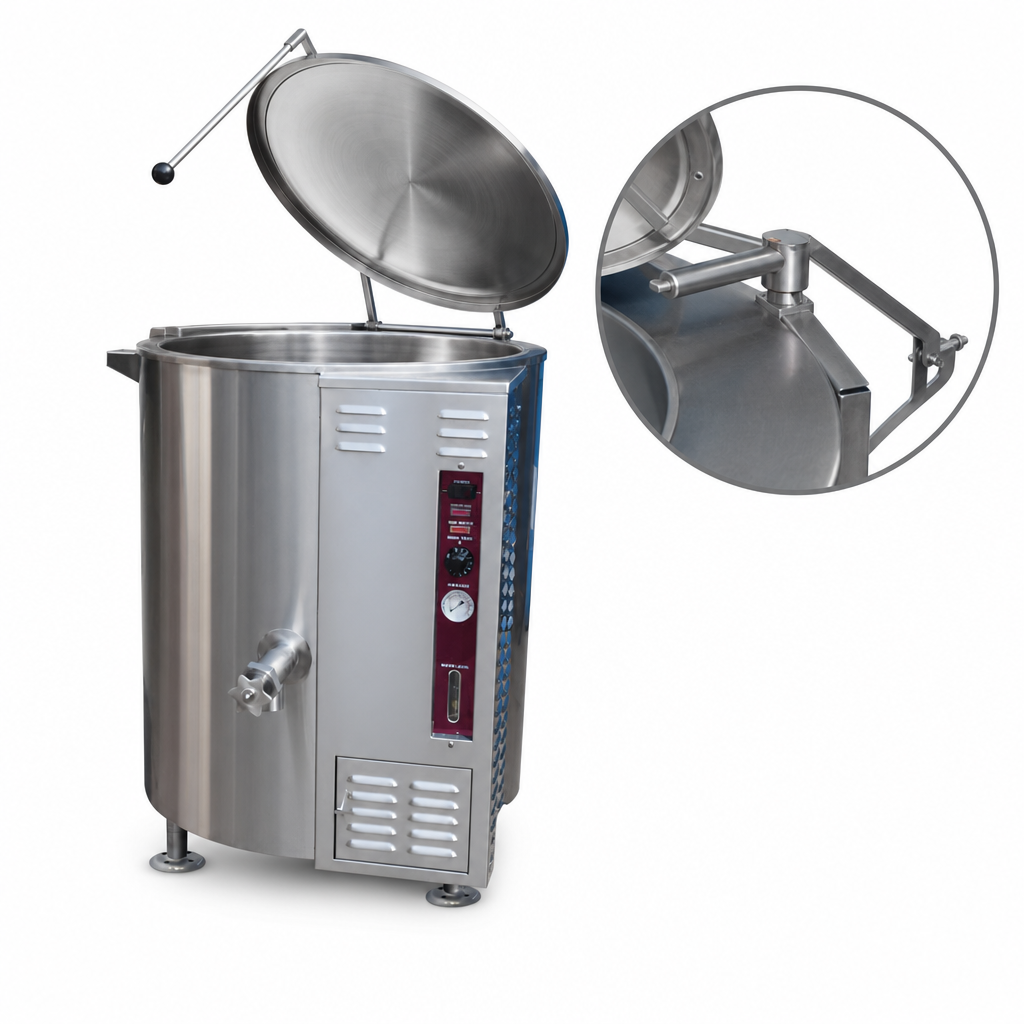

Spring Assisted Hinged Cover

Included spring assisted hinged cover for convenient access and heat retention.

304 Stainless Steel Exterior

Exterior constructed of type 304 stainless steel with a #4 sanitary finish for durability and easy cleaning.

316 Stainless Steel Interior Liner

One-piece welded interior kettle liner made of type 316 stainless steel with a #4 sanitary finish for superior corrosion resistance.

2/3 Steam Jacketed

Kettle features a 2/3 steam jacket, ensuring uniform heat distribution for consistent cooking results.

2 Inch Tangent Draw-Off Valve

Comes standard with a 2-inch (50 mm) tangent draw-off valve and perforated strainer for easy product discharge.

Recessed Control Panel

Front-mounted, recessed control panel provides clear visibility and intuitive operation.

Direct Immersion Thermostat

Thermostatic controls with direct immersion for accurate temperature sensing and precise cooking from 165°F to 275°F (74°C to 135°C).

Water Sight Glass

Integrated water sight glass allows for easy monitoring of internal water levels.

Cooking Light

A dedicated cooking light illuminates the kettle interior.

Pressure Gauge & Low Water Indicator

Includes a pressure gauge and a low water indicator light for operational awareness.

Comprehensive Safety Features

Equipped with a low water cut-off, pressure relief valve, and pressure switch for enhanced operational safety.

Serviceable High-Efficiency Burners

Features serviceable, high-efficiency stainless steel burners that require no shutter adjustment.

Faucet Bracket

Includes a faucet bracket for easy installation of an optional kettle filler.

Adjustable Stainless Steel Legs

6-inch (152 mm) stainless steel adjustable legs on the tri-leg base for proper leveling and stability.

Type Steam Kettle
Style Stationary Kettle
Installation Type Floor Model (Tri-Leg)
Capacity 30 Gallons (114 Liters)
Material 304 Stainless Steel
Interior Finish 316 Stainless Steel
Kettle Jacket 2/3 Jacketed
Controls Thermostatic, Electronic Ignition
Temperature Range 165°F to 275°F
BTU 100,000 BTU/hr
Gas Type Natural Gas or Propane
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure (Natural Gas) 6-14 Inches W.C.
Gas Inlet Pressure (Propane) 11-14 Inches W.C.
Voltage 115 Volts
Phase 1-Phase
Hertz 50/60 Hz
Amps 4 Amps
Cord Length 6 Feet
Plug Type NEMA 5-15P
Drain Connection Size 2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 41 Inches
Shipping Height 40 Inches
Shipping Weight 575 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Please consult the manufacturer's documentation for specific warranty details.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Parts list PDF Download PDF Crown steam group letter PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The GL-30E has a 30-gallon (114 liter) capacity, suitable for large batch cooking.
The GL-30E is designed to operate on either Natural Gas or Propane (LP Gas), offering flexibility for different kitchen setups.
The steam kettle operates within a precise temperature range of 165°F to 275°F (74°C to 135°C), controlled by a direct immersion thermostat.
The GL-30E is equipped with several safety features, including a low water cut-off, pressure relief valve, and a pressure switch, ensuring safe and reliable operation.
The interior kettle liner is constructed from durable type 316 stainless steel with a #4 sanitary finish for excellent corrosion resistance, while the exterior is made of type 304 stainless steel with a #4 sanitary finish for longevity and easy cleaning.
