Crown (Middleby) GL-20E Steam Kettles
Description

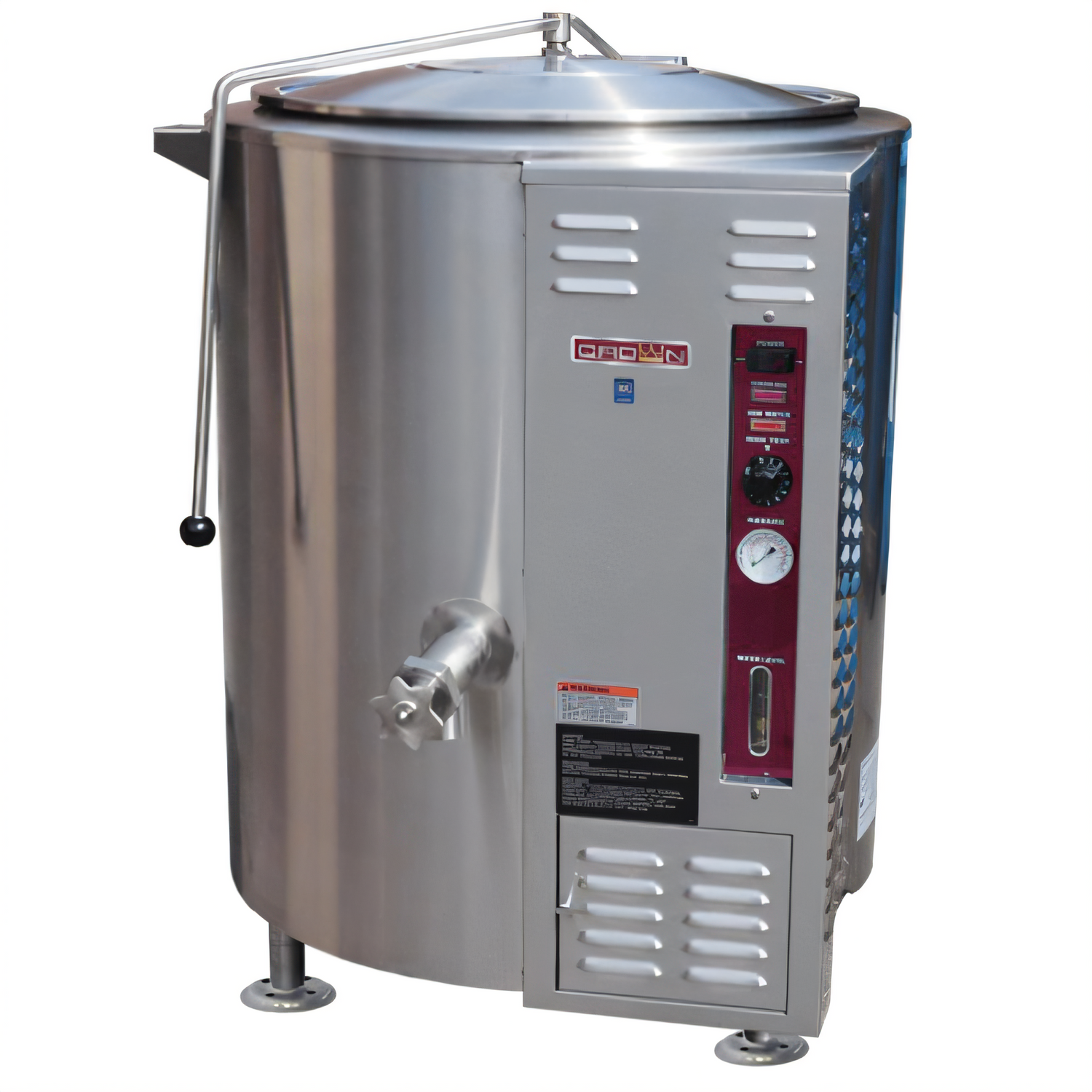

Crown GL-20E 20-Gallon Gas Stationary Steam Kettle
Self-contained • 2⁄3 steam jacket • 100,000 BTUBring fast, even, steam-powered cooking to your high-volume kitchen. The Crown GL-20E delivers 20 gallons of gentle, jacketed heat in an all-stainless package that’s built to run shift after shift without scorching, sticking or slowing you down.
Why chefs choose the GL-20E
- 20 gal (76 L) batch size is perfect for soups, sauces, pasta, oatmeal, chili & more.

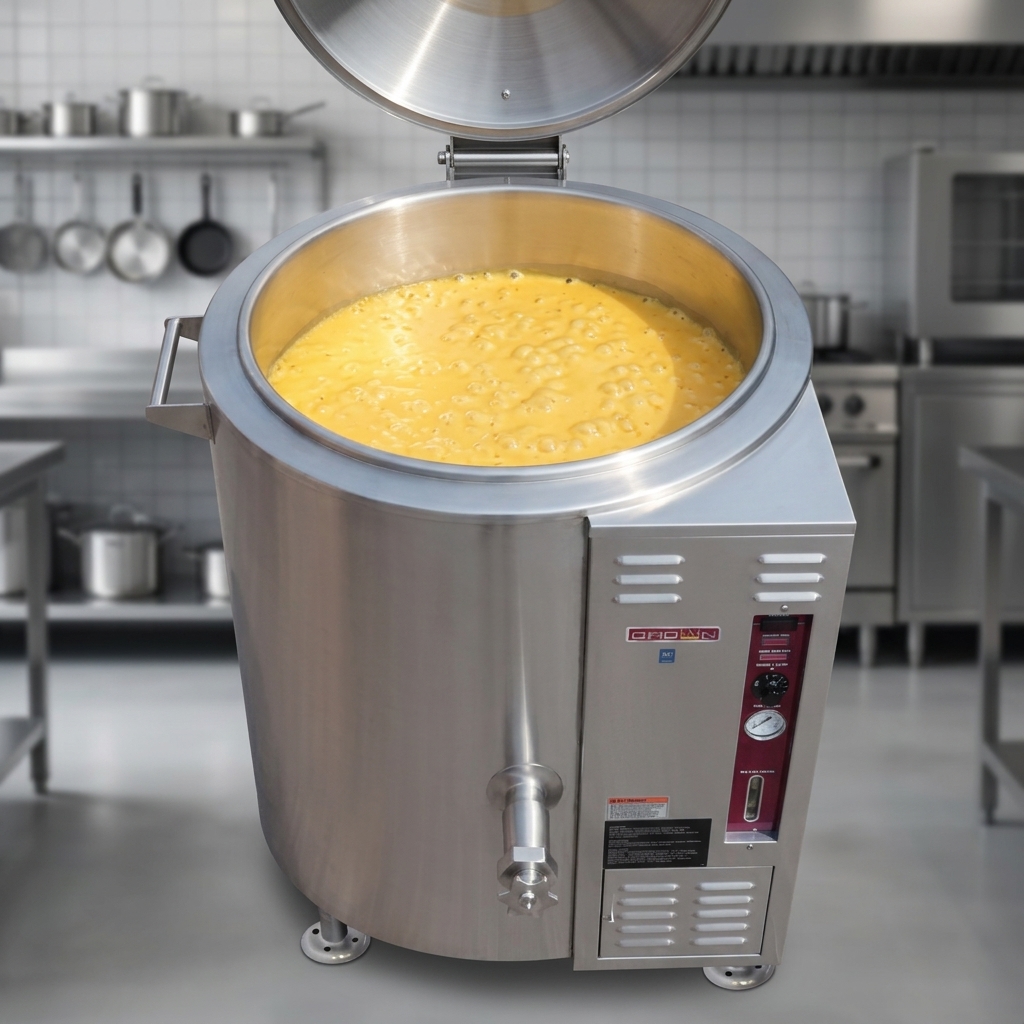

- 2⁄3 steam jacket heats the sidewalls and bottom for uniform results from 165 °F–275 °F (74 °C–135 °C).

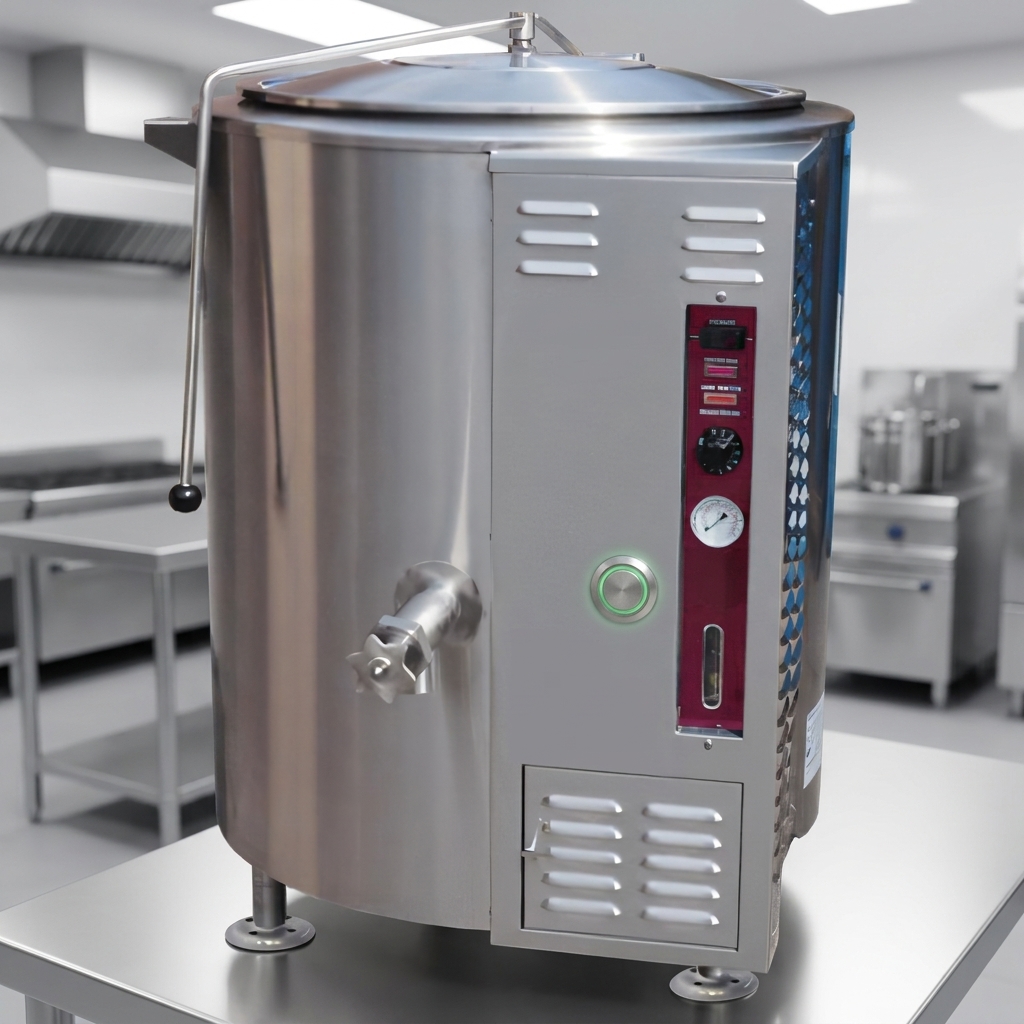

- High-efficiency 100,000 BTU stainless burners with electronic ignition—no wasted pilot gas.

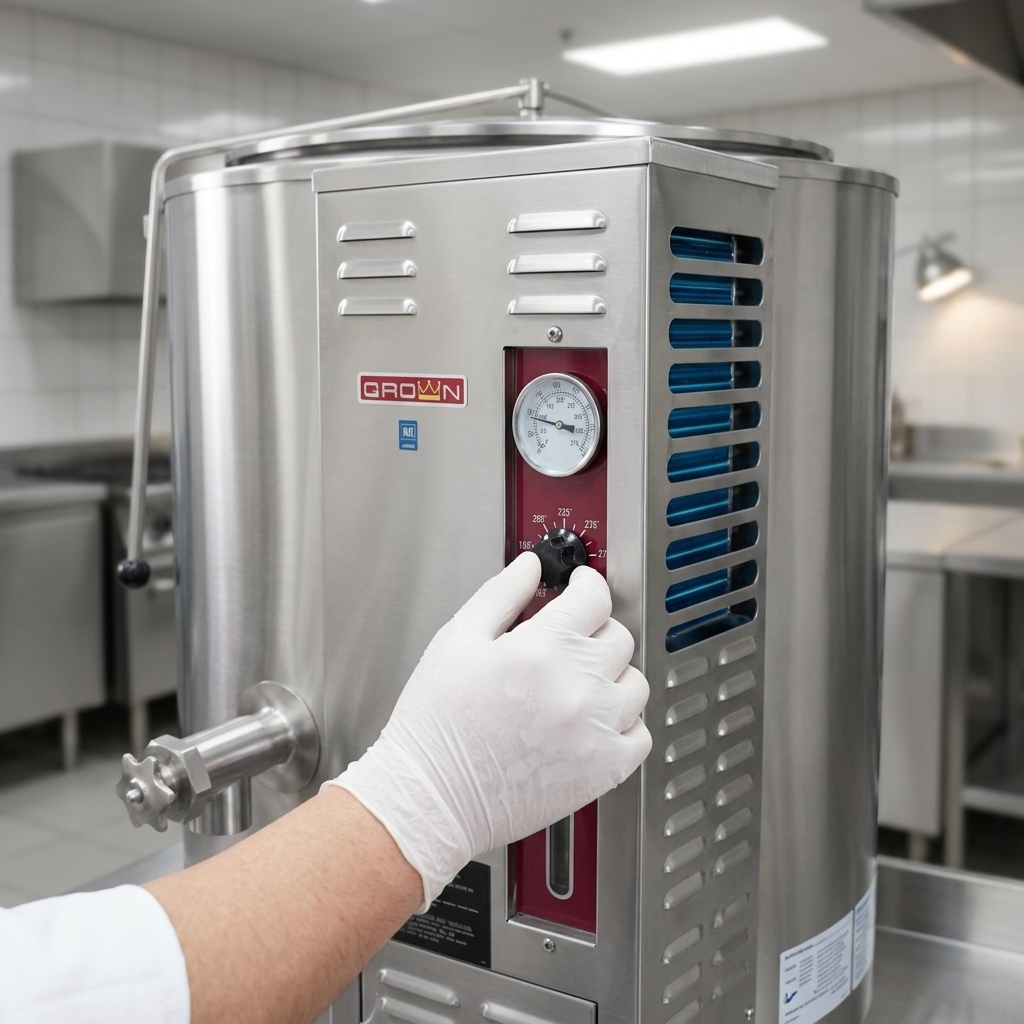

- Direct-immersion thermostat with illuminated Cooking light for instant status checks.
- Low-water cutoff, pressure relief valve, pressure switch and Low Water indicator keep the kettle and crew safe.
- Sight glass & 0–50 psi gauge make it easy to monitor jacket levels and pressure.
- 2" tangent draw-off valve with perforated strainer speeds portioning and simplifies clean-up.
- Spring-assisted, removable cover stays where you leave it—no more balancing hot lids.
- Tri-leg base with 6" adjustable stainless feet for rock-solid stability on uneven floors.
- Food-grade 316 SS liner resists acidic ingredients; 304 SS exterior resists dents & corrosion.
- Factory-installed faucet bracket accepts optional kettle fillers or pantry faucets.
- CSA-Star, CSA-Flame & NSF listed; ASME-code stamped 50 psi jacket.
Technical specifications
| Model | GL-20E |
|---|---|
| Capacity | 20 gal / 76 L |
| Heat Input | 100,000 BTU/hr |
| Steam Jacket | Self-contained, 2⁄3 jacket, 0–50 psi |
| Temperature Range | 165 °F – 275 °F (74 °C – 135 °C) |
| Gas Connection | 3/4" NPT – Natural (6"–14" W.C.) or Propane (11"–14" W.C.) |
| Electrical | 115 VAC, 1-ph, 50/60 Hz, 4 A – 6' cord w/ 3-prong plug |
| Exterior Dimensions* | Approx. 31-1/8" W × 40-3/8" D × 65-3/8" H (791 × 1026 × 1661 mm) |
| Required Clearances | 6" (152 mm) each side, 2" (51 mm) rear – non-combustible floor |
| Shipping Weight | ≈ 440 lb / 200 kg |
| Certifications | CSA Star, CSA Flame, NSF, ASME |
*See official Crown cut sheet for detailed rough-in drawings.
What’s in the box
- GL-20E steam kettle with tri-leg base
- Perforated stainless steel strainer for 2" draw-off valve
- Spring-assisted stainless steel cover
- Factory-mounted faucet bracket
- Installation & operation manual
Looking for a larger (or smaller) capacity, 3" draw-off valve, or integrated kettle filler? Explore the full Crown GL series or contact our team for a tailored solution.
