Crown (Middleby)  |  SKU: GL-100E

Crown (Middleby) GL-100E Steam Kettles

$38,393.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Crown steam group letter Parts list Installation & operation Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

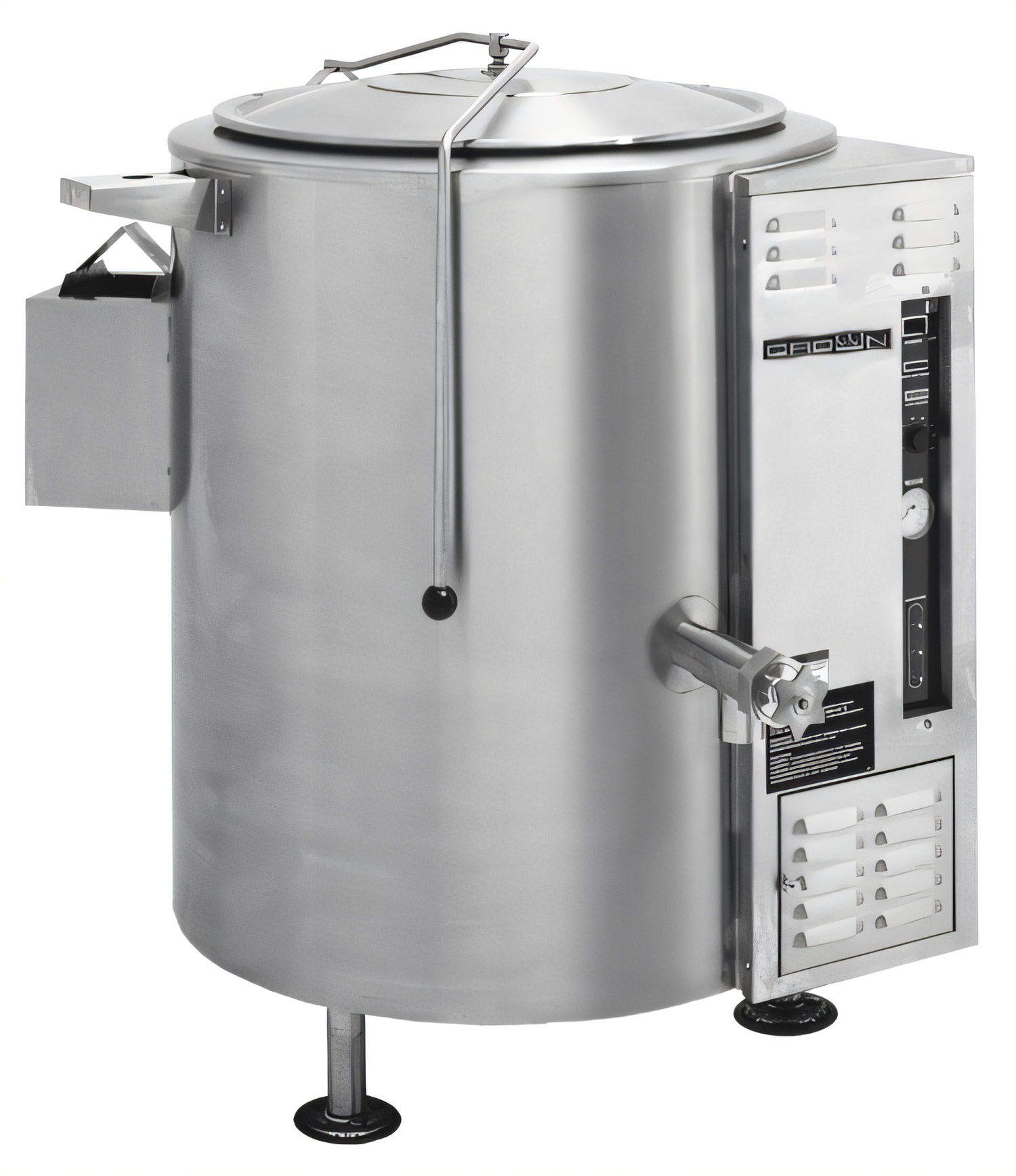

Crown GL-100E 100-Gallon Gas Stationary Steam Kettle

Self-contained | 2/3 jacket | 150,000 BTU | Tri-leg base

Built for the highest-volume commercial kitchens, the Crown GL-100E delivers a full 100 gallons (379 L) of even, steam-jacketed cooking power. Its 316 stainless steel liner, 150,000 BTU burner system, and operator-friendly controls turn labor-intensive soups, sauces, pastas, and stocks into streamlined, repeatable batches.

Key Advantages

  • Huge 100 gal capacity—yields up to 1,600 eight-ounce servings per batch.
  • Lower 2/3 steam jacket provides uniform heat with zero hotspots or scorching.

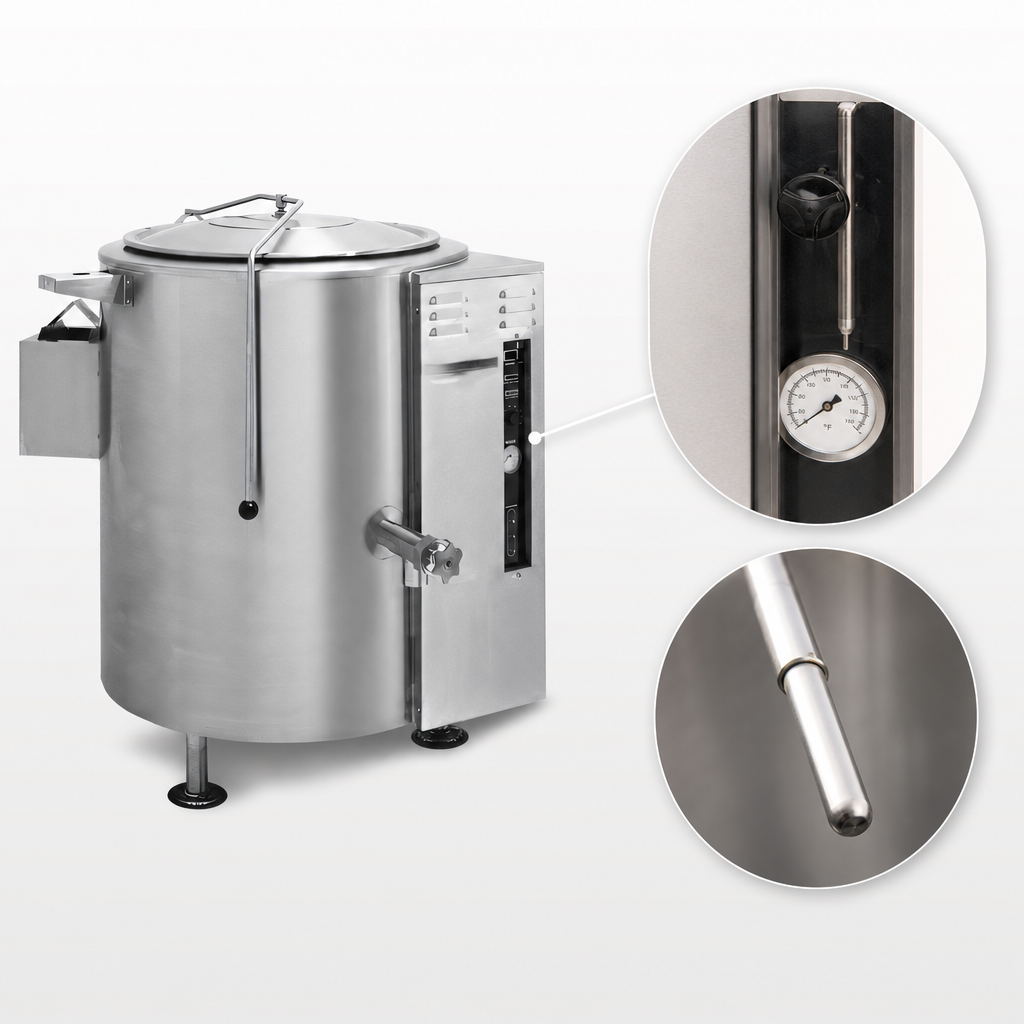

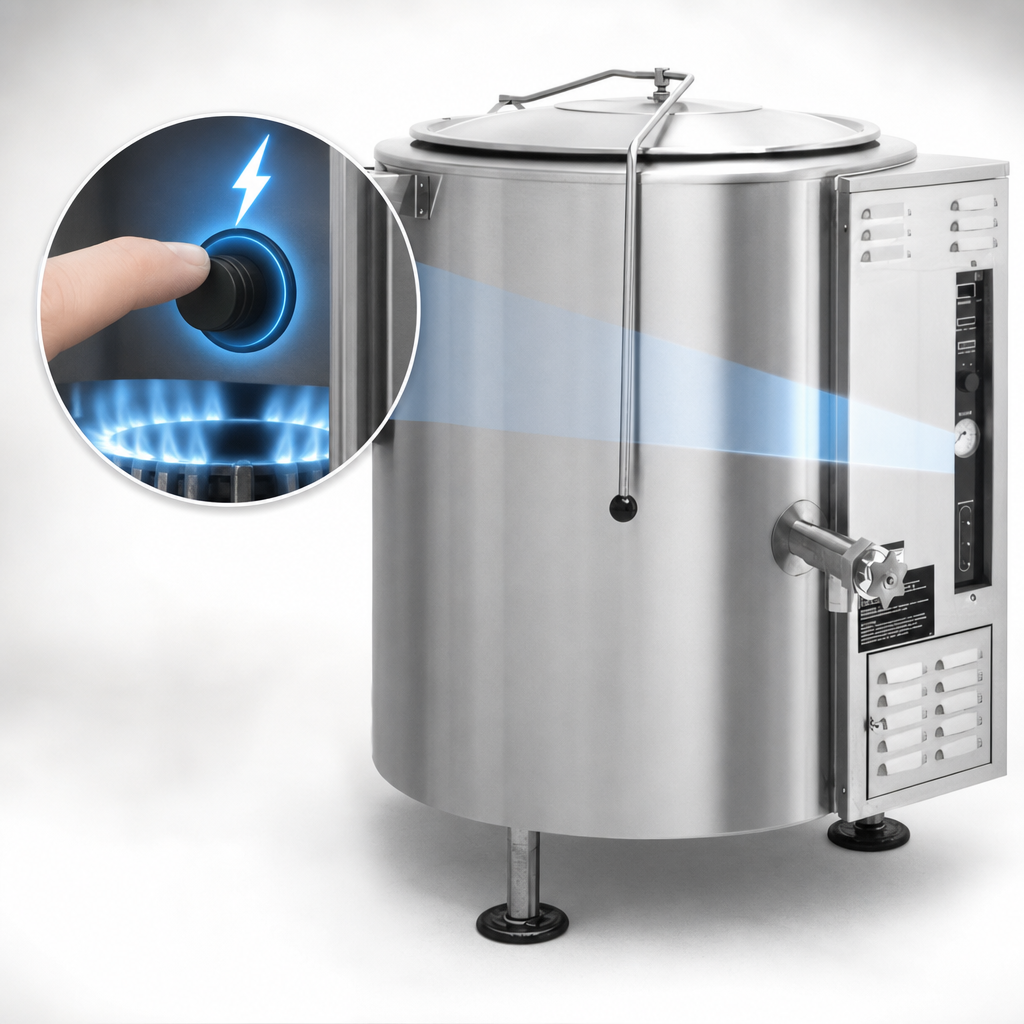

  • Electronic ignition & direct-immersion thermostat hold 165-265 °F (74-130 °C).
  • Operator feedback: water sight glass, cooking light, pressure gauge & low-water light.
  • Full ASME safety package—low-water cutoff, pressure switch & 35 psi relief valve.
  • 2" sanitary tangent draw-off valve with heat-safe handle and included perforated strainer.
  • Spring-assisted hinged cover cuts lifting fatigue; built-in faucet bracket streamlines filling.
  • 316 SS interior fights acidic corrosion; 304 SS exterior (#4 finish) wipes clean fast.
  • Three 6" adjustable stainless legs—rated for non-combustible floors.
  • Field convertible to Natural or LP gas while holding a powerful 150,000 BTU input.

What’s Included

  • Perforated draw-off strainer
  • Spring-assisted hinged cover
  • Faucet mounting bracket
  • 6' (1.8 m) power cord with grounded 3-prong plug (120 V)

Technical Specifications

Model GL-100E
Capacity 100 gal / 379 L
Jacket Coverage Lower 2/3
Heat Source Natural or LP Gas, 150,000 BTU / 44 kW
Temperature Range 165–265 °F (74–130 °C)
Operating Pressure Up to 35 psi (ASME-code stamped)
Interior Liner 316 SS, #4 sanitary finish
Exterior 304 SS, #4 sanitary finish
Draw-Off Valve 2" sanitary, tangent type
Gas Connection ¾" NPT; 6–14" WC (Nat) | 11–14" WC (LP)
Electrical 120 V, 1 Ø, 50/60 Hz, 2 A
Shipping Weight Approx. 1,100 lb / 498 kg
Clearances Sides 6" (152 mm) | Back 2" (51 mm)
Certifications CSA-Star, CSA-Flame, NSF, ASME, National Board

Ideal For

  • Central & commissary production kitchens
  • Institutional dining—schools, hospitals & corrections
  • High-volume restaurants, hotels & caterers
  • Sauce, soup & stock manufacturing lines
Installation Notice: Unit must be placed on a non-combustible floor and connected by licensed professionals in accordance with local gas, electrical, and ventilation codes. Maintain stated clearances for safe operation and servicing.

Commercial use only. Not for household installation.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA

Height

49.25in

Width

41.63in

Depth

60.13in

Shipping Weight

1100.0lbs

Kettle Jacket

partial jacket

Kettle Liner

316 stainless steel

Base

tri-leg

Capacity

100 gal

Specifications

Stationary Kettle, gas, 100 gallon capacity, 2/3 jacket, thermostatic control, electronic ignition, direct immersion thermostat, water sight glass, cooking light, pressure gauge & low water indicator light, low water cut off, pressure relief valve, pressure switch, 2" draw-off, includes: perforated strainer, spring assisted hinged cover & faucet bracket, 316 stainless steel interior liner, 304 stainless steel exterior, tri-leg, 150,000 BTU, CSA-Star, CSA-Flame, NSF
