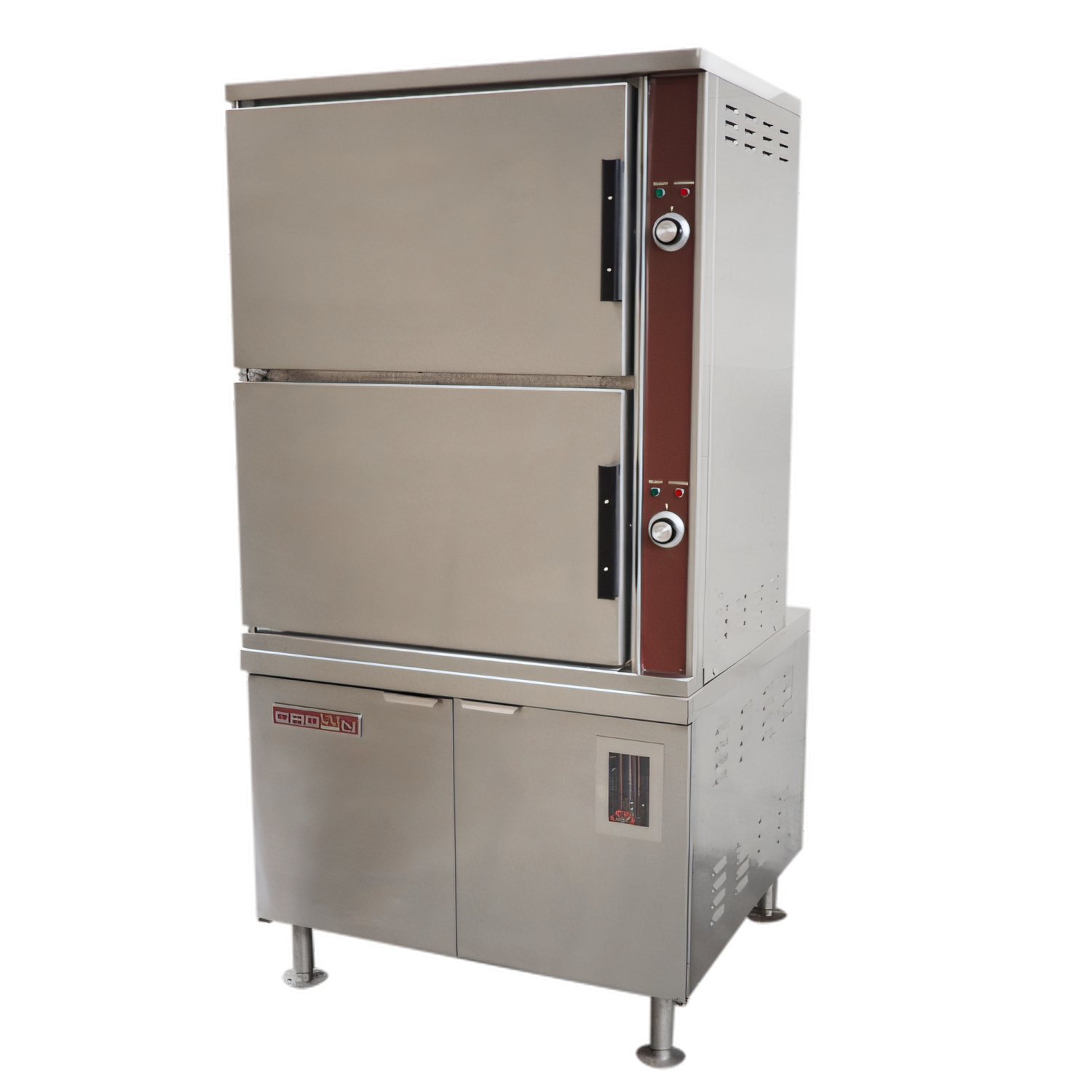

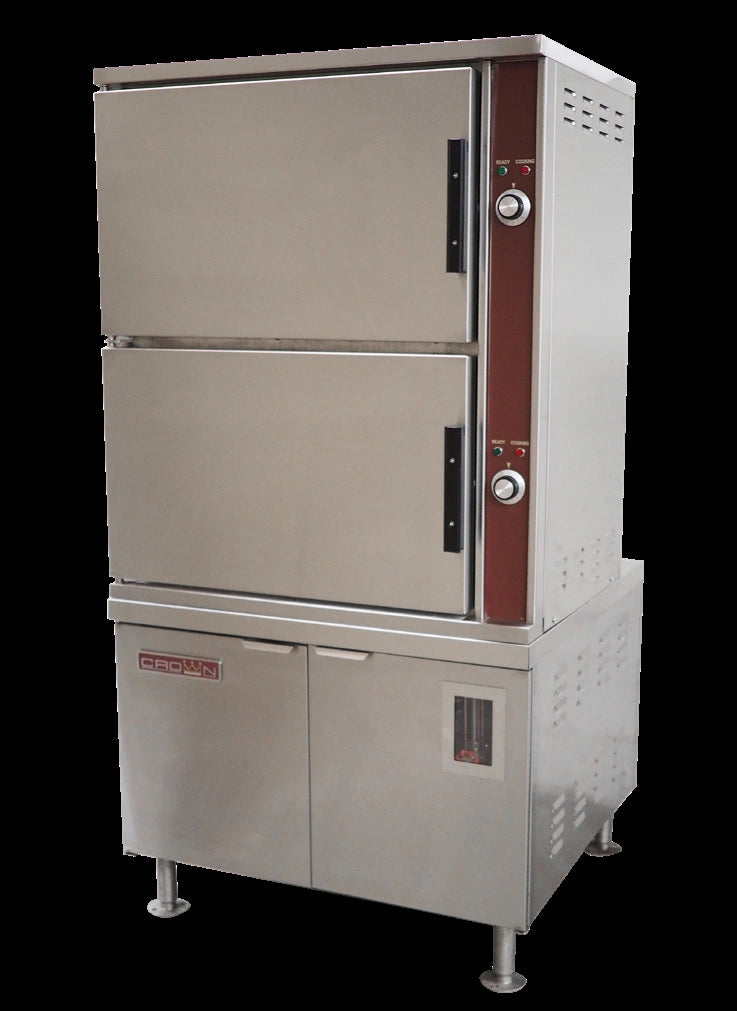

Crown GCX-24 Two-Compartment Full-Size Gas Boiler-Based Convection Steamer

SKU: GCX-24
$70,509.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steamer Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Crown GCX-24 Two-Compartment Full-Size Gas Boiler-Based Convection Steamer

24 Pan Capacity, 36" Cabinet Base, Natural Gas/Propane

Experience efficient and high-volume steam cooking with the Crown GCX-24, a powerful two-compartment gas boiler-based convection steamer designed for demanding commercial kitchens.

  • Dual cooking compartments for high-volume, simultaneous steaming.
  • Powered by a robust 300,000 BTU gas-heated steam boiler.
  • Accommodates up to 12 full-size (12"x20"x2-1/2" deep) pans per compartment.
  • Equipped with a comprehensive water treatment system and automatic boiler blowdown for longevity.
  • Intuitive 60-minute timers and CSD-1 boiler controls for precise cooking.
  • Durable stainless steel construction, including a 316 stainless steel cooking chamber.
  • Designed for easy cleaning and maintenance with removable pan supports and drip trough.

Overall Dimensions:

36.0"W x 33.13"D x 71.88"H

Product Weight:

990.0 lb

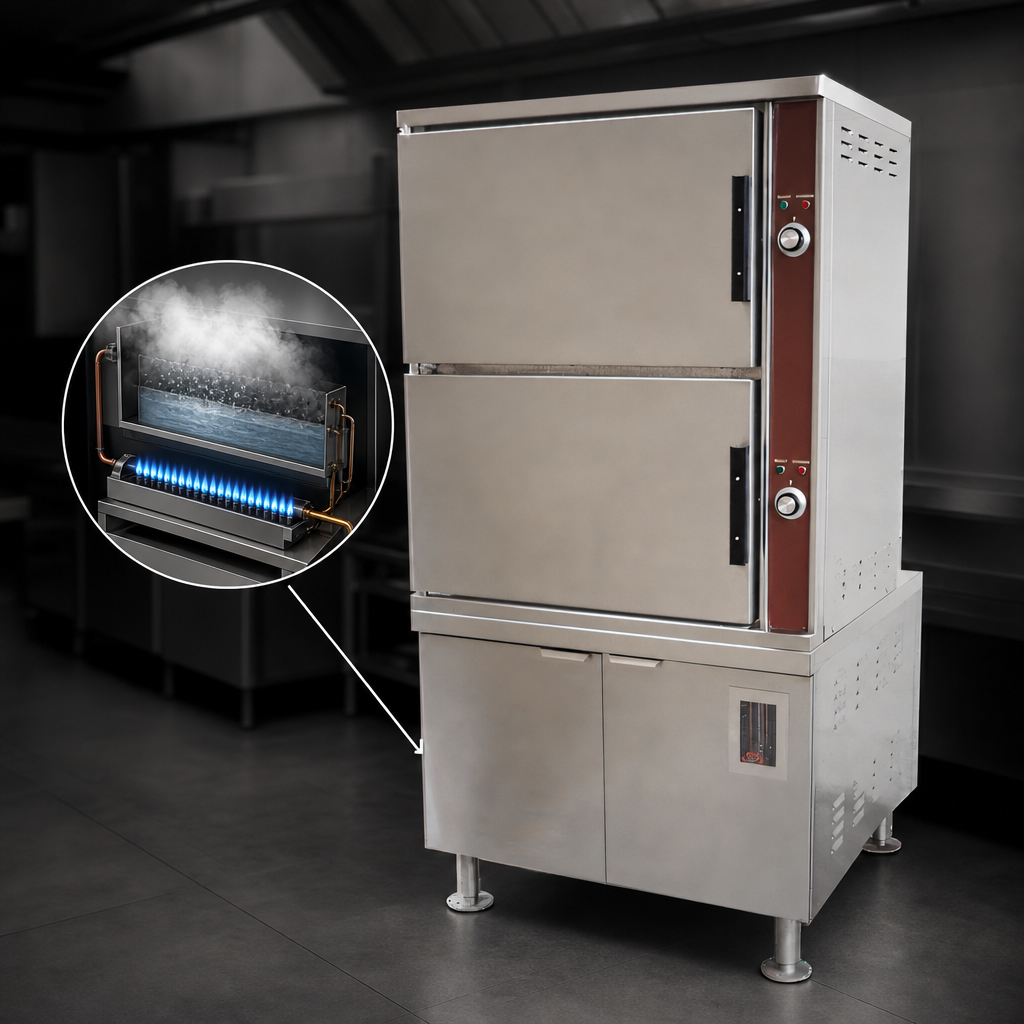

Gas-Heated Steam Boiler

Operation by a gas heated steam boiler, rated at 300,000 BTU, operating at 9-11 psi (62-76kPa), suitable for Natural Gas or Propane.

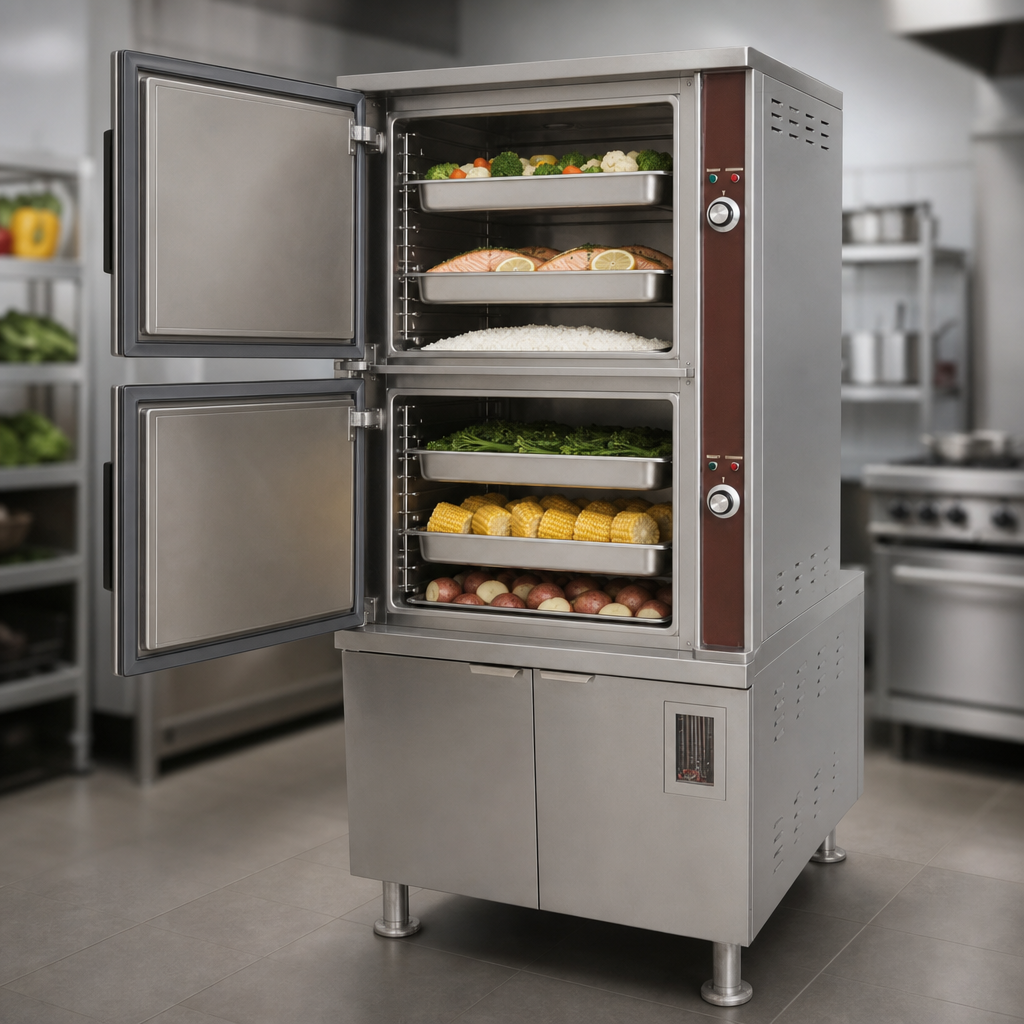

Two-Compartment Design

Features two cooking compartments, allowing for simultaneous steaming of different products and increasing kitchen throughput.

Water Treatment System

Includes a standard water treatment system and split water lines to improve water quality, protect components, and prolong the appliance's life.

Automatic Boiler Blowdown

Equipped with automatic boiler blowdown to ensure boiler cleanliness and reduce maintenance efforts.

CSD-1 Boiler Controls

Incorporates CSD-1 boiler controls for safe, reliable, and efficient operation in commercial settings.

Electronic Ignition

Provides quick and reliable startup for consistent performance.

Independent 60-Minute Timers

Each cooking compartment is independently controlled by a 60-minute timer, complemented by a green 'ready' pilot light and a red 'cook' pilot light, with an audible signal at the cycle's end.

Durable Stainless Steel Construction

Constructed with a satin finish Type 304 stainless steel exterior and a cooking chamber made of one-piece, all-welded 316 stainless steel for superior durability and hygiene.

Removable Pan Supports & Drip Trough

Provided with removable stainless steel pan supports and a stainless steel drip trough connected to the drain, facilitating easy cleaning and condensate collection.

Safety Door Mechanism

Steam flow to the cooking chamber is automatically interrupted when the door is opened during the cooking cycle and reactivated when the door is closed, enhancing user safety.

Cabinet Base with Adjustable Legs

Mounted on a sturdy cabinet base with a full perimeter angle frame, reinforced counter, and boiler mountings, featuring 6" (152mm) stainless steel legs with 4 adjustable flanged feet for secure floor attachment.

Type Convection Steamer
Style Gas Boiler-Based
Installation Type Floor Model (With Cabinet Base)
Compartments 2
Pan Capacity 24 Full-Size (1" deep)
Pan Capacity 12 Full-Size (2-1/2" deep)
Pan Capacity 8 Full-Size (4" deep)
BTU 300,000 BTU
Gas Type Natural Gas, Propane
Gas Connection Size 3/4" IPS
Gas Inlet Pressure (Natural Gas) 4 Inches W.C.
Gas Inlet Pressure (Propane) 11 Inches W.C.
Voltage 115 Volts
Amps 2 Amps Per Compartment
Phase 1-Phase
Hertz 60 Hz
Water Inlet Size (Generator) 1/2" NPT
Water Inlet Size (Condensate) 1/2" NPT
Water Connection Required
Drain Connection Size 2" IPS
Drain Connection Required
Controls Mechanical Timer
Interior Finish 316 Stainless Steel
Material Stainless Steel
Finish Satin Stainless Steel
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 72 Inches
Shipping Weight 990 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Warranty information is available on the manufacturer's website.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GCX-24 operates with a gas-heated steam boiler, producing its own steam at 9-11 psi (62-76kPa) using either natural gas or propane.
The controls for the standard GCX-24 operate on 115 VAC, 1 Phase, 60 Hz, drawing 2 Amps per compartment. Optional configurations for 220 or 240 VAC, 1 Phase, 50 Hz are also available.
The steamer requires specific water quality parameters, including total dissolved solids less than 60 PPM, total alkalinity less than 20 PPM, silica less than 13 PPM, chlorine less than 1.5 PPM, and a pH factor of 6.8-7.3. Crown recommends installing their Water Treatment System, and failure or malfunction due to poor water quality is not covered under warranty.
No, the 2" IPS drain should be piped to an open floor drain. A solid connection is not permitted; an 'open gap' between the steamer and the floor drain is required.
Each compartment can hold up to 12 full-size (12"x20"x2-1/2" deep) pans. Alternatively, it can hold 24 (1" deep) pans or 8 (4" deep) pans per compartment.
