Crown (Middleby) GCX-2-6-6 Steam Kettles
Description

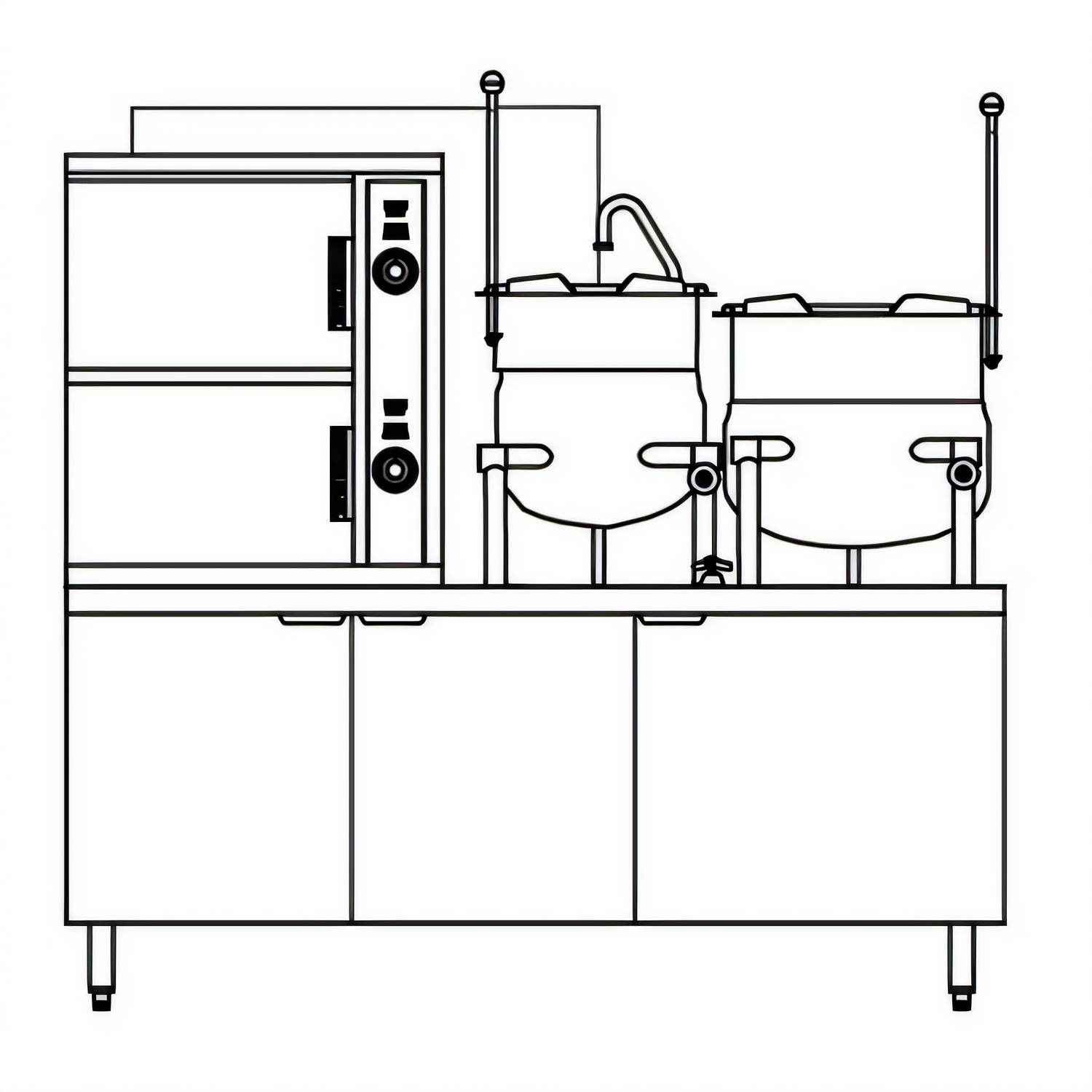

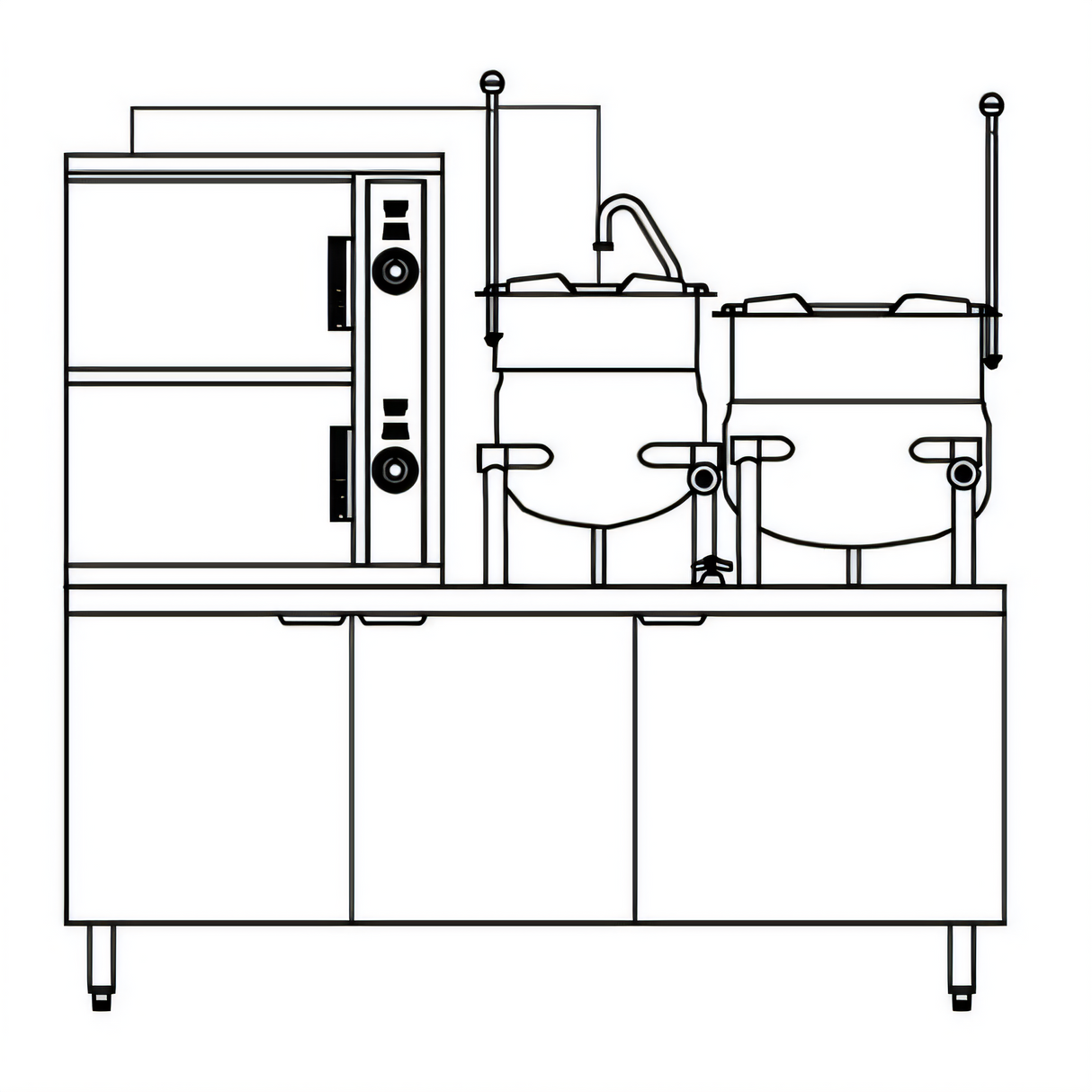

Crown GCX-2-6-6 Gas Convection Steamer & Dual 6-Gal Kettle Station
60" cabinet base • (2) pressureless compartments • (2) 6 gal kettles • 250,000 BTU self-contained boilerBuilt to keep high-volume kitchens moving, the Crown GCX-2-6-6 combines two 6-gallon tilting kettles with a full-featured two-compartment convection steamer—all powered by an onboard gas-fired boiler. 316 stainless cook chambers, electronic ignition, automatic blow-down, and a factory-supplied water filter system deliver rock-solid reliability and unbeatable steam quality shift after shift.
Key performance advantages
- Two independent, pressureless compartments—each holds up to 3 full-size (12" × 20" × 2.5") hotel pans
- (2) 6 gal tilting kettles with 316 SS liners for acidic foods & easy cleanup
- Self-contained 250,000 BTU boiler operates at 9–11 psi for rapid recovery
- Electronic ignition & automatic blowdown—no standing pilot, reduced maintenance
- 60-minute cook timer, Ready / Cooking indicator lights & end-of-cycle buzzer per compartment
- Deck-mount faucet valve, swing nozzle & integral rinse sink streamline filling & cleaning
- Split water line plus factory-installed water treatment system protect boiler & steam quality
- Removable 304 SS pan supports and one-piece stainless doors with full-perimeter gasket
- Comprehensive CSD-1 safety package: automatic water-level control, pressure & high-limit controls, relief valve & cathodic protector
- 6" stainless legs with adjustable flanged feet—bolt-down ready for code compliance
- Certified: CSA Flame, CSA Star & NSF
At-a-glance specifications
| Model | GCX-2-6-6 |
|---|---|
| Compartments | 2 pressureless convection chambers |
| Pan capacity (per compartment) | 6 × 1" | 3 × 2.5" | 2 × 4" | 1 × 6" full-size (12" × 20") |
| Kettles | (2) 6 gal tilting; 316 SS liner |
| Boiler rating | 250,000 BTU / h (73.3 kW) @ 9–11 psi |
| Gas connection | 3/4" IPS – Natural or LP (specify) |
| Electrical | 120 VAC, 1 Ø, 2 A per compartment (controls only) |
| Cabinet width | 60" (1524 mm) overall |
| Shipping weight | ≈ 1,010 lb (458 kg) |
Included connections
- Boiler feed water: 1/2" NPT (25–50 psi)
- Treated condensate water: 1/2" NPT (optional)
- Faucet hot & cold: 3/8" O.D. tubing (25–50 psi)
- Open drain: 2" IPS to floor sink
For warranty protection and peak performance, incoming water must meet Crown’s guidelines (<60 ppm TDS, pH 6.8–7.3, <1.5 ppm chlorine). A compatible water filter system ships with the unit—install it and replace cartridges as required.
Intended for commercial use only. Specifications are subject to change without notice.
