Crown (Middleby)  |  SKU: GCX-2-6-10

Crown (Middleby) GCX-2-6-10 Steam Kettles

$77,619.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Installation & operation manual Parts list Crown steam group letter Warranty sheet
Related Searches
Steam Cooking Equipment Steam Kettles

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

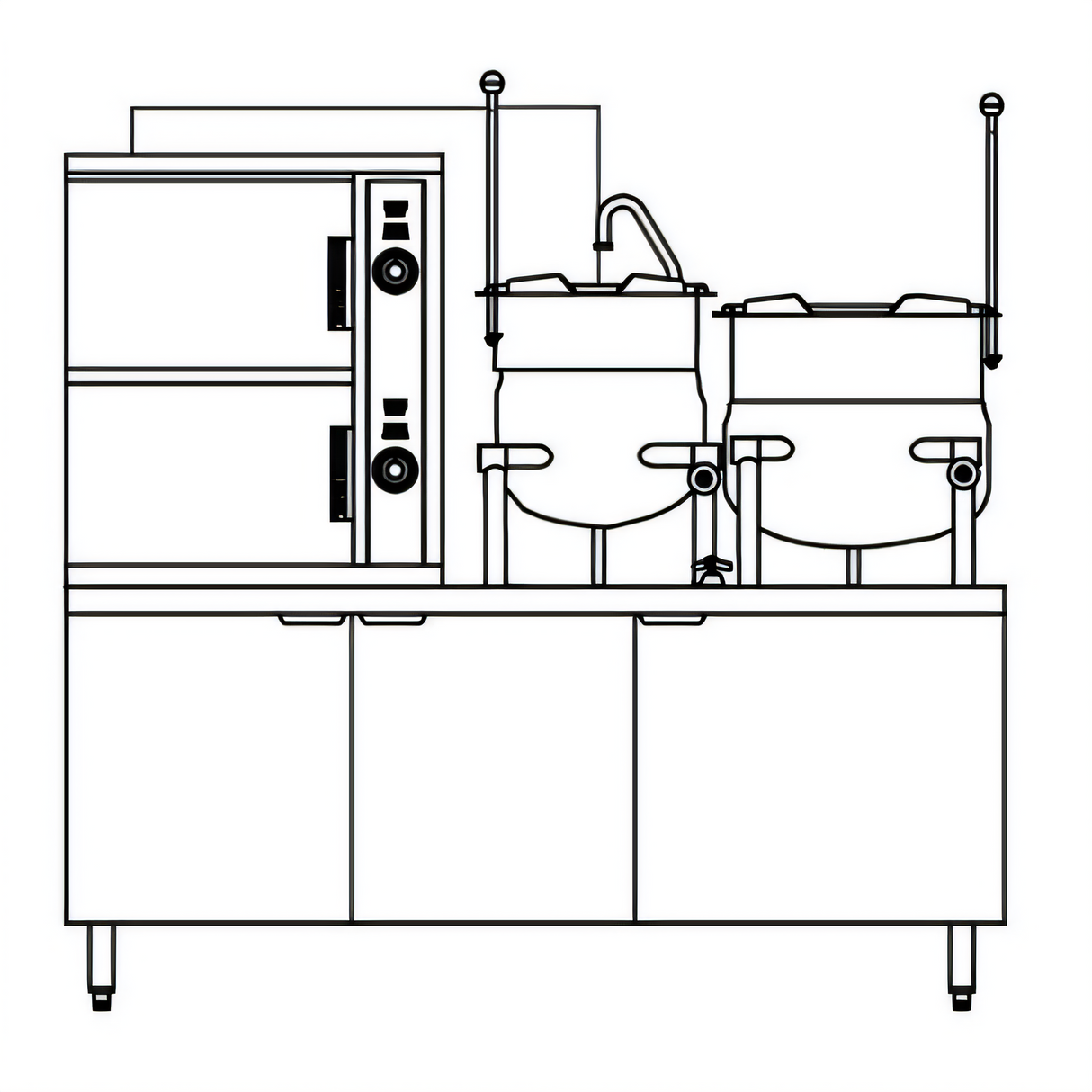

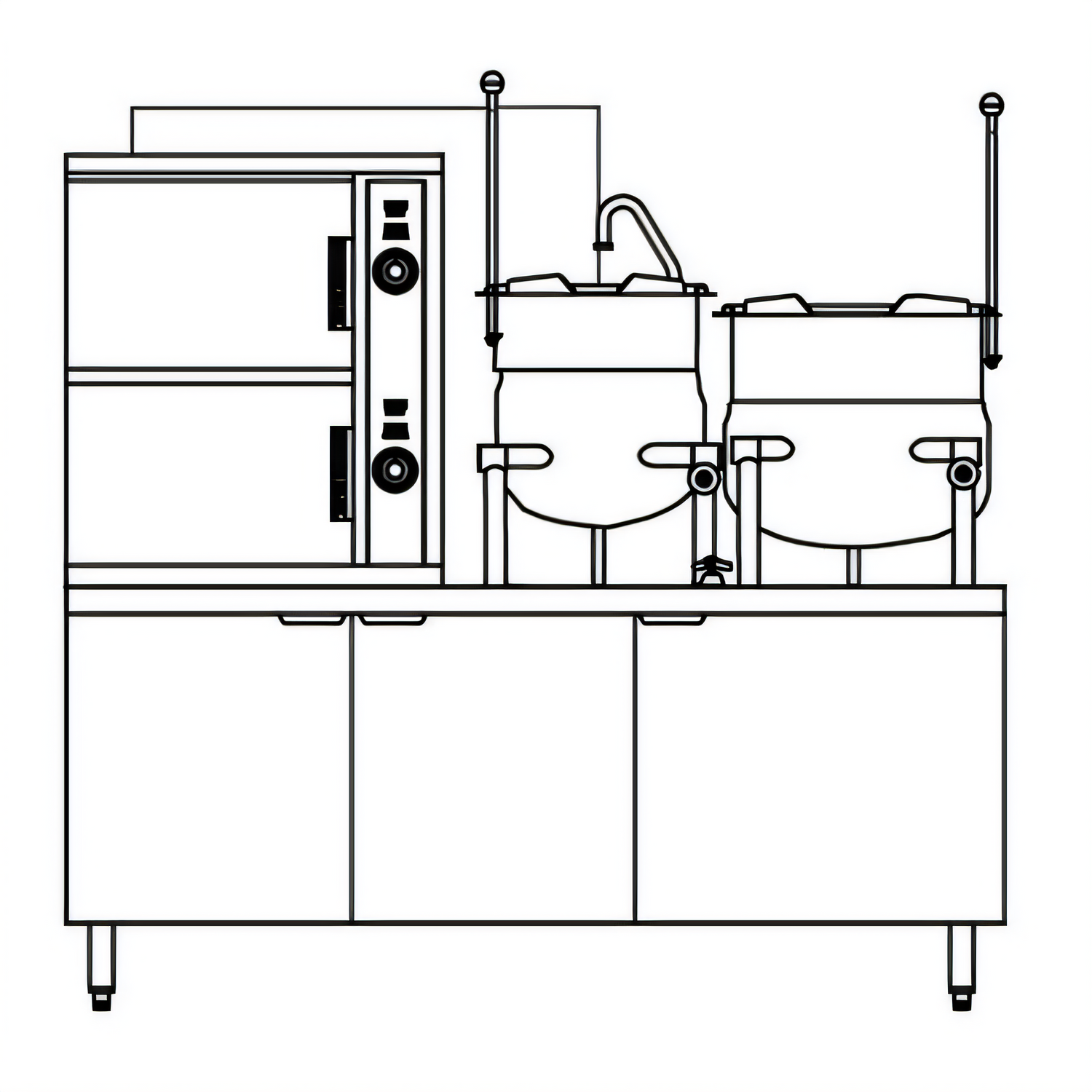

Crown GCX-2-6-10 Gas Convection Steamer & Kettle Station

6-Pan / Two-Compartment Steamer with 6 gal & 10 gal Kettles

Built for high-volume, multi-tasking kitchens, the Crown GCX-2-6-10 combines a 250,000 BTU gas-fired boiler, two pressureless convection-steam compartments, and a 6 gal + 10 gal kettle package in one 60-inch stainless cabinet. Produce vegetables, proteins, rice, soups, sauces, and more—all at the same time, all under one footprint.

Why You’ll Love It

  • Six 12 × 20 steam-table pan capacity (3 pans per compartment).
  • Dedicated 6 gal & 10 gal stationary kettles share the same high-efficiency boiler.
  • Gas-heated boiler operates at 9–11 psi for fast, even, pressureless cooking.
  • Electronic ignition with automatic blow-down reduces daily maintenance.
  • 60-minute mechanical timer & audible buzzer on each compartment.
  • Door interlock halts steam when a door is opened for operator safety.
  • Deck-mount faucet valve, swing nozzle & built-in sink speed kettle filling & cleanup.
  • Premium 316 stainless steel cooking chambers resist harsh water & cleaners.
  • Type 304 stainless exterior, fully welded & insulated for long service life.
  • Removable pan supports, integral drip trough & common drain for easy sanitation.
  • CSD-1 code package with automatic water-level control, pressure controls, high-limit & relief valves, cathodic protector and more.
  • Factory-supplied water treatment system & split water line included—protects the boiler and preserves warranty.
  • 6" stainless legs with adjustable flanged feet—bolt it down and go.
  • Certified: CSA Flame, CSA Star, NSF; ASME-code stamped boiler.

At-a-Glance Specs

Model GCX-2-6-10
Steamer Compartments 2 (pressureless convection)
Pan Capacity 3 × 12" × 20" × 2½" per compartment (6 total)
Kettle Capacities 6 gal (22.7 L) & 10 gal (37.9 L)
Boiler Input 250,000 BTU/hr (73.3 kW)
Gas Connection ¾" NPT – Natural 7-14" W.C. | LP 11-14" W.C.
Electrical 120 VAC, 1-phase, 2 A per compartment (4 A total)
Water Connections ½" NPT boiler feed, ⅜" O.D. hot & cold, 2" IPS drain
Overall Width 59.5" (1,511 mm)
Operating Pressure 9–11 psi (62–76 kPa)
Construction 316 SS liners, 304 SS exterior
Legs / Feet 6" stainless, adjustable flanged
Certifications CSA Flame, CSA Star, NSF, ASME

Utility Requirements

  • Gas: 250,000 BTU/hr, ¾" NPT supply.
  • Electric: 120 V, 1-phase, 4 A total.
  • Water: 25–50 psi (170–345 kPa) cold & hot; supplied treatment system must be installed.
  • Drain: 2" IPS piped to an open floor drain.

Included Safety & Control Package

  • Automatic water-level control with gauge glass.
  • Pressure gauge, operating pressure control & high-limit pressure control.
  • Safety relief valve & cathodic (sacrificial anode) boiler protection.
  • Door interlock steam shut-off and audible end-of-cycle buzzer.
  • CSD-1 compliant design.
Water Quality Notice: For warranty coverage, incoming water must be treated to <60 ppm TDS, <1.5 ppm chlorine, pH 6.8–7.3 and <20 ppm total alkalinity. The supplied filter system meets these requirements—replace cartridges as directed.

Need lease-to-own financing? Ask us about Middleby Equipment Financing for quick credit decisions and affordable monthly payments.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA Star, CSA Flame

Height

66.13in

Width

60.0in

Depth

33.0in

Shipping Weight

1030.0lbs

Kettle

(1) 6 & (1) 10 gal

Pan Capacity per Compartment

(3) 12"x20"x2-1/2" deep

Compartments

2

Width (side - side)

60"

Specifications

Convection Steamer/Kettle, gas, (2) compartment, (1) 6 gallon & (1) 10 gallon kettles, (3) 12" x 20" pan capacity per compartment, 60" cabinet base, removable stainless steel pan supports, electronic ignition, automatic blowdown, 60 minute timer per compartment, deck mount faucet valve, swing nozzle & integral sink, CSD-1 code package, includes water filter system, split water line, automatic water level control, pressure gauge, water gauge glass, operating pressure control, safety high-limit pressure control, safety relief valve & cathodic protector, 316 stainless steel liner, 304 stainless steel construction, 6" legs, adjustable flanged feet, CSA Flame, CSA Star, NSF
