Crown (Middleby) GCX-2-36 Steamers (Countertop & Floor)

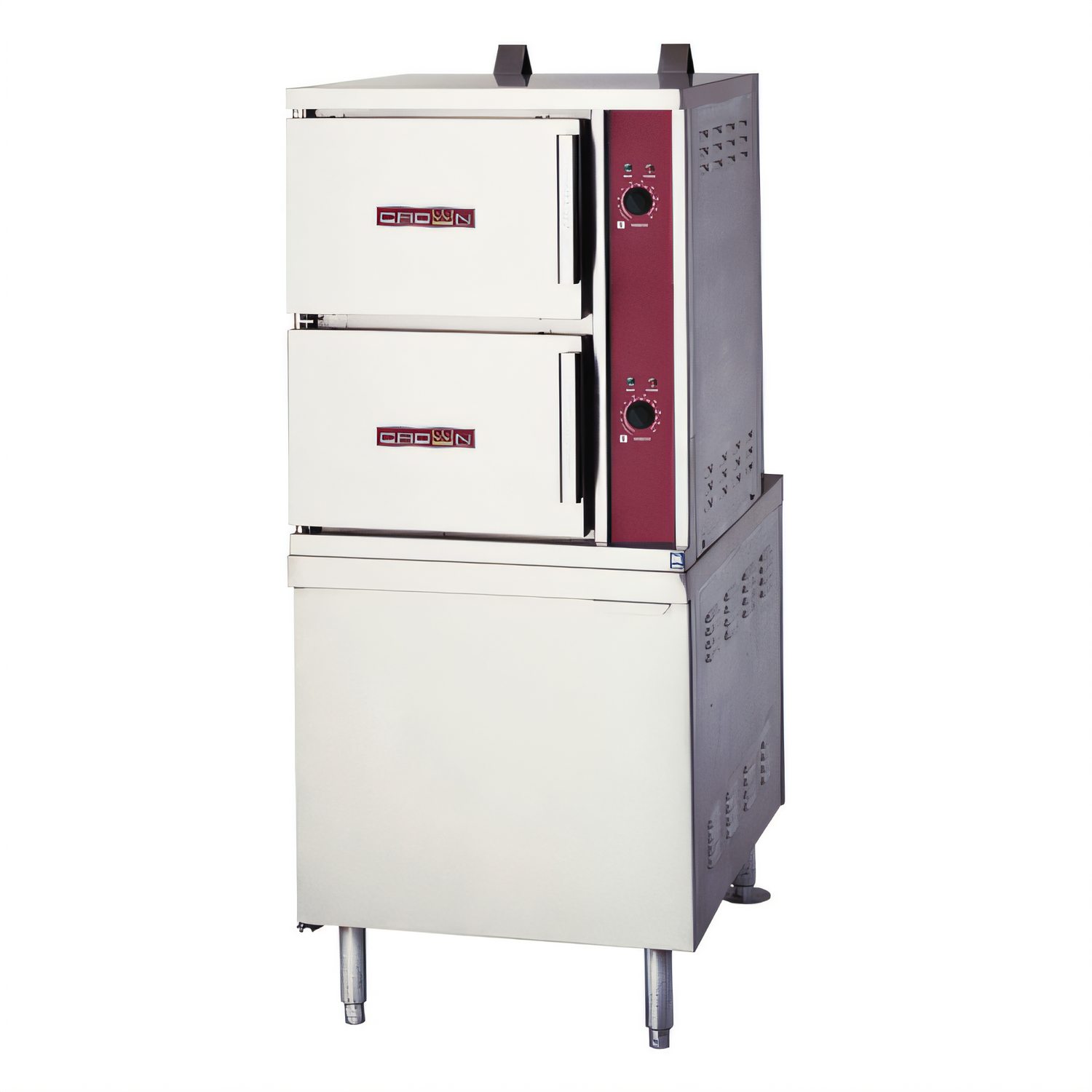

Crown GCX-2-36 Gas Convection Steamer

Engineered for demanding commercial kitchens, the Crown GCX-2-36 couples boiler-generated steam with a rugged 304 stainless steel exterior to deliver fast, even results shift after shift. Two independent chambers let you cook separate menu items simultaneously while built-in boiler technology guarantees rapid recovery and consistent performance.

Performance & Construction Highlights

• Boiler-generated convection steam at 9–11 psi (62–76 kPa) for unsurpassed heat transfer.

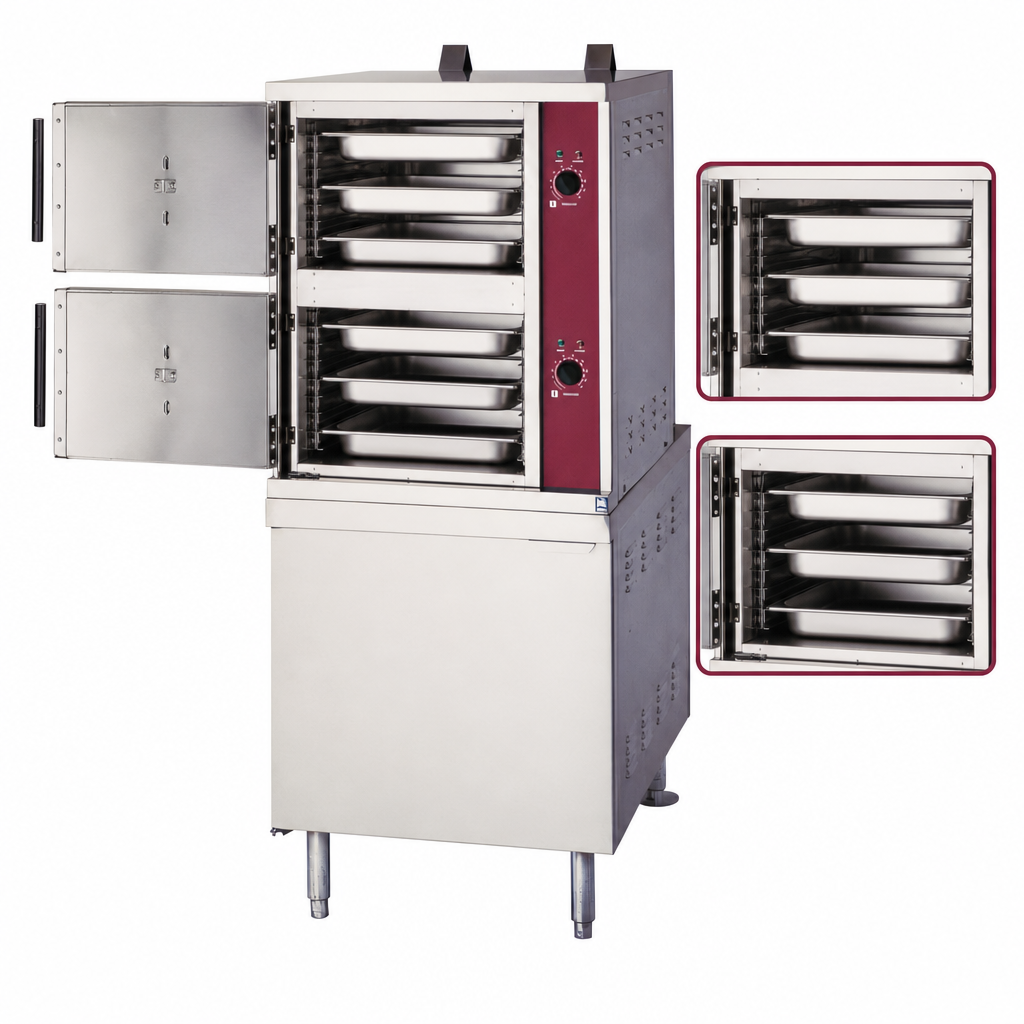

• (2) cooking compartments, each holding (3) 12 × 20 × 2-1/2″ pans or up to (6) 1″ pans.

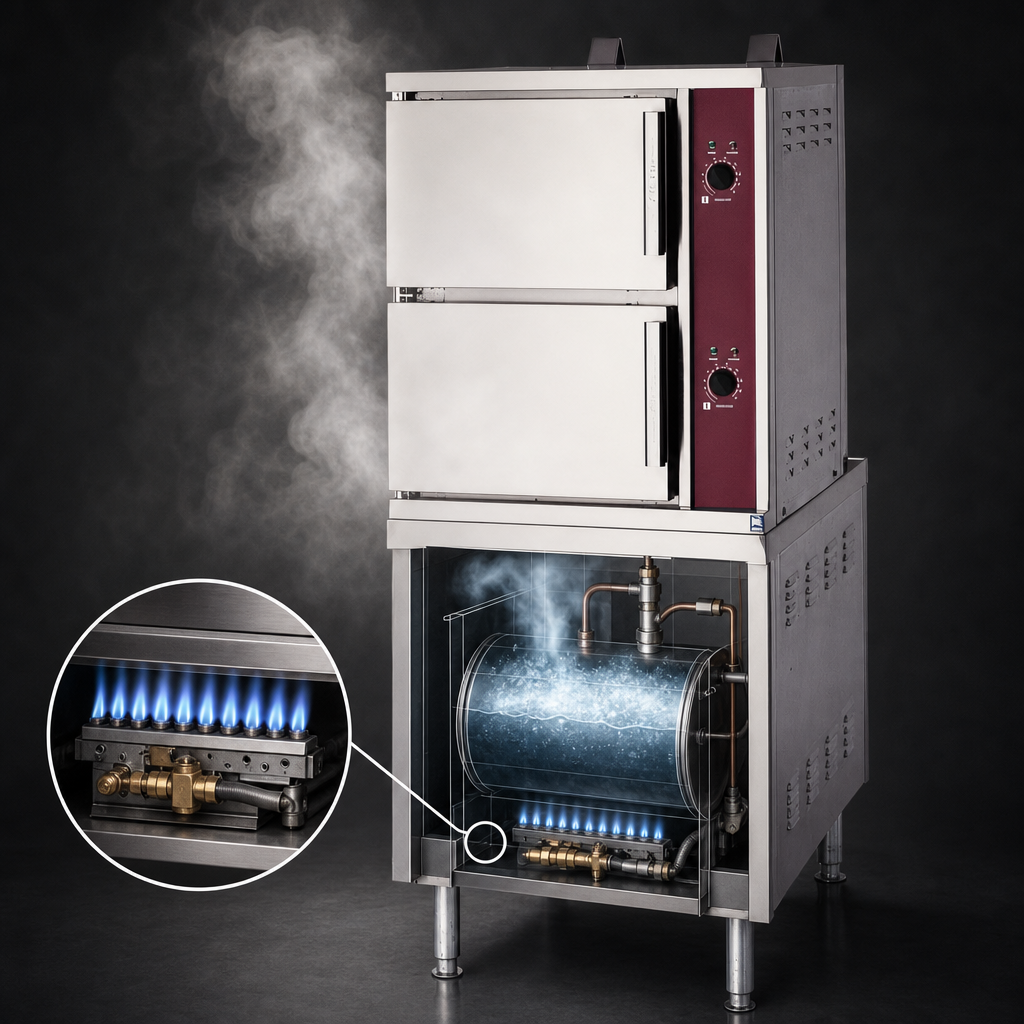

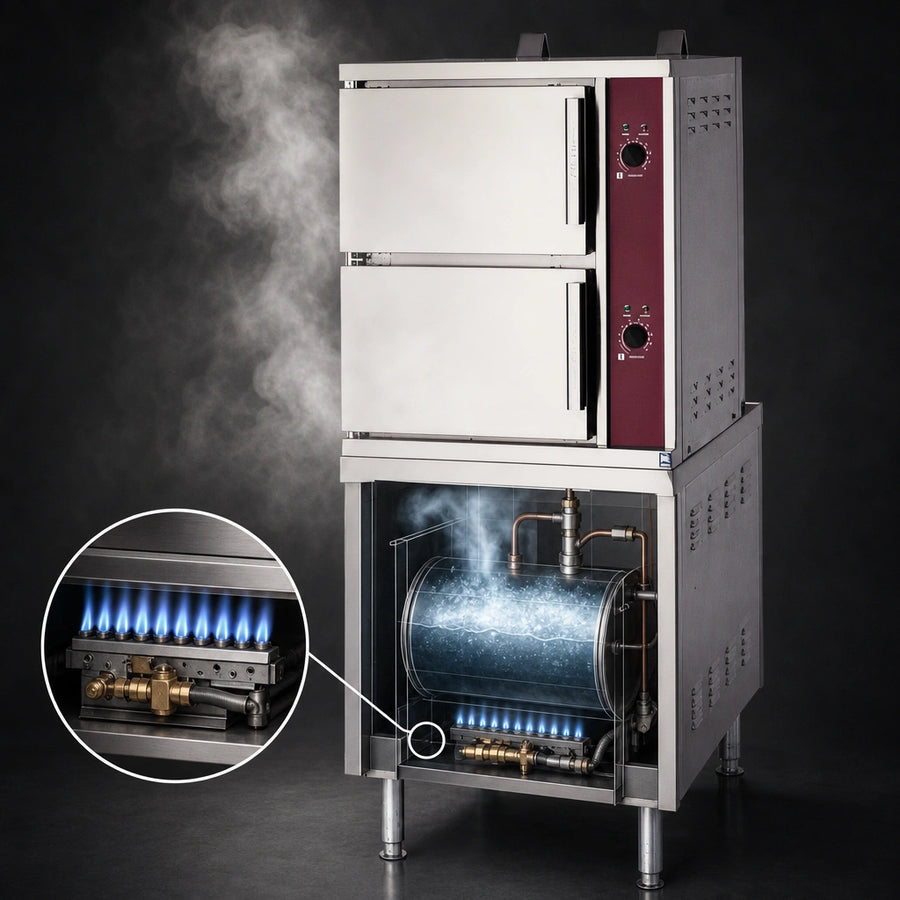

• 36″ cabinet base with integral 200,000 BTU gas boiler (natural or propane).
• Electronic ignition, automatic blow-down & split water line included standard.
• 60-minute mechanical timer, cook/ready indicator lights & audible buzzer per compartment.
• Removable 316 SS pan supports and full-width drain trough simplify cleaning.
• Door gasket with positive-lock magnetic latch stops steam loss when closed.
• CSD-1 compliant safety suite: pressure gauge, gauge glass, operating & high-limit pressure controls, safety relief valve and cathodic boiler protector.
• Water treatment cartridge system supplied—protects boiler and preserves warranty.
• 6″ stainless legs with adjustable flanged feet for secure floor mounting.
• NSF listed, CSA Flame & CSA Star certified; ASME-code boiler, National Board registered.

Technical Specifications
