Crown (Middleby)  |  SKU: GCX-2-24

Crown (Middleby) GCX-2-24 Steamers (Countertop & Floor)

$30,961.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Middleby financial flyer Crown steam group letter Installation & operation manual Warranty sheet
Related Searches
Steam Cooking Equipment Steamers (Countertop & Floor)

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

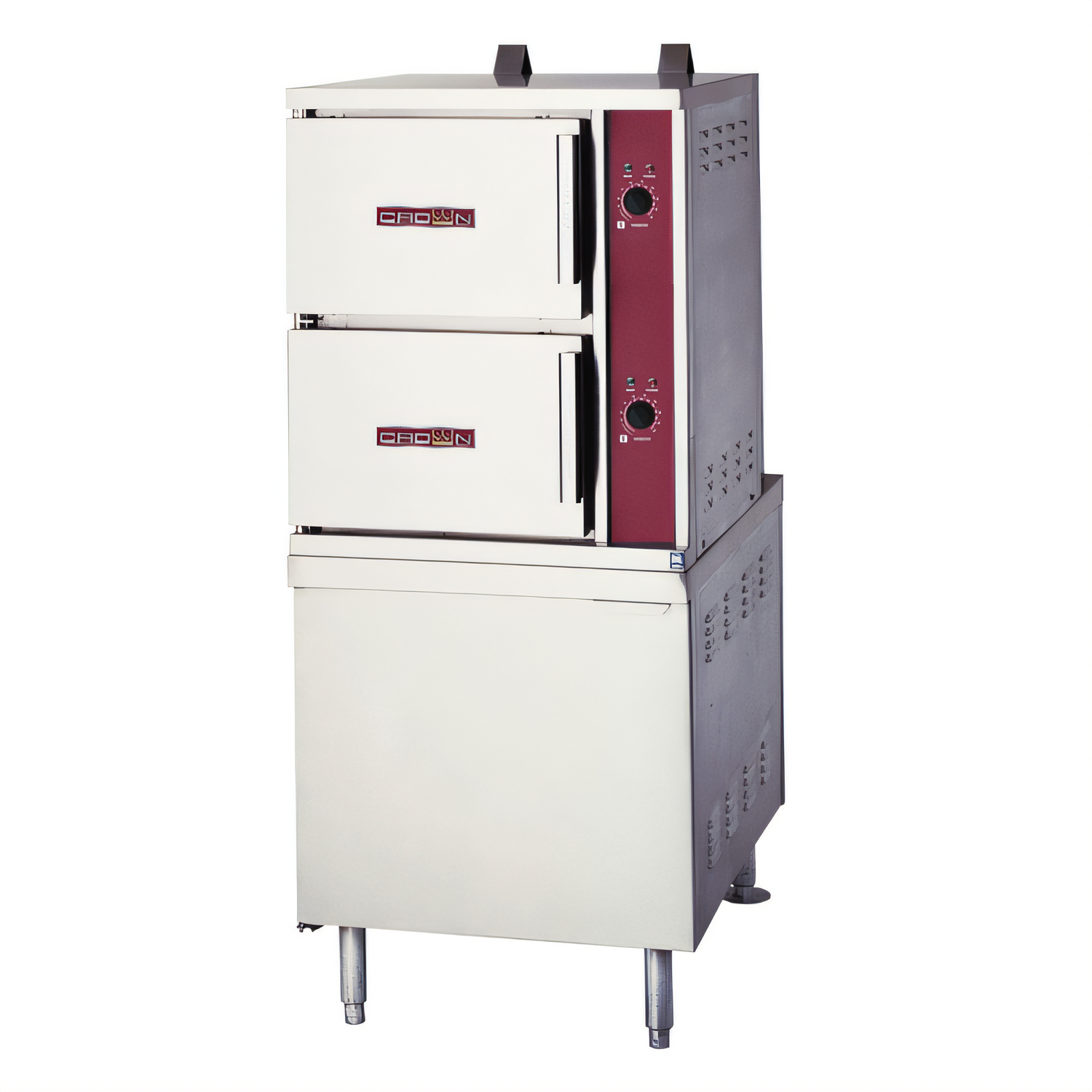

Crown GCX-2-24 Gas Convection Steamer

2 Compartments • 6-Pan Capacity • 24" Cabinet Base

Built for high-volume commercial kitchens, the Crown GCX-2-24 delivers fast, even steam cooking in a compact 24-inch footprint while sipping just 2 amps per compartment. With a 304-stainless exterior, heavy-duty 316-stainless cook chambers, and a 200,000 BTU gas-fired boiler, this steamer works as hard as you do shift after shift.

Why You’ll Love It

  • Six 12" × 20" pan capacity (3 pans per compartment) for maximum throughput.
  • 9–11 psi gas boiler delivers rapid steam recovery and consistent results.
  • Electronic ignition with automatic blowdown for worry-free start-up and shutdown.
  • Built-in water treatment system and split water line protect the boiler and simplify installation.

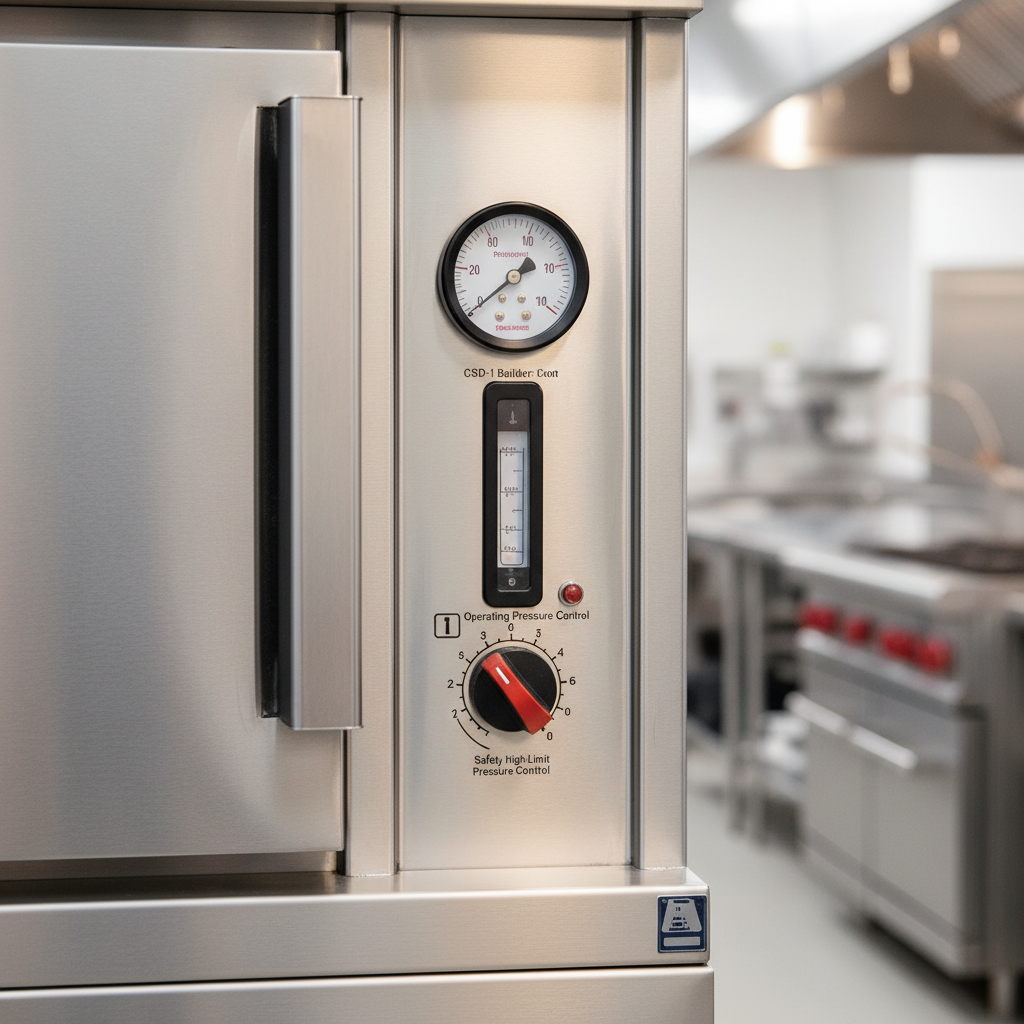

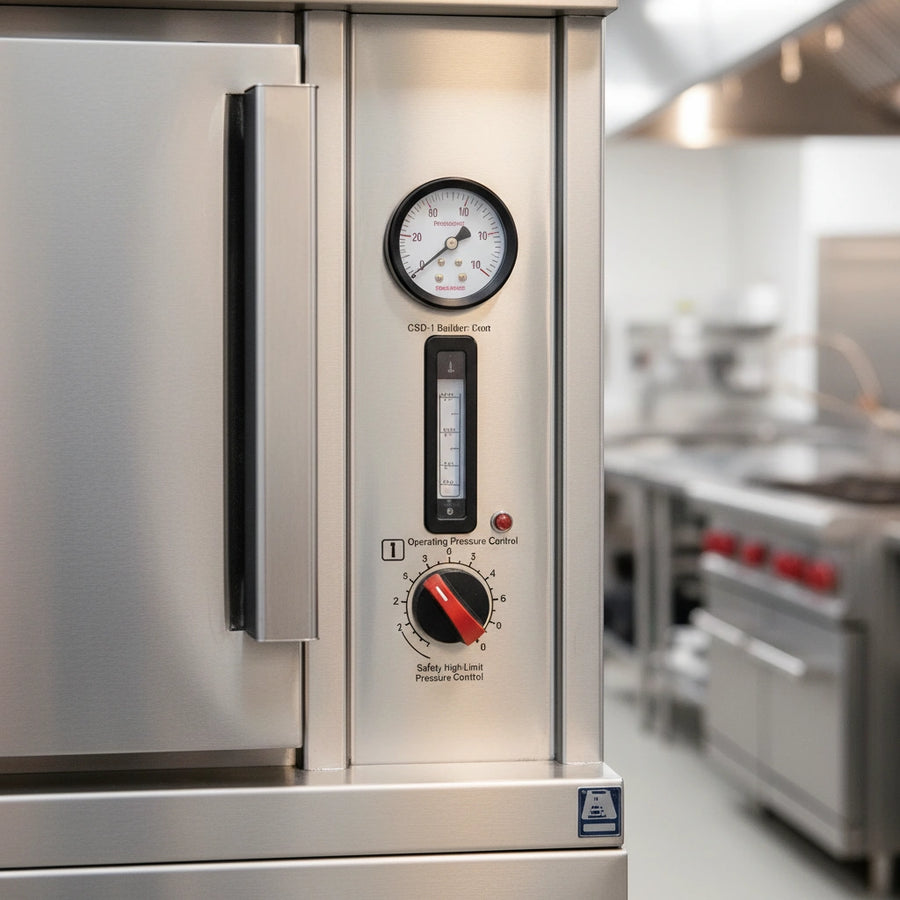

  • CSD-1 compliant safety package with automatic water-level control, pressure gauge & high-limit protection.
  • Removable pan supports and drain trough make clean-ups quick and sanitary.
  • 304 stainless steel exterior with #4 finish resists corrosion and wipes clean easily.
  • Factory-installed 6" adjustable flanged legs bolt to the floor for a rock-solid setup.

Specifications

Model GCX-2-24
Compartments 2 independent pressureless convection chambers
Pan Capacity (6) 12" × 20" × 2½" hotel pans total
(3 per compartment)
Boiler Operating Pressure 9–11 psi (62–76 kPa)
BTU Rating 200,000 BTU/hr (Natural gas)  •  Propane field-convertible
Electrical 120 VAC, 1-Phase, 50/60 Hz, 2 A per compartment
Water Inlet ½" NPT, 25–50 psi (170–345 kPa)
Drain 2" IPS to open floor drain
Gas Connection ¾" IPS rear connection
Overall Footprint 24" W x 35" D x 60" H (with 6" legs)
Shipping Weight Approx. 630 lb (286 kg)
Certifications NSF, CSA Flame, CSA Star, ASME-code boiler

Utility Connections

Provide separate hot and cold water supplies for the split water line. A ¾" rear gas shut-off valve and ½" electrical conduit are required. Maintain 3" side and 6" rear clearance for service access and ventilation.

Important – Water Quality: Total dissolved solids must be <60 ppm and pH 6.8–7.3. Failure to maintain water quality voids warranty.

One-year parts & labor warranty plus prorated two-year boiler-shell coverage included.

Features & Specs

Manufacturer

Crown (Middleby)

Certifications

NSF, CSA Star, CSA Flame

Height

55.5in

Width

24.0in

Depth

33.0in

Shipping Weight

630.0lbs

Interior Finish

316 stainless steel

Width (side - side)

24"

Pan Capacity per Compartment

(3) 12"x20"x2-1/2" deep

Type

1 steam generator

Specifications

Convection Steamer, gas, (2) compartment, (3) 12" x 20" pan capacity per compartment, 24" cabinet base, electronic ignition, automatic blowdown, 60 minute timer per compartment, removable pan supports & drain trough, CSD-1 code package, includes water filter system, split water line, automatic water level control, pressure gauge, water gauge glass, operating pressure control, safety high-limit pressure control, safety relief valve & cathodic protector, 304 stainless steel exterior, 6" legs, adjustable flanged feet, 200,000 BTU, NSF, CSA Flame, CSA Star
