Crown (Middleby)

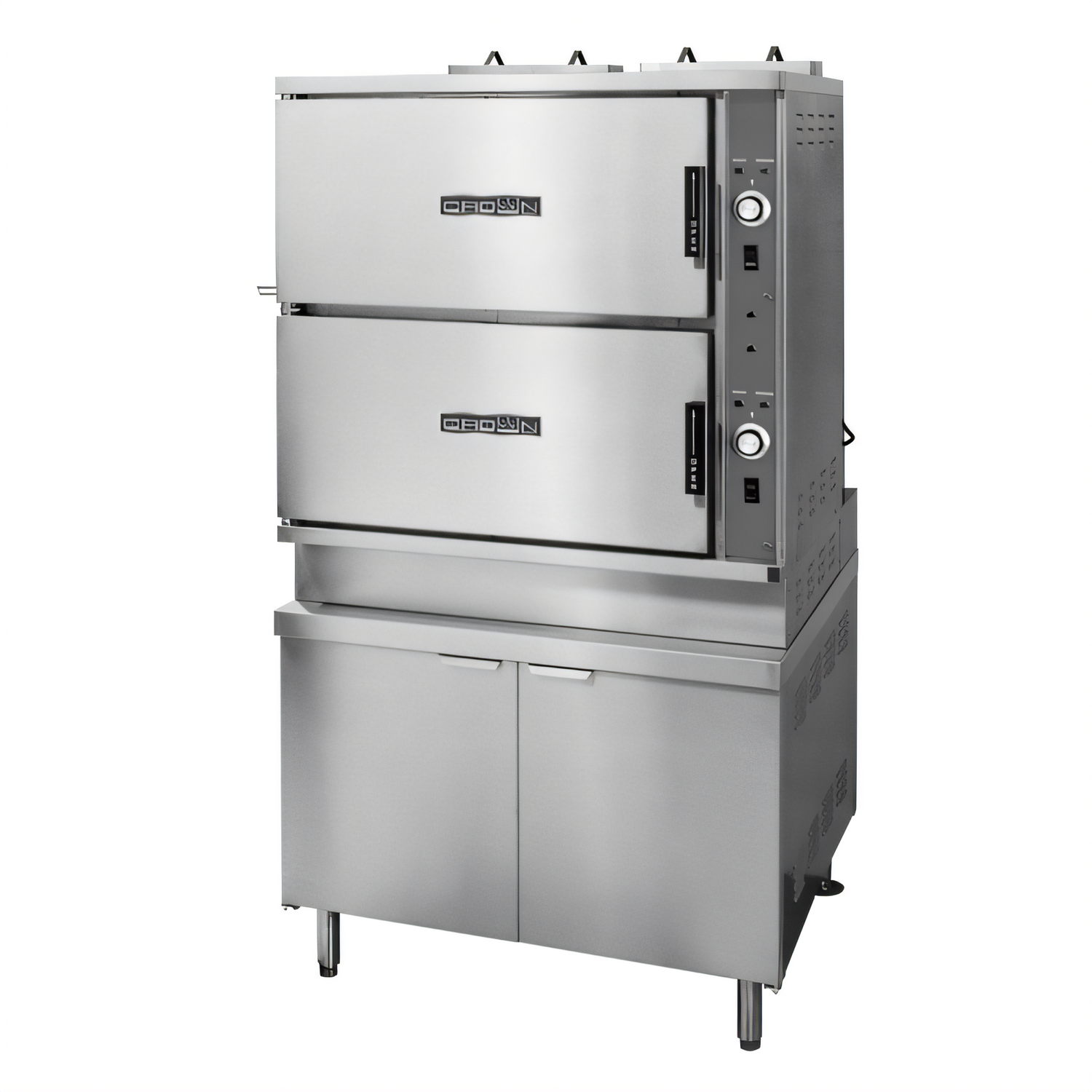

Crown GCX-16 Two Compartment Full-Size Gas Convection Steamer with 36" Cabinet Base

SKU: GCX-16
$55,319.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steamer Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Crown GCX-16 Two Compartment Full-Size Gas Convection Steamer with 36" Cabinet Base

16 Pan Capacity, Natural Gas, Floor Model

Designed for high-volume commercial kitchens, the Crown GCX-16 gas convection steamer offers efficient and consistent cooking across two full-size compartments.

  • Dual compartments each accommodate up to eight 12" x 20" pans, totaling 16 pans for high-capacity steaming.
  • Powered by a robust 300,000 BTU gas system for rapid and efficient steam generation.
  • Durable 304 stainless steel exterior with 316 stainless steel interior liners for longevity and hygiene.
  • Features electronic ignition and a 60-minute mechanical timer per compartment for precise cooking control.
  • Includes a water filter system and automatic blowdown for reliable operation and reduced maintenance.
  • Floor model design with a 36-inch cabinet base and adjustable flanged feet for stability and easy installation.

Overall Dimensions:

36.0"W x 33.13"D x 67.0"H

Product Weight:

990.0 lb

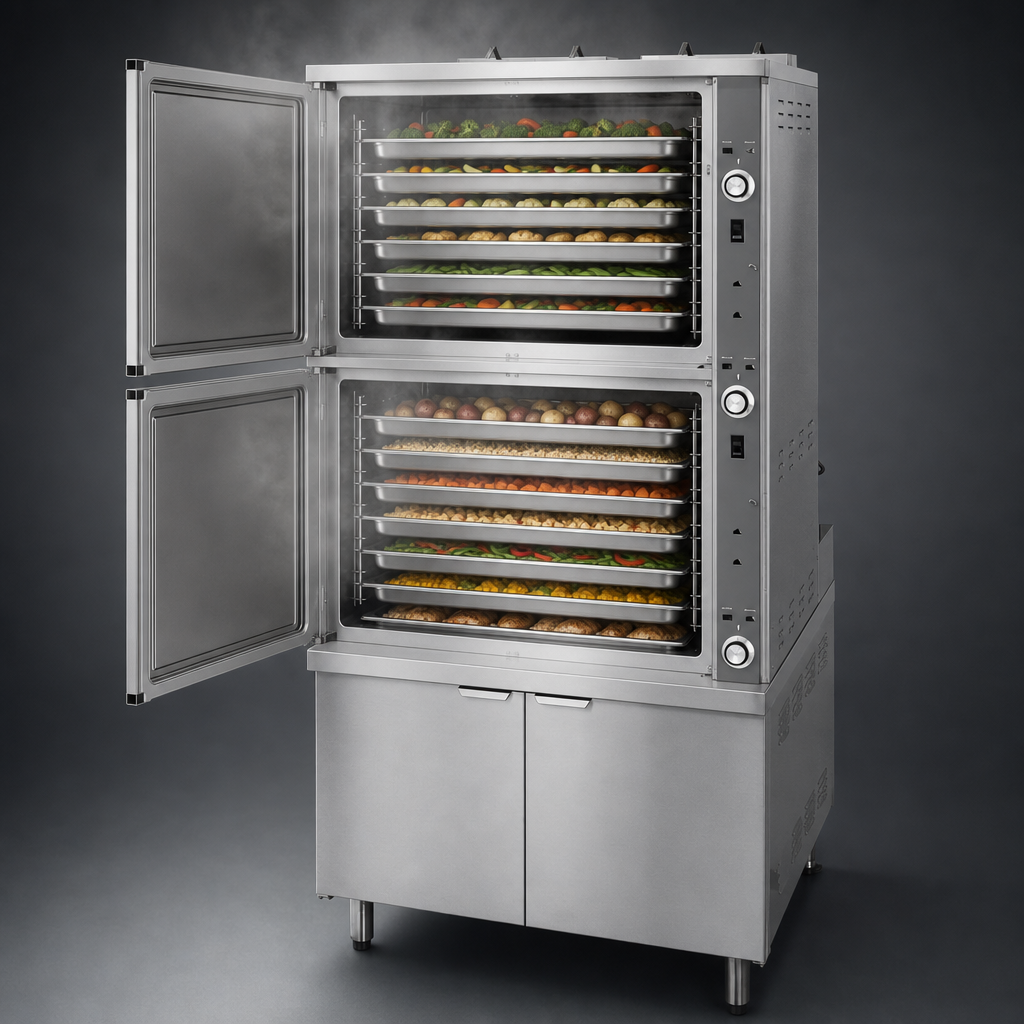

Two Steaming Compartments

Each compartment is capable of holding eight 12" x 20" x 2-1/2" deep pans, providing a total capacity of 16 full-size pans.

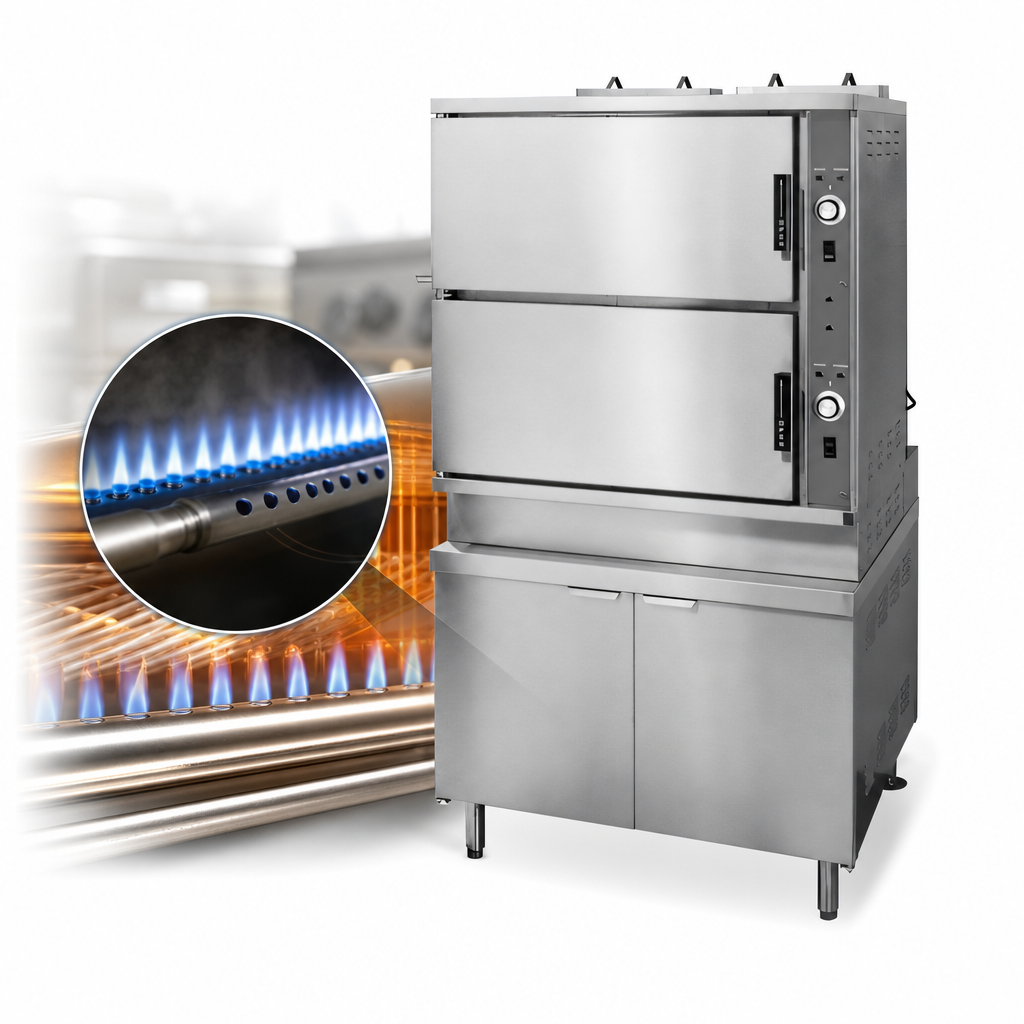

Gas-Fired Heating System

Equipped with a powerful 300,000 BTU gas system for efficient and rapid internal steam generation.

Electronic Ignition

Ensures quick and reliable start-up for the gas burners.

Automatic Blowdown

Automatically flushes the system to prevent mineral buildup and simplify maintenance.

60-Minute Mechanical Timer

Provides precise cooking control with an independent 60-minute timer for each compartment.

Removable Pan Supports & Drip Trough

Designed for easy removal to facilitate thorough cleaning and maintenance.

CSD-1 Code Package

Complies with CSD-1 safety standards for commercial gas-fired equipment.

Integrated Water Filter System

Includes a water filter system for improved water quality, connecting to the boiler feed.

Split Water Line

Features separate water line connections for the filtered boiler feed and an unfiltered cold water condenser feed.

Durable Stainless Steel Construction

Features a 316 stainless steel interior liner for maximum corrosion resistance and a 304 stainless steel exterior for durability and easy cleaning.

Adjustable Flanged Feet

Comes with 6-inch legs and adjustable flanged feet for leveling and secure anchoring to the floor.

Type Convection Steamer
Style Cabinet Base
Installation Type Floor Model (With 36" Cabinet Base)
Compartments 2
Pan Capacity 16 (8 Per Compartment)
Pan Size 12" x 20" x 2-1/2"
BTU 300,000 BTU
Gas Type Natural Gas
Voltage 115 Volts
Amps 4 Amps
Hertz 60 Hz
Phase 1-Phase
Electrical Connection 1/2" Conduit
Water Connection Required (3/8" Tubing, 25-50 PSI)
Drain Connection 2" IPS
Controls Mechanical Timer, Electronic Ignition
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel
Minimum Clearance (Sides) 0 Inches
Minimum Clearance (Back) 0 Inches
Shipping Width 36 Inches
Shipping Depth 34 Inches
Shipping Height 67 Inches
Shipping Weight 990.0 lb.
Selling Unit Each
Units Per Case 1
Country of Origin Canada

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Refer to warranty terms.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Installation & operation PDF Download PDF Parts list PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GCX-16 convection steamer features two cooking compartments, each capable of holding eight 12" x 20" x 2-1/2" deep pans, for a total capacity of 16 full-size pans.
No, the Crown GCX-16 is a gas-fired steamer with a 300,000 BTU heating system that generates its own steam, requiring only a cold water supply connection.
The steamer requires a 115 Volt, 60 Hz, 1-Phase electrical connection, drawing 2 Amps per compartment, for a total of 4 Amps.
The steamer requires a 3/8" cold water supply connection (25-50 PSI) for steam generation, with a split line for filtered boiler feed and unfiltered condenser feed, and a 2" IPS drain connection piped to an open floor drain.
Daily cleaning involves washing oven cavities, door liners, and pan racks with mild detergent and water. Remember to remove and clean the drain screens and wash the gasket sealing surface. Always disconnect power during cleaning and avoid spraying water into electrical controls.
