Crown (Middleby) GCX-10-6 Steam Kettles
Description

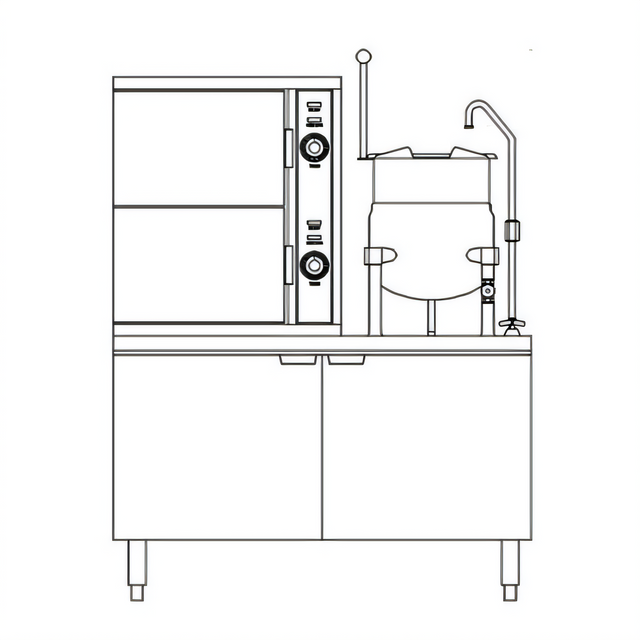

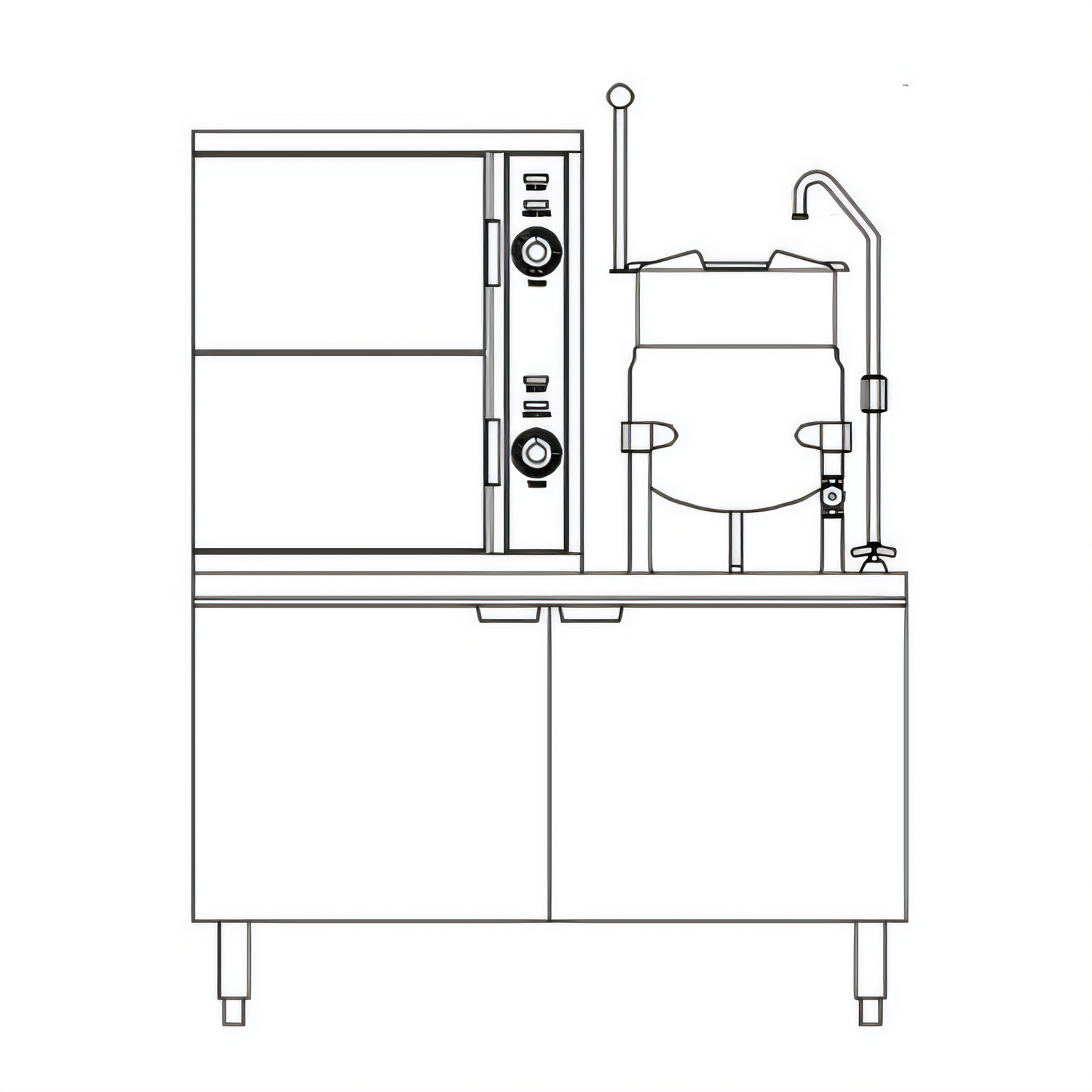

Crown GCX-2-6 Gas Compartment Steamer • 6 gal Kettle • 44" Cabinet Base
Two independent 5-pan compartments powered by a 250,000 BTU gas-fired steam boilerBuilt for high-volume, multi-function production, the Crown GCX-2-6 combines a double convection steamer with a 6 gallon kettle on one space-saving, 44" cabinet base. From delicate vegetables to hearty sauces, you’ll turn out consistent results faster, safer and more efficiently than with range-top methods.
Why chefs choose the GCX-2-6
- True two-in-one system – (2) 12" × 20" steam cavities plus a 6 gal jacketed kettle share one 250,000 BTU boiler.
- High volume, small footprint – Each compartment holds five 2½"-deep hotel pans (or 6 × 1" pans) while occupying only 44" of line space.
- Instant, repeatable control – 60-minute mechanical timer, ready/cook lights and automatic steam shut-off per compartment.
- Labor-saving self-management – Electronic ignition, automatic boiler blowdown and CSD-1 compliant controls reduce maintenance time.
- Durability you can taste – 316 stainless steel cook chambers resist chlorides and hard-water attack; 304 stainless exterior stands up to daily abuse.
- Integrated sink & faucet – Deck-mounted faucet valve with swing nozzle and common drain streamlines pan filling, rinsing and cleanup.
- Arrives water-ready – Factory-supplied water filter system and split water line protect your investment and your food quality.
- Certified for peace of mind – CSA Flame & Star, NSF-listed and ASME-code stamped boiler.
Performance & construction highlights
- Boiler operates at 9–11 psi (62–76 kPa) for rapid heat transfer.
- Compartment doors feature removable stainless liners, full-perimeter gasket and a positive lock/seal mechanism.
- Full perimeter angle frame and reinforced kettle/boiler mountings for long-term structural integrity.
- 6" stainless legs with adjustable flanged feet anchor the unit to the floor.
- Side service panel provides quick access to controls and components.
Technical specifications
| Model | GCX-2-6 |
|---|---|
| Compartments | 2 independent convection steam chambers |
| Pan capacity (per compartment) | 5 × 12" × 20" × 2½" pans | 6 × 1" pans | 2 × 4" pans | 1 × 6" pan |
| Kettle capacity | 6 US gal (23 L) |
| Boiler input | 250,000 BTU/h (73.3 kW) – Natural or LP gas |
| Gas connection | ¾" IPS |
| Operating pressure | 9–11 psi (62–76 kPa) |
| Electrical requirement | 115 VAC, 1 Ø, 50/60 Hz, 2 A per compartment (for controls) |
| Water connections | ½" NPT boiler feed | ⅜" O.D. hot water | ½" NPT cold condensate (optional) |
| Drain | 2" IPS to open floor drain |
| Exterior dimensions (W × D × H) | 44" × 59.5" × 66.1" (1118 × 1511 × 1680 mm) |
| Shipping weight * | ≈ 980 lb (445 kg) |
| Construction | 316 SS liners, 304 SS exterior, fully insulated compartments |
| Certifications | NSF, CSA Flame, CSA Star, ASME-code boiler, CSD-1 package |
*Shipping weight and dimensions are approximate.
What’s in the box
- Crown GCX-2-6 steamer/kettle cabinet with 6" adjustable legs
- Factory-installed water treatment system
- Deck-mounted faucet valve with swing nozzle & integral sink
- Operation & maintenance manual
Warranty
One year parts & labor, plus a 10-year hemisphere warranty on the kettle shell and a prorated 2-year warranty on the boiler shell. Full details supplied with unit.
