Crown (Middleby) GCX-10-6-6 Steam Kettles

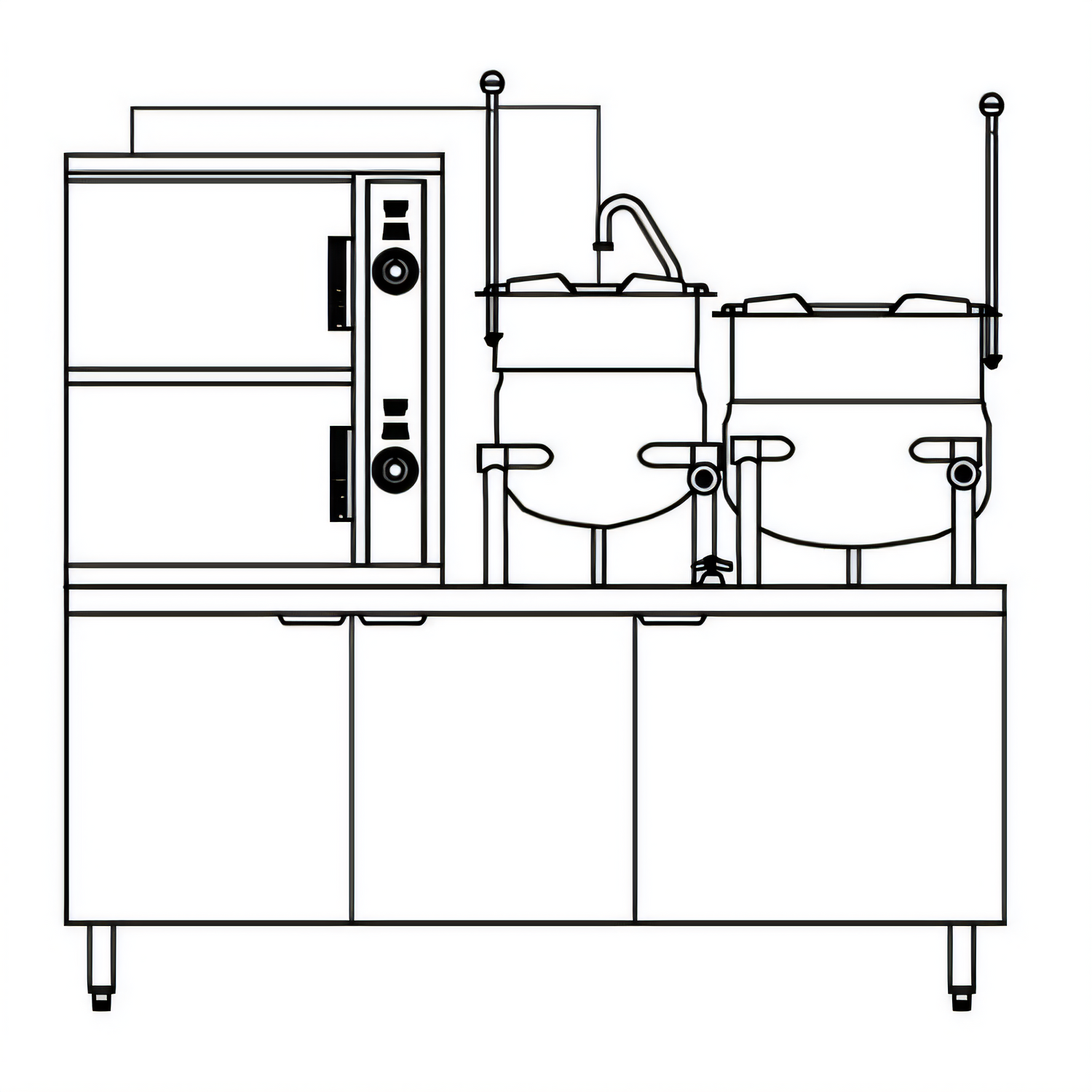

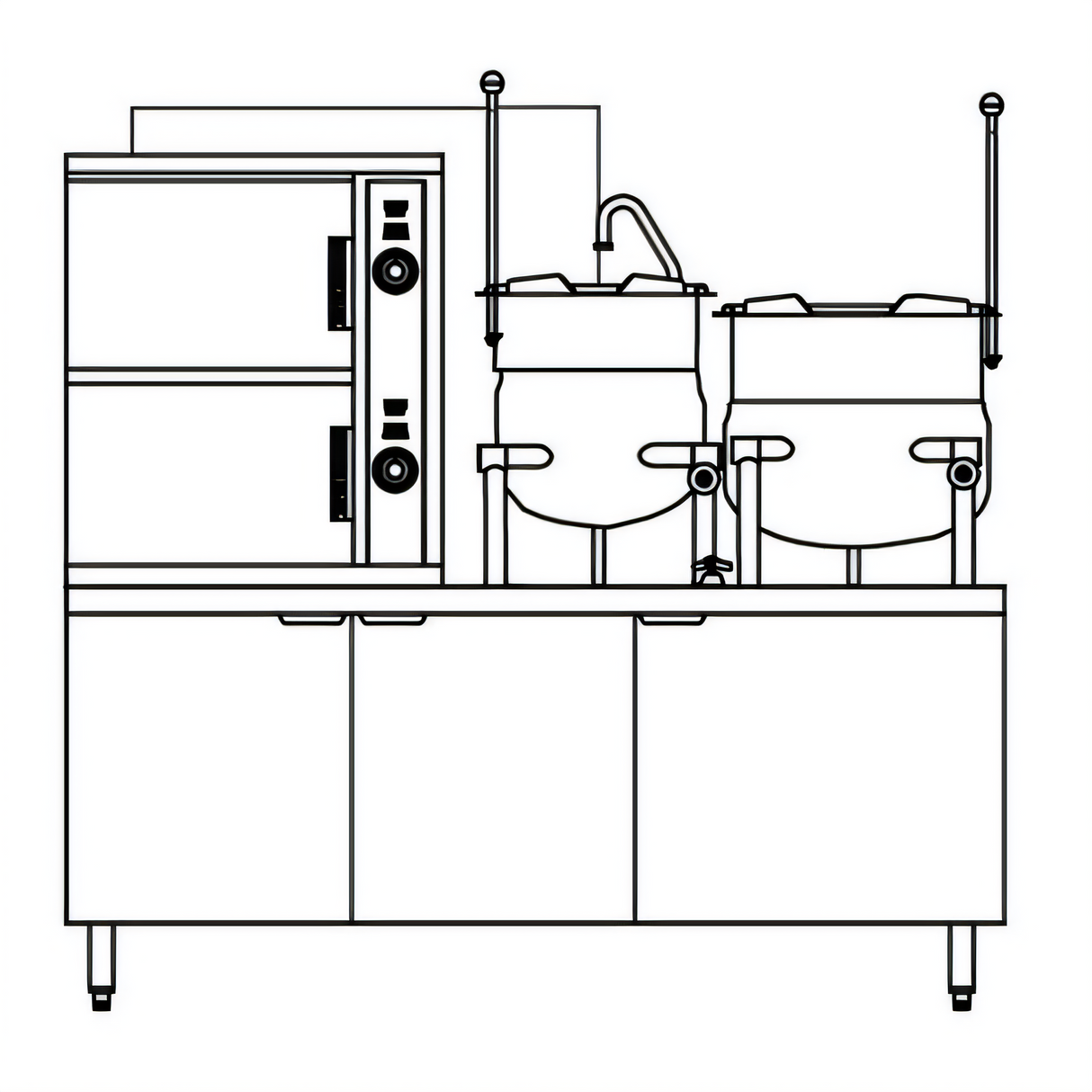

Crown GCX-2-6-6 Gas Compartment Steamer + (2) 6 Gal Kettles

Built for high-volume commercial kitchens that need the speed of convection steaming and the versatility of countertop kettles, the Crown GCX-2-6-6 combines two 6-gallon kettle jackets with a dual-compartment steamer on a single 60″ gas-fired cabinet base. 316 SS cooking chambers, 304 SS construction and a factory-installed water treatment system deliver rock-solid durability and worry-free performance shift after shift.

Key performance features

• Integrated 250,000 BTU gas steam boiler (9 – 11 psi) with electronic ignition & automatic blow-down
• (2) independent 6-gallon jacketed kettles with reinforced mountings
• (2) fully welded 316 SS steam chambers with removable stainless pan supports
• Per-compartment 60-minute mechanical timer with “ready” & “cooking” indicator lights and audible end-of-cycle signal
• Deck-mount faucet valve, swing nozzle & integral stainless sink for easy kettle filling/rinsing
• Water treatment system, split water line & CSD-1 code package included out of the crate
• Gas or LP field-configurable; 115 VAC, 1-phase controls (2 A/compartment)

Cooking capacities (per steamer compartment)

• Up to 6 full-size 12″ × 20″ pans (1″ deep)
• 3 pans at 2½″ deep
• 2 pans at 4″ deep
• 1 pan at 6″ deep

Built-in safety & automation

• Automatic water level control with visual water gauge glass
• Operating pressure control plus safety high-limit pressure control
• ASME-stamped boiler with pressure gauge & safety relief valve
• Cathodic boiler protector to combat corrosion
• Door interlock stops steam flow when opened

Specifications

Intended for commercial use only. One-year parts & labor warranty (10-year kettle hemisphere warranty). Full warranty details.
