Crown (Middleby) GCX-10-6-10 Steam Kettles
Description

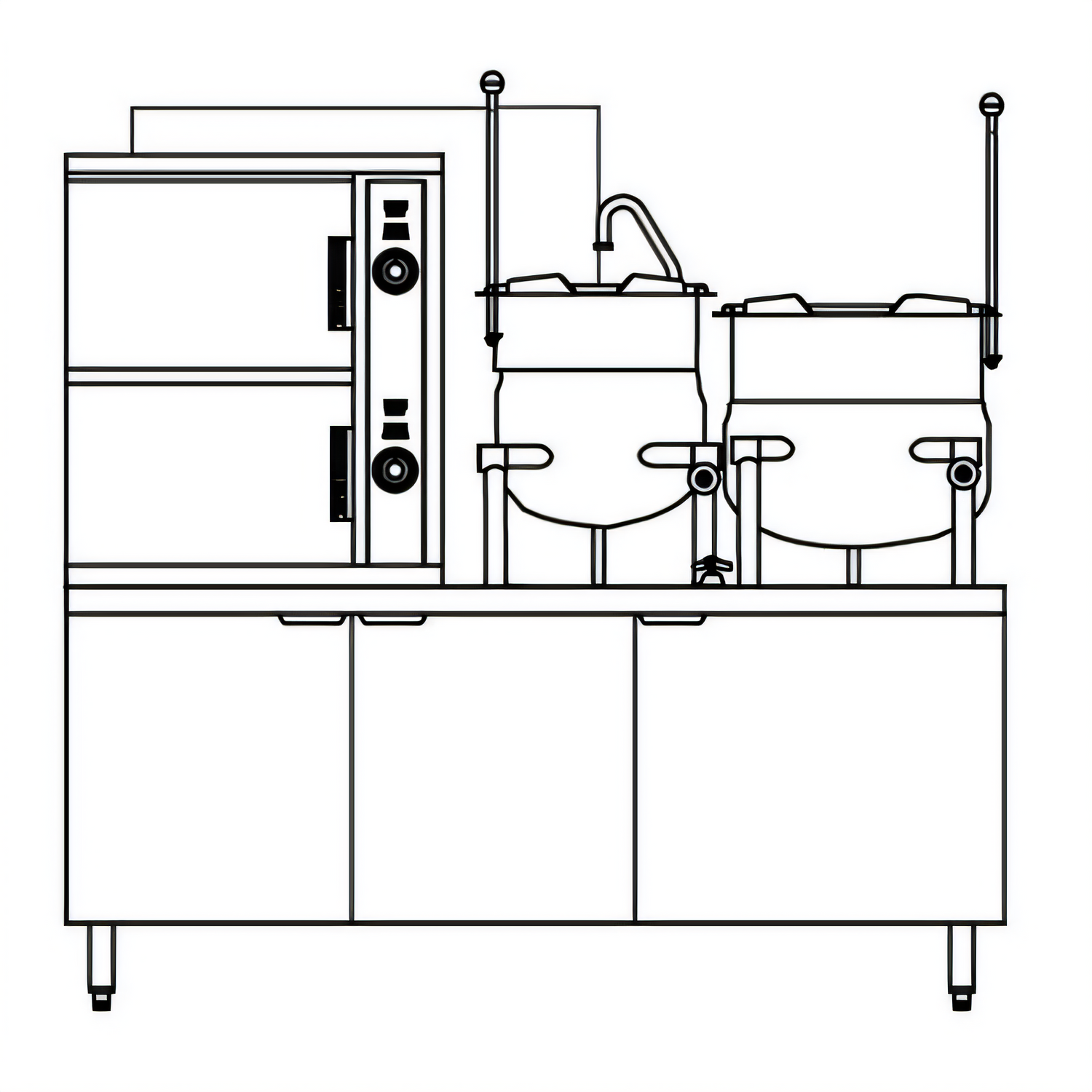

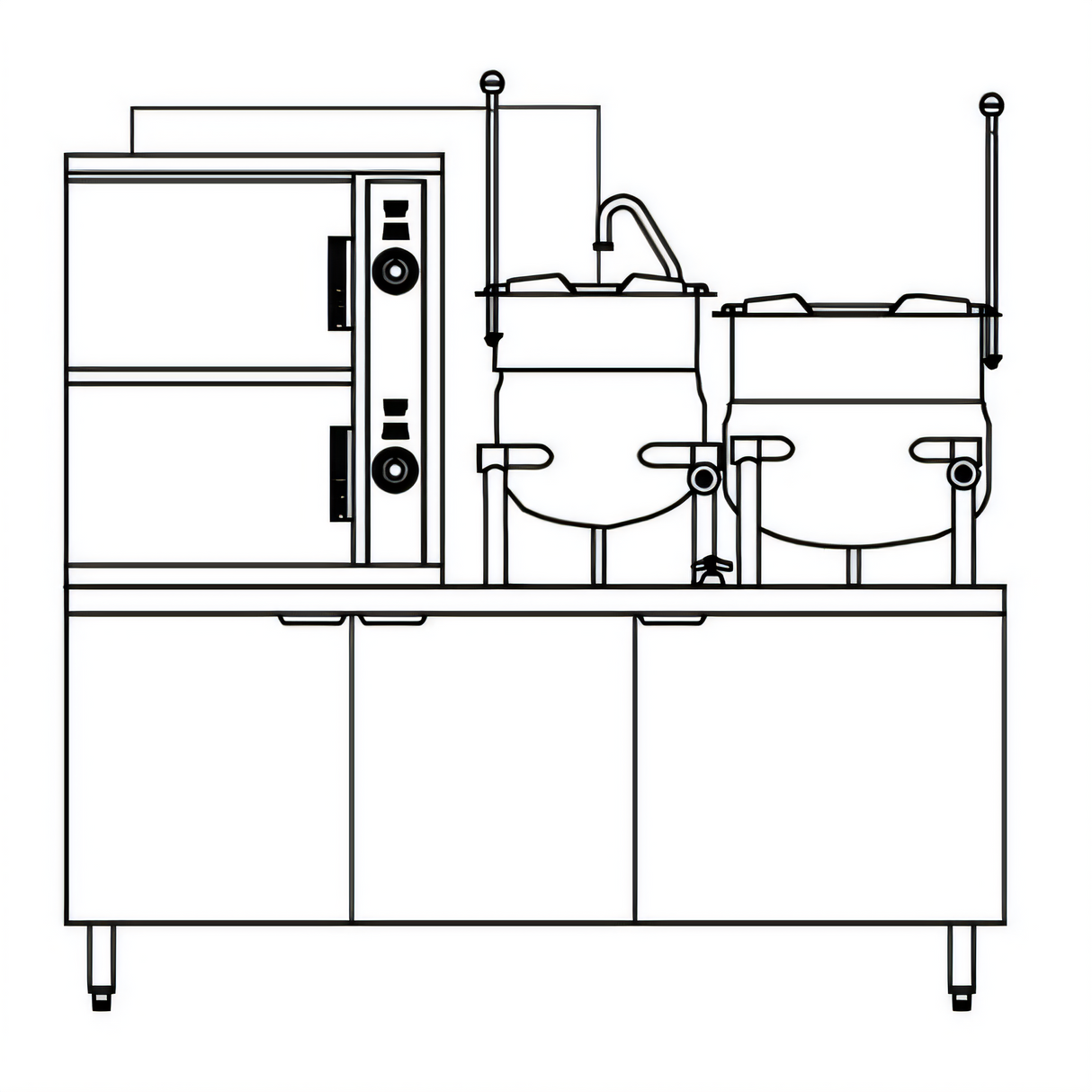

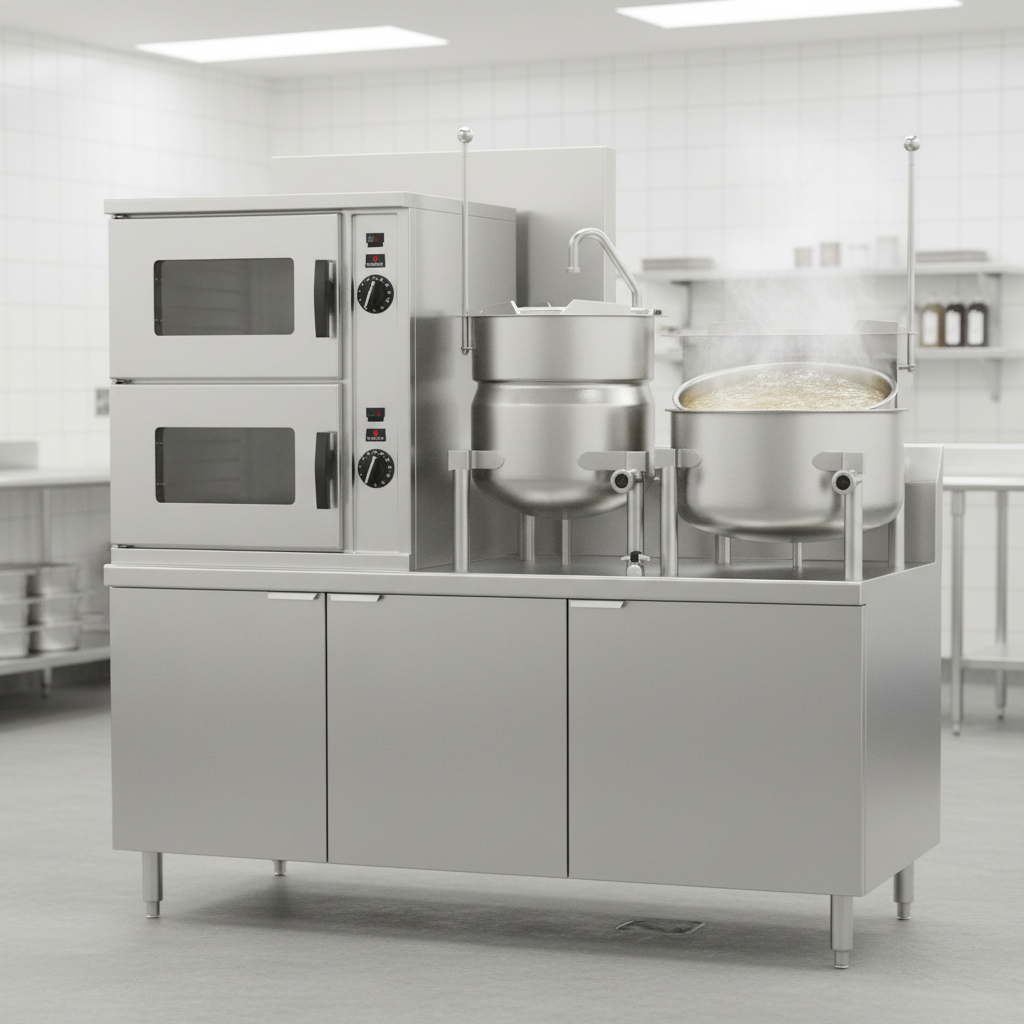

Crown GCX-2-6-10 Gas Convection Steamer / Kettle Station
Two-compartment steamer with 6 & 10 gal kettles on a 60 in. cabinet baseDo more in less space. The GCX-2-6-10 combines high-volume convection steaming with batch kettle cooking, giving chefs the versatility to prep entrées, sides and sauces all from one stainless-steel work station. Built-in water treatment, CSD-1 code controls and a rugged gas boiler mean dependable performance shift after shift.
Key advantages

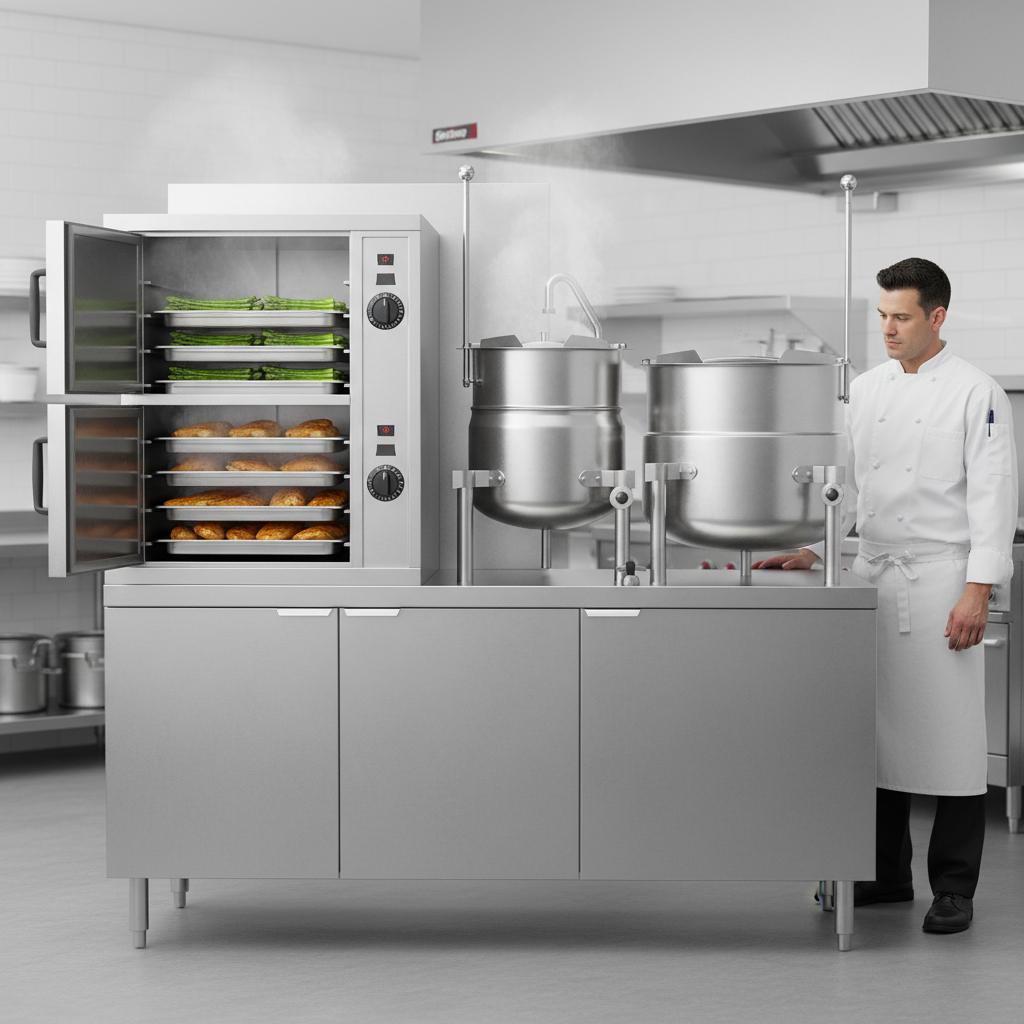

- 5 full-size (12 × 20 in.) pan capacity in each compartment for true high-volume output
- Integrated 6 gal & 10 gal tilting kettles share a 250,000 BTU/h gas-fired steam boiler (9–11 psi)
- 316 SS chamber liners, 304 SS exterior and removable pan supports for maximum corrosion resistance

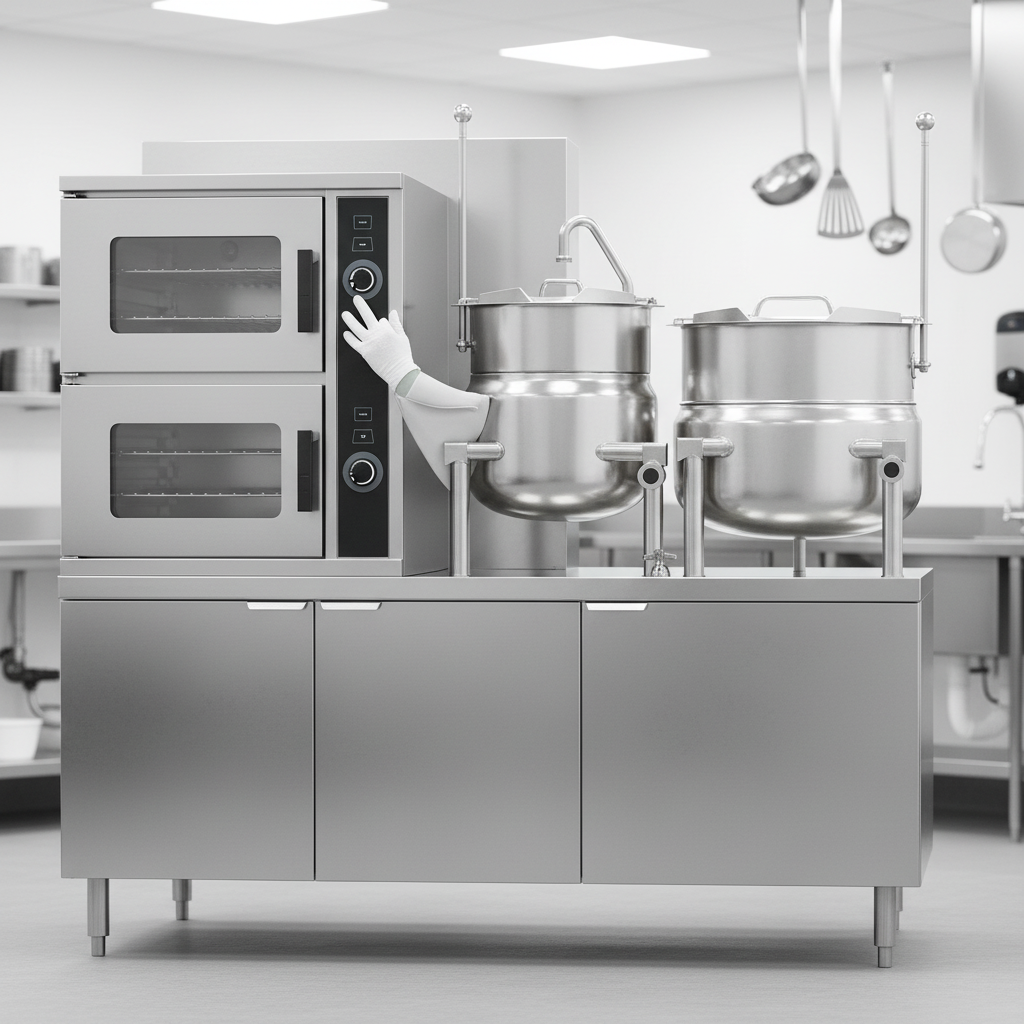

- Electronic ignition and automatic blow-down reduce daily maintenance
- Independent 60-minute timer, door interlock and audible “done” signal per compartment
- Deck-mount faucet, swing nozzle & integral sink keep filling and cleanup fast and sanitary
- Factory-installed water filter system, split water line and cathodic protector protect the boiler and extend life
- Meets CSD-1 with safety relief valve, high-limit pressure control & water-level monitoring
- Certified: CSA Flame, CSA Star & NSF
Integrated controls & safeguards
- Automatic water-level control with water gauge glass
- Operating pressure control (9-11 psi) & analog pressure gauge
- Safety high-limit pressure switch & spring-loaded relief valve
- Door interlock — shuts off steam whenever a door is opened
- Cathodic boiler protector combats internal corrosion
Specification overview
| Model | GCX-2-6-10 |
|---|---|
| Power source | Natural or LP gas, 250,000 BTU/h |
| Boiler operating pressure | 9 – 11 psi (62 – 76 kPa) |
| Compartments | 2 independent convection steam chambers |
| Pan capacity | 5 full-size pans per compartment |
| Kettle sizes | 1 × 6 gal (22.7 L) & 1 × 10 gal (37.9 L) |
| Cabinet width | 59.5 in. (1,511 mm) |
| Construction | 304 SS exterior & frame, 316 SS liners |
| Legs / feet | 6 in. stainless legs with adjustable flanged feet |
| Electrical requirements | 115 V, 1 ph, 50/60 Hz, 2 A per compartment |
| Gas connection | ¾ in. NPT |
| Water connections | ½ in. NPT boiler feed & ⅜ in. O.D. hot/cold for faucet |
| Shipping weight | ≈ 1,030 lb (467 kg) |
Standard warranty: 1 year parts & labour • 10 year kettle hemisphere • 2 year prorated boiler shell.
See full Crown Steam Group warranty for details.
