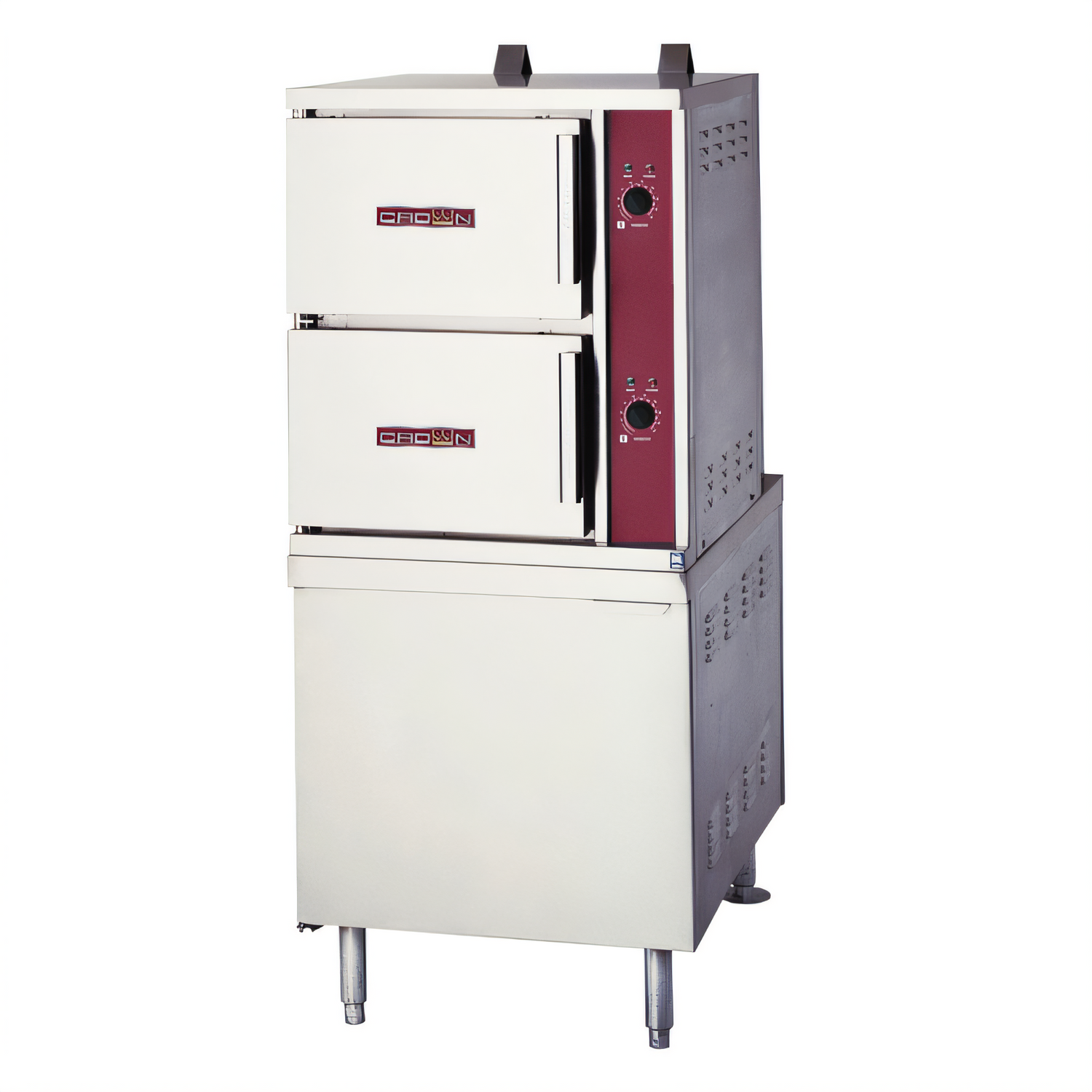

Crown GCX-10-36 Two-Compartment Gas Convection Steamer with 36-Inch Cabinet Base

SKU: GCX-10-36
$54,681.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steamer Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Crown GCX-10-36 Two-Compartment Gas Convection Steamer with 36-Inch Cabinet Base

Five Full-Size Pan Capacity Per Compartment, Natural Gas, Standard Depth

Engineered for high-volume steaming, the Crown GCX-10-36 offers exceptional cooking performance and durability with a robust gas-fired boiler system.

  • Two independently controlled cooking compartments for versatile operation.
  • Accommodates up to five 12"x20" full-size pans (2-1/2" deep) per compartment.
  • Efficient gas-fired steam boiler with electronic ignition and automatic blowdown.
  • Durable 304 stainless steel exterior and 316 stainless steel cooking chambers.
  • Integrated water treatment system and CSD-1 boiler controls ensure optimal performance and longevity.
  • Mounted on a sturdy 36-inch cabinet base with 6" stainless steel legs and adjustable flanged feet.

Overall Dimensions:

36.0"W x 33.0"D x 68.5"H

Product Weight:

840.0 lb

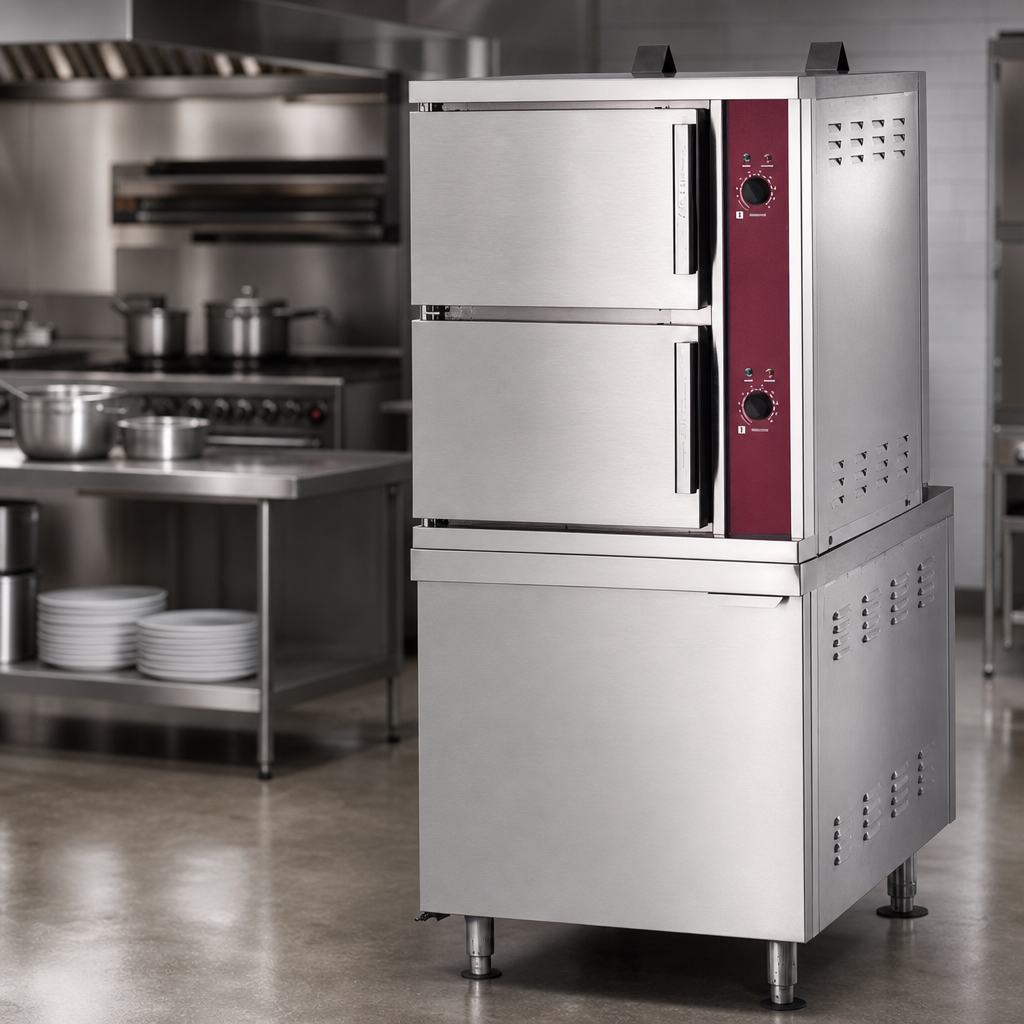

Durable Stainless Steel Construction

Features a 304 stainless steel exterior with a #4 finish and all-welded type 316 stainless steel cooking chambers, ensuring longevity and ease of cleaning.

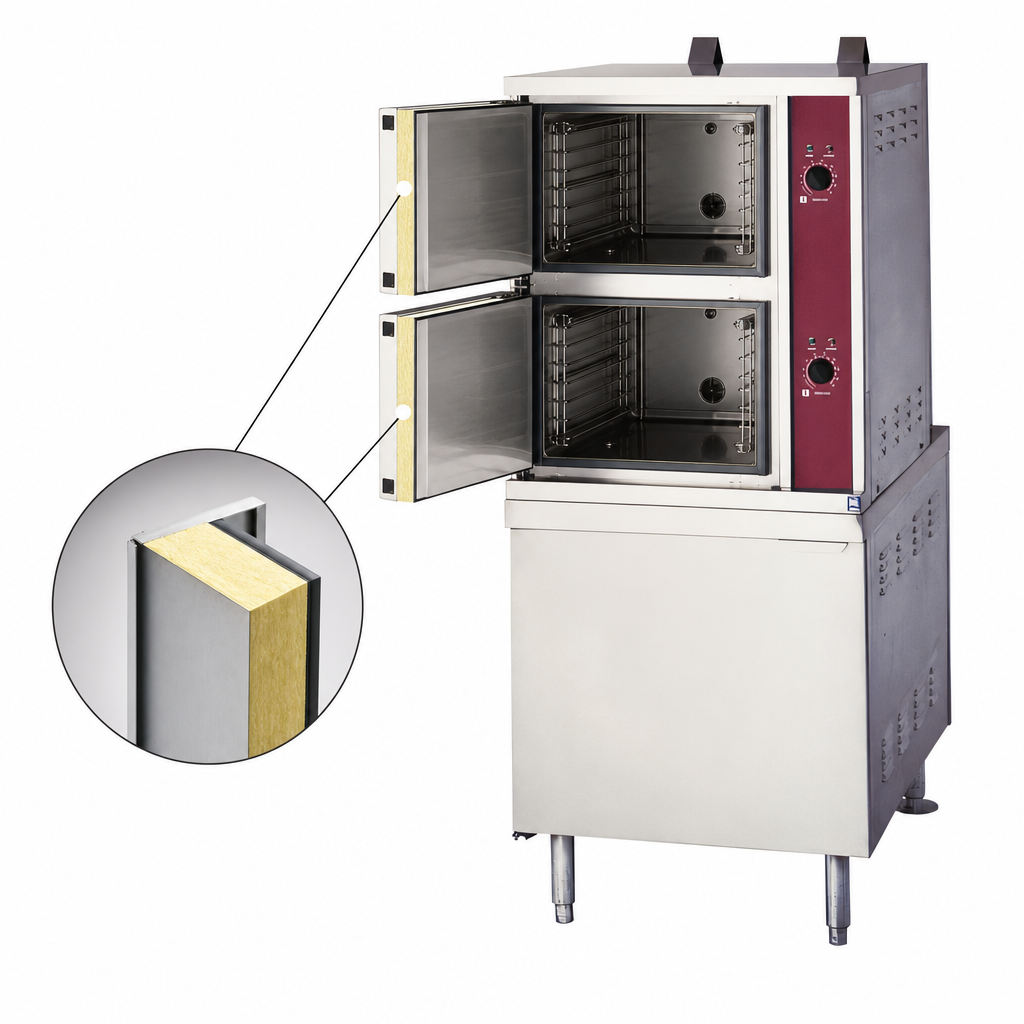

Insulated Cooking Chambers

Each cooking chamber is fully insulated to maintain consistent temperatures and improve energy efficiency.

High Capacity Doors

Equipped with doors featuring removable stainless steel inner liners, full-perimeter gasket seals, one-piece all-welded outer shells, and positive lock and seal mechanisms. A stainless steel drip trough collects condensation.

Intuitive Controls

Each compartment includes a 60-minute mechanical timer with ready pilot and cooking pilot lights, and an audible signal at the end of the cooking cycle for precise cooking management.

Safety and Efficiency Features

Steam flow to the chamber is automatically interrupted when the compartment door is opened, and reactivated when closed, enhancing safety and energy efficiency.

Advanced Boiler Management

Standard boiler controls include automatic water level control, pressure gauge, water gauge glass, operating pressure control, safety high-limit pressure control, safety relief valve, and a cathodic protector.

Integrated Water Treatment

Comes standard with a water treatment system and split water line, which is crucial for maintaining boiler health and validating warranty coverage.

Sturdy Cabinet Base

Mounted on a cabinet base with a full perimeter angle frame, reinforced counter, boiler mountings, all stainless steel exterior, and hinged door(s) with magnetic latches for convenient storage.

Type Convection Steamer
Style Boiler-Based
Installation Type Floor Model (With Cabinet Base)
Compartments 2
Pan Capacity 5 Full-Size Pans Per Compartment (2-1/2" deep)
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel Exterior
BTU 250,000 BTU/Hr
Gas Type Natural Gas
Gas Connection Size 3/4" IPS
Natural Gas Inlet Pressure 7" - 14" W.C.
Propane Gas Inlet Pressure 11" - 14" W.C.
Electrical Connection 1/2" Conduit
Voltage 115 Volts
Amps 4 Amps (2 Amps per compartment)
Hertz 60 Hz
Phase 1-Phase
Water Connection Required
Water Inlet Size 1/2" NPT (Boiler Feed), 1/2" NPT (Condensate Cold Water)
Boiler Feed Water Pressure 25-50 PSI
Condensate Cold Water Pressure 25-50 PSI
Drain Connection Required
Drain Connection Size 2" IPS
Controls Mechanical Timer (60 Minute)
Boiler Pressure 9-11 PSI
Selling Unit Each
Units Per Case 1
Country of Origin Canada
Minimum Side Clearance 3 Inches
Minimum Back Clearance 6 Inches
Shipping Width 36 Inches
Shipping Depth 33 Inches
Shipping Height 69 Inches
Shipping Weight 840 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Standard warranty applies, with specific conditions regarding water quality and installation.

Documents

PDF Cutsheet PDF Download PDF Installation & operation manual PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The Crown GCX-10-36 is configured for Natural Gas operation but can be converted to Propane. Please refer to the specifications for gas inlet pressures for both types.
This unit requires a 115 Volt, 1-Phase, 60 Hz electrical connection, drawing 2 Amps per compartment for a total of 4 Amps. An optional 220 VAC configuration is available.
Each of the two compartments can accommodate five 12"x20"x2-1/2" deep full-size steam table pans.
Yes, the GCX-10-36 comes standard with an integrated water treatment system and a split water line to ensure optimal water quality for boiler performance and warranty validation.
Water supply must adhere to specific guidelines: Total dissolved solids less than 60 PPM, Total alkalinity less than 20 PPM, Silica less than 13 PPM, Chlorine less than 1.5 PPM, and a pH Factor between 6.8 - 7.3. Failure due to poor water quality is not covered under warranty.
Yes, the Crown GCX-10-36 is ASME code stamped and National Board registered, as well as NSF, CSA Star, CSA Flame, AGA, and CGA certified, ensuring it meets high industry standards.
