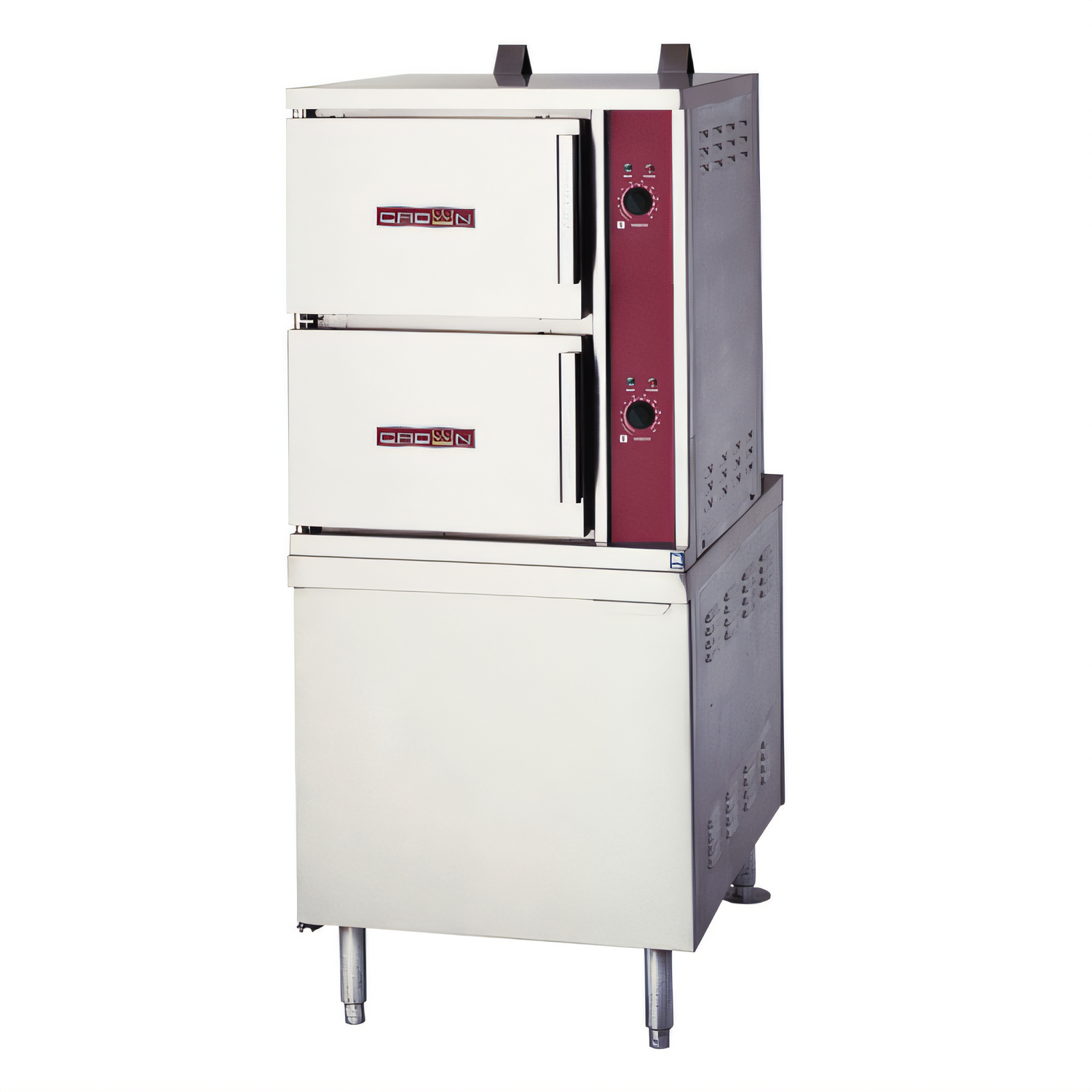

Crown GCX-10-24 Two-Compartment Full-Size Gas Convection Steamer

SKU: GCX-10-24
$38,953.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Steamer Cooking Equipment Cooking Equipment Crown (Middleby) New Arrivals Restaurant Equipment Steam Cooking Equipment Steam Cooking Equipment Steamers (Countertop & Floor)

Crown GCX-10-24 Two-Compartment Full-Size Gas Convection Steamer

Full-Size, Natural Gas or Propane, Two Compartments, 24-inch Cabinet Base

Achieve consistent, high-volume steaming performance with the Crown GCX-10-24, a robust gas-fired convection steamer engineered for demanding commercial kitchens.

  • Equipped with two cooking compartments, each accommodating five 12" x 20" x 2-1/2" deep pans for a total capacity of ten full-size pans.
  • Features a powerful 200,000 BTU gas-fired steam boiler with electronic ignition and advanced CSD-1 boiler controls for reliable operation.
  • Constructed with a durable 304 stainless steel exterior and corrosion-resistant 316 stainless steel cooking chambers for longevity.
  • Integrated water treatment system, automatic blowdown, and split water line ensure optimal boiler performance and reduced maintenance.
  • Individual 60-minute mechanical timers per compartment provide precise cooking control and an audible signal upon cycle completion.
  • Designed as a floor model with a 24-inch cabinet base, 6-inch stainless steel legs, and adjustable flanged feet for secure installation.

Overall Dimensions:

24.0"W x 33.0"D x 68.5"H

Product Weight:

670.0 lb

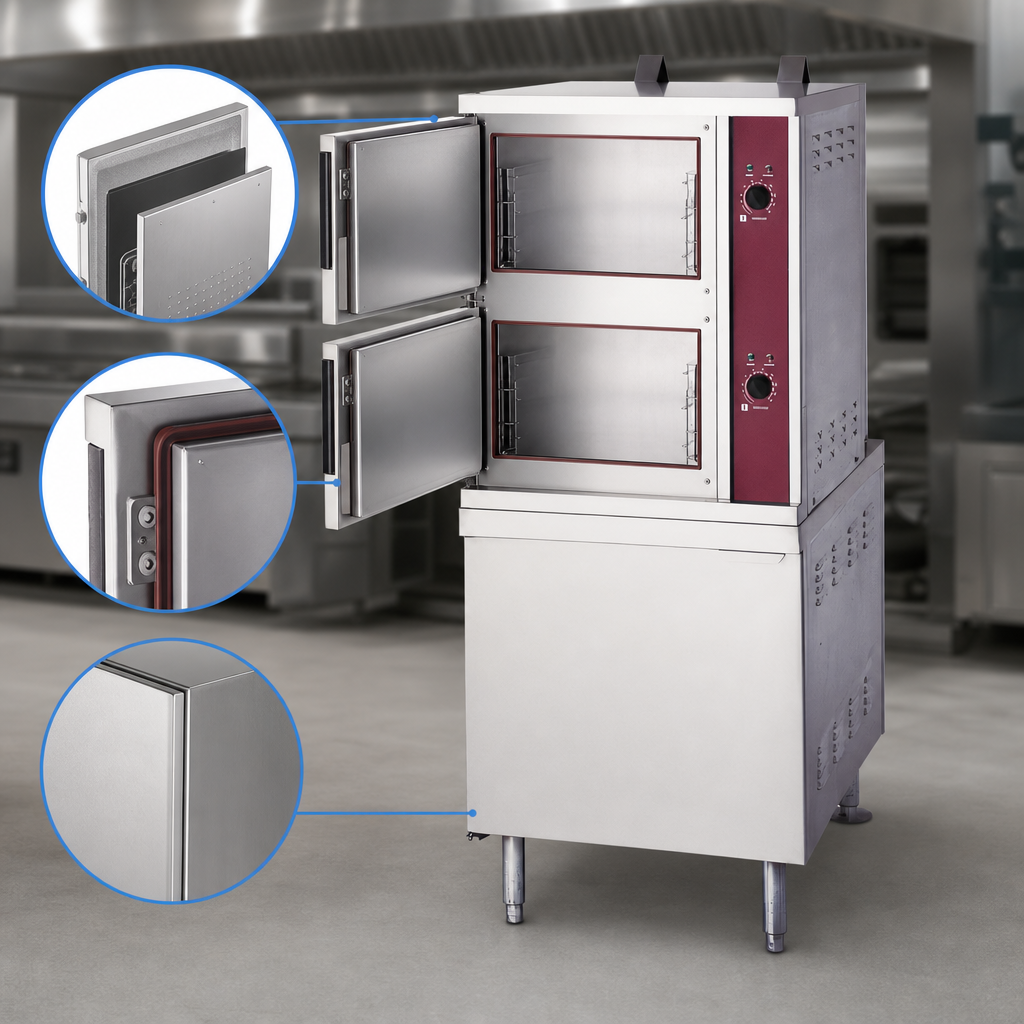

Heavy-Duty Door Construction

Doors feature a removable inner liner of stainless steel, a full-perimeter gasket seal, and a one-piece all-welded stainless steel outer shell, ensuring excellent heat retention and durability.

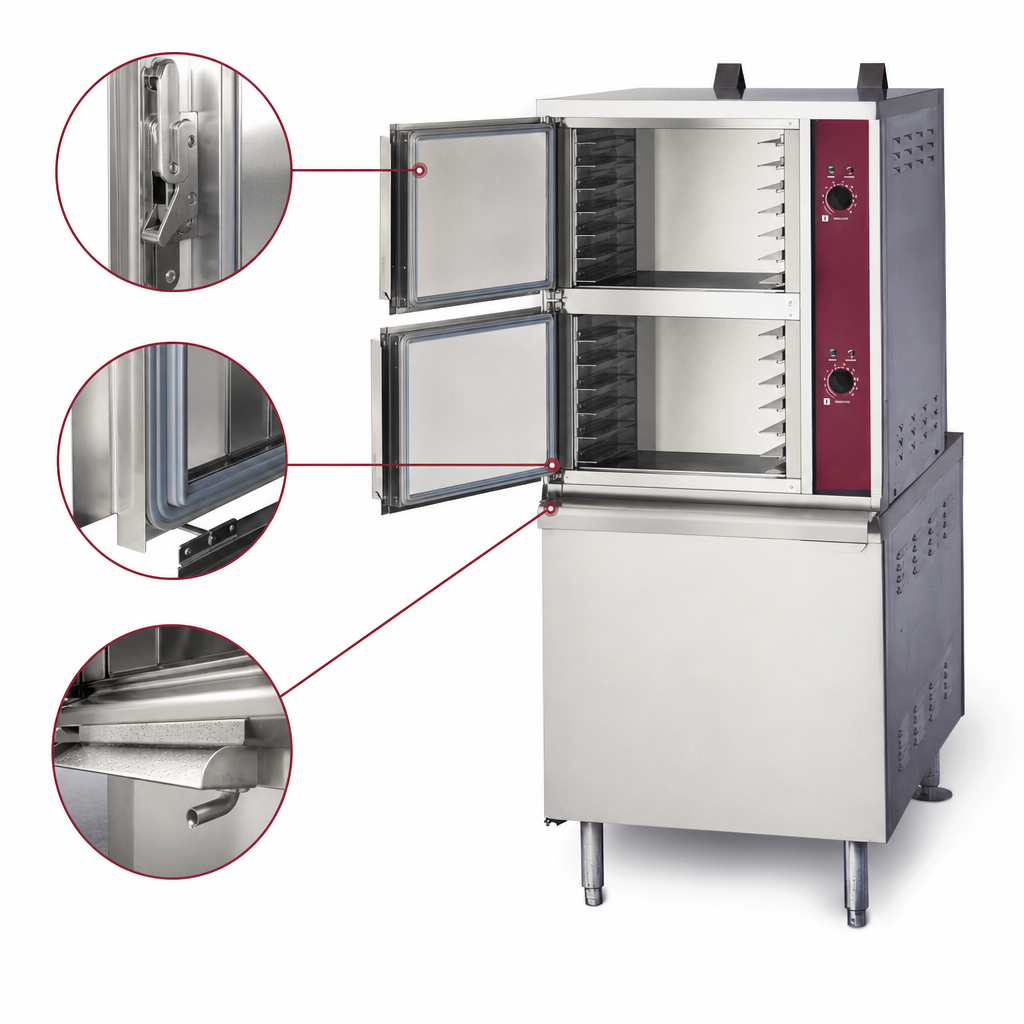

Positive Lock and Seal Mechanism

Each door is equipped with a positive lock and seal mechanism, along with a stainless steel drip trough connected to a drain to collect condensation when doors are opened.

High-Quality Cooking Chambers

Cooking chambers are constructed from all-welded Type 316 stainless steel, fully insulated, and include removable stainless steel pan supports for easy cleaning.

Advanced Boiler Controls

Standard boiler controls include automatic water level control, pressure gauge, water gauge glass, operating pressure control, safety high-limit pressure control, safety relief valve, and a cathodic protector for enhanced safety and boiler lifespan.

Integrated Water Management System

Comes standard with a split water line, electronic ignition, automatic blowdown, and a water treatment system, critical for maintaining water quality and preventing issues.

User-Friendly Controls

Each compartment is equipped with a 60-minute mechanical timer, a ready pilot light, a cooking pilot light, and an audible signal that sounds at the end of the cooking cycle.

Safety Steam Interruption

Steam flow to the chamber is automatically interrupted when the compartment door is opened during the cooking cycle and reactivated when the door is closed, enhancing user safety.

Sturdy Cabinet Base

Mounted on a cabinet base with a full perimeter angle frame, reinforced counter and boiler mountings, an all stainless steel exterior, hinged door(s) with magnetic latch, and 6-inch stainless steel legs with adjustable flanged feet for securing the unit to the floor.

Type Convection Steamer
Style Boiler-Based
Installation Type Floor Model (With Cabinet Base)
Compartments 2
Pan Capacity 5 Full-Size Pans Per Compartment
Pan Size 12" x 20" x 2-1/2" deep
Interior Finish 316 Stainless Steel
Material 304 Stainless Steel Exterior
BTU 200,000 BTU
Gas Type Natural Gas or Propane
Gas Connection Size 3/4" IPS
Gas Inlet Pressure (Natural Gas) 7" - 14" W.C.
Gas Inlet Pressure (Propane) 11" - 14" W.C.
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4 Amps
Water Inlet Size 1/2" NPT
Water Connection Required
Drain Connection Size 2" IPS
Drain Connection Required
Controls 60 Minute Mechanical Timer
Cabinet Width 24 Inches
Shipping Width 24 Inches
Shipping Depth 33 Inches
Shipping Height 69 Inches
Shipping Weight 670 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

Warranty coverage is dependent on proper installation and ongoing water treatment system maintenance.

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Crown steam group letter PDF Download PDF Installation & operation manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The steamer requires a 120 VAC, 1-phase, 60 Hz electrical connection, drawing 2 Amps per compartment, for a total of 4 Amps. An optional 220 VAC, 1-phase, 50/60 Hz operation is also available as a configuration.
The Crown GCX-10-24 includes a comprehensive water treatment system. Proof of its installation and proper cartridge replacement is required for warranty coverage. Water quality must meet specific guidelines (e.g., Total dissolved solids less than 60 PPM, pH Factor 6.8 - 7.3) to avoid warranty voidance due to poor water quality.
The steamer requires a 3/4" IPS gas supply line. For natural gas, the water column pressure should be between 7" and 14" W.C., and for propane, it should be between 11" and 14" W.C.
Each of the two cooking compartments can hold five 12" x 20" x 2-1/2" deep full-size steam table pans, providing a total capacity of ten pans for the unit.
Yes, the steam flow to the cooking chamber is automatically interrupted when a compartment door is opened during the cooking cycle and reactivated once the door is closed, enhancing safety and energy efficiency.
