Crown (Middleby) GCX-10-10 Steam Kettles
Description

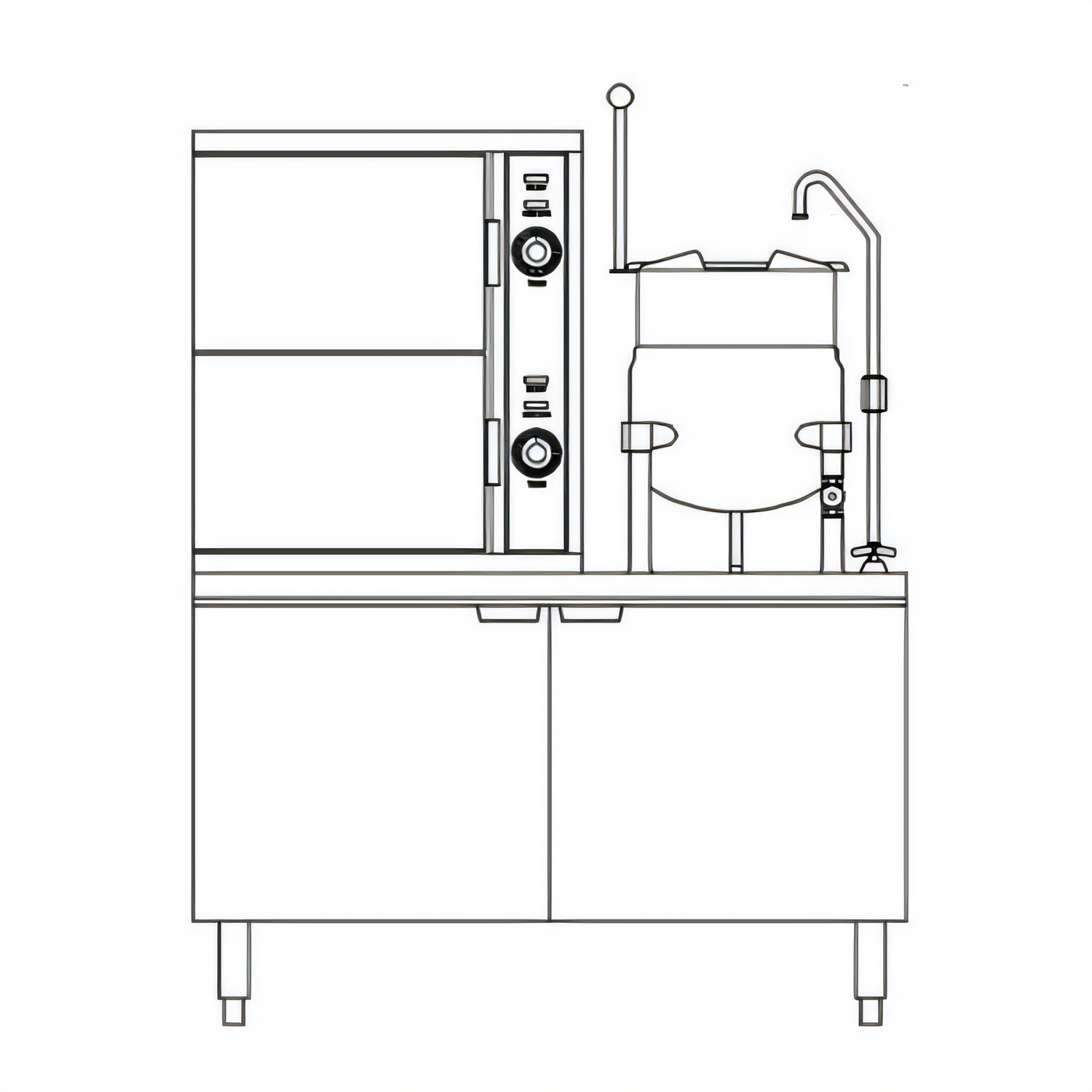

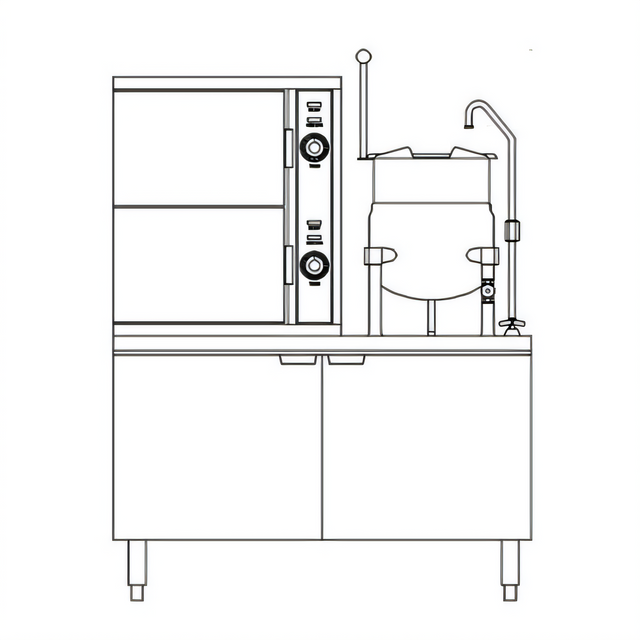

GCX-2-10 Gas Convection Steamer & 10-Gallon Kettle Suite
Two 5-pan compartments • 48" cabinet base • Crown Steam (Middleby)Give your kitchen the speed of convection steam and the versatility of a large kettle in one space-saving footprint. The Crown GCX-2-10 couples two independently controlled steamer compartments with a 10 gallon kettle, all powered by a high-efficiency 250,000 BTU gas-fired steam boiler that meets CSD-1. From delicate greens to starches, proteins and small-batch soups, you can handle peak-hour production without juggling burners or stock pots.
Why chefs choose the GCX-2-10
- Dual convection chambers hold up to five 12" × 20" × 2½" pans each for simultaneous, even steaming at 9-11 psi.
- Integrated 10 gal kettle built from 316 SS lets you cook or retherm sauces, chowders and broths while the steamer runs.
- Electronic ignition & automatic blowdown slash start-up time and simplify end-of-day maintenance.
- Factory-supplied water treatment system and split water line protect the boiler and preserve warranty coverage.
- Rugged all-welded 316 SS interiors & 304 SS exterior resist corrosion and wipe clean quickly.
- 60-minute mechanical timer, ready/cook lights and an audible buzzer on each compartment for precise batch control.
- Heavy-duty doors with full-perimeter gasket, positive lock and condensate trough keep hot steam in and floors dry.
- Deck-mount faucet valve, swing nozzle & integral sink make filling, rinsing and cleanup fast and ergonomic.
- Mounted on 6" stainless legs with adjustable flanged feet for secure, code-compliant floor anchoring.
- Certified CSA Flame, CSA Star & NSF; ASME-code boiler with National Board registration.
Quick-specs
| Steamer Compartments | 2 (independent) |
|---|---|
| Pan Capacity (per cavity) | 5 × 12 × 20 × 2½" pans Other depths: 6 pans @ 1", 2 pans @ 4", 1 pan @ 6" |
| Kettle Capacity | 10 US gallons (38 L) |
| Boiler Input | 250,000 BTU/h (73.3 kW) |
| Gas Connection | ¾" NPT – Natural 7-14" WC • LP 11-14" WC |
| Electrical | 120 V / 1 ph / 50-60 Hz – 2 A per compartment |
| Water Connections | ½" NPT boiler feed • ⅜" O.D. hot water • includes water filter |
| Drain | 2" IPS to open floor drain |
| Overall Footprint | 48" cabinet base with 6" legs & flanged feet |
• Total dissolved solids < 60 ppm • Total alkalinity < 20 ppm • Silica < 13 ppm • Chlorine < 1.5 ppm • pH 6.8 – 7.3
What’s in the box
- GCX-2-10 steamer/kettle cabinet with faucet, swing nozzle & sink
- Factory-installed water filter system & cartridges
- Removable stainless pan racks & kettle lid
- Owner’s manual & warranty registration
Warranty
1-year parts & labor on the complete unit • 10-year limited hemisphere warranty on the kettle shell • 2-year prorated warranty on the boiler shell
