Crown (Middleby) GCTS-16 Braising Pans & Tilt Skillets
Description

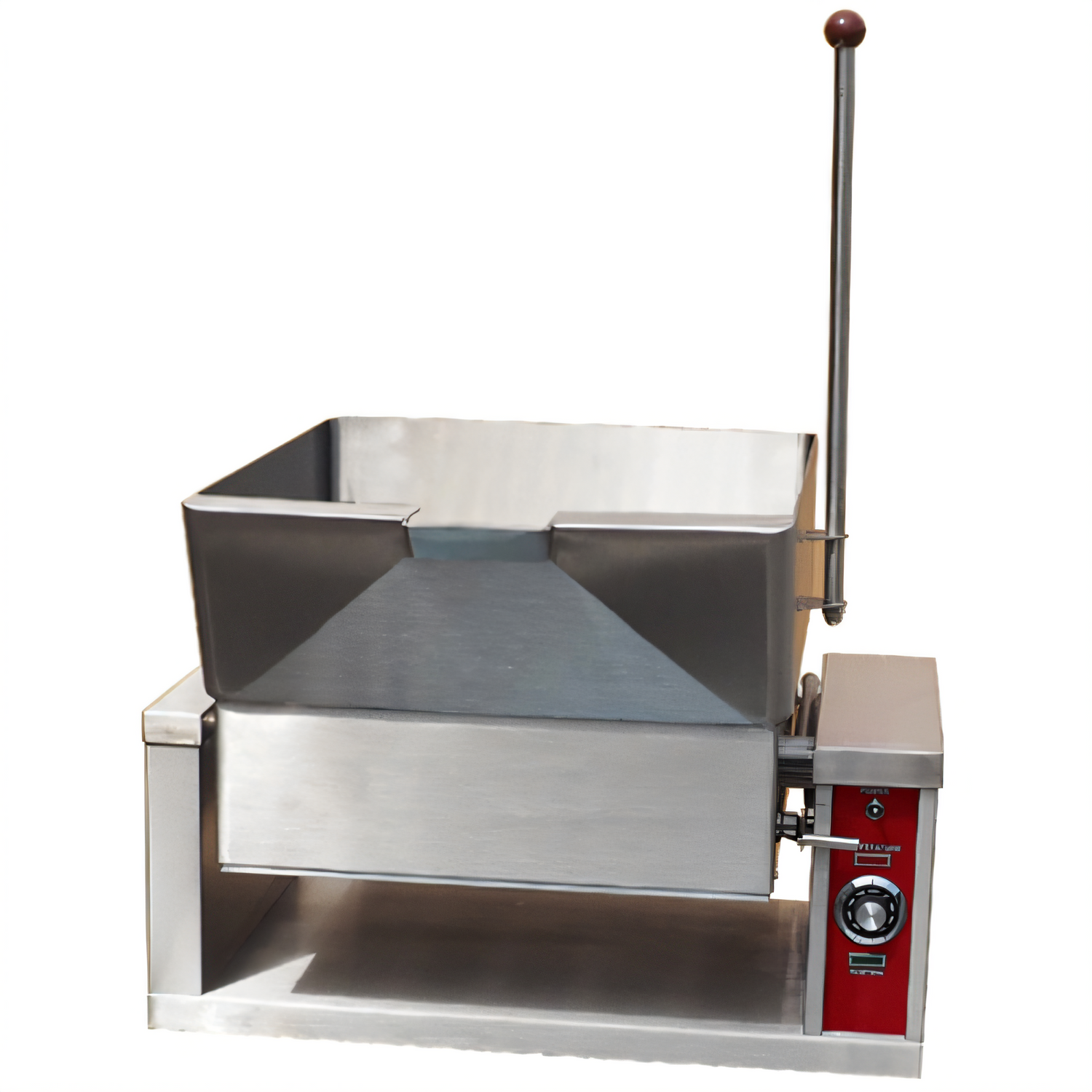

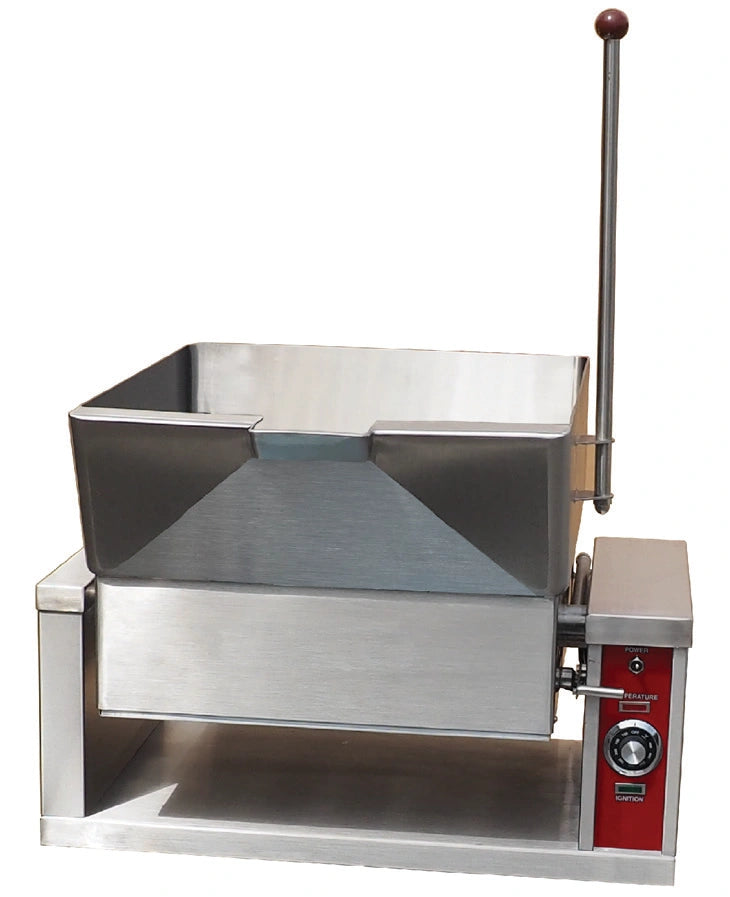

Crown GCTS-16 Countertop Gas Tilting Skillet
16 gal / 61 L • 63,000 BTU • Manual Tilt • 316 SS ConstructionThe Crown GCTS-16 is a heavy-duty, gas-fired tilting skillet engineered to handle almost any high-volume cooking task—braising, sautéing, pan-frying, simmering, holding and more—all from a compact countertop footprint. Its 316 stainless steel pan, triple-ply cooking surface and precision thermostat deliver even, consistent heat, while the smooth manual tilt and integrated safety features keep your kitchen running safely and efficiently.
Why You’ll Love It

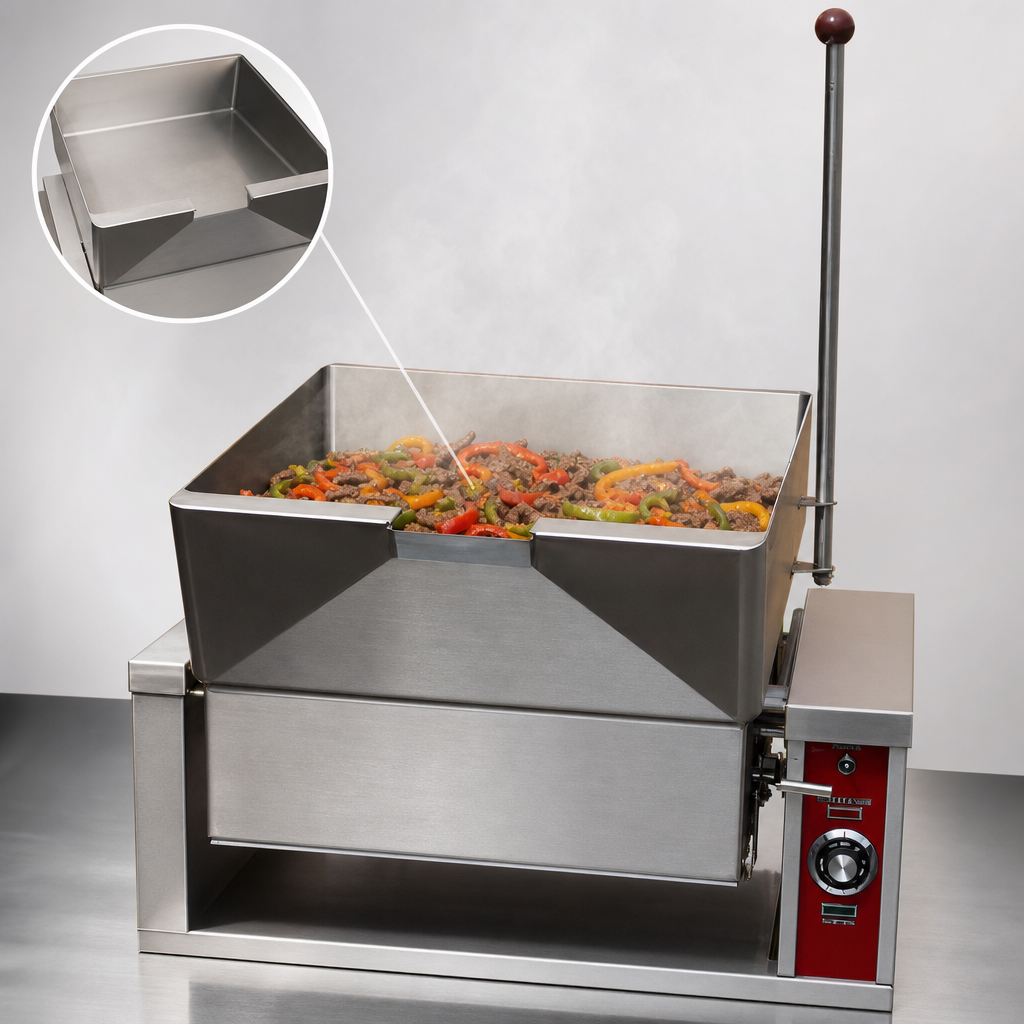

- True 16 gal (61 L) capacity – ideal for schools, healthcare, caterers & commissaries.
- Fast, even heat – ¾" triple-ply clad bottom with ⅜" aluminum core eliminates hot spots.
- Rugged 316 SS pan – 10-gauge, one-piece with coved corners for effortless cleaning.

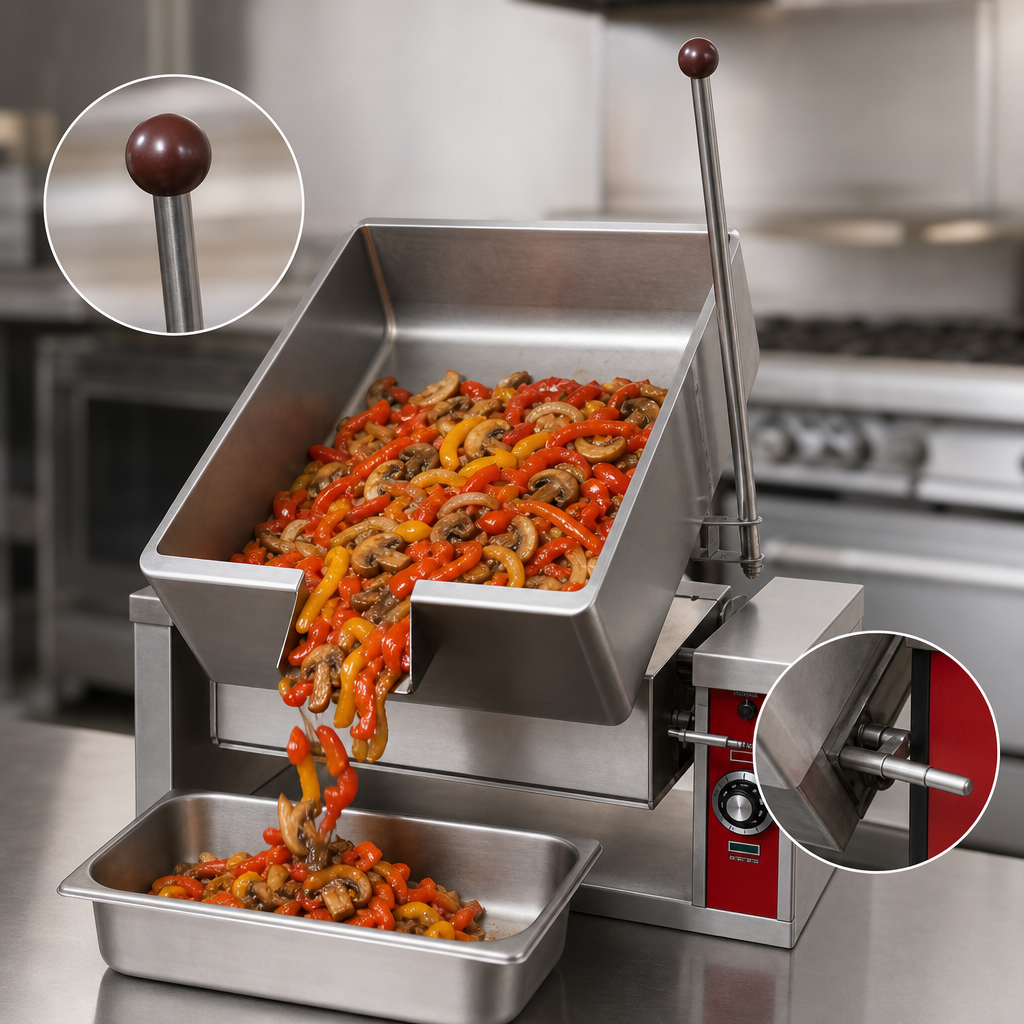

- Manual easy-glide tilt – heat-proof handle, damper-controlled movement & side pivots in sealed stainless consoles.
- Tilt interlock & auto burner shut-off – prevents accidental spills and protects components.
- Solid-state thermostat – 100 °F–450 °F (38 °C–232 °C) with indicator & electronic spark ignition.
- Built-in safety – high-limit temperature cut-off and redundant safety thermostat.
- Low-maintenance design – polished interior, optional etched gallon/litre marks, no exposed burner parts when tilted.
- Certified & compliant – CSA Star, CSA Flame and NSF listed for commercial kitchens.
Technical Specifications
| Model | Crown GCTS-16 |
|---|---|
| Capacity | 16 gal / 61 L |
| Heat Source | Natural or LP gas – 63,000 BTU (18.5 kW) total |
| Electrical | 115 VAC, 1 ph, 50/60 Hz, 2 A (8 ft cord & 3-prong plug) |
| Thermostat Range | 100 °F – 450 °F (38 °C – 232 °C) |
| Cooking Surface | ¾" triple-ply with ⅜" aluminum core |
| Pan Material | 10-ga 316 stainless steel, polished interior |
| Tilt Mechanism | Manual, side-mount pivots with damper & interlock |
| Gas Connection | ¾" NPT, min. supply 3.5" WC (Nat) / 11" WC (LP) |
| Clearances* | Sides 3" (76 mm) • Back 8" (203 mm) |
| Shipping Weight | 290 lb (132 kg) countertop unit 360 lb (164 kg) with optional SD-30-16S stand |
| Certifications | CSA Star & Flame, NSF |
*Install on non-combustible surfaces only.
Factory Options & Accessories
- 18" stainless SD-30-16S floor stand with sliding drain pan
- Etched litre/gallon markings
- Single or double pantry faucets (12" swing spout)
- Rinse spray heads (single or double, 68" hose)
- One-piece lift-off stainless cover
- Steam pan or pour-lip strainer inserts
- Correctional package & faucet brackets
Utility Requirements
- 120 V, single-phase receptacle (2 A) – 220 V option available
- ¾" NPT gas line
- Cold & hot water stubs (⅜" O.D.) for optional faucets
