Crown (Middleby) | SKU:
GC-12
Crown (Middleby) GC-12 Steam Kettles
$21,359.50
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Crown (Middleby) GC-12 Steam Kettles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Crown (Middleby) GC-12 Steam Kettles
$21,359.50
Unit price
/
Unavailable
Description

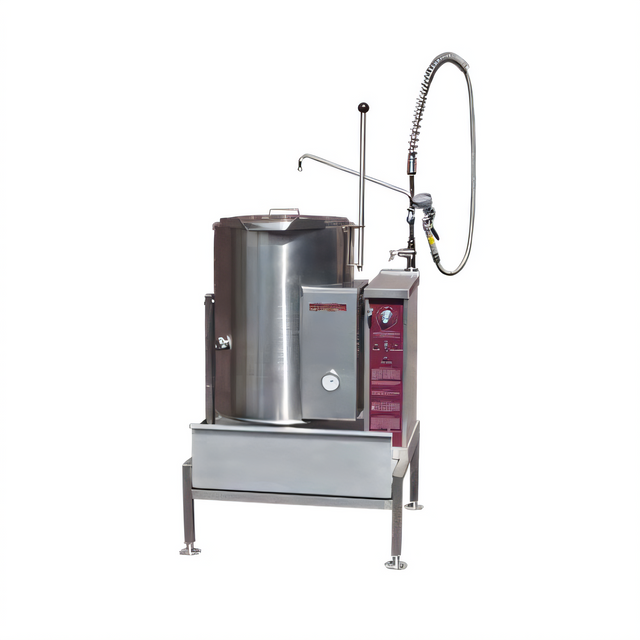

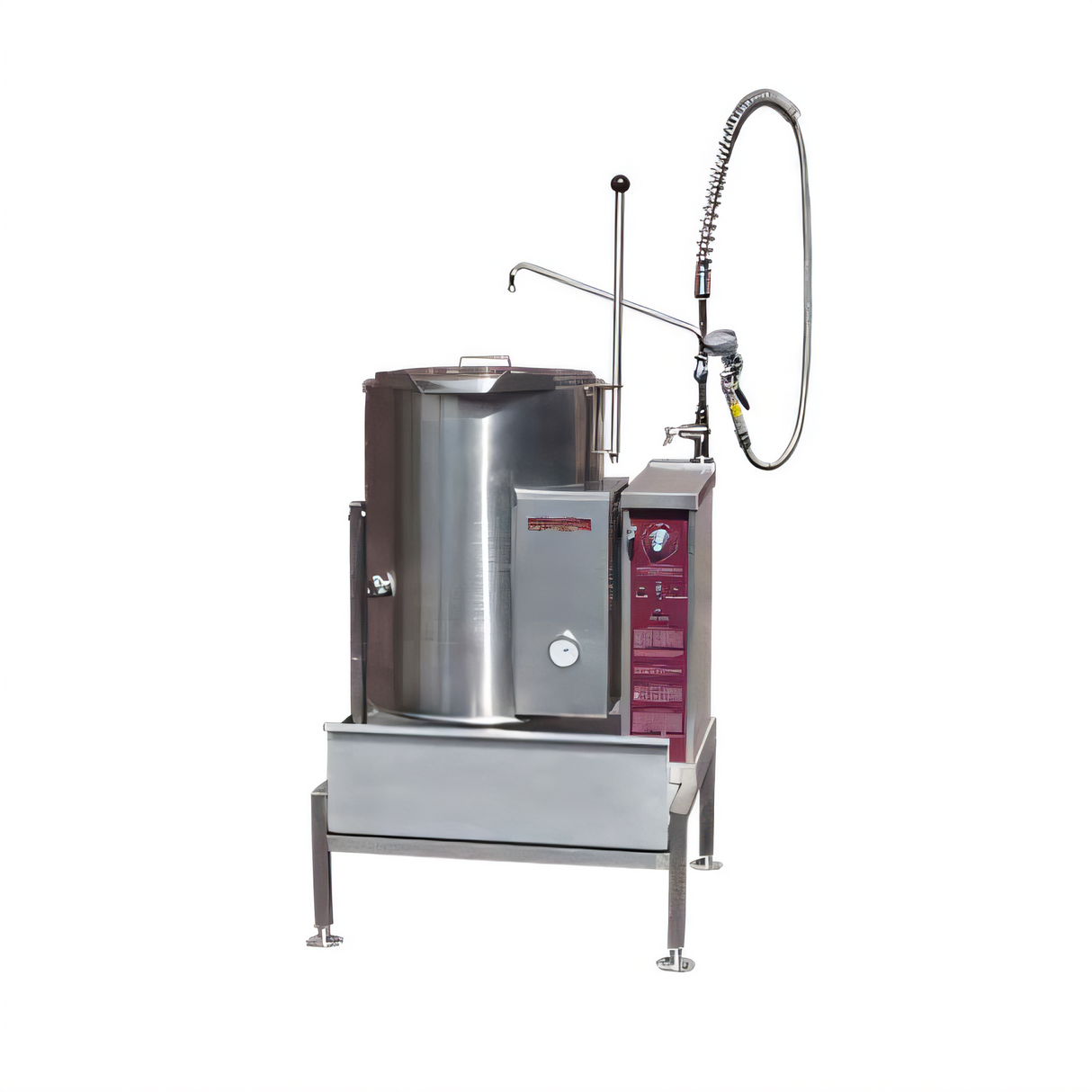

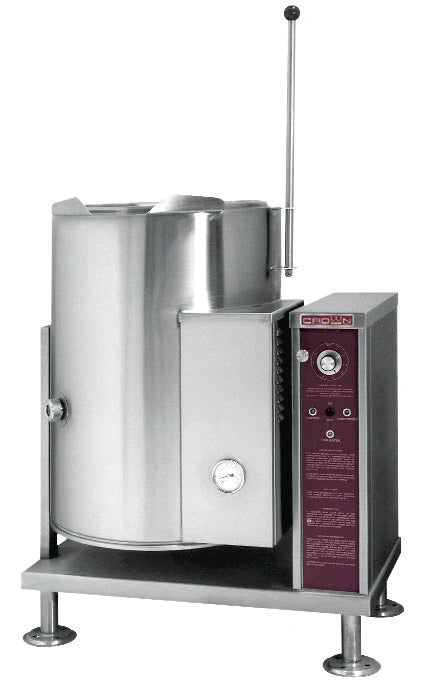

Crown GC-12 | 12-Gallon Gas Counter Tilting Kettle
High-pressure 2/3-jacket kettle with 316 SS linerBoost batch production, cut cook times and simplify clean-up with the Crown GC-12. This self-contained gas tilting kettle generates its own steam, giving you 50 PSI of even, high-temperature power—no external boiler required.
Key Benefits
- 12 gal (46 L) capacity—perfect for soups, sauces, chowders, pasta and more.

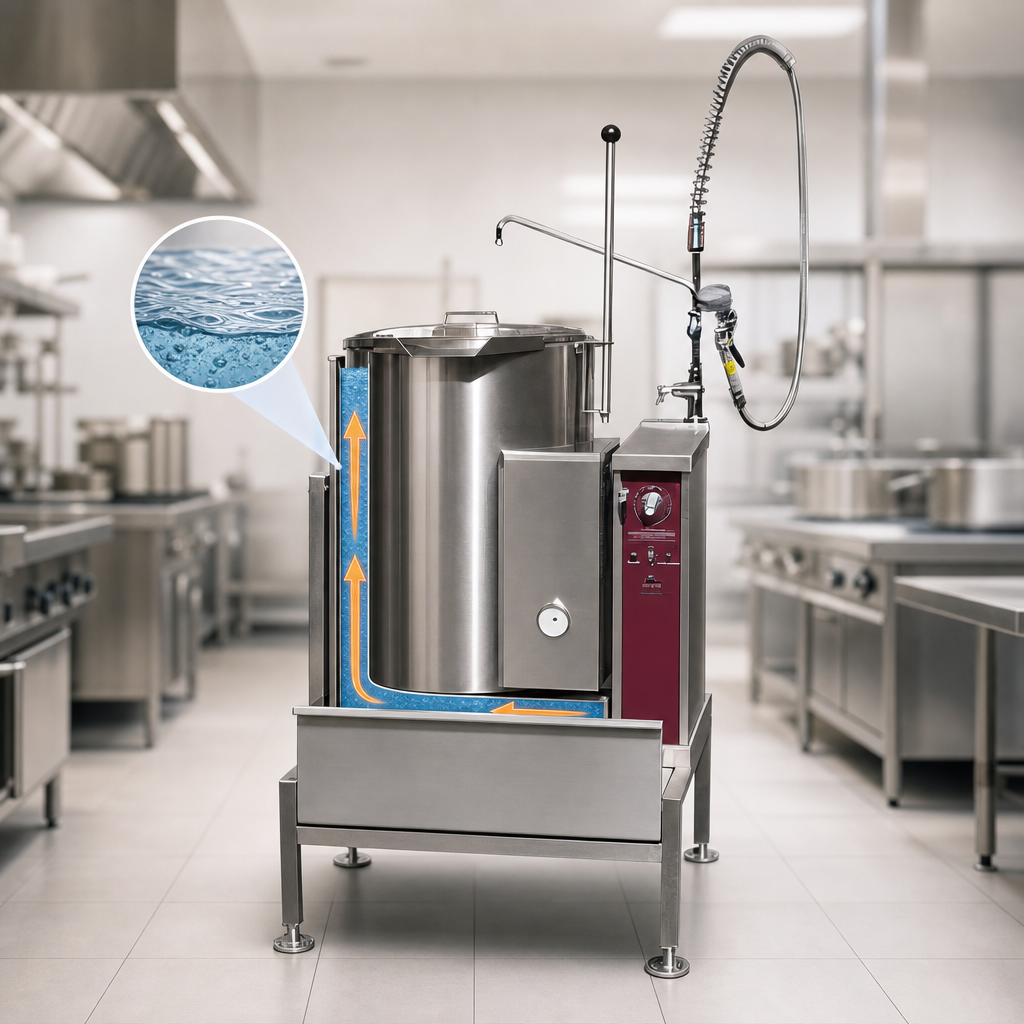

- Self-generating closed-steam system eliminates costly boiler hook-ups.

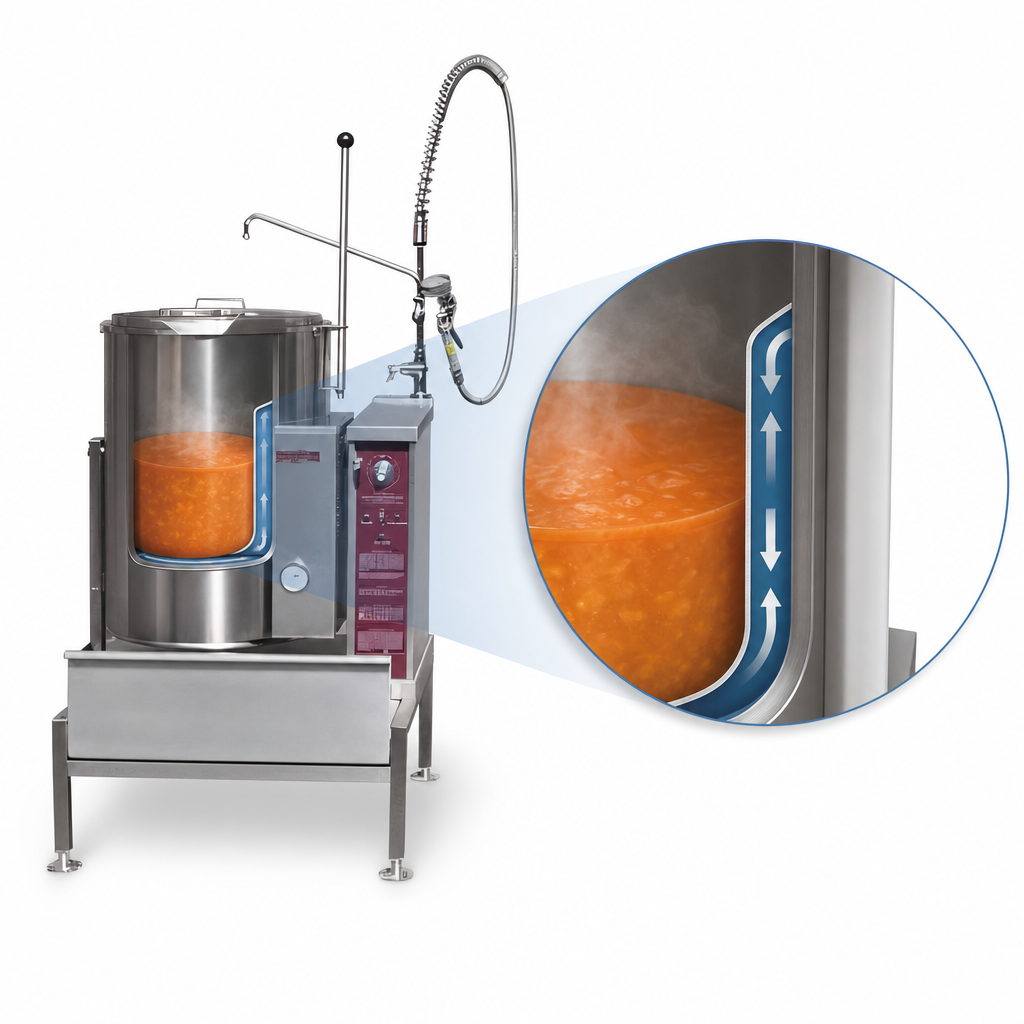

- 2/3 steam jacket surrounds lower kettle for rapid, uniform heating.
- 316 SS kettle liner resists salt & acidic recipes; 304 SS exterior with #4 satin finish keeps its shine.
- Solid-state thermostat holds setpoints from 150 °F to 285 °F (66 – 140 °C).
- 43,000 BTU (12.6 kW) burner with electronic ignition—fast starts, no pilot waste.
- Low-water cut-off, indicator light & sight glass safeguard the jacket.
- Integrated pressure gauge and 50 PSI safety relief valve for worry-free operation.
- “Clean-Lock” tilt holds kettle upright or 105° for hands-free wash-down.
- Right-side control console with power switch, temp & ignition status lights.
- Four stainless tubular legs with flanged feet for secure, code-compliant anchoring.
- Certified: CSA Star, CSA Flame, NSF, ASME National Board Registered.
Technical Specifications
| Capacity | 12 gal / 46 L |
|---|---|
| Temperature Range | 150 °F – 285 °F (66 °C – 140 °C) |
| Operating Pressure | 50 PSI (345 kPa) |
| Heat Source | Natural or LP gas, 43,000 BTU/hr (12.6 kW) |
| Gas Connection | ¾" NPT (rear) |
| Electrical | 120 VAC, 1-ph, 50/60 Hz, 2 A (8 ft cord & 3-prong plug) |
| Liner / Exterior | 316 SS liner / 304 SS exterior |
| Shipping Weight | 255 lb (116 kg) |
| Clearances | 0" sides, 6" (152 mm) rear |
Dimensions shown on spec drawing; verify space and service connections before ordering.
Popular Options & Accessories
- Etched gallon or litre markings
- Lift-off cover (C-12G)
- Tilting kettle strainer (TKS-12G)
- Stainless steel basket (SSB-12)
- Single or dual pantry faucets
- Stand with pull-out drawer & drain (SD-30-12G)
Commercial installation required. Unit must be anchored to a non-combustible floor and connected by
licensed professionals in accordance with local gas, electrical and ventilation codes.
Features & Specs
Features & Specs
Manufacturer
Crown (Middleby)
Certifications
NSF, CSA Star, CSA Flame
Height
55.75in
Width
30.0in
Depth
26.0in
Shipping Weight
255.0lbs
Kettle Jacket
partial jacket
Kettle Liner
316 stainless steel
Capacity
5 - 15 gallon
Width
28 - 41 inches
Specifications
Tiliting Kettle, gas, 12 gallon capacity, 2/3 jacket, solid state thermostat, 150° to 285°F temperature range, electronic ignition, low water cut-off & indicator, pressure gauge, safety relief valve, support console on right, 316 stainless steel liner, 304 stainless steel exterior, 50 PSI, 43,000 BTU, 12.6kW/hr, CSA Star, CSA Flame, NSF
