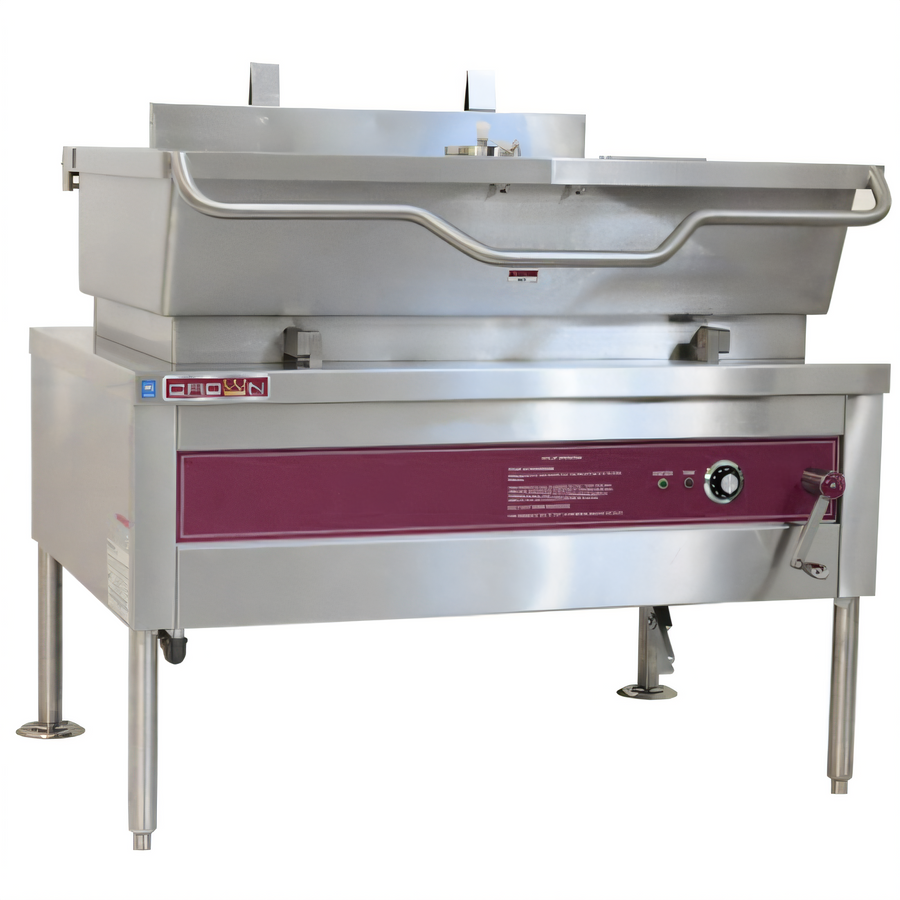

ES-40 Electric Tilting Skillet – 40 gal / 18 kW

Crown Steam Group · cCSAus & NSF Certified

Replace multiple pieces of cooking equipment with one powerhouse. The Crown ES-40 delivers 40 gallons (152 L) of evenly-heated cooking surface that braises, sautés, steams, grills, holds and more – then tilts forward for a safe, fast pour-off.

Why you’ll love it

  • True one-person tilt – manual gearbox with counter-balanced design lets you tip up to 40 gal of product smoothly and precisely.
  • Even heating – 18 kW incoloy elements cast into a 1-3/8" (35 mm) aluminum plate distribute heat edge-to-edge.
  • Spring-assisted lid – full-width handle, no-drip condensate guide and adjustable vent keep steam under control.
  • Etched capacity marks – permanent U.S. gallon graduations speed up filling, batching & HACCP recording.
  • Removable lip strainer – pour off liquid while holding back product for stocks, sauces or grease separation.
  • All-stainless, open-frame base – 10-ga. 304 pan, 1-5/8" welded tube frame and flanged adjustable feet stand up to daily wash-down.
  • Wide temperature range – thermostat OFF / 160 °F–445 °F (71 °C–229 °C) with high-limit & tip-over safety switch.

At-a-glance specs

Capacity 40 gal | 152 L  (±600 portions*)
Heat source Electric, 18 kW
Voltage options 208, 220, 240, 380/220, 415/240, 480, 600 V (3 ph); 208/220/240 V (1 ph)
Amperage (3 Ø @ 208 V) 50.0 A
Thermostat range 160 °F–445 °F / 71 °C–229 °C
Interior pan 10-ga. 304 SS, polished & coved corners
Exterior dimensions* W 45.6" × D 43.5" × H 41.6"
Shipping weight 710 lb | 322 kg
Certifications cCSAus, NSF

*See factory drawing for complete dimensional details.

Popular factory-installed options

  • 2" or 3" draw-off valve with perforated strainer (TVT-2 / TVT-3)
  • Single or double pantry faucet with 60" pot-filler spout
  • Sliding drain pan (model S-SDP-2)
  • Steam pan insert set (SPI-40)
  • Correctional package for high-security installations

Options ship installed and tested with the skillet – add them above before checkout.

Order limit: This heavy-duty unit ships LTL on a skid. A maximum of 2 skillets per online order is allowed. For larger projects, please contact our sales team.

One piece of equipment – endless applications

  • Braise short ribs, carnitas & pulled pork directly on the pan surface
  • Sear then simmer sauces, soups & chili in the same vessel
  • Grill breakfast items – the 7.5 ft² surface rivals a flattop
  • Handle high-volume frying of onions, peppers, rice or pasta
  • Use as a bain-marie or holding station at low set-points

*Portion estimate based on 10 oz serving size.

Intended for commercial use only. Installation must conform to local electrical codes and be performed by a qualified electrician.

Overall Dimensions:

48.0"W x 41.63"D x 40.0"H

Product Weight:

710.0 lb
Manufacturer Crown (Middleby)
Certifications ["NSF", "cCSAus"]
Height 40.0in
Width 48.0in
Depth 41.63in
Shipping Weight 710.0lbs
Base open frame
Capacity 40 - 49 gal
Tilt manual tilt
Specifications Tilting Skillet, electric, 40 gallon capacity, manual tilt, spring assisted cover, removable lip strainer, etched interior markings, stainless steel construction, open frame, adjustable flanged feet, 18.0kW, cCSAus, NSF (maximum quantity = 2 per order)
