Crown (Middleby) ES-30 Braising Pans & Tilt Skillets
Description

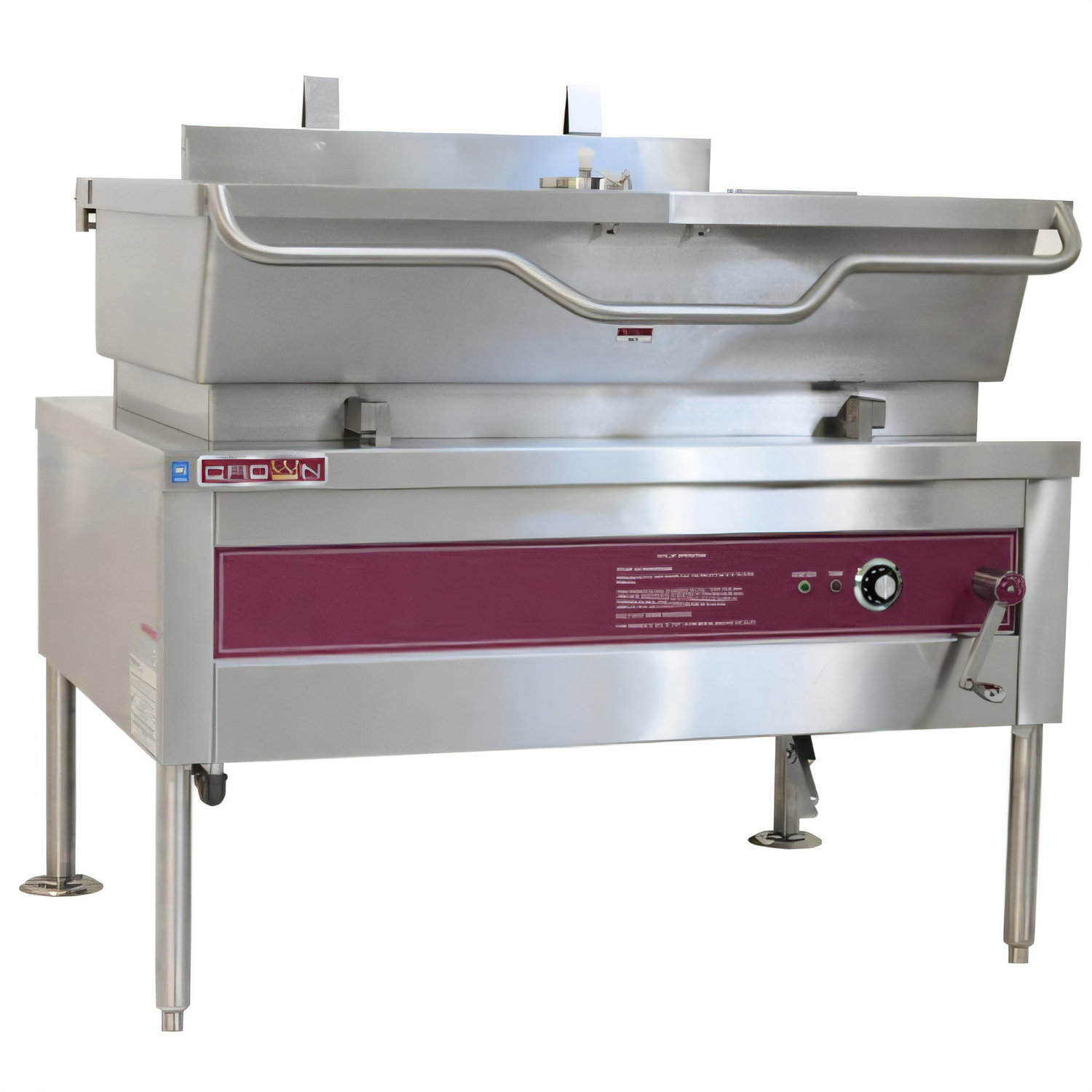

Crown ES-30 30 Gallon Electric Tilting Skillet – Manual Tilt
12 kW | Stainless Steel | cCSAus & NSF CertifiedBring the power of a braising pan, griddle, kettle and steamer to a single footprint. The Crown ES-30 tilting skillet is built for high-volume kitchens that demand reliability, precise temperature control and effortless clean-up shift after shift.
Key Features
- 30 gal (114 L) batch capacity—perfect for sauces, stews, soups, browning & shallow-fry work.
- 10 ga 304 stainless-steel pan with polished interior & etched gallon markings for quick, repeatable measuring.
- 1 3/8" (35 mm) aluminum heat plate with embedded electric elements for even heat distribution—no hot spots.

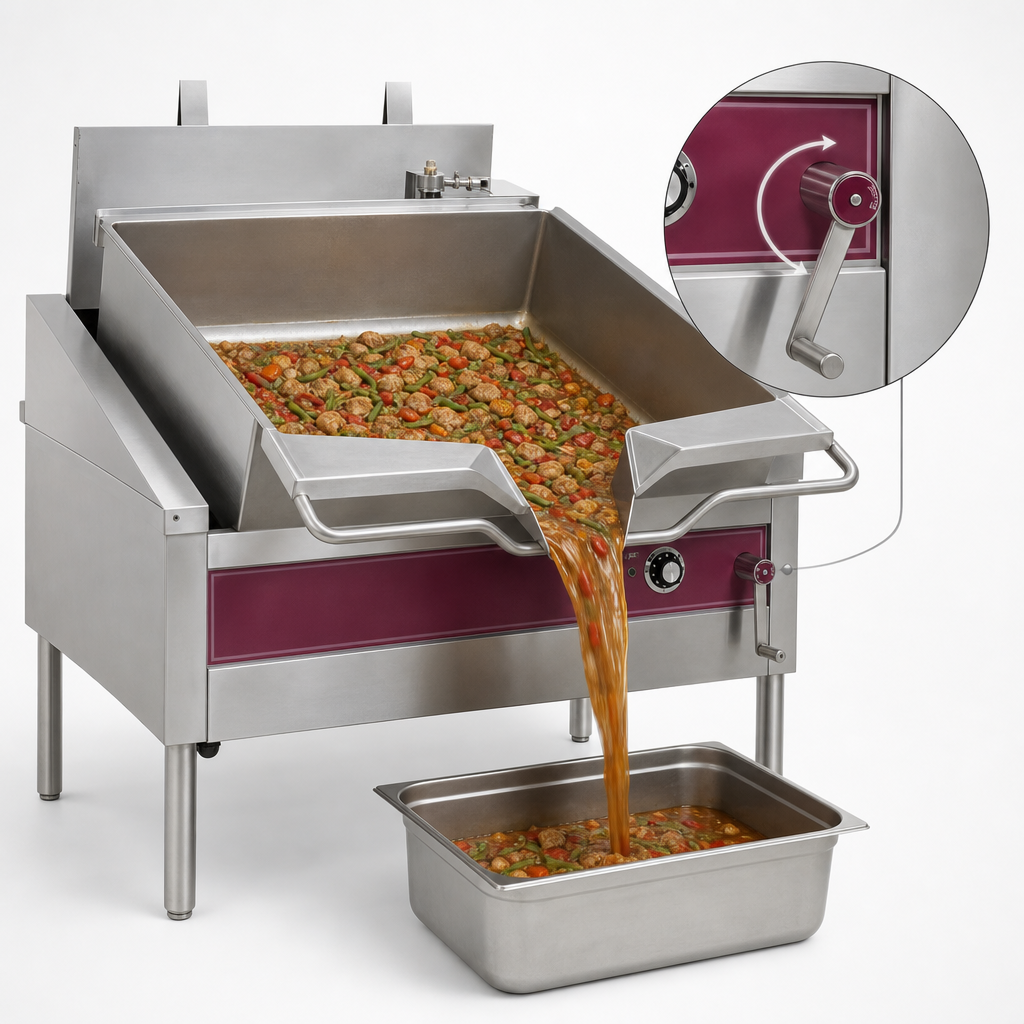

- Manual crank tilt with self-contained, permanently lubricated gearbox; elements shut off automatically when pan is tilted >5°.

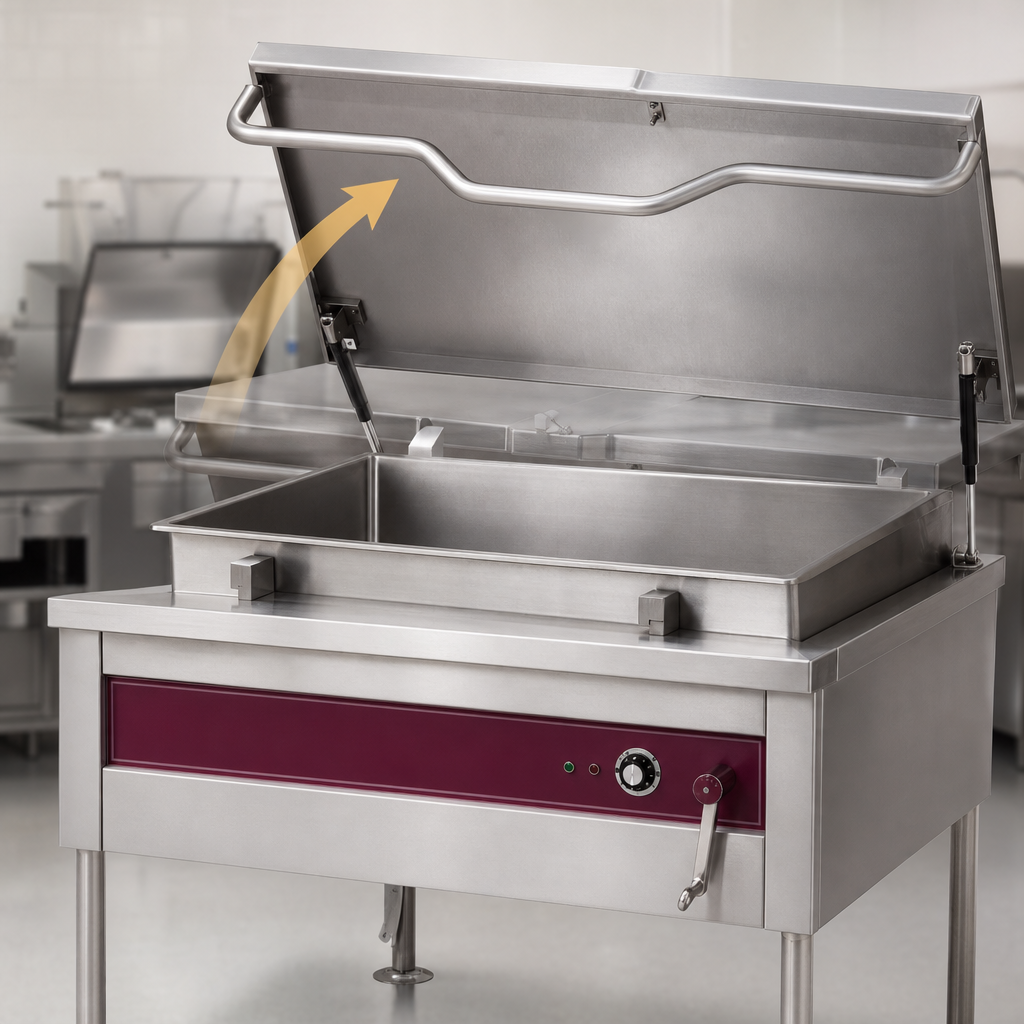

- Spring-assisted one-piece stainless lid with full-width handle, vent port and no-drip condensate guide.
- Removable pour-lip strainer keeps solids in the pan while draining liquids.
- Thermostat range: 160 – 445 °F (71 – 229 °C) with indicator light & 536 °F (280 °C) high-limit safety.
- NEMA-2 splash-proof control enclosure; red “elements on” pilot light.
- Heavy-duty open frame: all-welded 1 5/8" stainless tubing with adjustable flanged feet for secure floor mounting.
- Third-party tested—cCSAus & NSF listed for worry-free health & safety inspections.
Specifications
| Model | ES-30 |
|---|---|
| Capacity | 30 gal / 114 L |
| Heating | Electric, 12 kW cast-in elements |
| Temperature Range | 160 – 445 °F (71 – 229 °C) |
| Pan Material | 10 ga 304 SS, polished interior, coved corners |
| Interior Markings | Etched U.S. gallon graduations |
| Cover | Spring-assisted stainless lid with vent & condensate guide |
| Tilt Mechanism | Manual crank, self-contained gearbox |
| Overall Dimensions (W × D × H) | 36" × 33.63" × 41.13" (914 × 854 × 1045 mm) |
| Shipping Weight | 545 lb / 247 kg |
| Electrical | 208, 220 or 240 V; 1- or 3-phase; 57.7 A – 28.9 A per line |
| Certifications | cCSAus, NSF |
Popular Accessories (sold separately)
- 2" or 3" draw-off valve with strainer
- Sliding drain pan (model S-SDP-2)
- Single or double pantry faucet with 60" pot filler
- Steam pan inserts and pan carriers
Contact us to add any of these accessories to your order.
Order Limit: Maximum of 2 units per order.
Intended for commercial use only.
